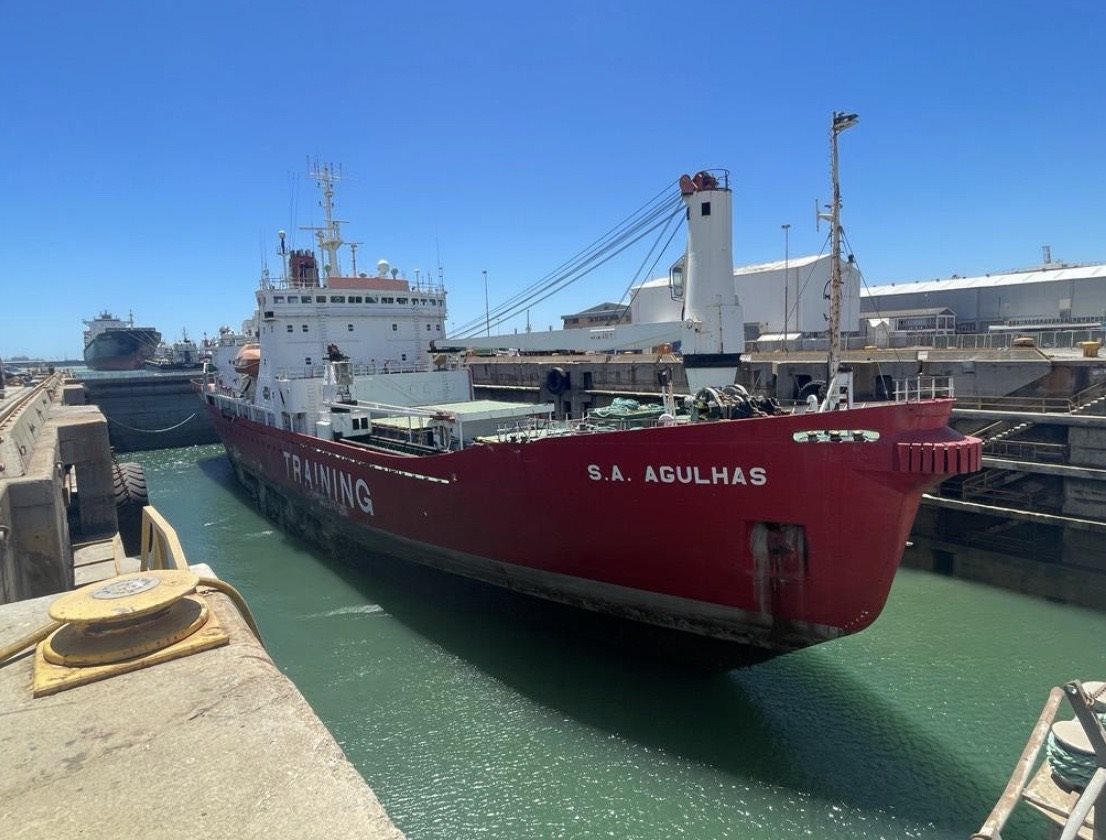

Steel Hulled, Iced Strengthened Antarctic Training / Oceanographic Research Vessel For Charter S.A Agulhas

Steel Hulled, Iced Strengthened Antarctic Training / Oceanographic Research Vessel For Charter

Listing ID - 4879
Description	Steel Hulled, Iced Strengthened Antarctic Training / Oceanographic Research Vessel For Charter
Date Launched	1979
Length	111.95m (367ft 3.50in)
Beam	18.05m (59ft 2.63in)
Draft	6.045m (19ft 10in)
Location	South Africa
Broker	Geoff Fraser geoff.fraser@seaboats.net +64 21 61 222 5
View As PDF

Type: Steel Hulled, Iced strengthened Antarctic Training / Oceanographic Research Vessel

Class: Bureau Veritas

Status: DD/SS Passed.

Built:1979

Builders: Mitsubishi Heavy Industries, Shimonoseki, Japan 977

Gross tonnage : 6122.96 T

Nett tonnage: 1836.88 T

Displacement: 7107 at moulded summer draft

Length overall: 111.95 m

Breath: 18.05 m

Moulded draft: 6.045 m

Power: 4476 kW

Cruising speed: 10.0 knots at 13m3 per day

Maximum speed: 12.2 knots (85% MCR) at 19 m3 per day

Range: 15 000 nautical miles

Endurance: 90 days

Complement: 138 comprising 44 crew and 94 passengers and students Owner/ Manager: Under Transfer to New Owners.

ACCOMMODATION

All officers and crew are housed in a single quarter.

The vessel is air-conditioned as well as heated for Antarctic conditions. Passenger accommodation: 2 single berth cabins, five double berth cabins, 15 four berth cabins and three two-berth/ four berth VIP cabins.

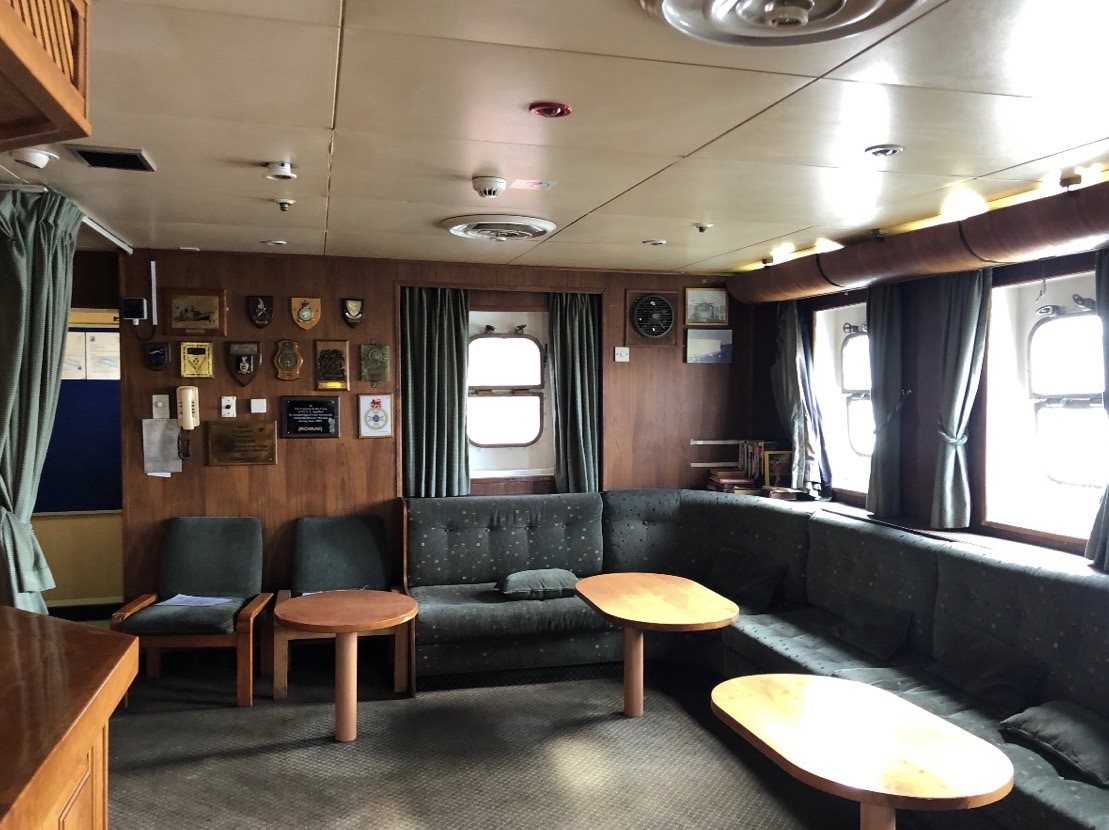

Upper and Lower Passenger Lounge Library

Video games are available.

Full laundry facilities.

Fresh water capacity is 213 tonnes, supplemented by two 27 tonnes/ day fresh water generators at sea.

Onboard hospital with surgery facilities, a doctor may be carried (if capacity is 100 or more onboard.

Small gymnasium.

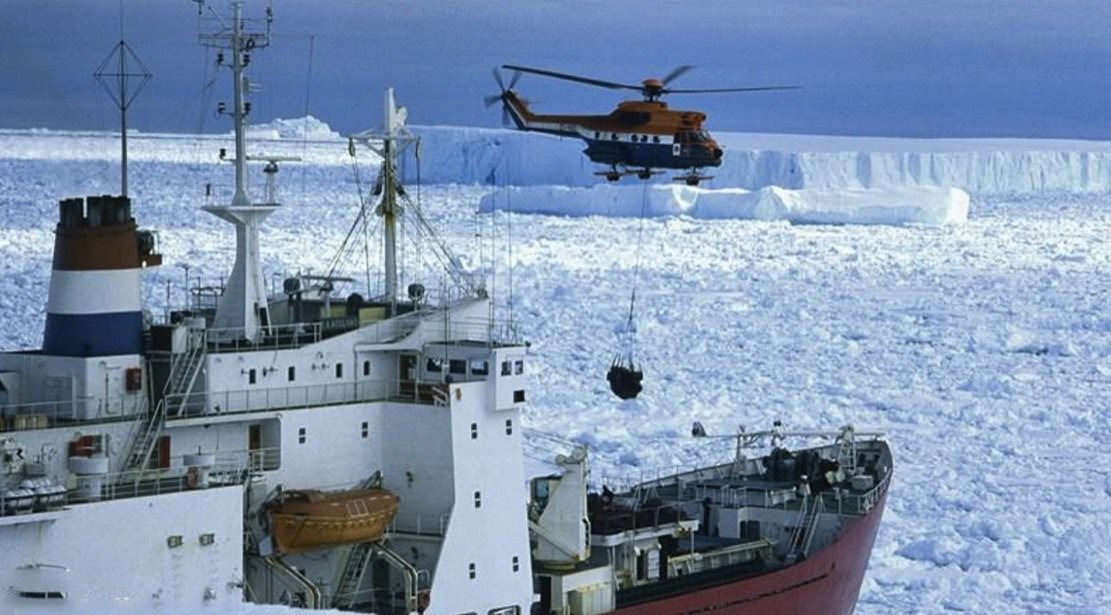

HELICOPTER SUPPORT & FACILITIES

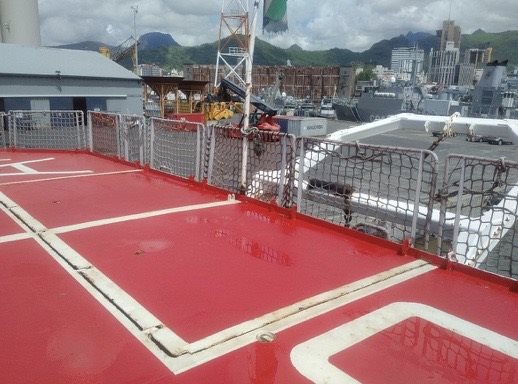

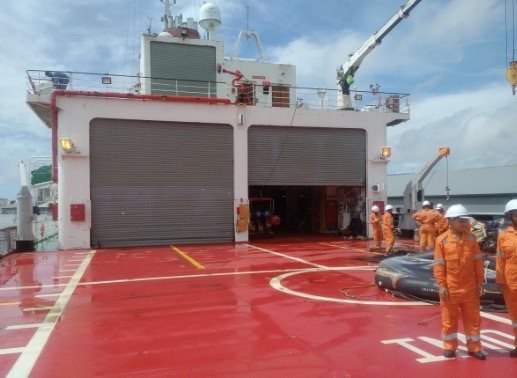

Enclosed hangar facilities for two PUMA-size helicopters. Spare landing deck for a helicopter on forward deck house. Ship-controlled approach system for helicopter operations.

88t Avcat bunker capacity.

Radar and GPS receivers fitted.

Radios: 1 HF SSB transceiver.

2 VHF (AM) aeronautical transceivers.

1 VHF (FM) marine band transceiver.

X - Band transponders fitted to ship and aircraft.

LABORATORIES

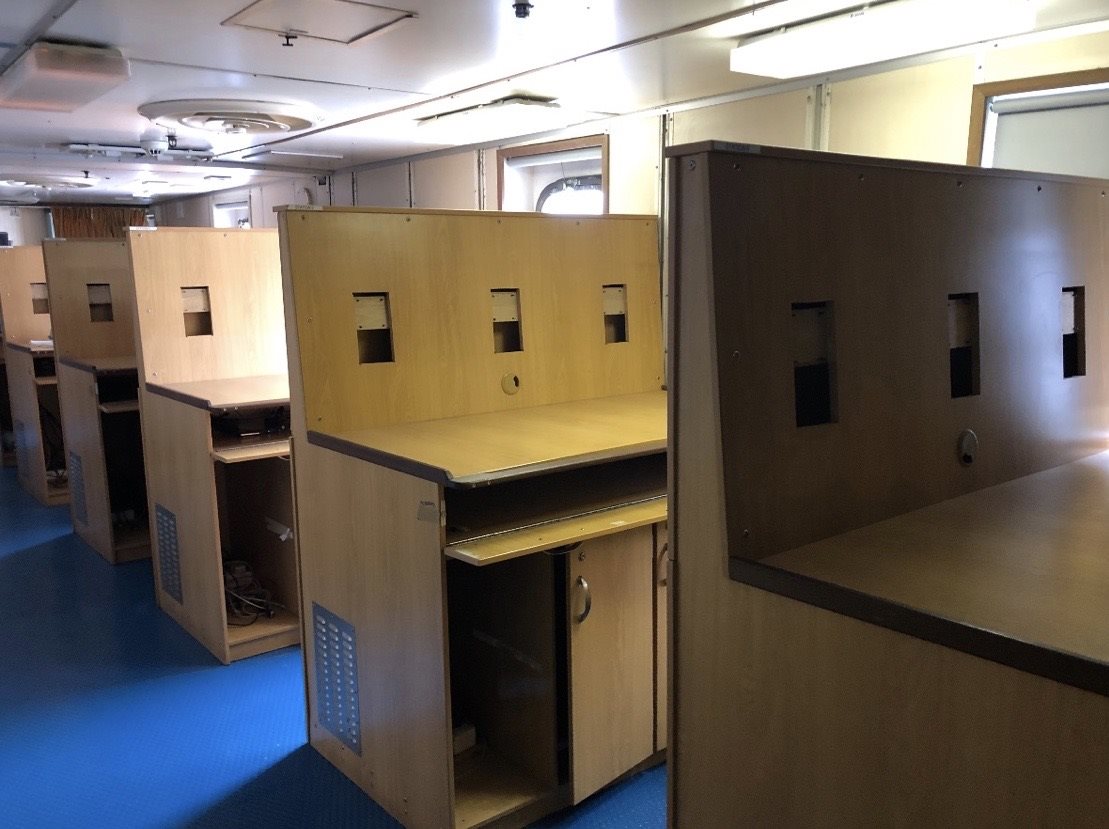

Bridge Deck Training Bridge Class Room (12 person) laboratories on 2nd Deck Meteorological laboratory complex / Training Office G Lab – Spare laboratory/store room.Main Deck, Forward Group Wet hydrological laboratory Lab Space Main Deck, Aft Group: C14 laboratory Wet laboratory Semi-wet laboratory Class Room (12 persons.

SCIENTIFIC WORKING AREAS

Helicopter flight deck and hangar, when available. Enclosed poop deck space of 130 square metres with a 20 m2 wooden working deck served by a hydraulic A-frame with 5 and 12 T-loading points, vertical sliding stern gate and Helideck hinged section.

ONBOARD SCIENTIFIC SYSTEMS

Winch counter for CTD CTD

OTHER FEATURES

Roll damping tank

Ice-breaking heeling tank / pump system

Closed circuit television available to bridge from the flight deck, hanger and scientific working Area on the poop deck

One 2 x 40 hp 10-man SOLAS rescue boat

One 2 x 30 hp 6-man inflatable SOLAS work boat

CO2 flooding system for machinery spaces and cargo holds Automatic water sprinkler system for accommodation spaces CO2 smothering system for Avcat pump/storage space

Foam monitor cannons for flight deck and cargo deck helicopter operations Remote control fire retarding doors for accommodation space

Cross-flooding system for damaged stability

CAPAC impressed current cathodic protection system

CARGO CAPACITIES AND CARGO HANDLING EQUIPMENT

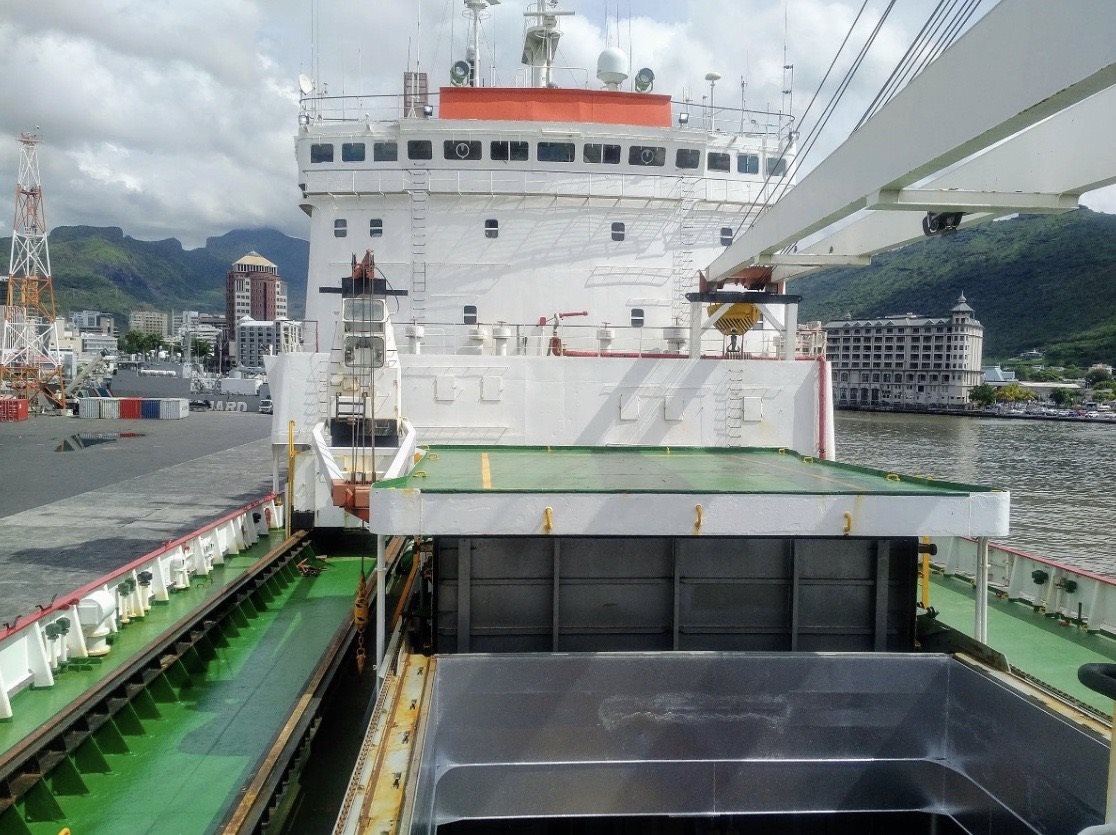

Three cargo hatches, No’s 3 and 2 with tween deck and lower hold and No. 1 with upper and lower tween deck and lower hold.

Total dry cargo capacity: Bale: 3687 m3

Grain: 4072 m3

Refrigerated space:- : 111 m3

Cargo oil capacity:- : 491 m3/419 t

Julius Wolff and Co.'s 5-ton travelling deck crane is servicing all three hatches.

O & K 25 ton at 17 m luffing/slewing crane situated on the forecastle head

1.5-ton telescopic stores crane fitted on #2 deck starboard side aft servicing the flight deck.

Breakdown of 20’ container capacity. This information is based on physical measurements and capacities according to previous voyages. Please bear in mind other factors to consider when loading;

• Actual loading condition of containers (weights)

• Loaded condition of the vessel before taking on containers (These two factors will finally dictate the amount of containers the vessel can load)

• Movement of containers under the wings of cargo holds can only be done manually

Total: 41

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
