NEW BUILD - 80m LCT

Listing ID - 5585
Description	NEW BUILD - 80m LCT
Date Launched	Built to Order
Length	79.80m (261ft 9.7in)
Beam	16.80m (55ft 1.4in)
Draft	4.90m (16ft 0.9in)
Note	Engine: 2X KTA50M2 1600 HP
Location	Malaysia
Broker	Ivan Colaco ivan.colaco@seaboatsbrokers.com +61 401 695 814
Price	POA
View As PDF

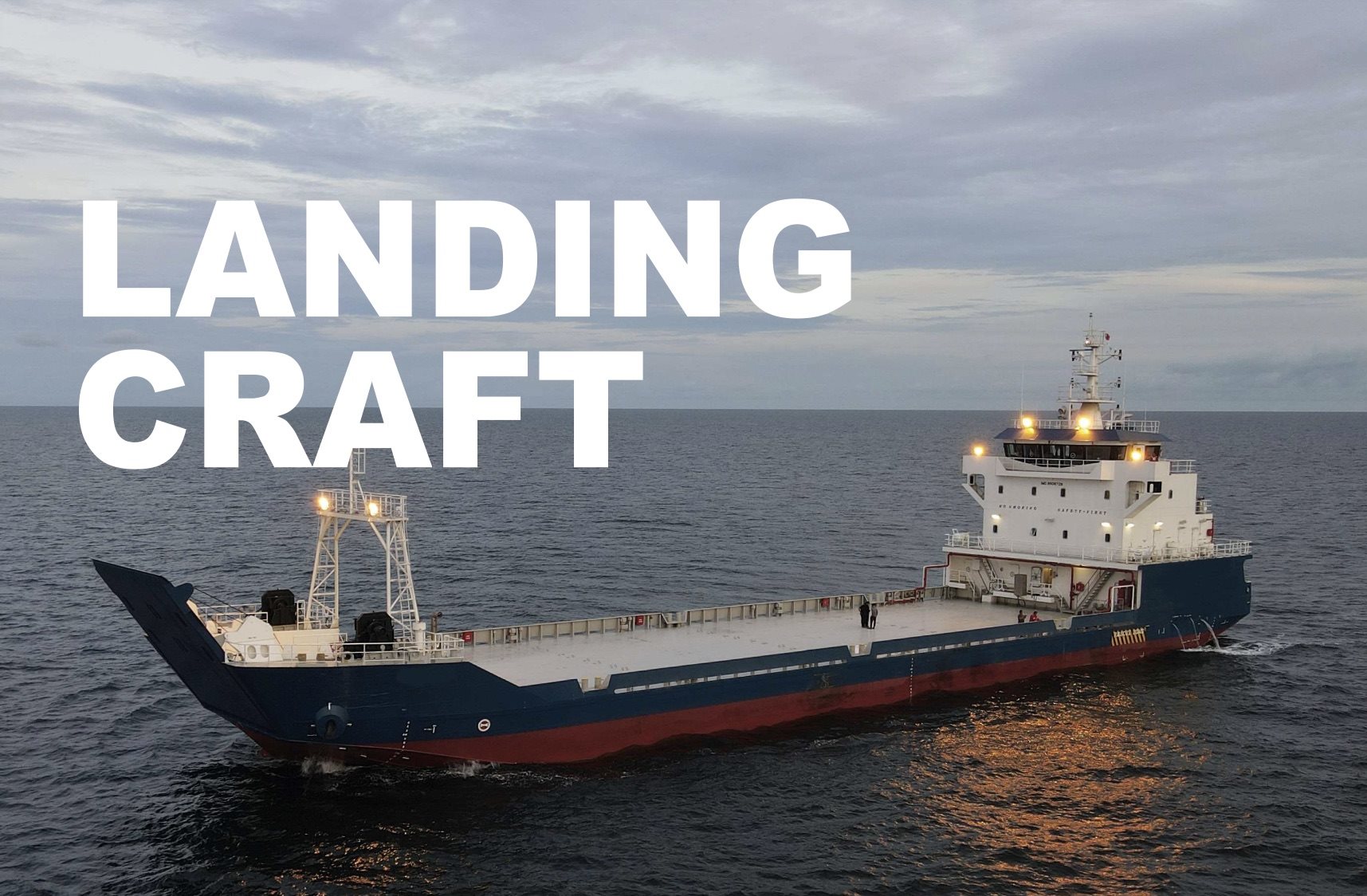

Basic Function: Landing Craft

Classification: Bureau Veritas

Notation: BVI HULL MACH, Deck ship, Unrestricted navigation, Special Purpose Ship MLC 2006

Descriptive Note: Container Vessel, General cargo for shallow operation

Gross Tonnage: 1998 Ton

DIMENSIONS

Length O.A: 79.80m

Length B.P: 74.90m

Breath Mld: 16.80m

Depth Mld: 4.90m

Max Draft: 3.60m

Endurance: Approx. 30 days; Range Approx 4000; Nautical Miles at 10.5 Knots service speed

Deadweight: Est. 2335.37 T

CARGO CAPACITY

Cargo Fuel Oil: 964.3 m³

Long Range Fuel Oil: 723.2 m³

Cargo Fresh Water: 368.6 m³

Deck Strength: Fr 21-28 7.5 T/M² / Fr 28 onward 15 T/M²

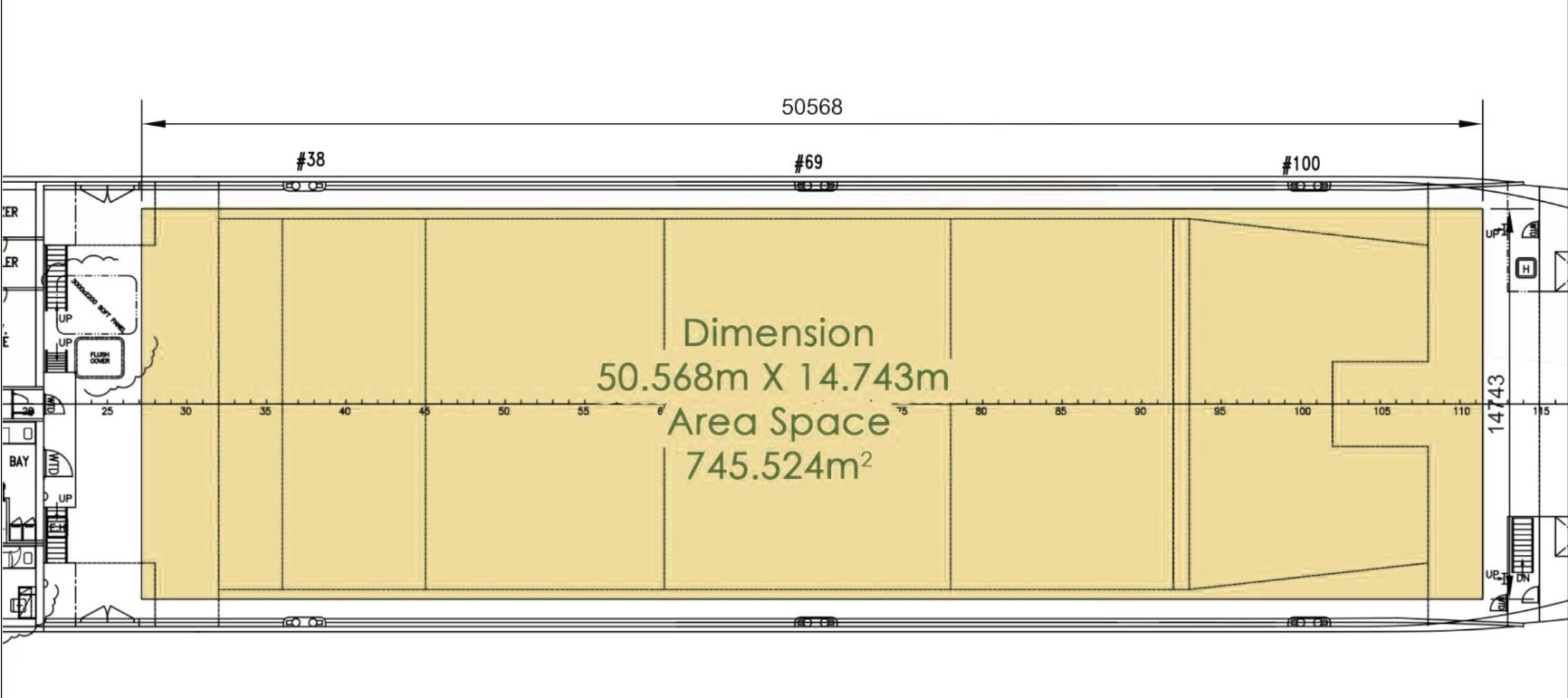

Open Deck Space: Est. 900 m²

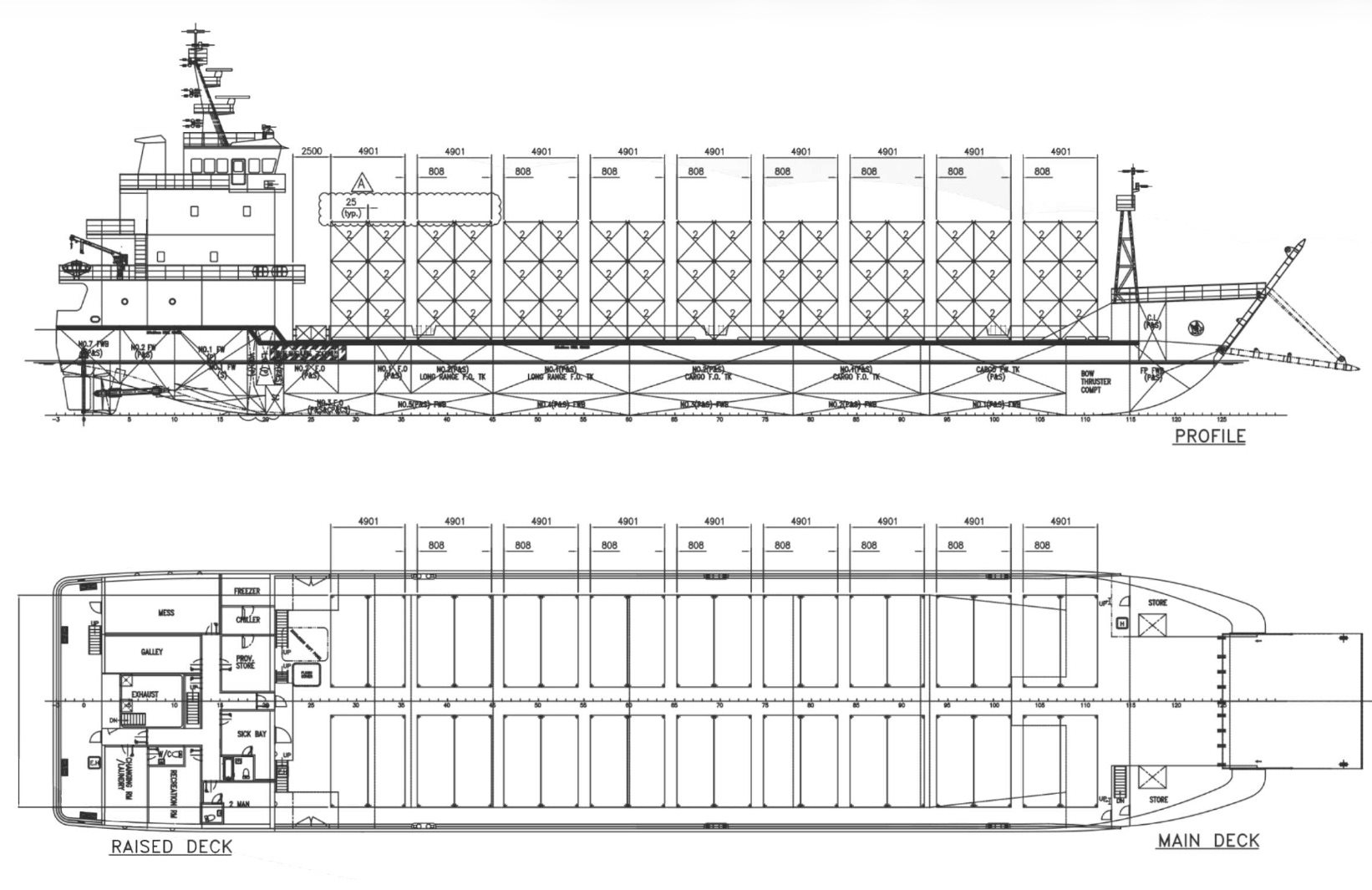

Container Arrangement (Optional) Vertical:

Option 1 - 144 TEU 20ft

Option 2 - 72 TEU 40ft

Horizontal: 108 TEU 20ft

CARGO DISCHARGE RATE

Fuel Oil: Dia. 80, 100m³/hr, 75TH

TANK CAPACITY

Daily Fuel Oil: 20.4 m³

Fuel Oil Tank: 274.0 m³

Fresh Water: 218.1 m³

Fresh Water Ballast: 1125.1 m³

PERFORMANCE

Free Running Speed: 11.5 Knots

Fuel Consumption at Max Speed: TBA

Fuel Consumption at Service Speed: TBA

Fuel Consumption at Standby: TBA

PROPULSION SYSTEM

Main Engine: 2x KTA50M2 1600 HP @ 1800 RPM Electric Start, PT Elite Plus Panel with Gearbox WAF665L Ratio 5.950:1

Propellers: 2x FPP, Dia. 2200 x 1470 x 4 Blades x R/L x BAR 0.55 with Kort-Nozzle

Shafting System: 1x Oil Lubricate cooling system, with Wartsila stern tube seal and cast iron white metal lined bearing

Steering System: 1x 5 TM Hydraulic Steering System (Connecting Rode Type)

Bow Thruster Engine: 1x QSM11M 602 BHP @ 2300 RPM

Bow Thruster: 1x ZF TT 4000, L-Drive unit 449 kW @ 1576 RPM

AUXILIARY EQUIPMENT

Network: 415V, 50Hz

Marine Generator Engine: 2X CUMMINS QSB7-DM 150eKW

Harbour Generator + Emergency Genset: 1X 6BT5.9D(M) 80eKW

PUMP EQUIPMENT

F.O Transfer Pump: 1x 15m³/hr @ 25mTH

Long Range Fuel Oil Pump: 1x 100m³/hr @ 75mTH

Long Range Stripping Pump: 1x 30m³/hr @ 50mTH

Bilge/Ballast/Fire Pump: 1x 100m³/hr @ 50mTH

Bilge/G.S/Fire Pump: 1x 100m³/hr @ 50mTH

Emergency Bilge Pump: 1x 100m³/hr @ 50mTH

Emergency Fire Pump: 1x 40m³/hr @ 40mTH

Fresh Water Cargo Pump: 1x 100m³/hr @ 50mTH

Dirty Oil Pump: 1x 5m³/hr @ 40mTH

Air-Cond SW Cooling Pump: 1x 50m³/hr @ 30mTH

Chiller / Freezer S.W. Cooling Pump: 2x 25m³/hr @ 30mTH

Fresh Water Pressure Set: 1x 5m³/hr @ 40mTH

S.W. Pressure Set: 1x 5m³/hr @ 40mTH

Standby Pump for SW/FW Pressure Set: 1x 5m³/hr @ 40mTH

Hot Water Circulating Pump: 1x 3m³/hr @ 15mTH

EMR Package A/C S.W Cooling Pump: 1x 20m³/hr @ 20mTH

Sewage Pump: 1x 15m³/hr @ 20mTH

Sewage Treatment Plant: 1x 25 Person

Calorifier: 2x Joven 90 L

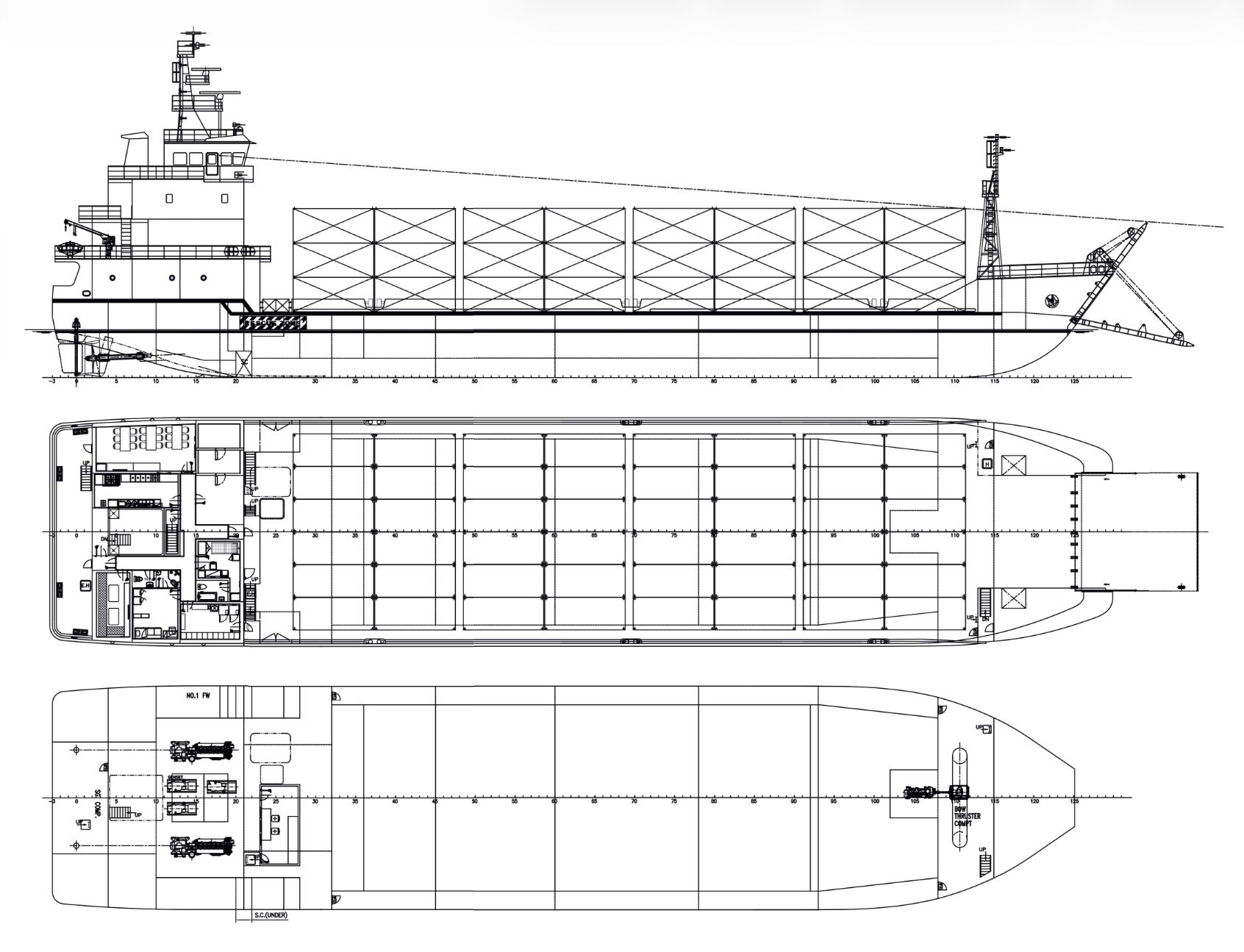

DECK LAYOUT

Hydraulic anchor Windlass/Ramp Door: 2x

Function: Anchor Windlass 12ton at 12m/min,Dia. 36mm U2 grade 50-ton Brake Holding

Function: Ramp Door 20ton at 9m/min, 1st layer Dia. 24mmx 100m 50-ton Brake Holding

RAMP SYSTEM

Door Dimension: 8.9m(W) x 9.2m(L) S.W.L 80T Per Msq

Loading Condition: Container Forklift

System Type: Electric Driven Hydraulic System with 8 roller sheave each side.

ACCOMMODATION

Berths: One (1) man Room x 2

(with attach toilet): Two (2) men Room x 8

Berths total: 18 Men

NAVIGATION & COMMUNICATION EQUIPMENT (A1+A2+A3)

GMDSS: 1x Furuno, RC-1800T

Inmarsat-C: 1x Furuno, Felcom-18

VHF Radiotelephone: 1x Furuno, FM-8900S

Radar Transponder (Sart): 2x MCMURDO S4

Navtex Receiver: 1x Furuno, NX 700 (Type B)

EPIRB :1x MCMURDO E-8

MF/HF Radiotelephones: 1x Furuno, FS-1575 SSB

VHF Handheld

Radiotelephones: 1x Furuno, FM-8900S

Walkie Talkie: 3x Samyung, STV-160

Echo Sounder: 1x Furuno, FE-800

Radar: 1x Furuno, FAR-2118

GPS: 1x Furuno, GP-170

AIS: 1x Furuno, FA170 -

SpeedLog: 1x Furuno, DS-85

BNWAS: 1x Furuno BR-500

Gyro Compass: 1x Simrad Model: RGC80/85

Autopilot System: 1x Simrad, AP-80

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
