NEW BUILD - 31.18m Superyacht L101


Listing ID - 3682


DescriptionNEW BUILD - 31.18m Superyacht L101
Date Launched
Built to Order
Length31.18m (102ft 529in)
Beam6.85m (7.15m) / 22ft 47in (23ft 45in)
Draft1.95m (6ft 39in)
Note95.00 T (209,430 Lbs)
LocationThailand
BrokerClive Bennett
clive.bennett@seaboatsbrokers.com
+64 27 494 9799
PricePOA
View As PDF

Ladenstein 101 - Main Characteristics
Model: Ladenstein 101
Builder: Ladenstein Shipyard Co. Ltd
Exterior Styling & Concept: Ing. Markus Ladenstein
Interior Designer: Ing. Markus Ladenstein
Length O. A.: 31.18m (102ft 529in)
Beam O. A. 6.85m (7.15m) 22ft 47in (23ft 45in)
Draft: 1.95m (6ft 39in)
Displacement Lightship: 95.00 T (209,430 Lbs)
Construction: GRP
Fuel Tank: 10,000 L + 3,000 L Long Range (2,642 Us Gallon + 792 Us Gallon Long Range)
Fresh Water Tank: 2,000 L (528 Us Gallon)
Black Water Tank: 600 L (158 Us Gallon)

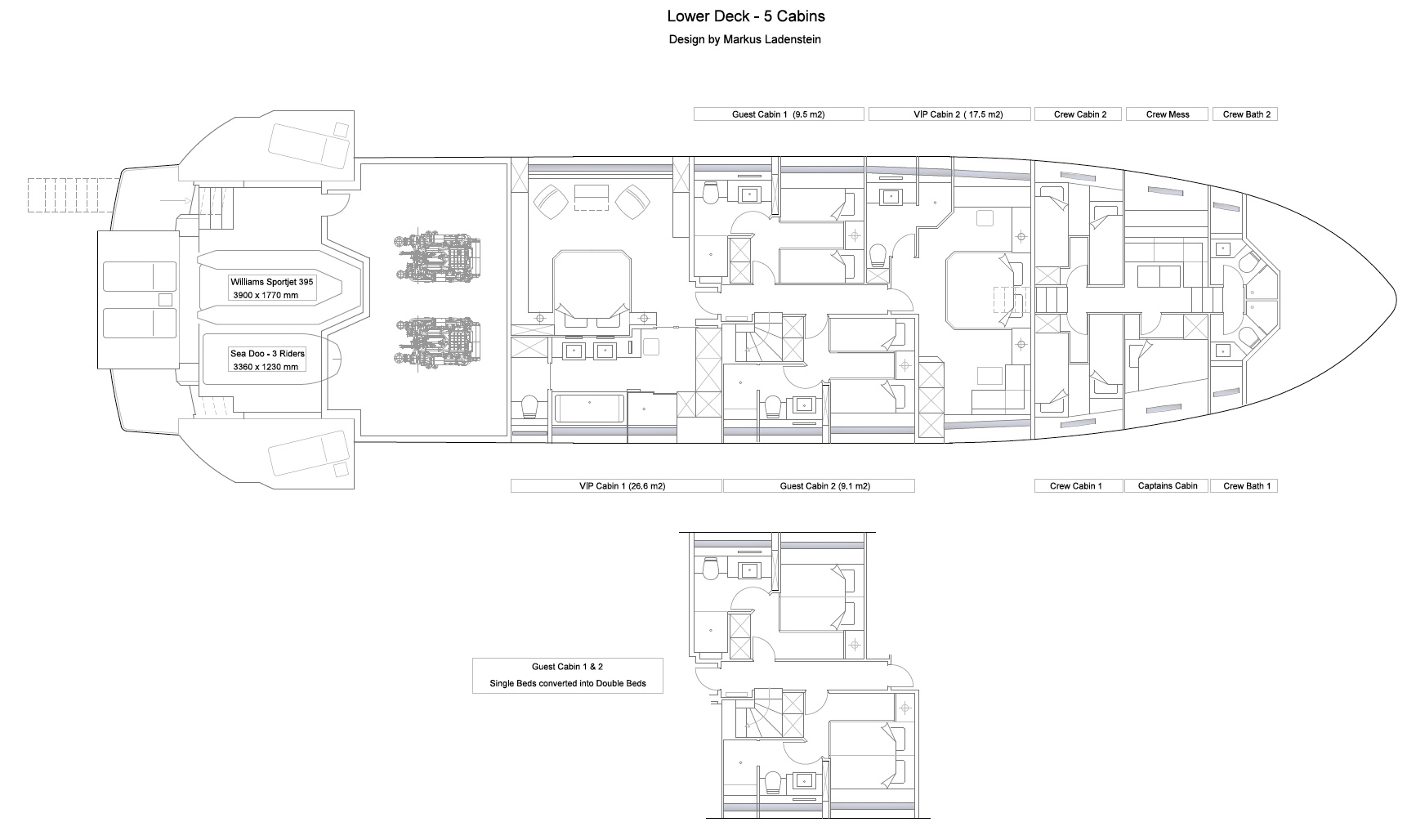

Owner and Guests Accommodation: 10 Persons In 5 Cabins
Crew Accommodation: 1 Captain and 4 Crew in 3 Cabins and 2 Bathrooms

Main Machinery and Performance
Main Engines: 2x CAT C32 Acert– 1925 Hp (2x MTU 16 V V2000 M96 – 2434 Hp)
Max Speed: 21 - 23 Kts (23 - 26 Kts)
Cruising Speed: 18 - 20 Kts (20 - 23 Kts)
Long Range Cruise: 10 Kts Up To 1,400 Nm
Generator Standard: 2x Genset 35 Kw

PRELIMINARY MAIN SPECIFICATION - 2021.08.19
DETAILS OF THE HULL
VINYLESTER RESIN is used for the first coats of the hand laid-up lamination below the water line. This kind of resin is extremely effective in preventing osmosis thanks to its chemical and physical characteristics.
Worldwide acknowledged quality Isophtalic resin is used for all the stages of the hand laid-up lamination process.
High quality PVC with outstanding mechanical peculiarities is used for hull sides, main deck and superstructure lamination with sandwich. Engine room and collision bulkheads are laminated in sandwich.
All other internal bulkheads are built using advanced composite materials.

MAIN ENGINES
2 X CAT C32 Acert – 1,925 mHP @ 2,300 rpm

GEARBOXES
2 x ZF 3060, reduction rate 3:1, installed on resilient mountings.

SHAFTS
Marinox 17, ∅ 110 mm, supported by brass stands and tubes.
Fluiten shaft seals, or equivalent

PROPELLERS
Number of blades: 5 Diameter: 1150 mm, Material: NiBrAl

STEERING RUDDERS
BCS (hydraulic steering) Rudders in Aisi 316
Rudder holes in brass and pole of the rudders in Marinox 17
Bar and yoke in carbon steel

FLAPS
BCS (hydraulic) Tab size: 980 X 600 mm.

BOW THRUSTER & STERN THRUSTER
Bow Thruster: Side Power Hydraulic thruster SH 550 (Thrust 550 kg)
Stern Thruster: Side Power Hydraulic thruster SH 420 (Thrust 420 kg)

MOORING
Two 125 Kg high holding power anchors in galvanized steel.
Two 100m stud less chains in galvanized steel (13mm of diameter)
Built-in stainless-steel bow protections (Anchor/chain)
Bow - Two anchor winches 4000 W – 230V/50-60HZ/three phase
Aft cockpit – Two mooring winches 2000 W - 230V/50-60HZ/three phase
Six cleats (two on aft, four on bow).
Six fairleads (two on aft, four on bow).
Two fairleads with integrated cleats amidships
Two pop-up cleats on the swim platform

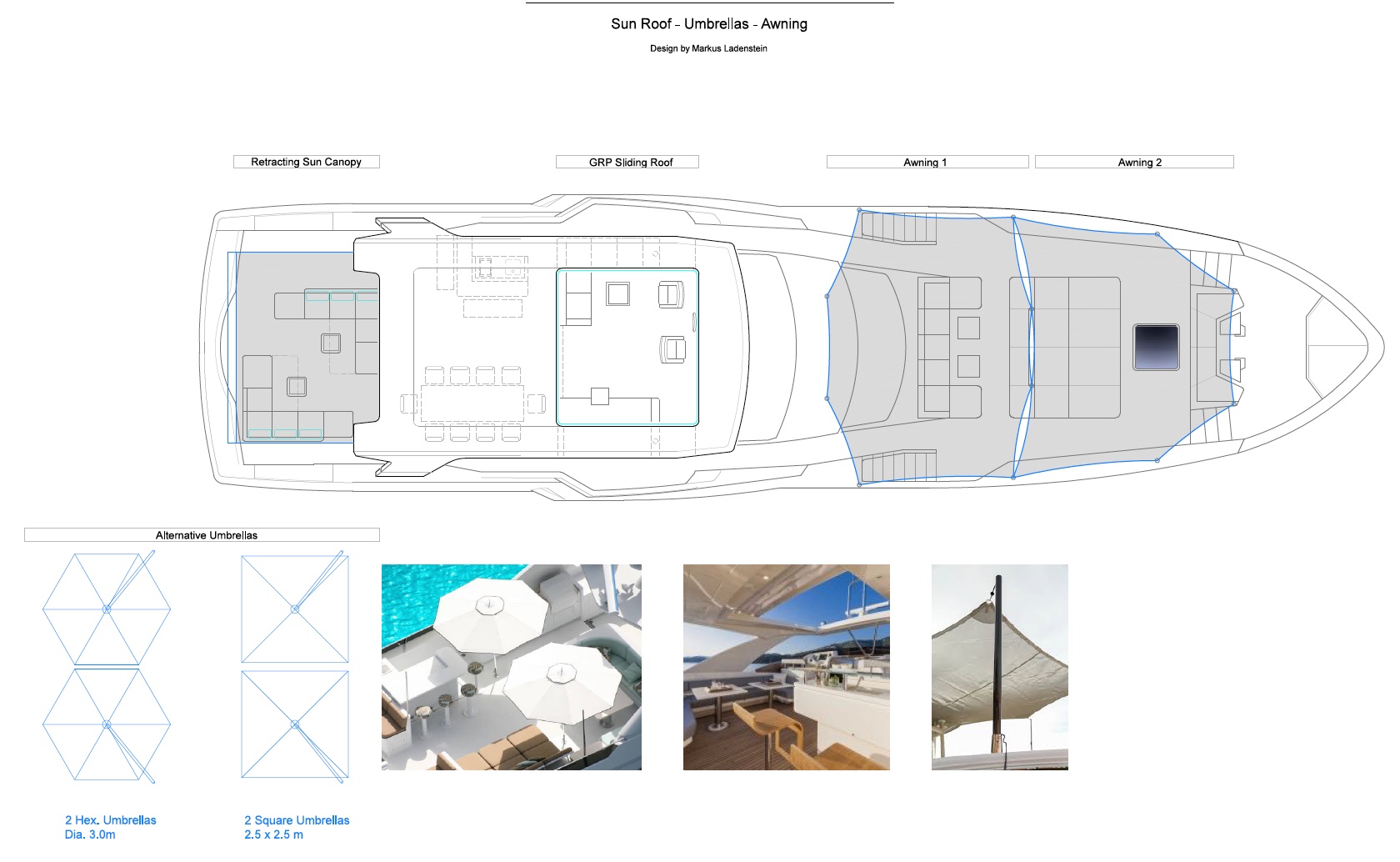

SUN ROOF
GRP Sun Roof with electric sliding hatch
GRP Mast (aft)

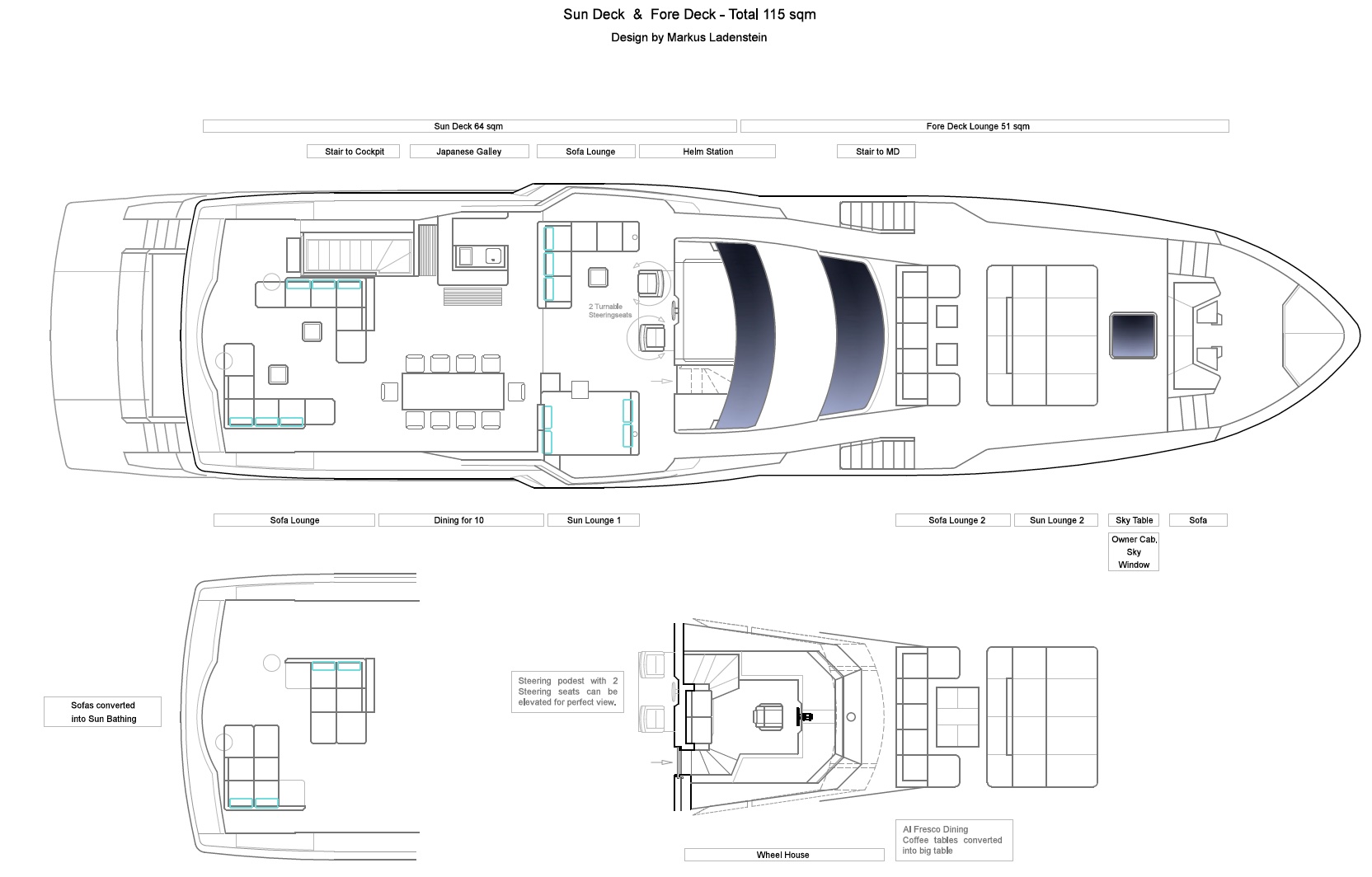

SUN DECK
Staircase to Wheelhouse with GRP sliding door
Direct access to Fore Deck Lounge (port and Starboard)
L-shaped sofa with cushions. (port forward)
Sun lounge with cushions and storage trays underneath (starboard forward)
Japanese Galley (port center) equipped with
- Sink & faucet
- Cooler/Freezer
- Japanese Teppanyaki grill
- Storage cabinets
- Trash bin
- 2 breakfast benches
Cabinet for storage (port forward behind L-shaped sofa)
Big Dining Table for 10 persons (starboard center)
Staircase to Cockpit with GRP hatch and stainless hand rails
Two L-shaped sofa with cushions. (aft port and starboard)
Storage (aft port and starboard)
Stainless hand rails/glass balustrade
Courtesy lights
Two Freeing ports with overflow system
Teak-laid decking (12 mm)
Covers for sofas, tables and console

SUN DECK - HELM STATION
Steering place windscreen
Helm Station:
- Big GRP instrument hatch (instrument console fully close able)
- Steering wheel
- Main engines controls
- Main engines and gear boxes gauges
- Navigational equipment (For details please refer to Electronics - Sun Deck Helm Station)
- Bow and stern thruster control
- Anchor winches control
- Navigation lights control
- Horn control
- Search light control
- Fire extinguisher pump control (chain wash)
- Maneuvering intercom
Steering platform with 2 Pilot seats (fully turn able)
Steering platform height adjustable
(a) 20 cm elevated electrically for perfect view (Operation mode)
(b) Flush with floor (Living mode)
Wing station (port and starboard) for easy maneuvering

FORE DECK
Direct accesses from Sun Deck (Port and Starboard)
Integrated staircase from Main Deck (Port and Starboard)
Sun lounge with cushions (center aft)
Two Sun lounges with cushions (Port and Starboard)
Center table
Sofa/Alfresco Dining Table (Forward)
Emergency escape hatch from Owner cabin
Teak-laid decking (12 mm)
Stainless hand rails
Courtesy lights
Covers for sun lounges
Chain locker with drainage.
Chain washer
Storage area for fenders integrated in the forward area of the chain locker
Fresh water connection.
Intercom
Cable controls for anchor winch and chain washer.
Lights in the mooring area.
Teak-laid decking (12 mm)
Drainage holes

WHEELHOUSE
Three window wipers for forward windscreen.
Black mesh covers for the wheelhouse forward/side windscreen windows
Sofa (middle aft)
Charts surface on starboard
Staircase to Sun Deck
Reading light
Lights and upholstery
Wheelhouse console equipped with:
- Main engines controls,
- Main engines and gear boxes gauges,
- Navigational equipment (For details please refer to Electronics Wheelhouse)
- Bow/Stern thruster controls.
- Intercom controls,
12” touch-screen monitoring system for:
220Vac – 24Vdc System: Window wipers, engine room fans, hydraulic steering
Navigation: Navigation lights, horn
Tanks: Fuel transfer pump, daily fuel tank level, storage fuel tank level,
Fresh water tank level, sewage/grey water pump, sewage/greywater tank
Bilge system: Bilge pump display and controls, main bilge pump control
220 Vac sources: on/off switch and overload alarm for generator 1,
on/off switch and overload alarm for generator 2, on/off switch for the shore power connection, gauges (tension, Amp, kW and
frequency) for diesel generators, gauges (tension, Amp, kW and frequency)
for shore power
24Vdc sources: gauges (tension, charging and discharging Amp) for service batteries,
gauge (tension) for main engines starter batteries, gauge (tension) for
generator starter batteries safety systems: fire alarm panel with smoke
detectors placed as follows: saloon, dining area, galley, wheelhouse house,
owner cabin, lower deck lobby, crew corridor, engine room.

MAIN DECK SIDES
Ladenstein logo on each side of superstructure
Stainless steel handrail on bulwark
Two fuel fillers, one on each side of the superstructure, inside adequate cabinet
Two fresh water intakes, one on each side of the superstructure, inside adequate cabinet
Watertight halogen lights on the ceiling
Courtesy lights
Windows in high thickness tempered glass bonded to the superstructure without metal frames
Two water mist separators (Munters) installed in way of the engine room ventilation air grids
Weathertight door on portside of the superstructure for direct access to the galley
Weathertight sliding doors on starboard and port side of the superstructure for direct access to the Main Deck Salon
Drainage holes
Teak-laid decking (12 mm)

TRANSOM
Hydraulic transom door with Teak laid flooring
Integrated garage designed to host tender and jet ski.
Launching and recovering system for tender in the garage
Structural staircases to access the swim platform
Stainless steel handrail on the external side of each staircase
Electro-hydraulic retractable gangway in stainless steel and teak on transom
Manual swim ladder in stainless steel and teak
Shore power connection and TV/telephone inlets placed inside cabinet on transom
Fresh water shore connection, shower, fresh water outlet inside cabinet on transom
Black water shore discharge system inside cabinet on transom.
Two pop-up cleats on the swim platform.
Teak-laid decking (12 mm)
Name of the yacht and port of registry in stainless steel letters on transom

BEACH CLUB
Optional: Tender
Storage for diving equipment
Jet Ski
Scuba compressor (Bauer or similar)

COCKPIT
Integrated staircase to Sun Deck,
Sofa transformable with moving backrest (a) Dining area (b) Sun Lounge
Dining table for 10 persons
6 folding chairs
Control panel for the gangway, garage door and the launching/recovering system
Salon door in tempered glass and stainless steel.
Two stainless steel gates to access the swim platform/Beach Club
Watertight halogen lights in the ceiling
Courtesy lights
Storage for fenders and robes
2 Fear leads
4 Cleats
2 Robe winches
Stainless-steel handrail/glass balustrade
Teak-laid decking (12 mm)
Covers for the settee and the table

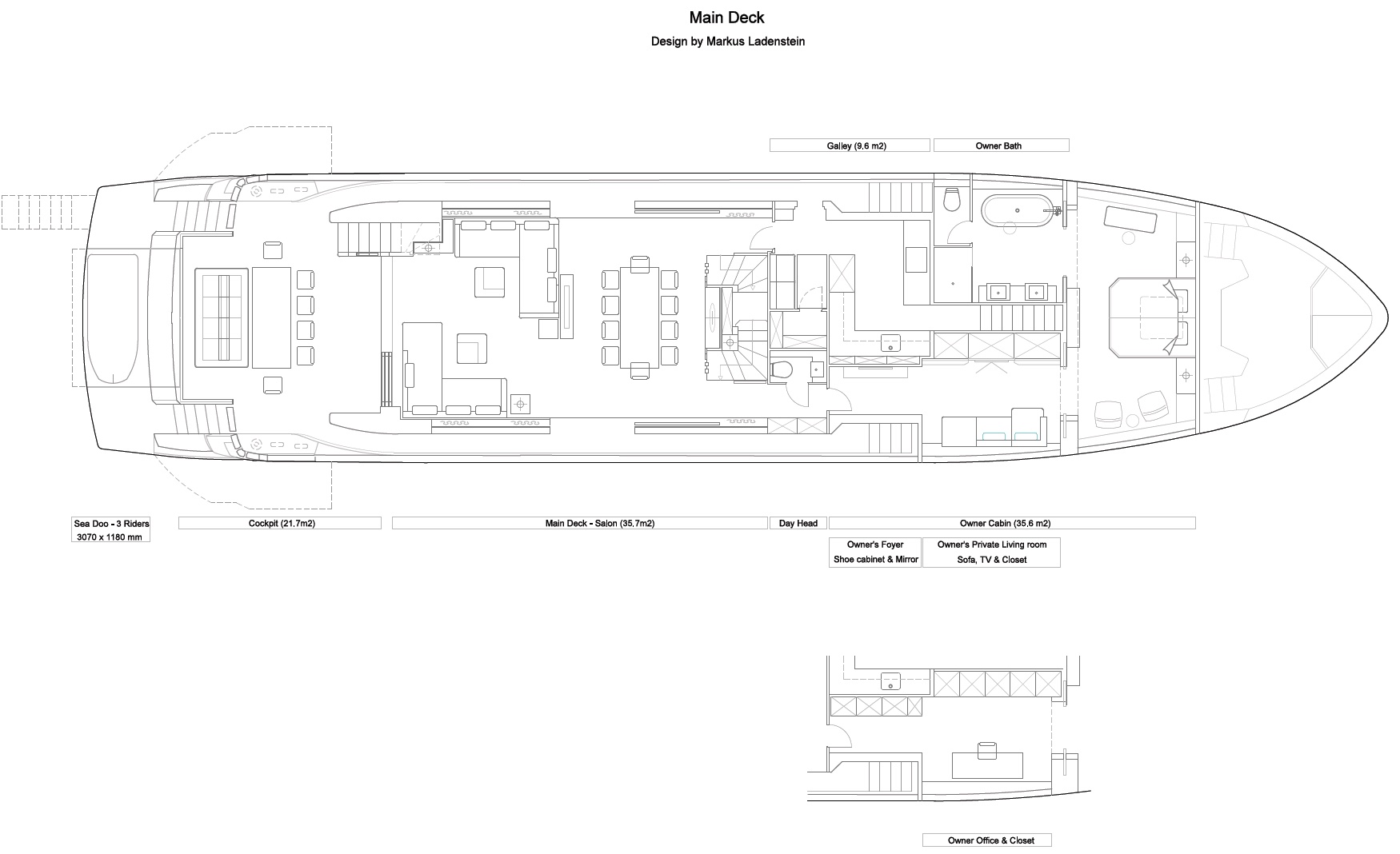

MAIN DECK SALON/DINING AREA
Two L sofas in leather/fabric
Two Coffee tables
One cabinet with shelves, storage and A/V equipment
Retractable TV in the middle with electric mechanism to lift up from the cabinet.
Cabinet with storage on each side.
One storage cabinet in the middle of the bow bulkhead.
Two doors on the bow bulkhead to access the galley and the owners cabin.
Dining table with 10 dining chairs.
Weathertight sliding doors on starboard and port side
Light and curtains

MAIN DECK FOYER
Main deck foyer leads to:
- Pantry/Galley
- Wheelhouse
- Lower Deck accommodation
- Owner cabin
- Day head

PANTRY
Dinette with two seats and table foldable for access to storage room)
Storage cabinets on portside
Lights, curtains and upholstery

GALLEY
Weathertight door on portside for direct access to the Main Deck
Storage room (center under wheelhouse)
Galley lower/hanging cabinets with drawers and shelves
Staircase to the crew quarters
Lights
Galley top in Granite, Silestone or similar
Galley appliances
- Cooler/Freezer
- Induction oven
- BBQ/Microwave
- Dish washer
- Sink in stainless steel and faucets
- Waste bin

DAY HEAD
Cabinets
Mirror
Electric WC
Sink and faucet
Toilet accessories
Lights

OWNER’S FOYER
Shoe cabinet with mirror, (port)
Closet with hanging bars and shelves (star board under stair)
Lights, curtains and upholstery.

OWNER’S PRIVATE LIVING ROOM
Closets with drawers, hanging bars and shelves (starboard and port)
L- Sofa
32” TV
Safe
Lights, curtains and upholstery.

OWNER CABIN
Double bed with storage underneath
Two nightstands with drawer
Two Chairs with coffee table (starboard)
Lounge chair with coffee table (port)
Two large windows (port and starboard)
32” TV
Lights, curtains and upholstery

OWNER BATH
Simultaneous double Sliding door
Mirror
Double sink with faucets
Shower unit with column and central rain shower.
Bath tub
Air extraction.
Opening porthole.
Lights, curtains and upholstery

OWNER TOILET
WC
Toilet accessories.

LOWER DECK LOBBY
Lower deck lobby leads to:
- VIP Cabin 1
- Guest Cabin 1 and 2
- VIP Cabin 2

GUEST CABINS 1
Two single beds with drawers and storage underneath
Single beds are transformable to 1 double bed
Nightstand with drawers
Wardrobe with hanging bar, shelves and drawers
Big window
22” TV
Lights, curtains and upholstery.

GUEST BATH 1
Wash dish with sink, faucets and drawers
Mirror
WC
Shower unit with column and central rain shower on ceiling,
Storage with shelves and fiddles
Air extraction.
Big Window with opening porthole
Lights and curtains
Towel bar and accessories

GUEST CABINS 2
Two single beds with drawers and storage underneath
Single beds are transformable to 1 double bed
Nightstand with drawers
Wardrobe with hanging bar, shelves and drawers
Large window with opening porthole
22” TV
Lights, curtains and upholstery

GUEST BATH 2
Wash dish with sink, faucets and drawers
Mirror
WC
Shower unit with column and central rain shower on ceiling,
Storage with shelves and fiddles
Air extraction.
Large Window with opening porthole
Lights and curtains
Towel bar and accessories

VIP CABIN 1
Double bed with drawers and storage underneath,
Nightstand with drawers
2 Chairs with coffee table (port)
Large window with opening porthole
26” TV
Lights, curtains and upholstery

VIP BATH 1
Wardrobe with hanging bar, shelves and drawers
Double wash dish with sink, faucets and drawers
Mirror
Vanity desk with mirror and chair
Shower unit with column and central rain shower on ceiling,
Bath tub
WC (in separate room)
Storage with shelves and fiddles
Air extraction
Large Window with opening porthole
Lights and curtains
Towel bar and accessories

VIP CABIN 2
Double bed with drawers and storage underneath,
Nightstand with drawers
Wardrobe with hanging bar, shelves and drawers
1 Sofa (starboard)
Large window with opening porthole
26” TV
Lights, curtains and upholstery

VIP BATH 2
Wardrobe with hanging bar, shelves and drawers
Wash dish with sink, faucets and drawers
Mirror
Shower unit with column and central rain shower on ceiling,
WC
Storage with shelves and fiddles
Air extraction
Large Window with opening porthole
Lights and curtains
Towel bar and accessories

LOWER DECK – CREW QUARTERS
Access from the galley corridor staircase (center)
- Crew corridor
- Crew cabin 1 & 2
- Captain’s Cabin
- Crew mess
- Crew Bath 1 & 2

CREW CABIN 1 (aft port)
Two single beds with storage underneath
Night stand
Wardrobe
Porthole
Lights, curtains and upholstery

CREW CABIN 2 (aft starboard)
Two single beds with storage underneath
Night stand
Wardrobe
Porthole
Lights, curtains and upholstery

CAPTAIN’S CABIN (starboard)
Big single bed with storage underneath
Night stand
Wardrobe
Porthole
Lights, curtains and upholstery

CREW MESS (port)
L-Sofa with storage underneath
Porthole
Lights, curtains and upholstery

CREW BATH 1 (port)
Sink
Mirror and cabinet with shelves
WC
Shower
Porthole
Lights, curtains and upholstery

CREW BATH 2 (starboard)
Sink
Mirror and cabinet with shelves
WC
Shower
Porthole
Lights, curtains and upholstery

ELECTRICAL SYSTEM
The whole system has been carried out according to the I.E.C. an C.E.I. rules.
The voltages on board are the following:
- 220 V a.c. triphase, 50 Hz, for power circuits
- 220 V a.c. single phase, 50 Hz, for: lights in the engines room, lights in the technical areas, sockets
- 24 V a.c. single phase, 50 Hz, for: external lights, internal lights;
- 24 V c.c. with grounded negative for: emergency circuits, spotlights, headboards and courtesy lights small users, navigation lights, navigation electronics
Electrical wiring is housed in metal or self-extinguishing closed PVC conduits
Electrical wiring is constructed with no flammable materials and with proper cross section related to the use
Additional empty conduits (40mm of diameter) in the following areas:
- One conduit from the roll bar (starboard side) to the A/V rack cabinet in salon;
- One conduit from roll bar (portside) to the technical area under the wheelhouse console;
- One conduit from the A/V rack cabinet in salon to lower deck accommodation.
The main electrical panel is installed in the engine room.
Secondary electrical panels are installed in all areas of the yacht.
All equipment have ground junctions with adequate cords and braiding of copper or aluminum with proper cross section.
The ground system is integrated to the cathodic protection system and is made up by a ring of copper straps going all around the yacht, connected to two zincs on transom.
The ground system is the following:
- ground system for machinery, sea water intakes, etc.
- ground system for electrical circuits, which joins all control panel grounds and electrical equipment grounds.

POWER SOURCES - GENERATORS
Two 35 kw generators, 220V, 50Hz, tree phase in engines room, installed on silent blocks
Sound shield box, control panel and 12V c.c starter.
Remote starter

SHORE POWER
One 125A shore power connector on transom, connected to an insulation transformer 40kVA tree phase with 400Vac input

BATTERIES AND CHARGERS
Group of 24V gel batteries 1000Ah, for service/emergency
Two Groups of 24V batteries of 2 x 240 Ah for engine starter
Two groups of 24V batteries of 240 Ah for engine electronics.
Two groups of 12 V batteries of 2 x 120 Ah for generator starter.
One 75A 24V DC Master Volt automatic battery charger for service batteries
One 75A 24V DC Master Volt automatic battery charger for emergency batteries
One 75A 24V DC backup Master Volt battery charger for service batteries (switch to use it for the emergency batteries)
One 50A 24V DC Master Volt automatic battery charger for engine starter batteries
One 35A 12V DC Master Volt automatic battery chargers for generator starter batteries.
During the navigation, main engines’ alternators will charge their own batteries
During the navigation gen sets’ alternators will charge their own batteries

LIGHTING SYSTEM AND OUTLETS
The engines room lighting is made by IP 65 lamps and neon lights
Lighting of cabins is done through LED spot lights. Each cabin is provided with the following:
- lights on ceiling: LED spotlights. All controls are close to entrance door and at the nightstand
- reading lights (LED lights) with controls at the nightstand
- LED lights on ceiling in the head with controls close to the door
- 220V outlets; Lighting of the internal main deck is defined as follows:
- ceiling lights (LED spotlights) with controls in various places;
- ceiling lights (LED spotlights) in the head compartments with controls close to the door;
- 220V outlets.
Lighting of the galley and crew quarters is defined as follows:
- Ceiling lights (LED spotlights) with controls in various places;
- 220V outlets.
Dimmer controls for all internal ceiling lights
(excluding galley, corridor, lobby, crew area, wheelhouse -red light -, and bath)

ELECTRONICS
Due to continuous updating on the electronics field, the above electronic package may change at any time.

WHEELHOUSE
Two AXIOM XL Glass Bridge Raymarine 16” displays
Two Multifunction Raymarine I40 for speed and depth
One Raymarine P70Rs autopilot display
One Multifunction Raymarine I70 for compass
One VHF Raymarin RAY 90
One White Star BW3/3-142 Compass

SUN DECK – HELM STATION
One AXIOM XL Glass Bridge Raymarine 16” displays
Two Multifunction Raymarine I40 for speed and depth
One Raymarine P70Rs autopilot display
One Multifunction Raymarine I70 for compass
One VHF Raymarin RAY 90 repeater
One White Star BW3/3-142 Compass

ROLL BAR
One Raymarine Magnum open array antenna HD digital 48” 4kw
One Raymarine VHF Antenna
One Raystar GPS antenna rs130
Navigation lights
Antennas
Horn
One Jabsco searchlight

COMMUNICATION SYSTEM
Phone system with phone outlets in the following areas (PABX central unit and telephones are not included): Wheelhouse, Salon, Master cabin, VIP cabins, Guest cabins, Captain’s cabin
Manoeuvring Intercom system with five stations:
- control unit in wheelhouse
- control unit on the sun deck
- loudspeaker in the manoeuvring area on bow
- loudspeaker in aft cockpit
- loudspeaker and earphones in engine room

ENTERTAINMENT SYSTEM
(Due to the continuous updating on the TVs and hi-fi field, the following entertainment system package may change at any time)

SALON:
One 46” LED TV – Samsung or similar
Blue Ray player/DVD player
Bose Lifestyle 650
One sub-woofer
Four load speakers

OWNER CABIN & OWNER’S PRIVATE LIVING ROOM:
One 46” LED TV Samsung or similar
Blue Ray player
Bose Lifestyle 600
One sub-woofer
Four loud speakers

VIP CABIN (1 & 2):
32” LED TV Samsung or similar
Blue Ray/DVD player
Two load speakers

GUEST CABIN (1 & 2):
22” LED TV Samsung or similar
Blue Ray/DVD player
Two load speakers

CREW MESS:
19” LED TV Samsung or similar
DVD player
Two loud speakers

CREW CABINS (1, 2 AND CAPTAINS CABIN):
CD/DVD player
Two loud speakers

WHEELHOUSE:
CD player
Two loud speakers

AFT COCKPIT:
Two JL 7” loudspeakers linked to salon stereo system

BOW AREA:
Two JL 7” loudspeakers linked to salon stereo system

SUN DECK:
Four JL 7” loudspeakers linked to salon stereo system

FIRE ALARM AND SAFETY SYSTEM
Fifteen portable extinguishers in all the areas of the yacht as follows:
- Three 2kg CO2 extinguishers
- One 2kg powder extinguishers
- Eleven 1kg powder extinguishers
Fire extinguisher system for the main engines:
- Manual control station, placed inside a cabinet located on aft port side of superstructure
- Shut off of the ventilation and extraction ducts in engines room.
- Shut off of the fuel valve at the day tanks.
- Connection to the electrical system for emergency stop of engines and generators and emergency switch-off
of engine room fans/extractors and electrical pump for fuel transfer
Fire extinguisher system: smoke detectors are placed in the following areas:
- Engine room area (2)
- Lower deck lobby
- Salon/dining area (2)
- Galley
- Crew corridor
- Main deck foyer
- Wheelhouse

FUEL SYSTEM
One GRP day tank and two GRP storage tanks. Each tank is provided with breather pipe and electric sensor for level monitoring.
Fuel levels and their alarms are visible in wheelhouse and on the main electrical panel
Fuel filling operation is carried through fuel fillers positioned on each side of the superstructure
Reversible electric pump (Gianneschi CP30 C1) with a capacity of 105 l/min (27,7 gals/min), to transfer fuel among fuel
tanks. Controls on main electrical panel and on monitoring system in raised pilot house.
Manual fuel pump (Gianneschi Excelsior 2) with a capacity of 24 l/min (6.3 gals/min), to transfer fuel among fuel tanks in emergency.
Duplex Separ filters on engines
Single Separ filters on generators

BLACK AND GREY WATER TANKS
One GRP gray/black water tank to collect water from showers and sinks, galley, washer/dryer, WCs and fan coil drip trays.
Four secondary collecting tanks (Johnson Pump cod. J09-13384) to collect the grey waters from heads and fan coil drip trays.
Electrical pump 220V with 42 lt./min. (11 gals/min) max. flow rate.
Copper piping in engine room and PVC piping in the other areas of the yacht.

BILGE SYSTEM
The bilge system in made up by two parts: the main system, centralized with an automatic electric pump and a manifold, and a secondary one, with dedicated suctions in each compartment.

MAIN BILGE SYSTEM
Centralized system with suction in each compartment connected to the main manifold positioned in engine room.
220 V electrical pump (Gianneschi ACM331-B), maximum capacity 140 lt/min (37 gals/min)
Emergency suction in engine room connected to one of the main engines sea water intakes
Copper piping in engine room and PVC piping in the other areas of the yacht

SECONDARY BILGE SYSTEM
24 V electrical pumps in engine room and in the bilges under the accommodation, maximum capacity 57 lt/min (14.5 gals/min)
High level sensors in each compartment with alarms in the wheelhouse

FRESH WATER SYSTEM
System can be fed via a structural tank, via a shore connection or via a water maker with nominal capacity of 180 lt./h. (Idromar MCJ3)
Plug for the shore connection in the aft
Two electrical pumps (one 220V and one 24V, model Gianneschi Jet4, capacity: 80 l/min – 21 gals/min) positioned in engine room pump water from tank to all users: washbasins, sinks, showers, electrical appliances, aft platform shower and washing deck hose.
Two Water heaters with 80 lt (21 gals) maximum capacity.
WC system is working with fresh water.
One 24V fresh water spare pump (not installed) is supplied.
One 220V fresh water spare pump (not installed) is supplied.
Press fitting piping in engines room and multilayer/press fitting piping in the other areas of the yacht.

SEA WATER SYSTEM
Four seawater intakes in bronze and two seawater intakes in fiberglass with valves and filters: two for general utilities, one (in fiberglass) for each main engine and one for each generator
Fire main pump, air conditioning cooling pump and water maker are connected to the two sea water intakes for general utilities.
Part of main engines cooling water is used to cool the gear box and the raisers for gas discharge.
Sea water fire system with electric pump (Gianneschi ACM331-B), 220V, 140 lt./min., (37 gals/min.) max. flow rate, placed in engine room, and emergency manual pump (Gianneschi Excelsior 5), 60 lt./min max. flow rate. The pumps are connected to two fire hoses located on main deck, bow and aft.
The fire pump is also used for chain wash down.
CuNi 90/10 or Cunipress piping.

AIR CONDITIONING, VENTING AND EXTRACTOR SYSTEM
Air-conditioning 192.000 BTU – water recirculation Fan coils spread in all the following areas with separate control:
- Salon: 2 x 17,000 BTU
- Dining area: 2 x 17,000 BTU
- Galley: 1 x 17,000 BTU
- Wheelhouse: 1 x 24,000 BTU + 1 x 9,000 BTU
- Owner cabin: 2 x 13,000 BTU
- Owner Bath: 1 x 9,000 BTU
- Guest cabin 1: 1 x 9,000 BTU
- Guest bath 1: duct from the cabin
- Guest cabin2: 1 x 9,000 BTU
- Guest bath 2: duct from the cabin
- VIP cabin 1: 1 x 13,000 BTU
- VIP bath 1: duct from the cabin
- VIP cabin 2: 1 x 13,000 BTU
- VIP Bath 2: duct from the cabin
- Crew cabin 1: 1 x 4,500 BTU
- Crew cabin 2: 1 x 3,000 BTU
- Captain cabin: 1 x 4,500 BTU
Centralized air extraction system for all the heads through two extractors.
Engine room venting system through two electric fans (220V) and two electric extractors (220 V) in order to guarantee good air circulation.
Air extractor for the technical area on aft
Air extractor for the batteries area
Galley hood and galley extractor

MAIN ENGINES AND GENERATORS EXHAUST SYSTEM
Main engines exhaust ducts are made in AISI 316 for the wet part and AISI 304 for the dry part, and are insulated with proper composite material.
Raisers in AISI 316 for the engines exhaust cooling.
Generators exhausts ducts in rubber.
Each diesel generator exhaust system will have a muffler and a gas/water separator.

ELECTRO-HYDRAULIC SYSTEM
One electro-hydraulic unit in the aft technical area for rudders, working at 24V and 220V.
One electro-hydraulic unit in the aft technical area for trim tabs, working at 24V.
One electro-hydraulic unit in the aft technical area for gangway, garage door and launching/recovering system for tender, working at 24V and 220V.

SAFETY EQUIPMENT (NOT SUPPLIED IN US MARKET)
Two auto-inflatable life rafts for eight people on sun deck
Two life rings, with emergency light
Fourteen life jackets
Portable extinguishers

MISCELLANEOUS
Two mooring hooks.
Two 27,5m (90’2”) mooring lines (diam.: 30mm.)
Two 2m (6’6”) chains (diam.: 10mm)
One 70m (229’8”) towing line (diam.: 30mm.)
Eight fenders with line (diam.: 14 mm.)
One box of emergency rockets
Two 15m. (50’) floating lines
Two stainless steel redance (diam.: 32mm.)
Two buoys with 10m floating line
English labelling in engine room and technical areas
Owner’s manual

APPLIANCES (SEE INTERIOR ALLOWANCE FOR APPLIANCES)
Hob: Miele, Gaggenau,,…
Hood: Miele, Gaggenau,...
Dish washer: Miele, Gaggenau,...
Oven: Miele, Gaggenau,...
Fridge/freezer: Miele, Gaggenau, Liebherr,…
Washing machine Miele
Dryer: Miele
Icemaker: Isotherm (or similar)


The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.

Australia  -  Bulgaria  -  Italy  -  Malaysia  -  New Zealand  -  Philippines  -  UAE  -   UK  -  Venezuela

Copyright © 2024 SeaBoats | Website Designed by Nucleus Creative & eDIY.

Clear Cart

Please confirm you want to remove all the items in your cart.

Reload Cart

Please Login or Order as a New Customer

Login

Please login using your existing account



New customer


When you've finished you'll have the option to create a password which will allow you to save your details and make your future purchases even faster.

Confirm Log Out

Are you sure you want to log out of the site?

Form Submitted

Thank you, your message has been sent successfully.

SeaBoats

Please login to your account

Please type your e-mail and we will send you a password reset link

Please Login or Order as a New Customer

Member Login

Please login using your existing account



Checkout

You'll have the option to register as a member which will save your details and make your future purchases even faster.


Register an account.

Contact us
