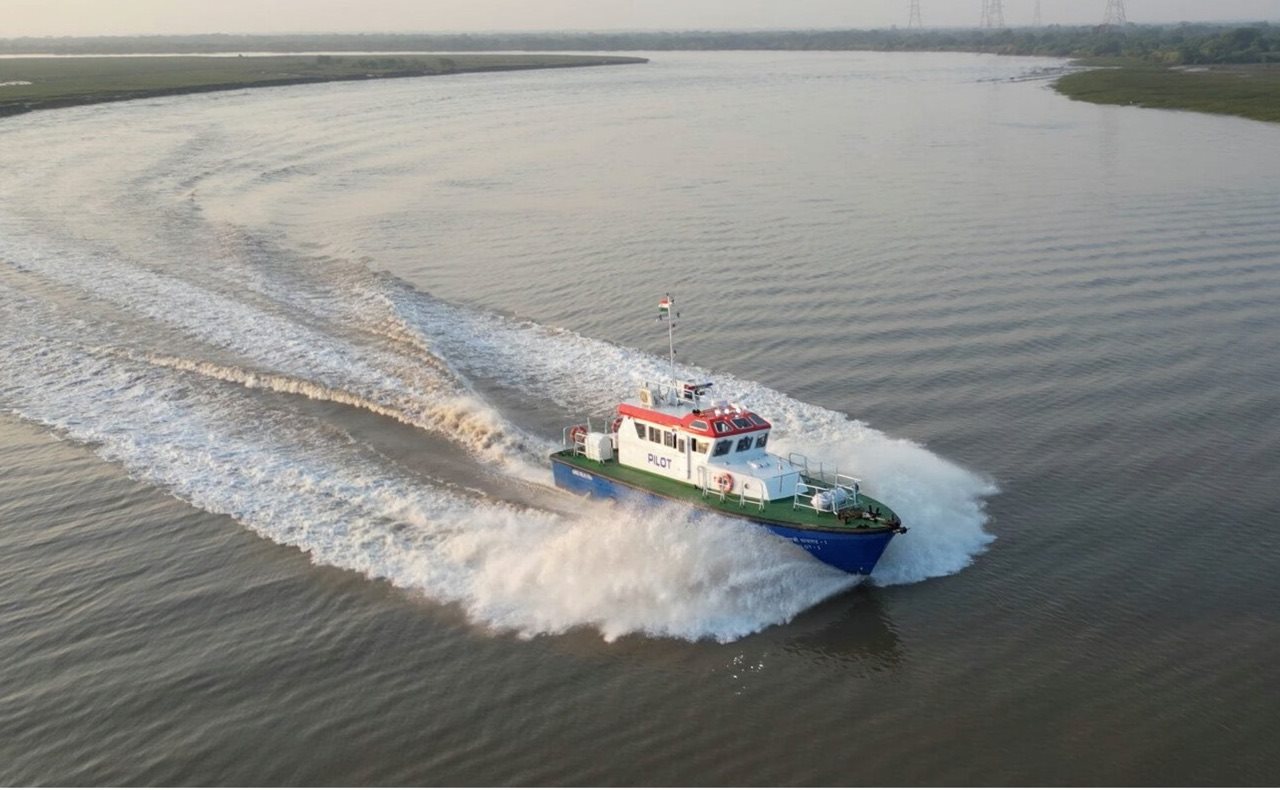

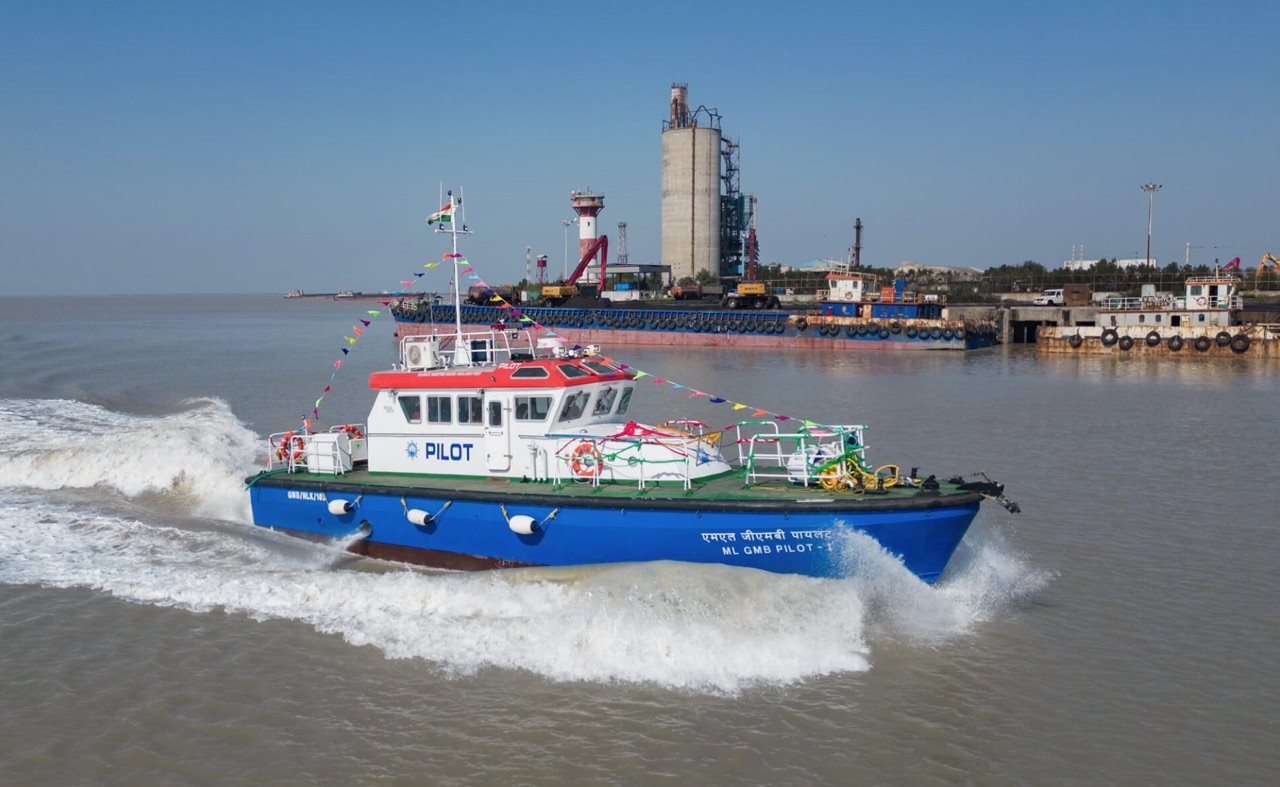

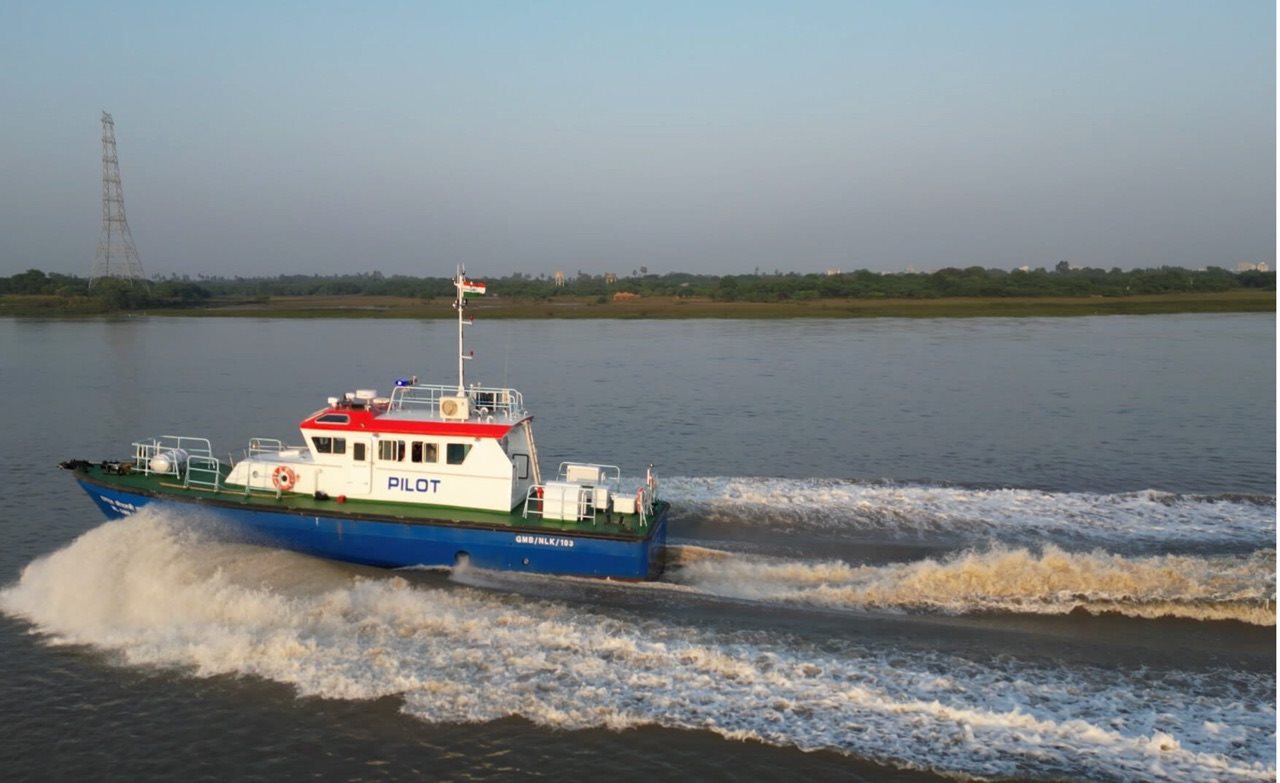

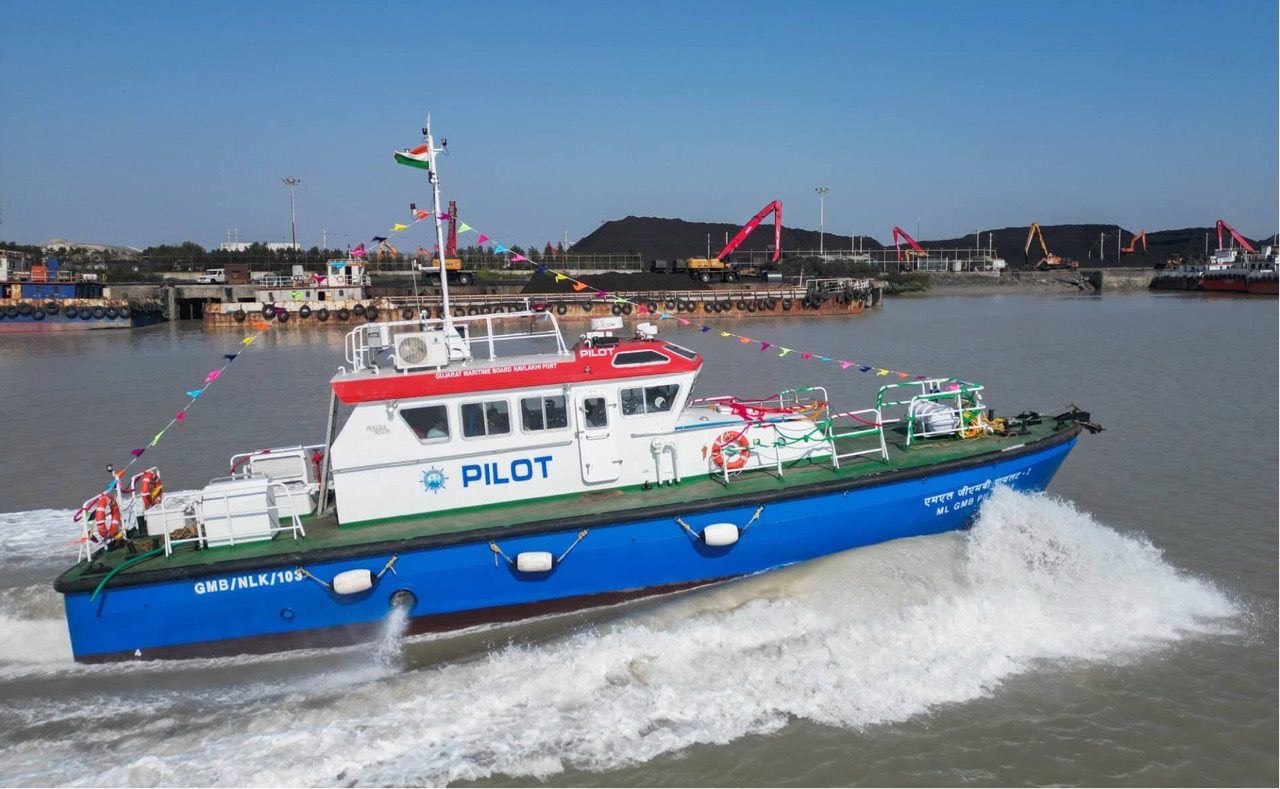

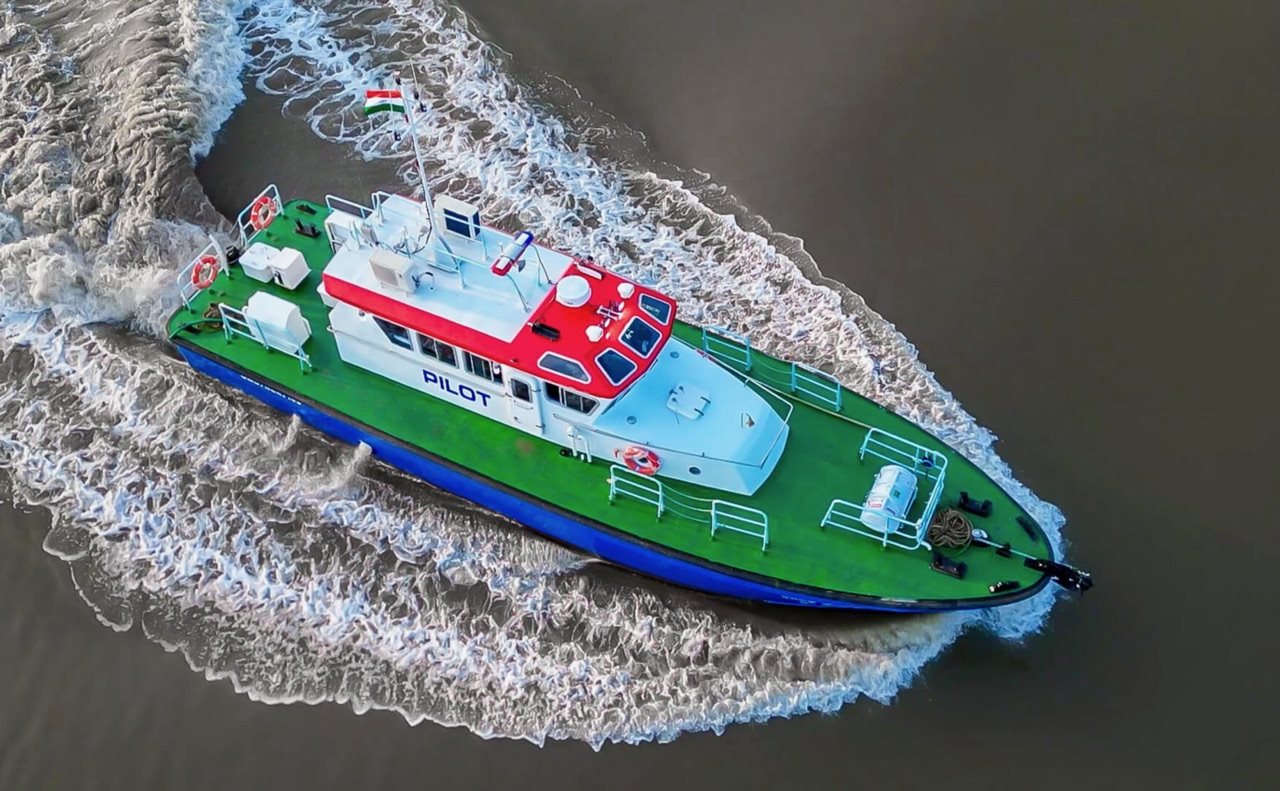

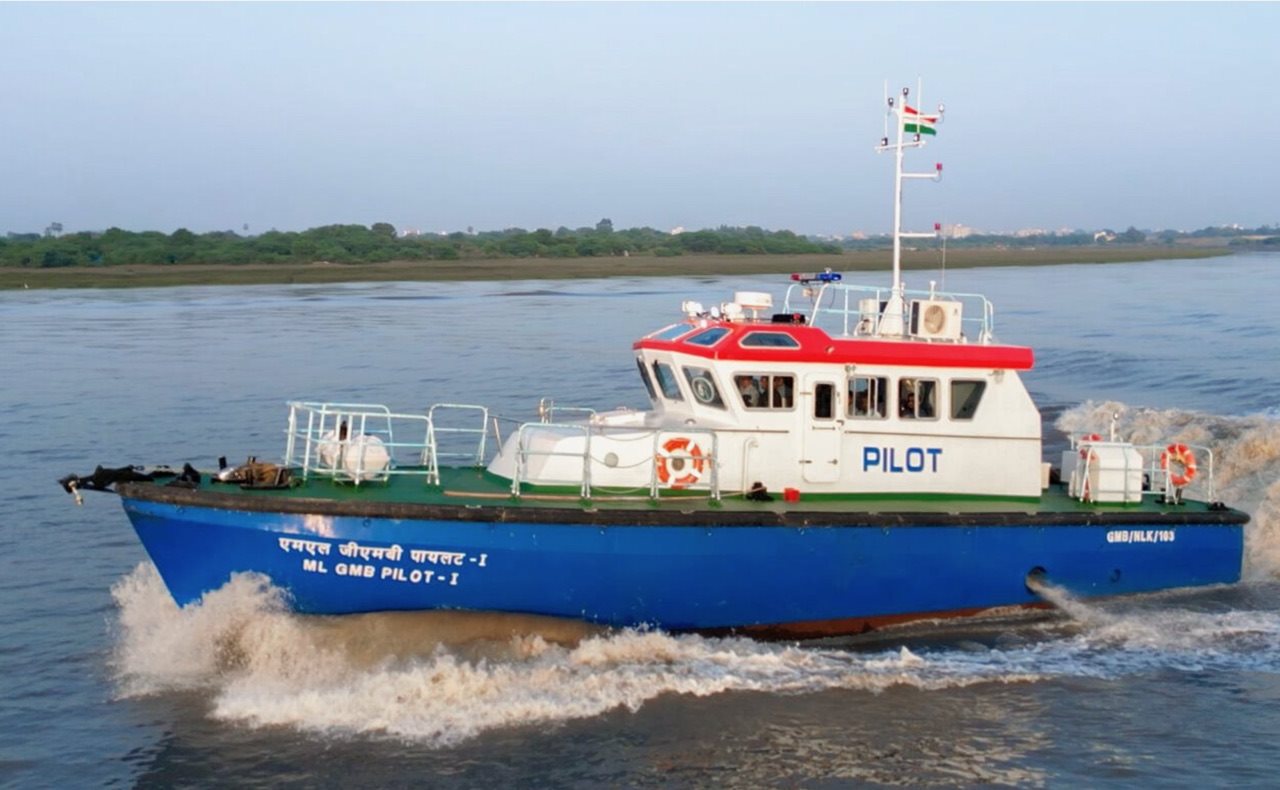

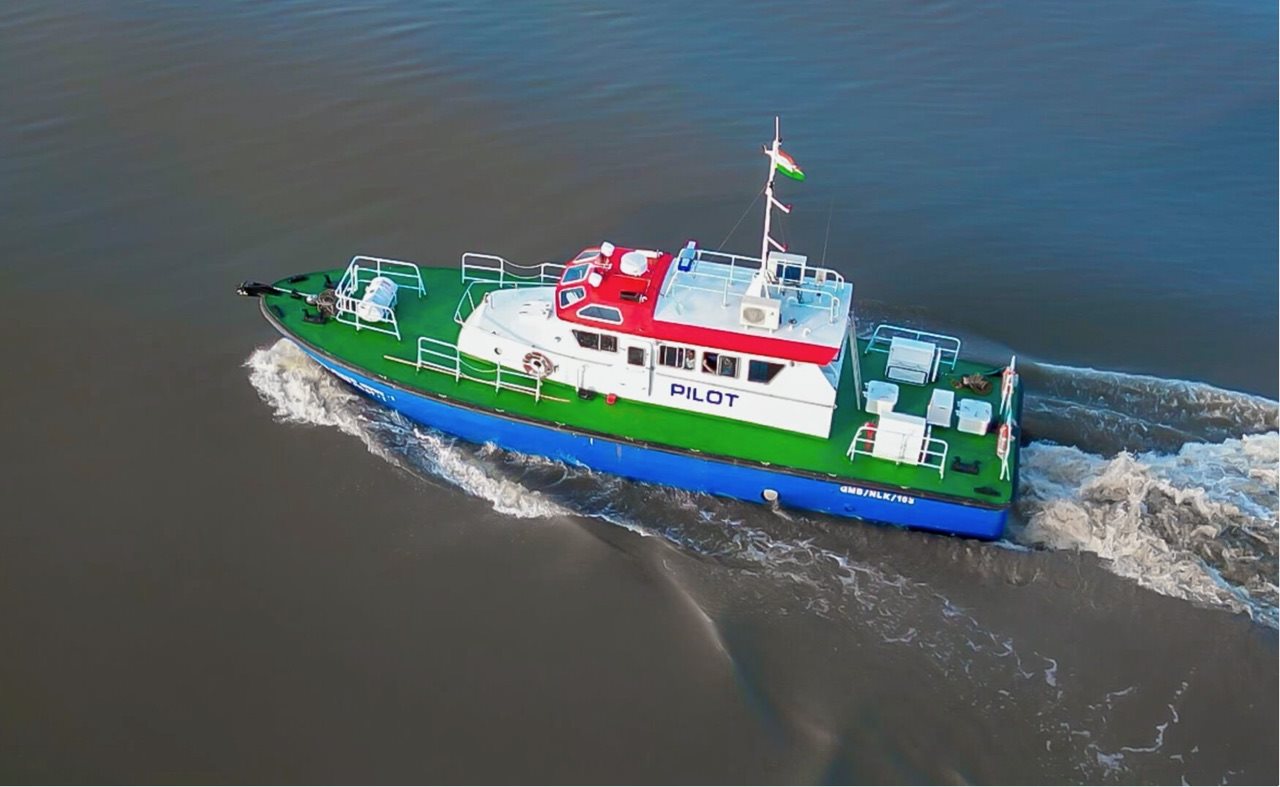

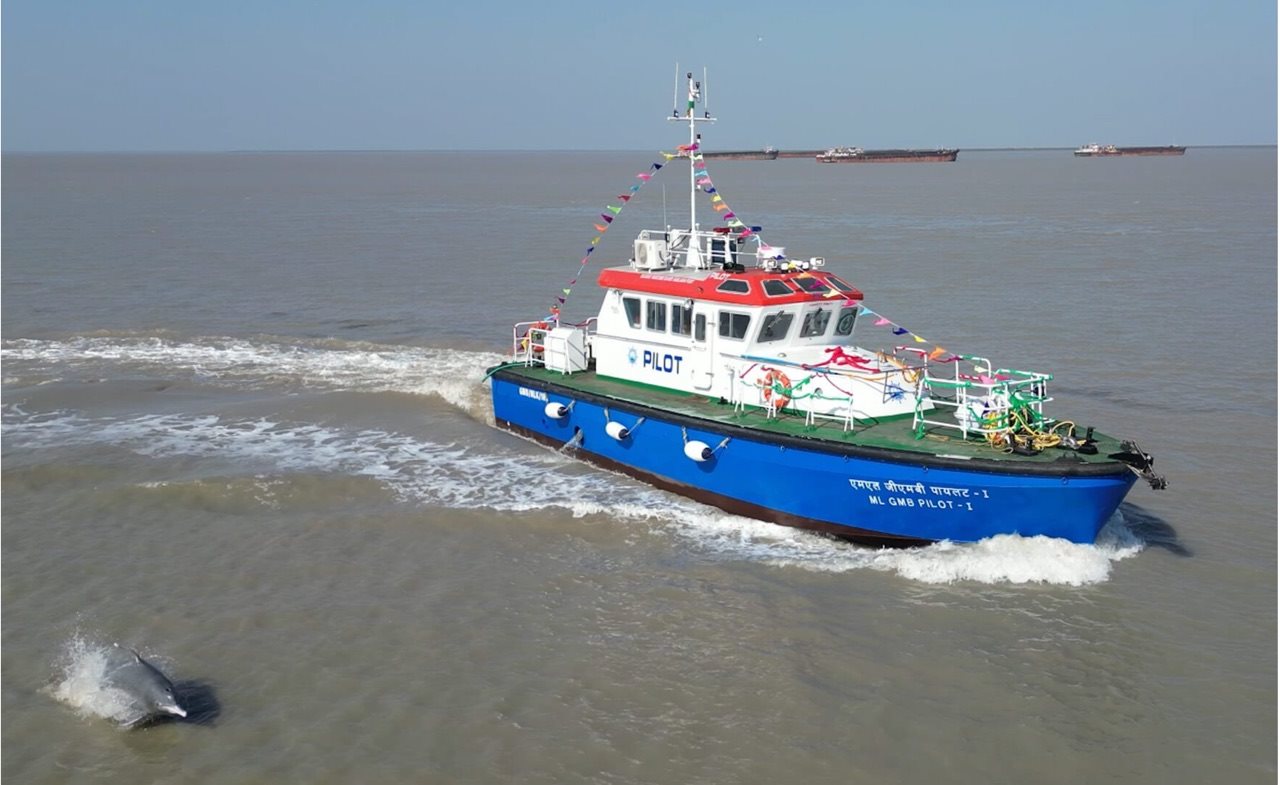

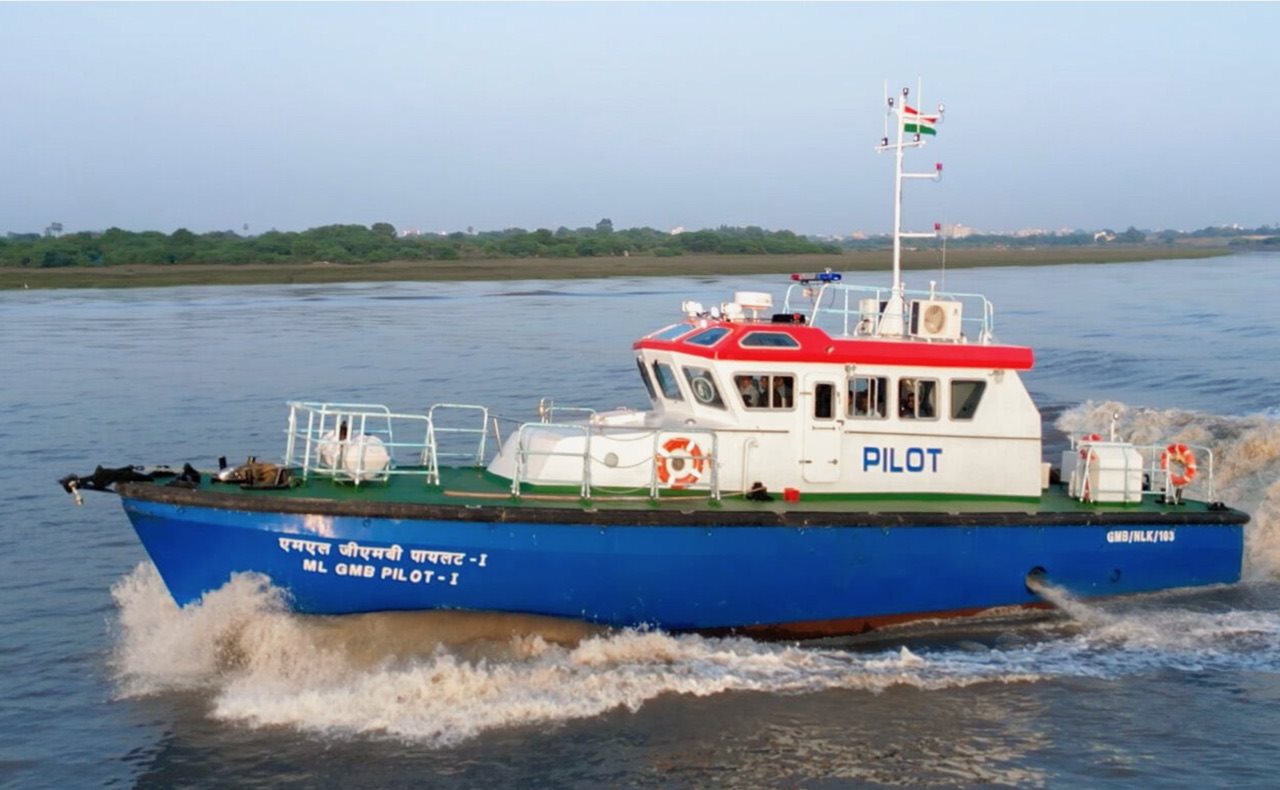

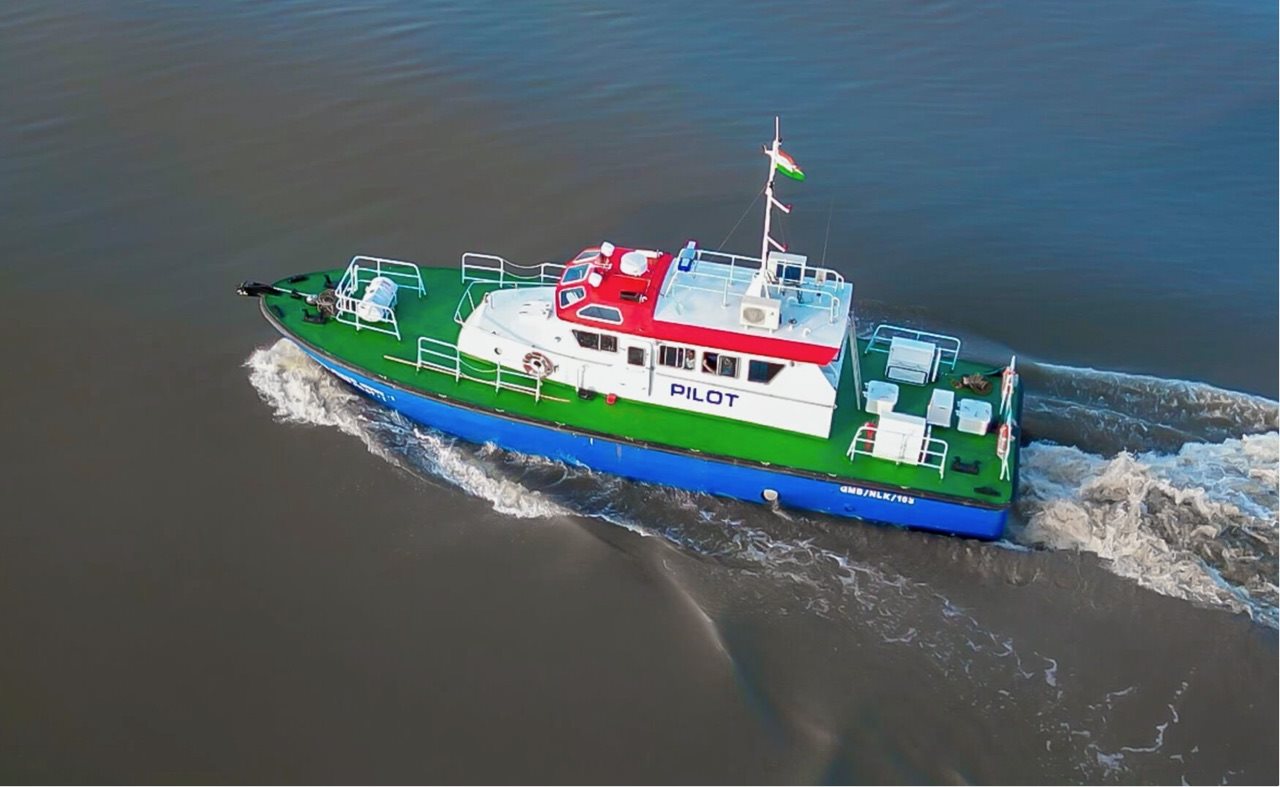

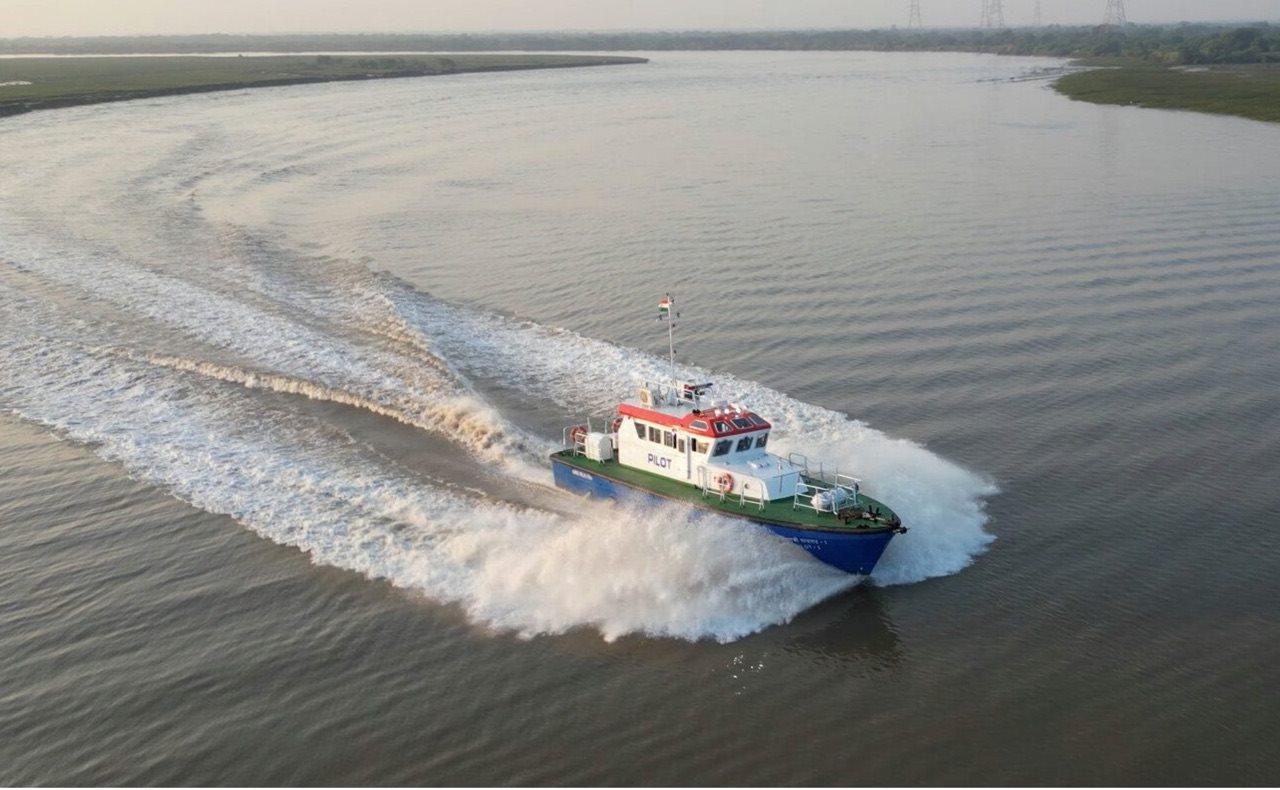

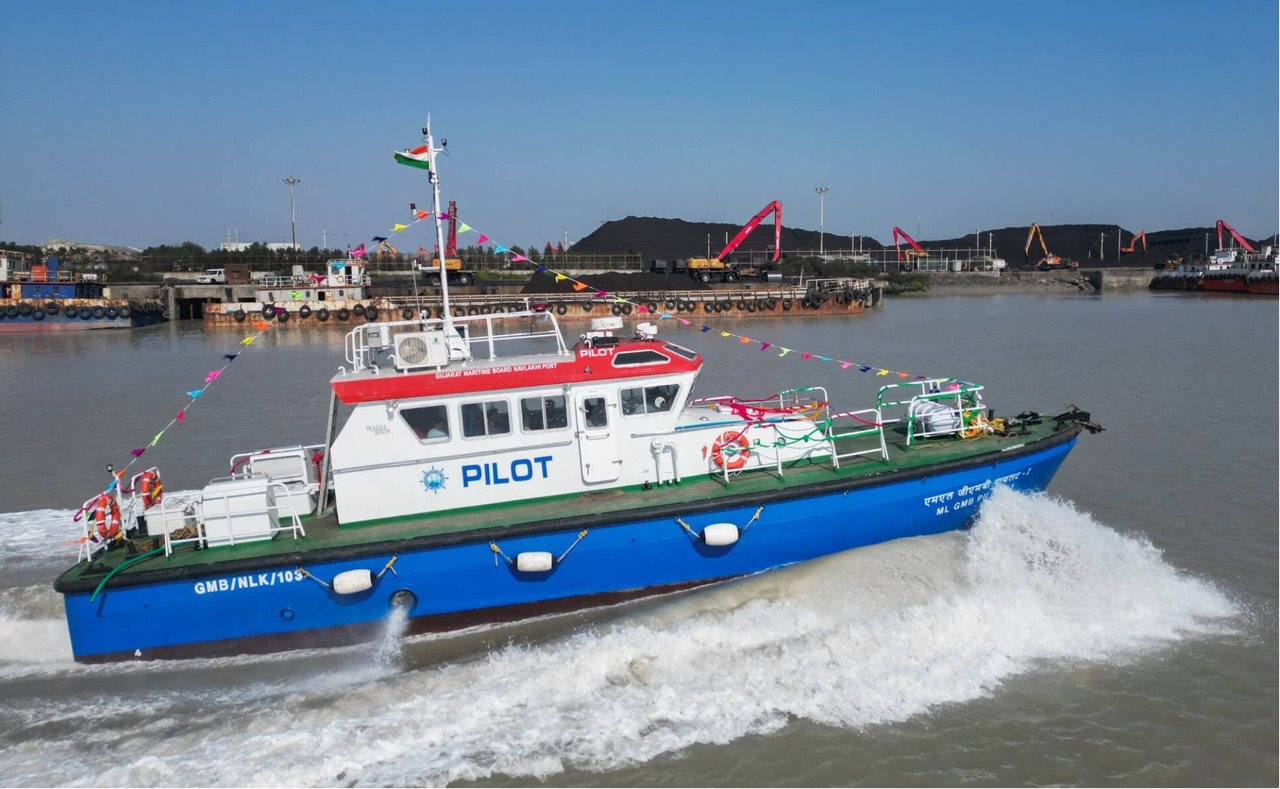

NEW BUILD - 18m Pilot & Patrol Boat

Listing ID - 5592
Description	Rapid Response Craft for Efficient Harbor Operation
Date Launched	Built to Order
Length	18.00m (59ft 0.6in)
Beam	5.00m (16ft 4.8in)
Draft	1.40m (4ft 7.1in)
Note	Engine: Twin Baudouin – Weichai
Location	India
Broker	Craig McKay craig.mckay@seaboatsbrokers.com +61 412 295 595
Price	580,000 USD
View As PDF

Length Overall: 18.00m

Hull & Superstructure: Steel

Intended Services: Security, Patrolling,Interceptor , Police Duties

Classification: Indian Register of Shipping or IACS

Propulsion Type: Twin inboard engine

Speed: 20+ knots

Crew Accommodation: 8 Passenger + 4 Crew

Salient Features: Spacious Deck, CCTV, Lower Vibration , Panoramic Windows , Robust Construction

TECHNICAL SPECIFICATION

Vessel Type: 18.00m Steel Hull Pilot Boat

Designer and Builder: A.H Wadia Boat Builder

Place of Construction: Bilimora – 396321 (Gujarat)

General Arrangement: G.A Drawing No. AHWBB – 2515

Hull Material: Steel

Superstructure: FRP

Hull Form: Monohull

Classification: RSV Type – 1

Intended Service: Pilot Boat

PRINCIPAL DIMENSIONS

Length Hull: 18.00m

Beam Hull: 05.00m

Draft Hull: 1.40m

CAPACITIES

Passenger / Personnel / Crew: 12 Persons

Bunk & Accommodation: 4 – 8 Crew Berth (as required)

TANK CAPACITIES

Total Fuel: 2000 liters

Fresh Water Tank: 400 liters

Grey / Black Water Tank : 200 liters

Oily Water: 200 liters

REGULATORY AUTHORITY

Flag State: TBD

Classification Society: Indian Register of Shipping

Area of Operation: TBD

Vessel Registration: TBD

Propulsion:

Twin screw conventional drive propulsion system.

Main Engines :

Twin Baudouin – Weichai Propulsion Engine rated 750hp each.With Eloctronic control module installed additionally for engine control. (IACS Unit Certified)

· The engine will be equipped with seawater cooling, heat exchanger , seawater pump, Oil cooler, and oil drain pump.

· All machinery will be installed to the manufacturer’s requirements.

· The flexibility of all connecting pipes, cables, hoses, and shafts will be matching to the flexibility of the supports of the equipment.

Gearbox: Hydraulic Marine Gearbox make ZF or equivalent make having suitable gear ratio. (IAVCS Unit Certified)

Stern Gear: IRS unit certified. M.S. Stern tube will be fitted with M.S. housings, water –Lubricated cut-less rubber or composite bush bearing with stainless steel 316L propeller shaft.

Rudder: Twin M.S. upper Rudder stock with lower M.S. rudder blade with through hull installation incorporating and the spade/balanced type.

Propeller: M.N. Bronze fixed pitch 4/5 blade propellers

Speed: 20 knots @ 100% MCR

Controls: Electronic control (reputed make)

Steering System: Electro Hydraulic IRS Type approved steering system

Exhausts: Water mixed engine and DH Exhaust

Electrical:

· 2No. Suitable engine with suitable alternator having 15-20Kva –50 Hz shall provide.

· Heat Exchanger , fresh water cooling and seawater pump are built on these units.

HVAC: Domestic type Outdoor unit with Cassette AC shall be installed in Wheelhouse and Crew Accommodation.

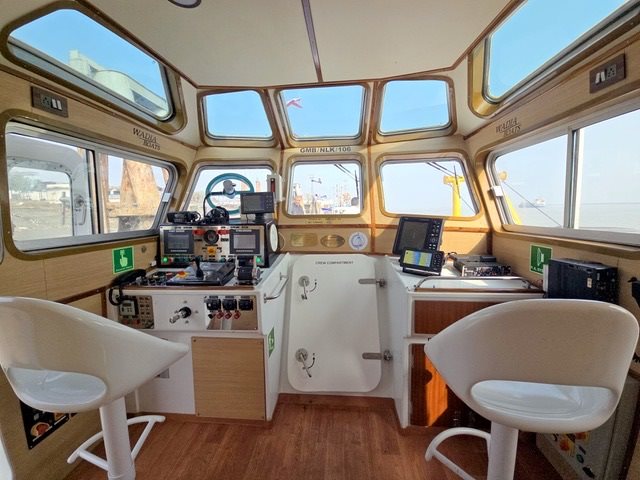

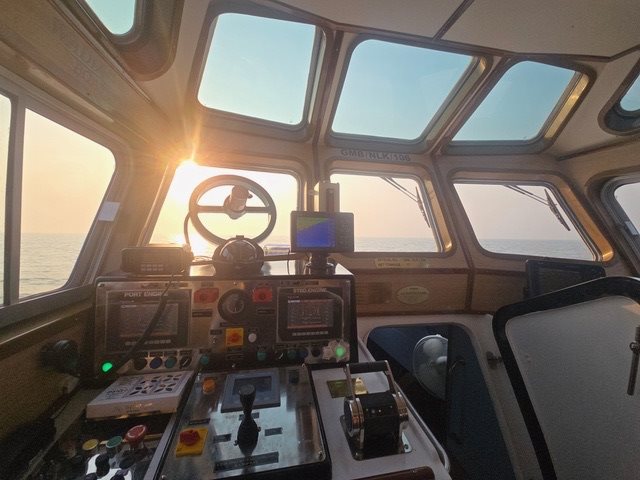

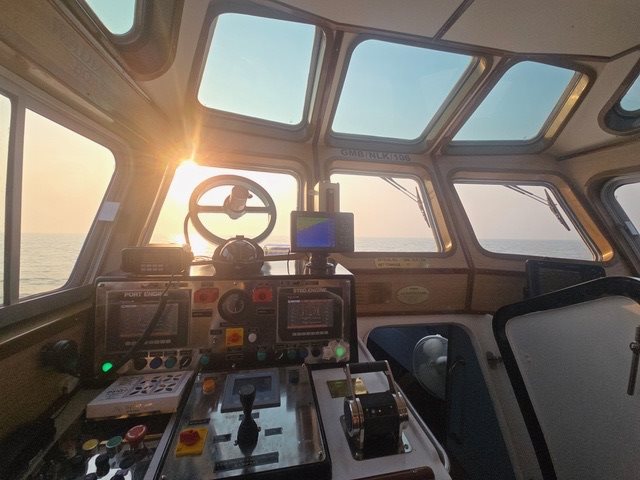

WHEELHOUSE/SEATING SPACE

· Helm position with a set of gauges & engine controls.

· 2nos Helm seat.

· 3nos. Marine wiper with the flusher.

· Access from Port, Stbd. & Aft door.

· Access hatch for crew accommodation.

· Navigation & Communication Table.

· 1 Set of windows.

· 1 Set of LED Lighting.

· PVC Floor Matting.

· 2Nos. Fans

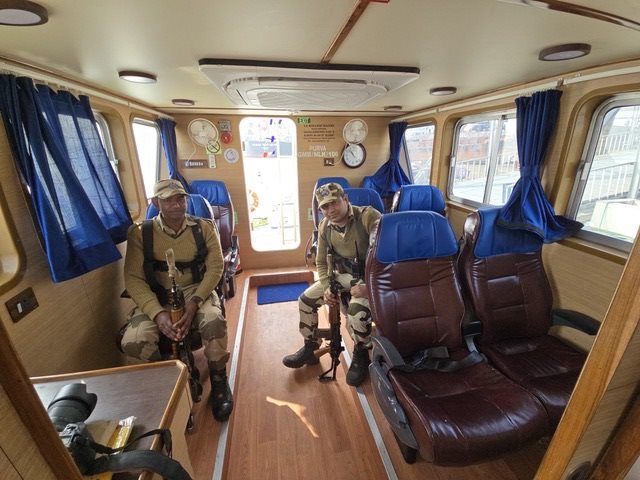

· 8Nos. Upholstered Reclining seats.

· Domestic Air conditioner.

· Emergency access hatch for the engine room.

CREW COMPARTMENT

· 2Nos Foldable Bunk.

· 2Nos. Cupboard.

· LED Ceiling Lights.

· 4Nos. Fans.

· Side and Wall Panels.

· Floor Matting.

· 4Nos. Fixed type side Scuttle.

· 1No. Pantry Table.

· Emergency Escape Ladder.

· Ventilation Fan.

· 1No. Domestic Air Conditioner.

TOILET

· Toilet arrangement.

· Wash Basin with Tap.

· Mirror.

· FRP Lined Flooring.

· Ceramic Toilet with Flush Tank.

· Exhaust Fan.

· LED Light.

PANTRY SPACE

· S.S Pantry top with single bowl sink and tap.

· Induction cooking top.

· Storage shelves and lockers on top.

· Exhaust Fan.

· Floor Matting.

· Microwave Oven.

· Sofa type seating arrangement.

· Dining Table.

· Storage Space.

FRESH WATER SYSTEM

· 1No. FRP FW tanks of 400Liters capacity.

· Visual gauges at the tank.

· 1No. Ele. Pressure water pump.

· UPVC Piping System.

SANITARY SYSTEM

· 1No. FRP sewage tank of 200Liters.

· Visual guages at the tank.

· Tank Fitting one set.

· Domestic type sewage pump.

· GI Piping System.

OILY WATER SYSTEM

· 1No. FRP oily tank in engine room.

· Visual gauges at the tank.

· Tank Fitting one set.

· Domestic type oily water pump.

· GI Pipping System.

NAVIGATION AND COMMUNICATION EQUIPMENT

· Magnetic Compass

· Loud Hailer.

· Amber Flashing Light.

· GPS with Chart Display and Depth Sounder.

· Radar X band 24 NM.

· Binocular Day Vision.

· AIS Type-B

· 1No. VHF includes all Marine Channels.

· 2Nos. Walkie Talki

· 1No. Marine VHF with DSC

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
