NEW BUILD - 12.36m Pilot Boat

Listing ID - 5813
Description	12.36m Pilot Boat
Date Launched	Built to Order
Length	12.36m (40ft 6.6in)
Beam	3.76m (12ft 4.0in)
Draft	1.07m (3ft 6.1in)
Location	UK
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	POA
View As PDF

SUMMARY SPECIFICATION

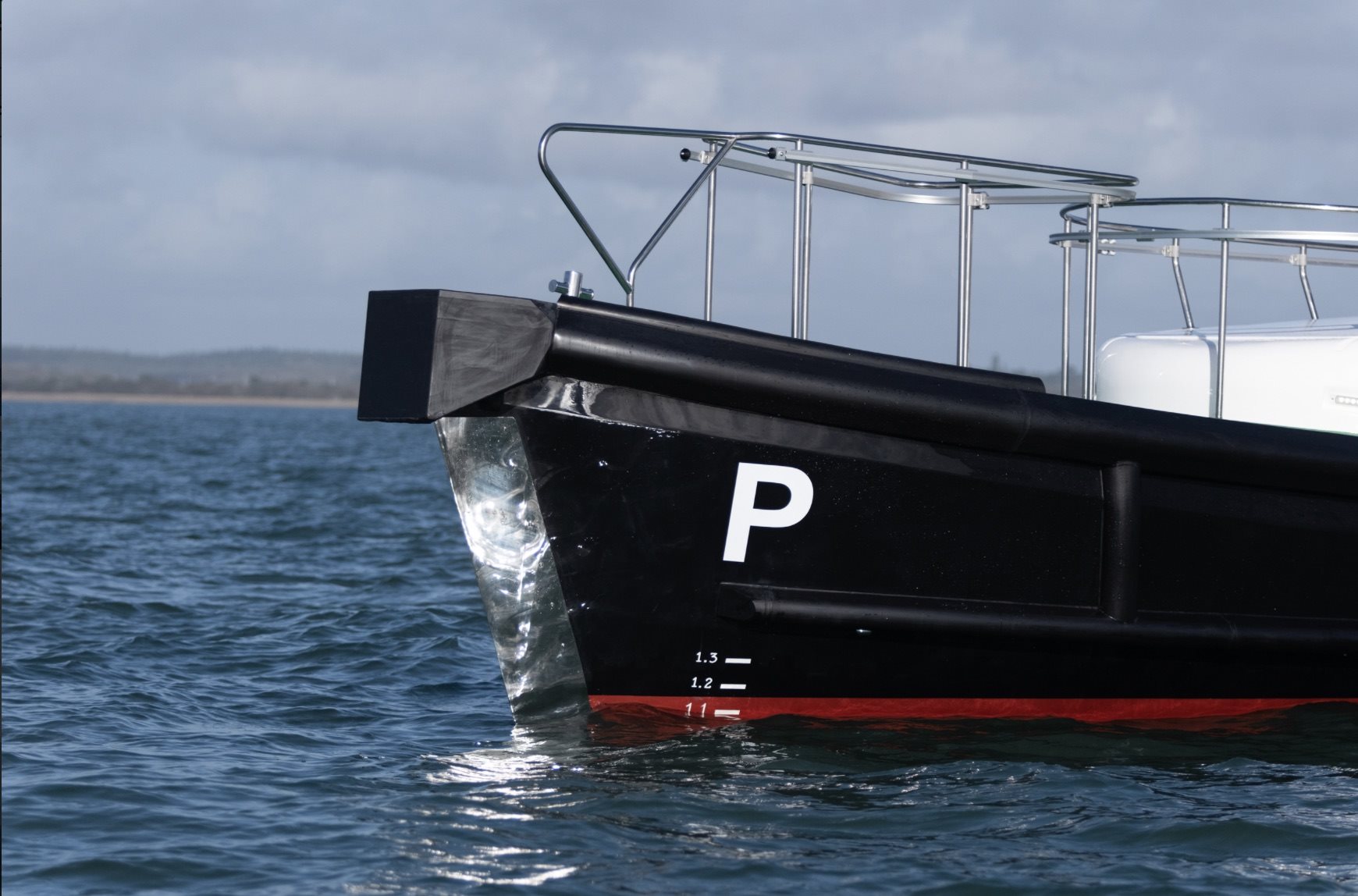

• PROVEN HALMATIC NELSON HULL

• FLOATING WHEELHOUSE

• TWIN ENGINES.

• ROBUST COMPOSITE CONSTRUCTION

• OPTIMISED PILOT TRANSFER DECK

• RINA CERTIFICATIO N / WORKBOAT CODE 3

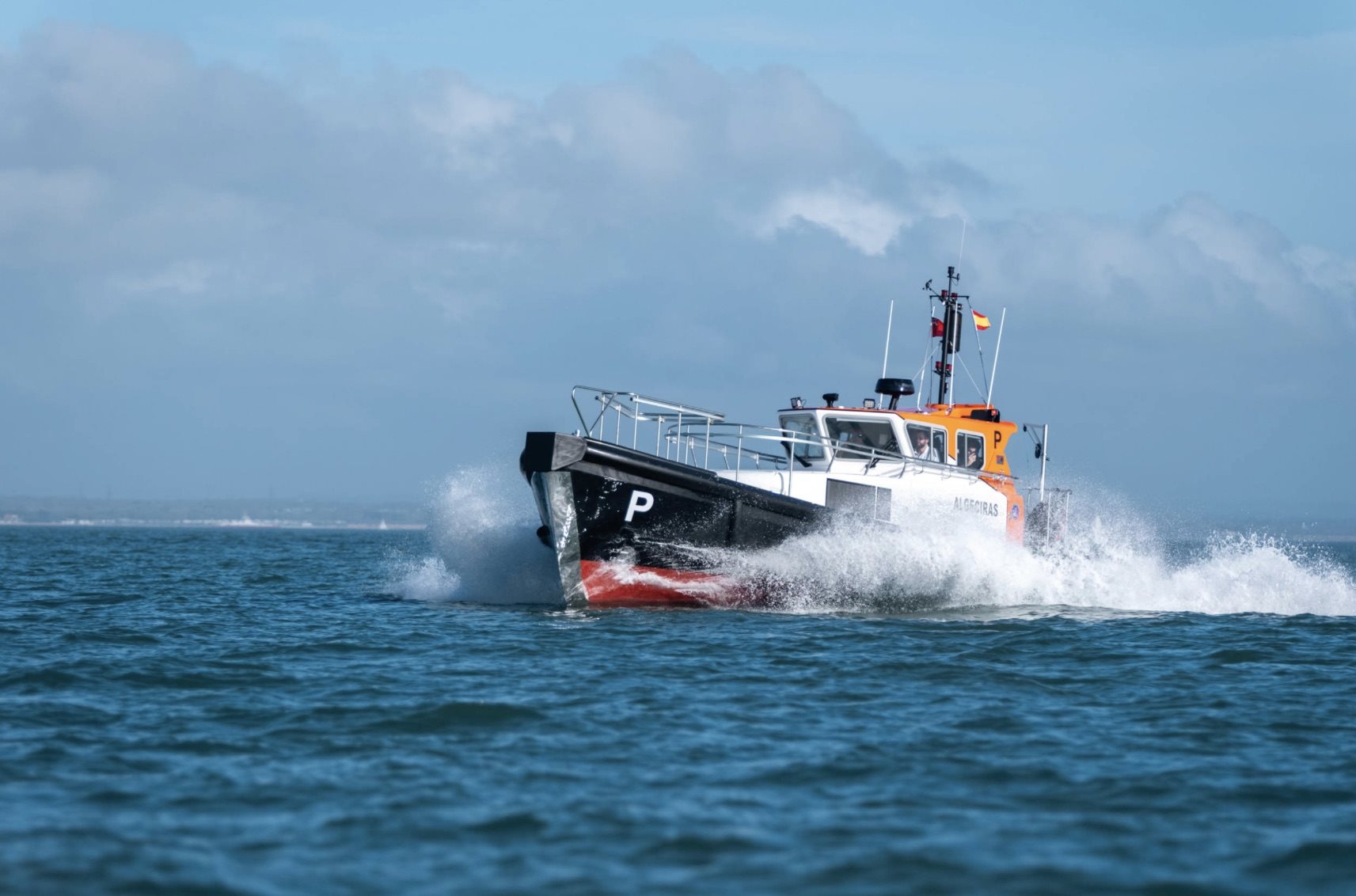

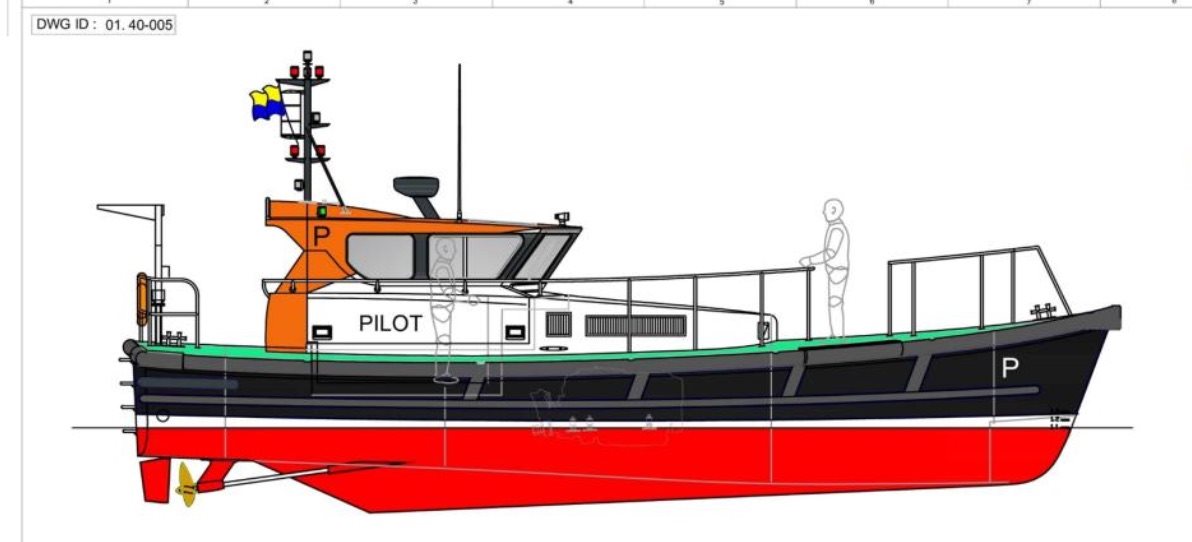

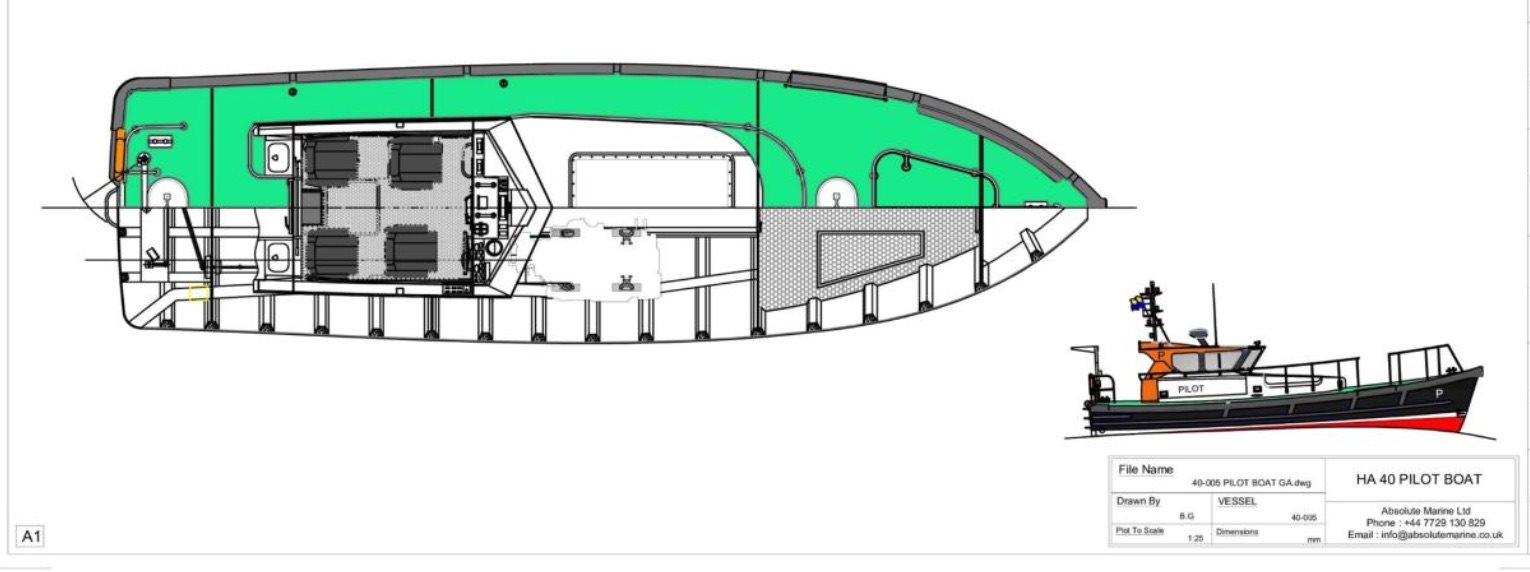

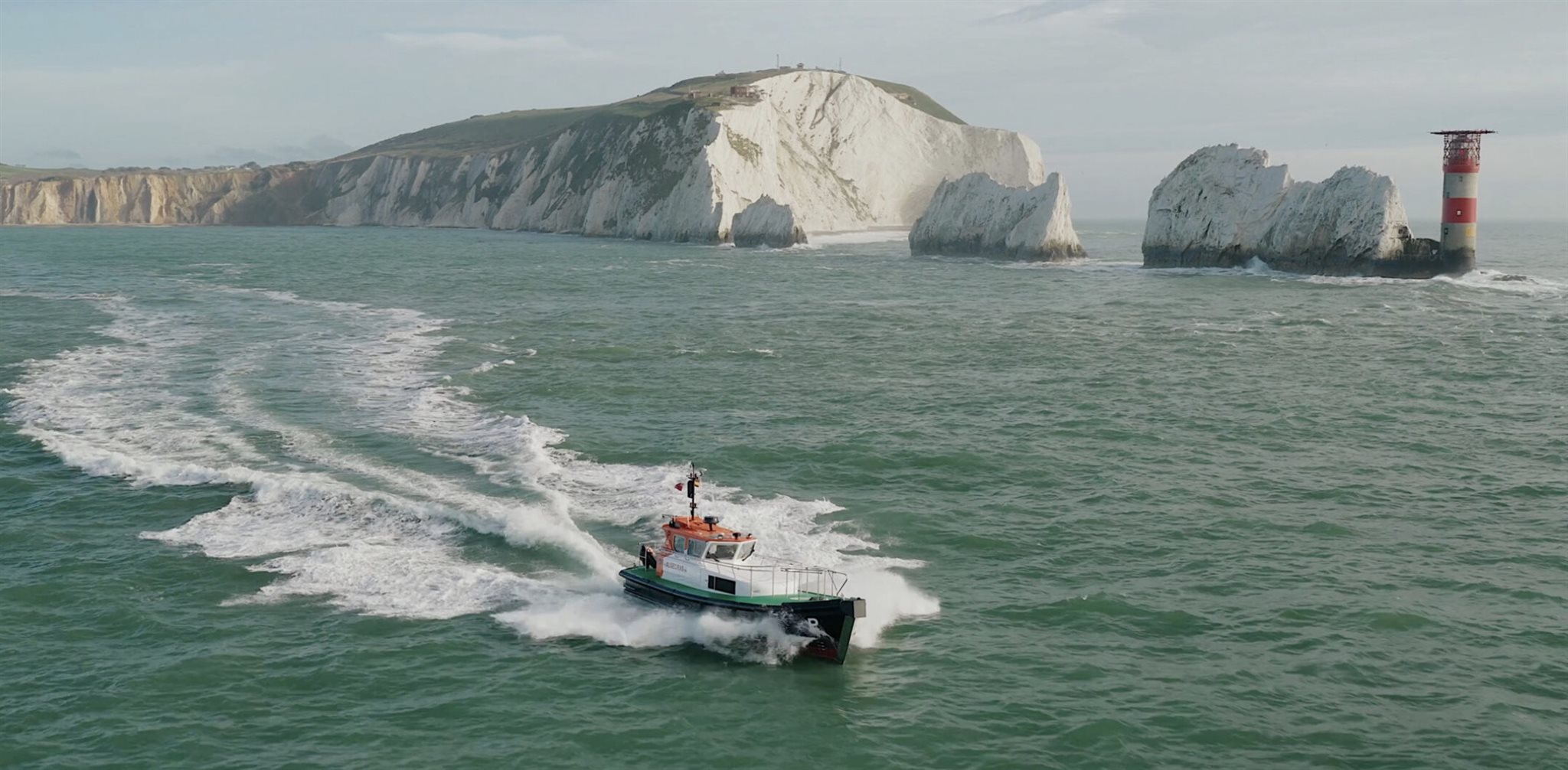

The HN-40 Pilot Boat is built today by Absolute Marine using the famous Nelson hull design. This makes the HN-40 a very capable vessel and is proven in operation with pilot services around the world.

The HN-40 is noted for its exceptionally soft ride, excellent handling in difficult sea conditions and for the

predictable handling during ship boardings. They are built to Classification Society-approved drawings and are equipped to comply with the customer’s local flag approvals.

MAIN CRITERIA

Length Overall (LOA):12.36m

Length On Water Line (LWL): 11.50m

Beam: 3.76m

Draft: 1.07m

Displacement: 9.5 Tonnes (Approx)

Air Draft (mast down): 3.15m

Fuel Tank Capacity: 1,580 ltrs (Approx)

Design & Build Standard: RINA Certification

SUMMARY SPECIFICATION DETAILS

HULL & DECK COLOURS

• Hull – Black

• Deck – White

• Superstructure – White

• Non-slip deck – Painted

• Antifouling Paint – Crimson

• Boot-top paint – White

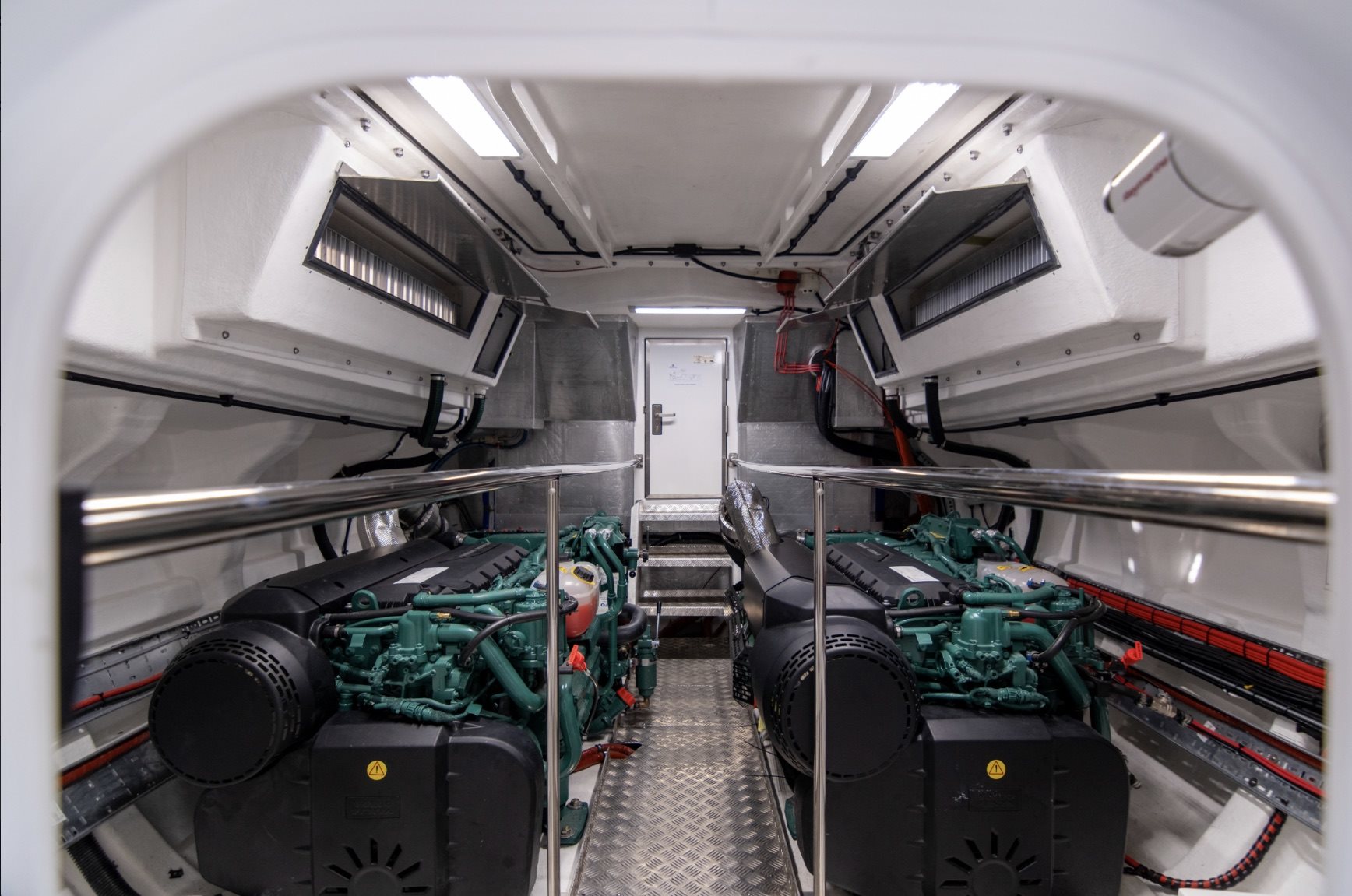

ENGINES & RELATED SYSTEMS

• Engine options available, *including Volvo, Nanni, Caterpillar

*Note: other engine types are subject to compatibility (priced separately)

• Conventional shafts and rudders

• Heavy duty P brackets and contra rotating nickel aluminium bronze propellers.

• Separate fuel tanks for each engine

• Inspection lids for tank cleaning.

• Each engine has its own primary and secondary fuel filter.

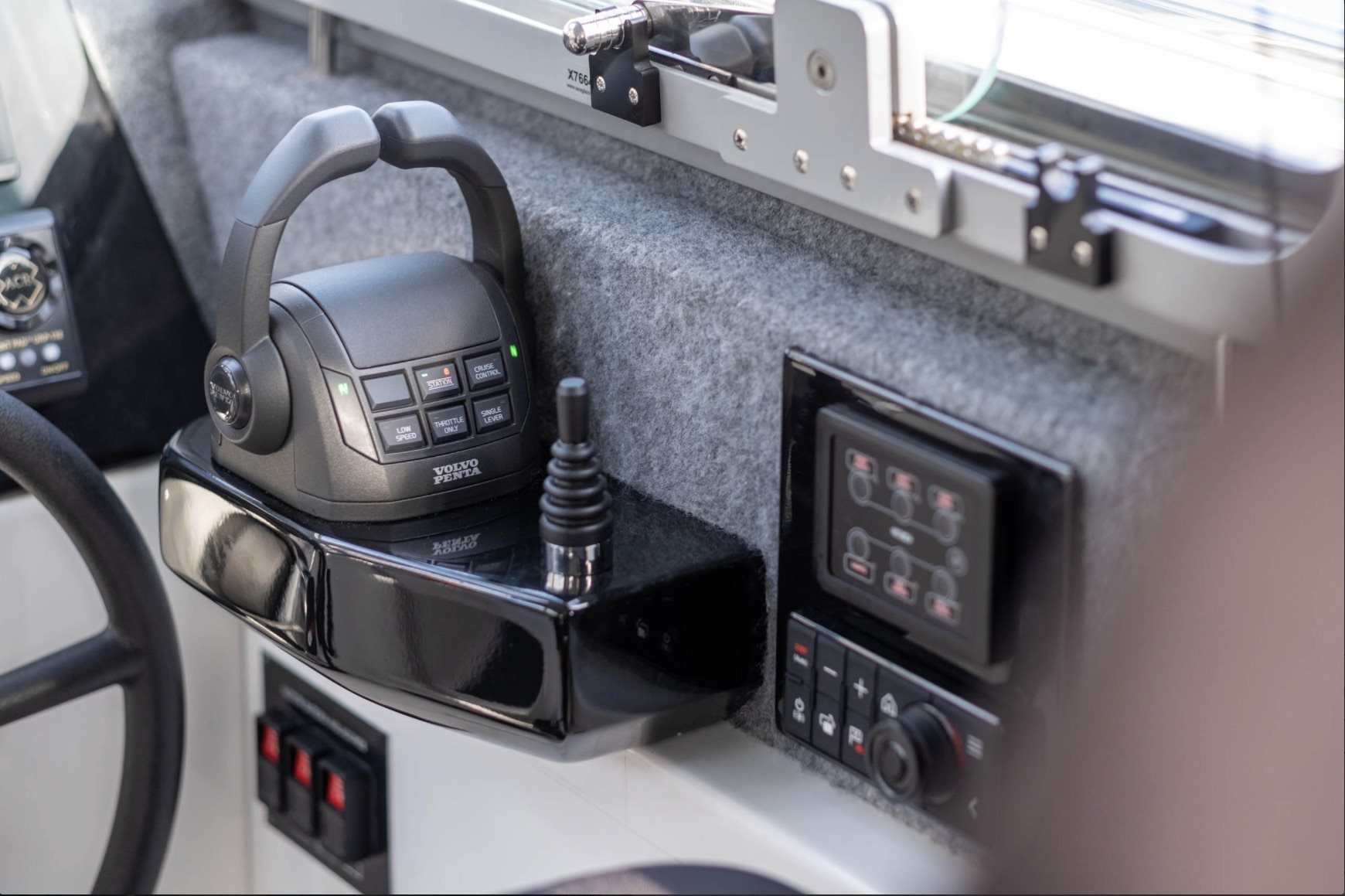

• Single station hydraulic steering

ELECTRICAL (24V DC)

• 2 x Batteries for engine starting

• 4 x Batteries providing power for domestic equipment

• Systems control/ monitored by CZone digital switching via 7inch display

• All battery circuits are individually isolated with an emergency parallel link between engines

• Horn

• Navigation lights

• Pilot Lights

• Deck Lighting

• LED overhead interior lights

• Chart light

• 12-volt power socket

• Pantograph wipers

• Screen washers

ELECTRICAL (AC)

• Shore Power Connection

• Shore power lead

• Battery Charger

• 4 x AC power sockets

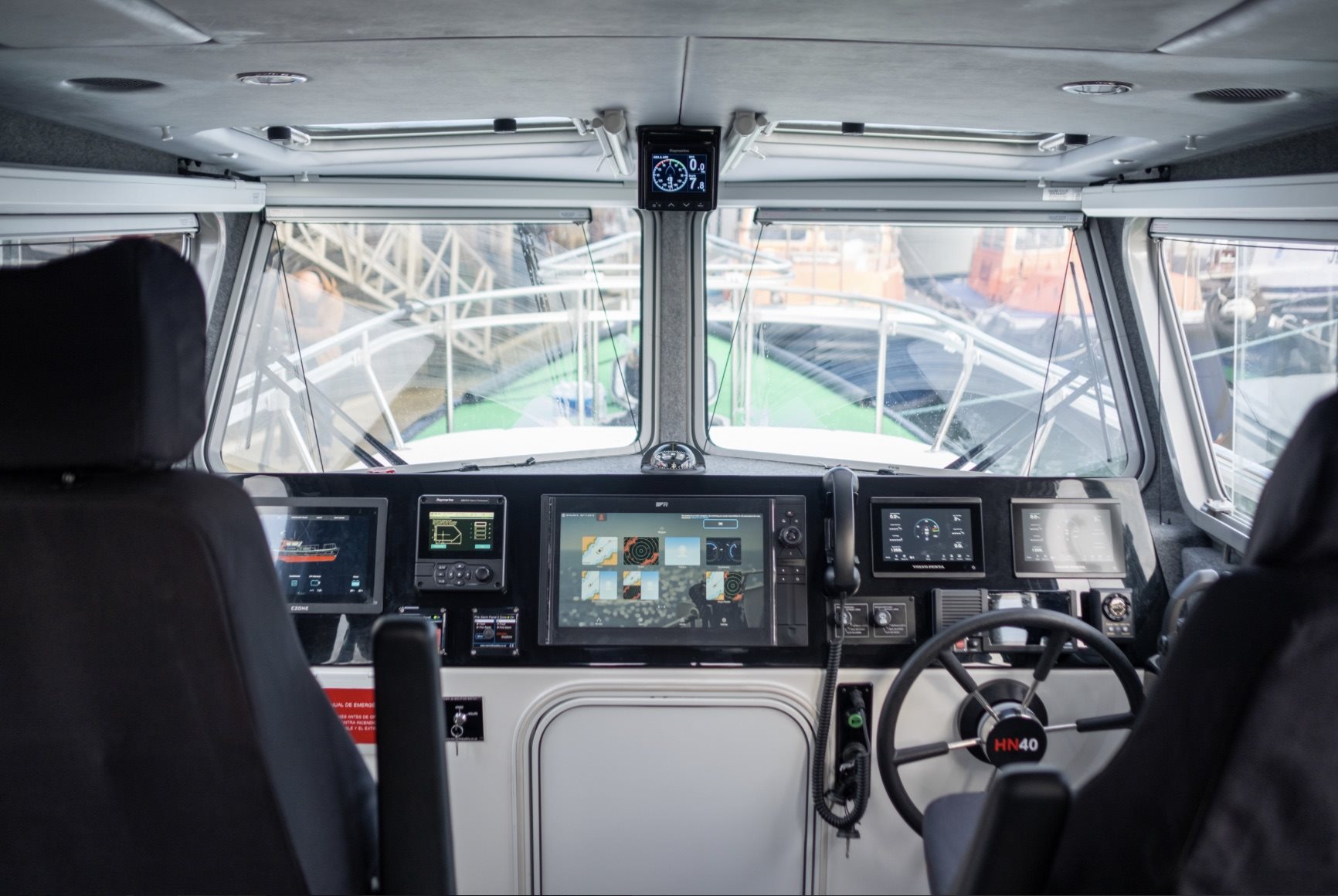

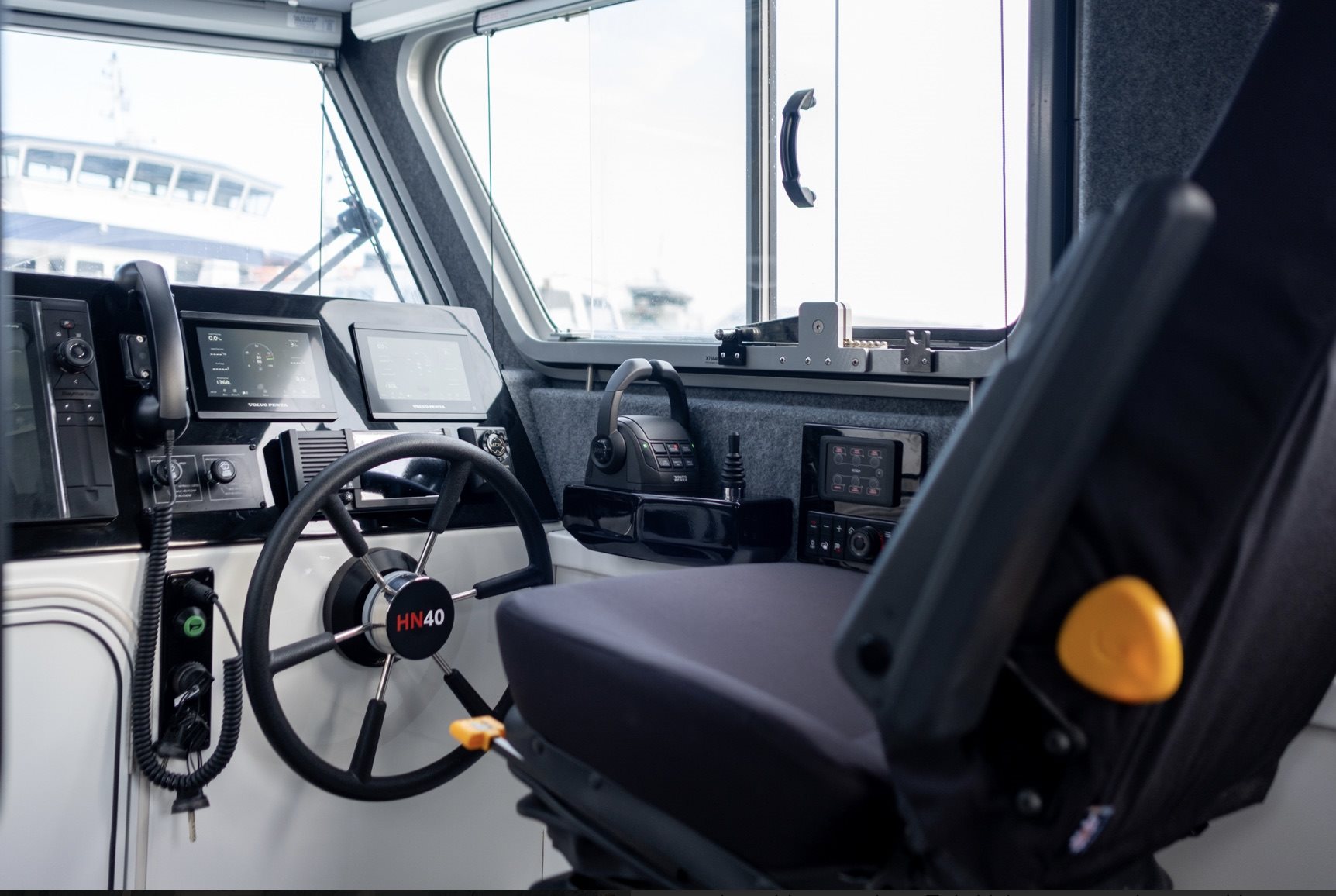

07/26Interior Fit-Out – Wheelhouse

• Helm to starboard side

• 1 x Helm seat

• 3 x Pilot/Crew seats

DECK EQUIPMENT

• MOB davit

• 3 – Stainless steel bollards

• 2 – Fairleads, foredeck

• Mast in black powder coat finish

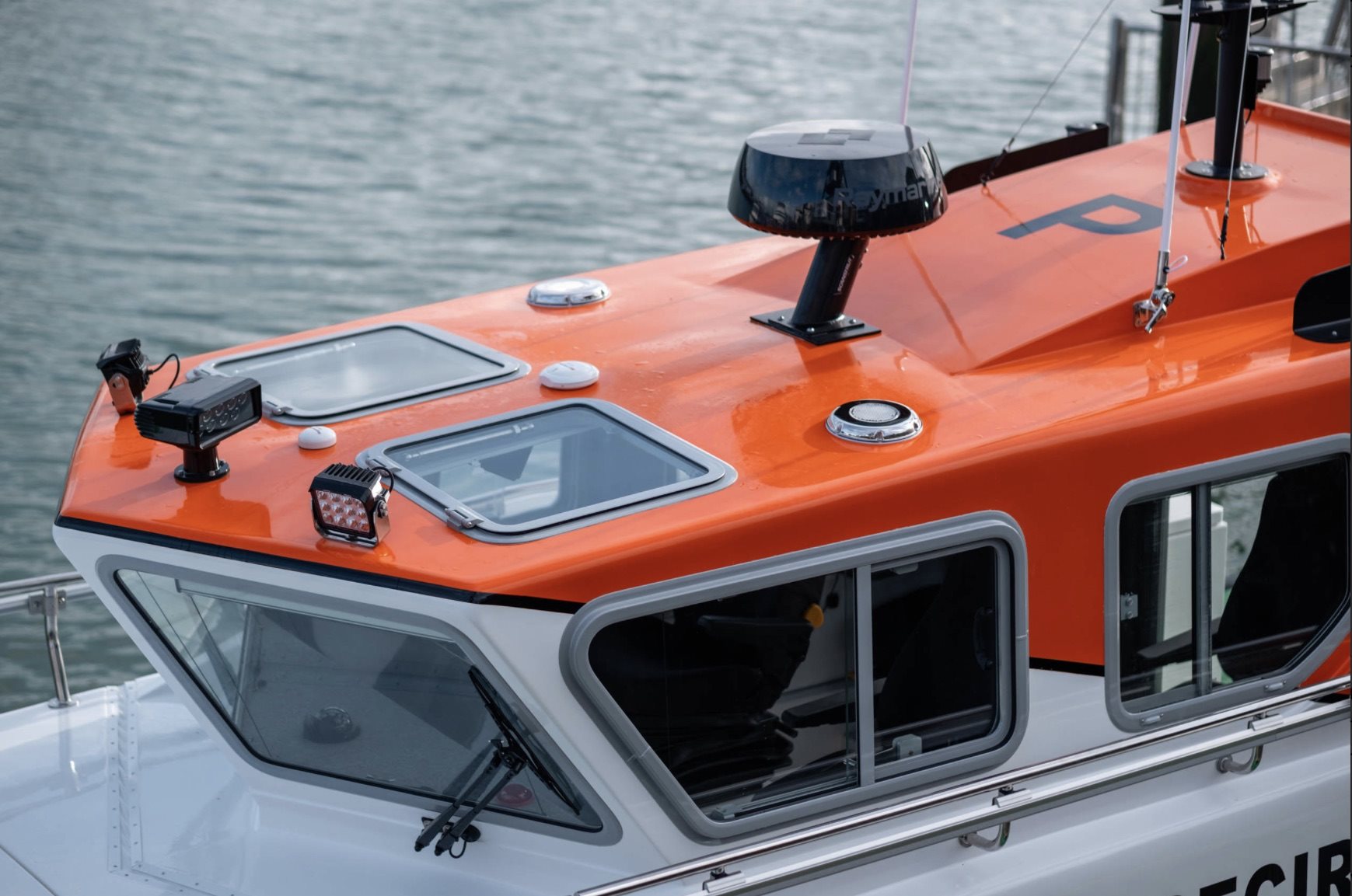

NAVIGATION SYSTEMS

• Multi-Function Display - 4” Screen - Wind, Speed, Depth & Temp

• VHF – DVC

• AIS700 - Class B with splitter

Note: Navigation system options are available, subject to customer requirements (priced separately)

Fire detection/fighting

• Fire detection system

• Portable fire extinguishers as appropriate

• Automatic engine room fire extinguishers

• Fire Fighting system including pump, deck hydrant, hose

GENERAL

• Echomax Radar Reflector

• Anchor & Chain

• 6 mooring warps

• Magnetic Compass

• Manual & electric bilge pumping

• Bilge water level alarm system

NOTE:

Other optional items and equipment are available on request.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
