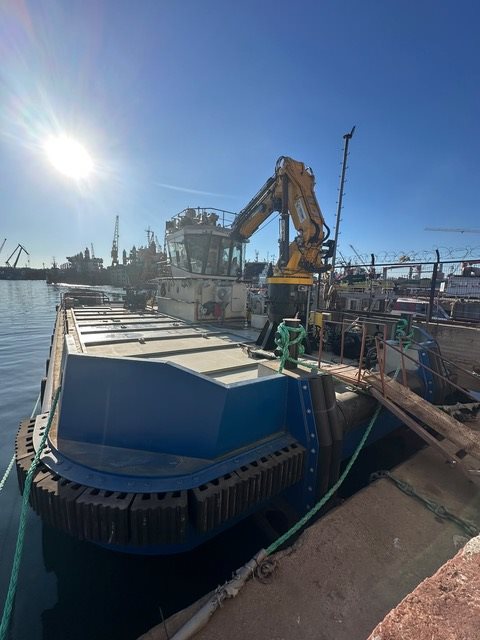

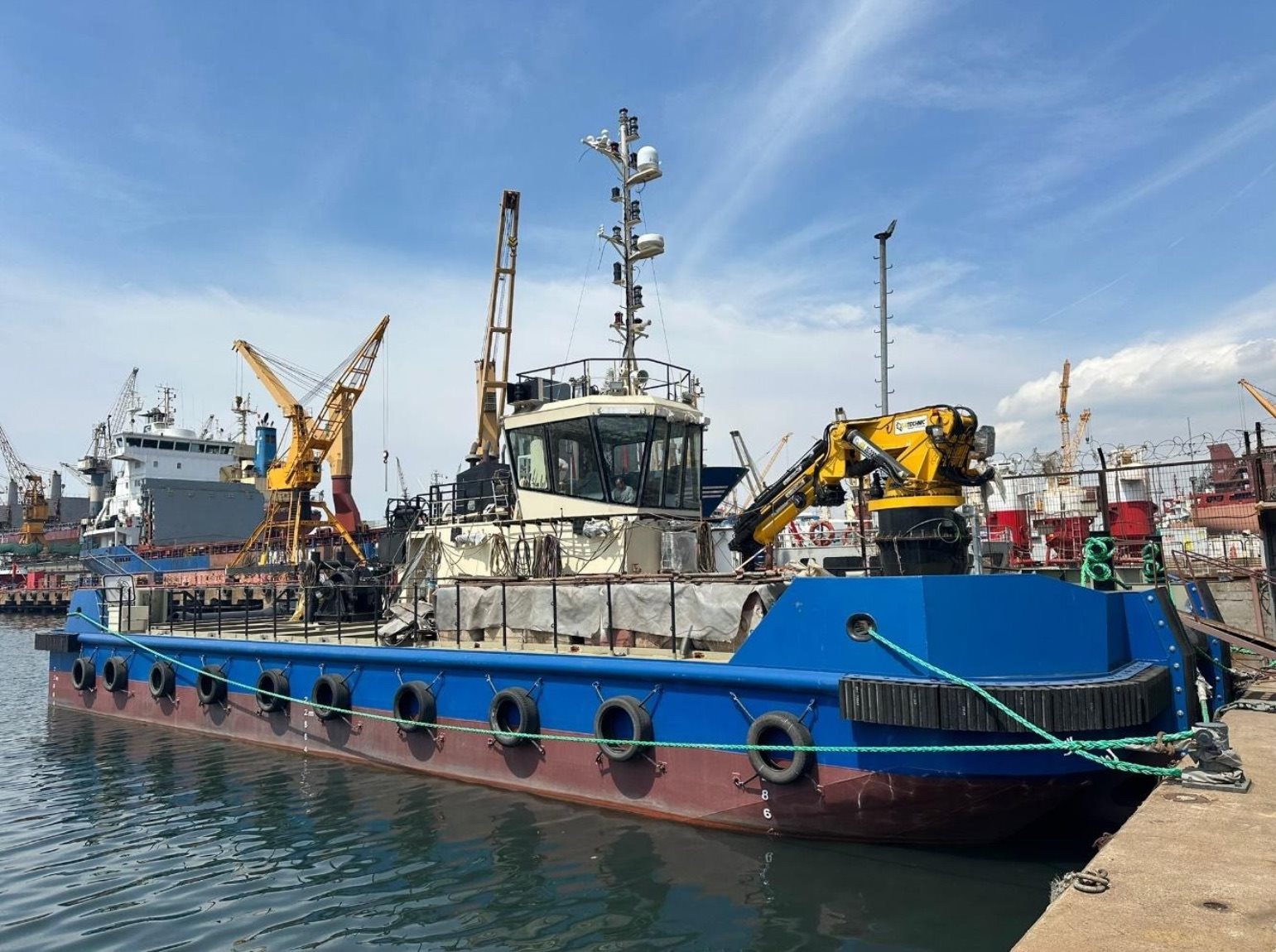

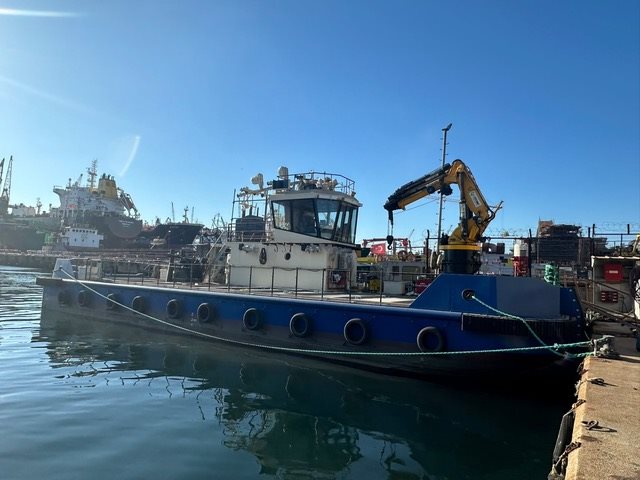

NEW 24m Multi-Purpose Workboat

Listing ID - 5868
Description	NEW 24m Multi-Purpose Workboat
Date Launched	2026
Length	23.90m (78ft 5in)
Beam	9.20m (30ft 2.2in)
Draft	2.25m (7ft 4.5in)
Note	Engine: 2 x Volvo Penta D16 MH
Location	Turkiye
Broker	Craig McKay craig.mckay@seaboatsbrokers.com +61 412 295 595
Price	EUR 5,000,000
View As PDF

Boat Type: Multipurpose Workboat

Displacement: abt 300 tons

Keel type: Steel flat plate

Boat Colour: Blue topsides, red underwater, gray deck and light cream superstructure

Hull Material: Steel

Deck Material: Steel

Drive: 2x Fixed Pitch Propellers

DIMENSIONS

Length Overall : 23.90m

Length B.P. : 22.34m

Breadth Overall : 9.20m

Depth At Side : 3.15m

Draft (max.) : 2.25m

Draft (working) : 1.90m

GRT : abt. 176

MACHINERY

Main Engines : 2 x Volvo Penta D16 MH

(IMO TIER III) : 2 x 600 HP @ 1800 rpm

Gearboxes : ZF W650 (4.531:1)

Propellers : 2 x Ø1400 mm in nozzle

Diesel Generators : 2 x CAT C 4.4 (86 kWe)

Bollard Pull : abt. 16 tons

Speed @ 90% MCR : abt. 9 knots

CAPACITIES

MGO : abt. 40 m³

Cargo Fresh Water: abt. 41 m³

Accommodation : 6 crew

Deck Working Area : 100 m² 4-10 ton/m²

DECK MACHINERY

Tugger Winch : SWL 20 tons, hydraulic

Deck Crane Fwd.: Deck Crane Fwd.

Towing Hook: SWL 16 tons, mechanic

Stern Roller : SWL 20 tons

Bow Roller : SWL 20 tons

CLASSIFICATION : RINA

NAV-COM: GMDSS A1

DESIGNER: Norden Ship Design

C ✠ Hull, ● Mach Workboat-Multicat

Coastal Navigation :Special Service

ACCOMMODATION

4 cabins for total 6 crew. Mess room with full galley equipment. 3 heads. Fully air conditioned.

GALLEY

Stainless Steel marine type galley with Siemens equipment. Additionally, dry provision cabinets, deep freezer, laundry and drying machines in the workshop area. All equipment 220V-50Hz

REFRIGERATION
Siemens fridge in the galley and deep freezer in the workshop.

MISCELLANEOUS GALLEY EQUIPMENT

Fridge, Oven, Range, Hood, Washing Machine

ENGINE DESCRIPTION

2x 600 HP Volvo Penta D13 Heavy Duty IMO TIER III with SCR and urea tank

2x 86kWe CAT C4.4 diesel gen sets

1x 55kW Rexroth HPU

5x Blokland box coolers for fresh water cooling of engines and HPU oil cooler

MECHANICAL DETAILS

All pumps from DESMI, Denmark. HPU 55kW Rexroth and ABB motor and ABB frequency converter. All battery chargers Victron.

TANKAGE
Total 17 tanks

Bunker Tank: 40m3

FW Cargo Tanks: 41m3

Potable FW Tank: 6m3

Sewage Tank: 2m3

Oily Bilge Tank: 1m3

Urea Storage Tank: 1m3

ELECTRICAL SYSTEM

380V - 50Hz gen sets, transformers for 220V 50Hz

24V DC system with batteries and battery chargers

100 Amp shore connection box

NAVIGATION EQUIPMENT

1x Marine Radar, X Band 4kW 2ft Radome, 10.4” display

1x GPS Chart Plotter, 19” display

1x GPS Receiver GNSS

1x GPS Compass, 5.7” display

1x Autopilot, MK 2-1S

1x Marine VHF Radiotelephone, Class A DSC, 5” display

1x AIS Class A with GPS,7” display

1x Doppler Speed Log

1x Navtex Receive for GMDSS, 5.7” display

1x AIS SART

1x AIS EPIRB

1x BNWAS

1x Magnetic Compass, overhead mount

1x Wind Speed & Direction

1x SAT TV Antenna

CONSTRUCTION DETAILS

Full steel, total lightweight about 200 tons

Brand New building, keel laying date 2024.

Delivery in 2026.

DECK EQUIPMENT

105 ton hydraulic deck crane, telescopic folding type. Max outreach 18m.

SWL 20 ton hydraulic tugger winch. Drum capacity for 220m dia 30mm steel rope.

Class certifies hydraulic windlass with one permanent one spare anchor.

SWL 16 ton class certified towing hook

STEERING

Electro-hydraulic steering gear with 380V-50Hz HPU, one unit and 2 rudder blades double sided.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
