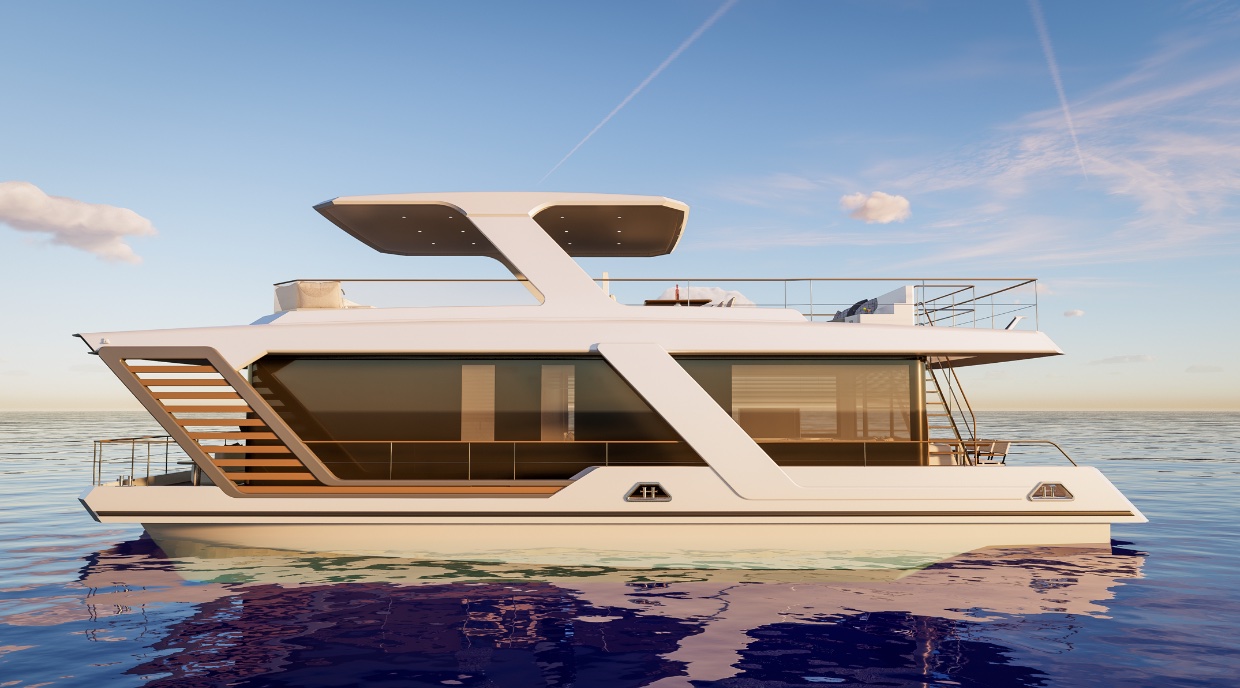

Length: 17 m
Breadth: 6.65 m
Draught: 0.80 m
Air Draught: 5.35 m
Ceiling Height: 2.30 m

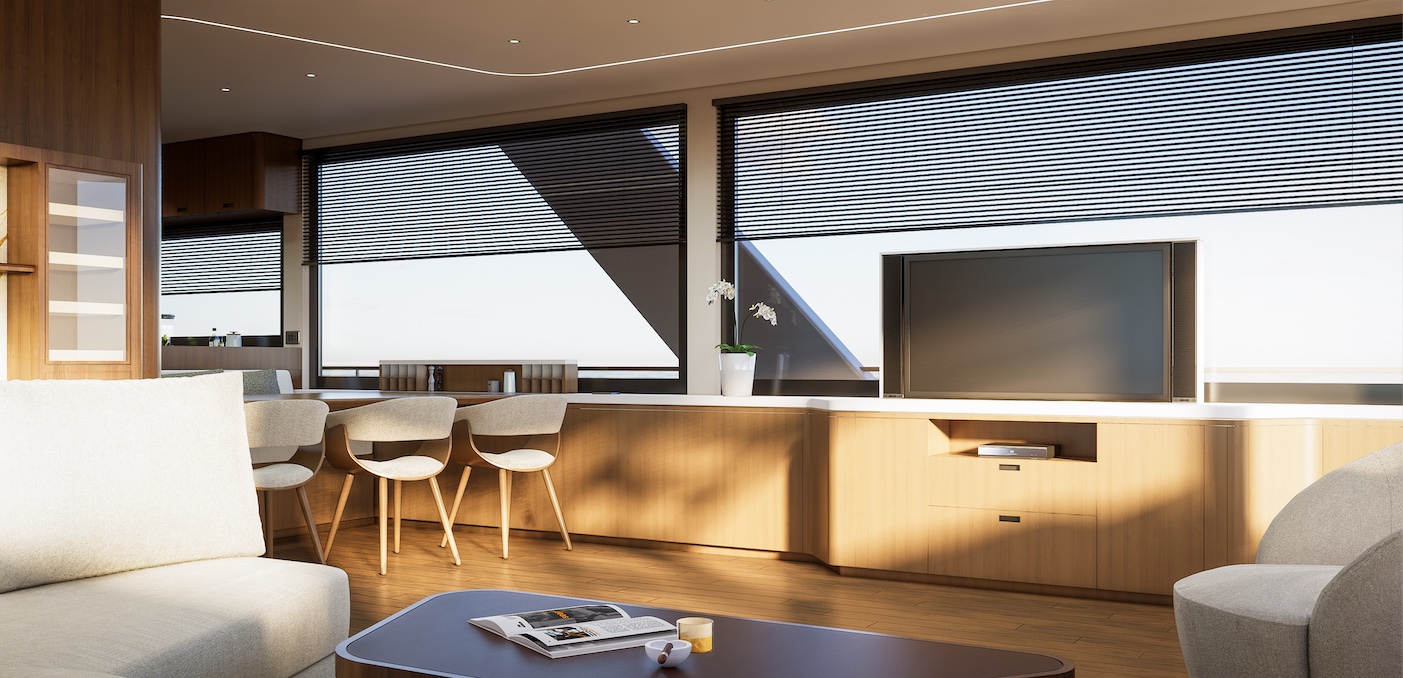

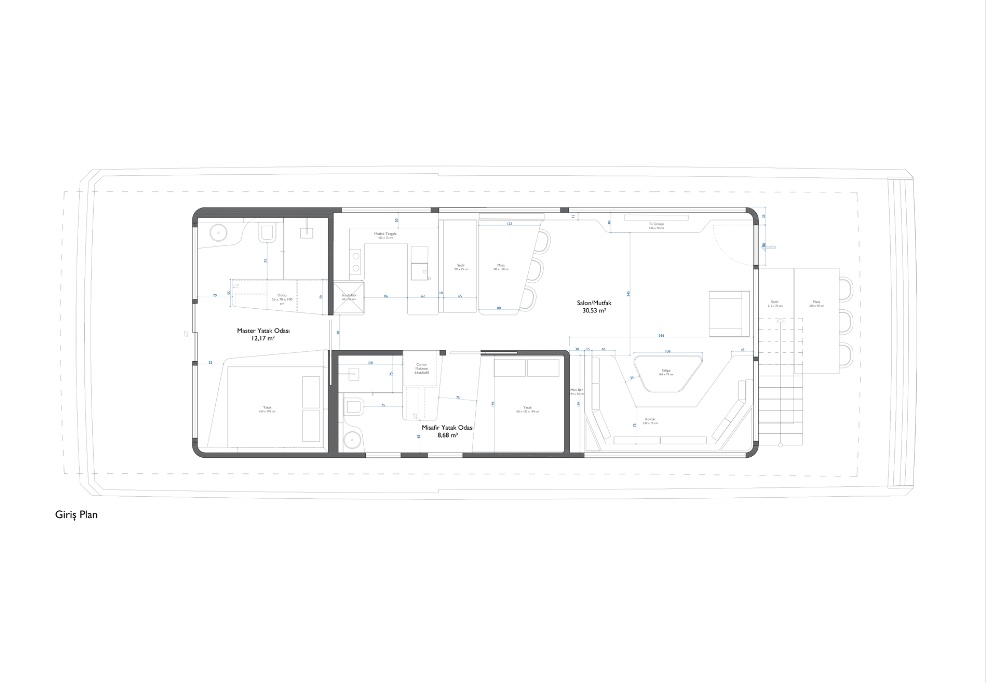

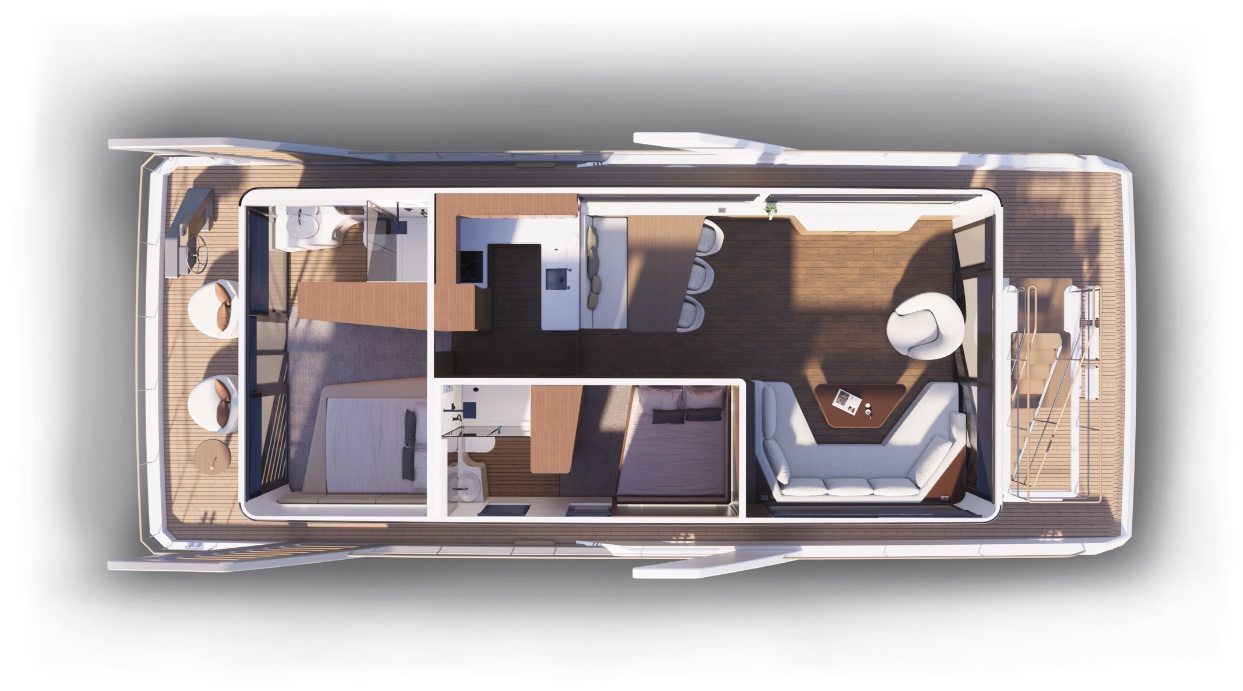

Living Space 57 meter-square

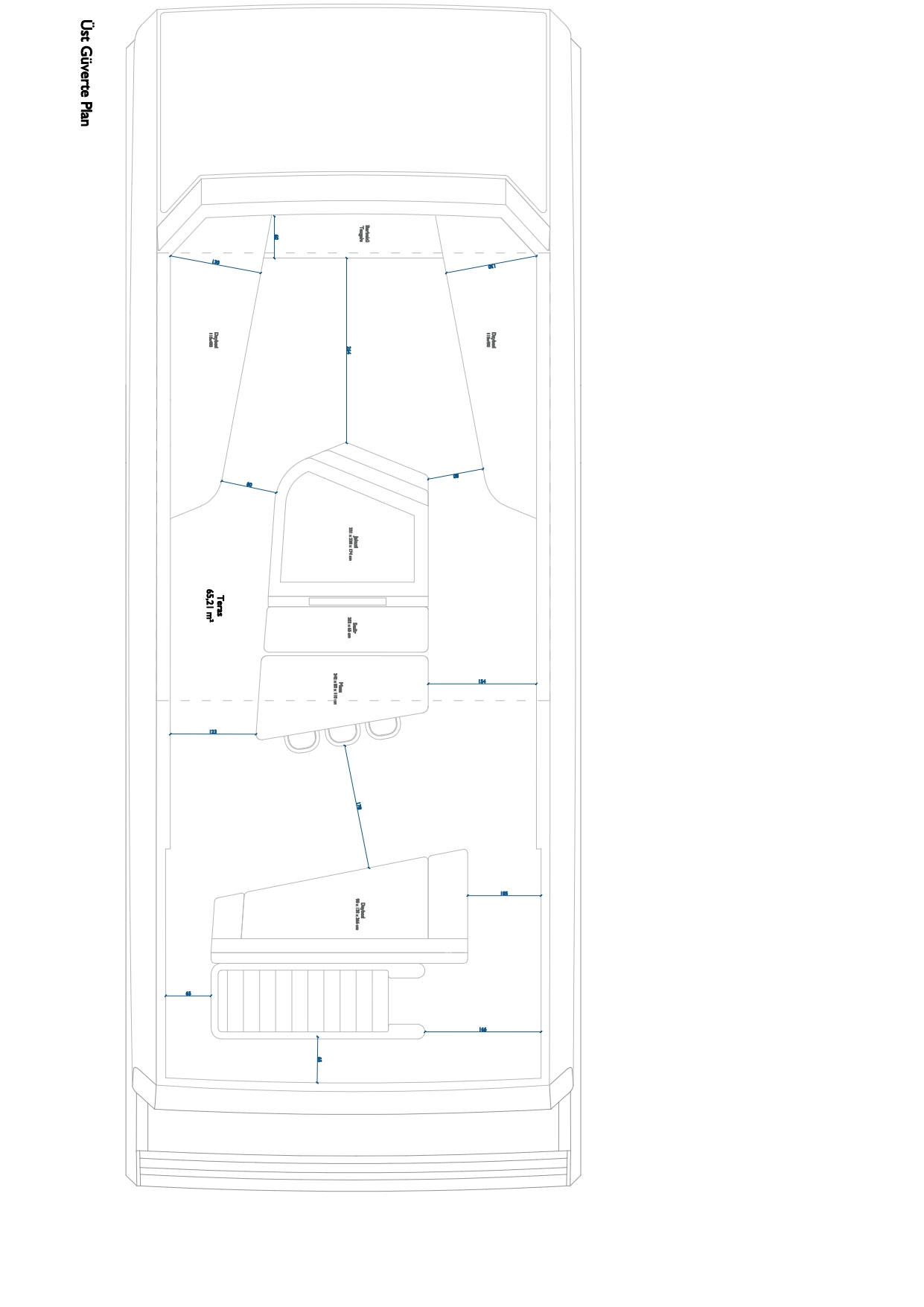

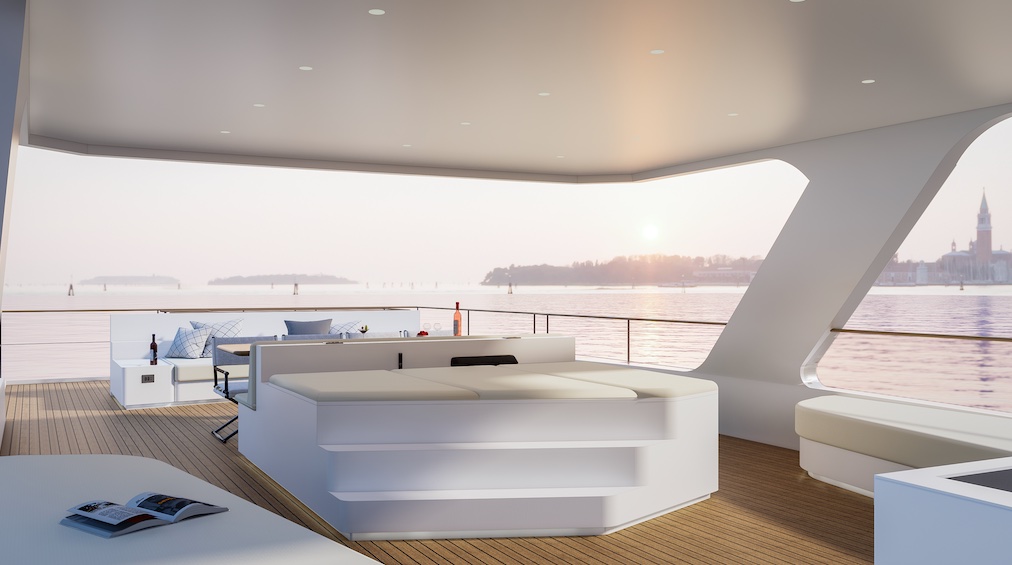

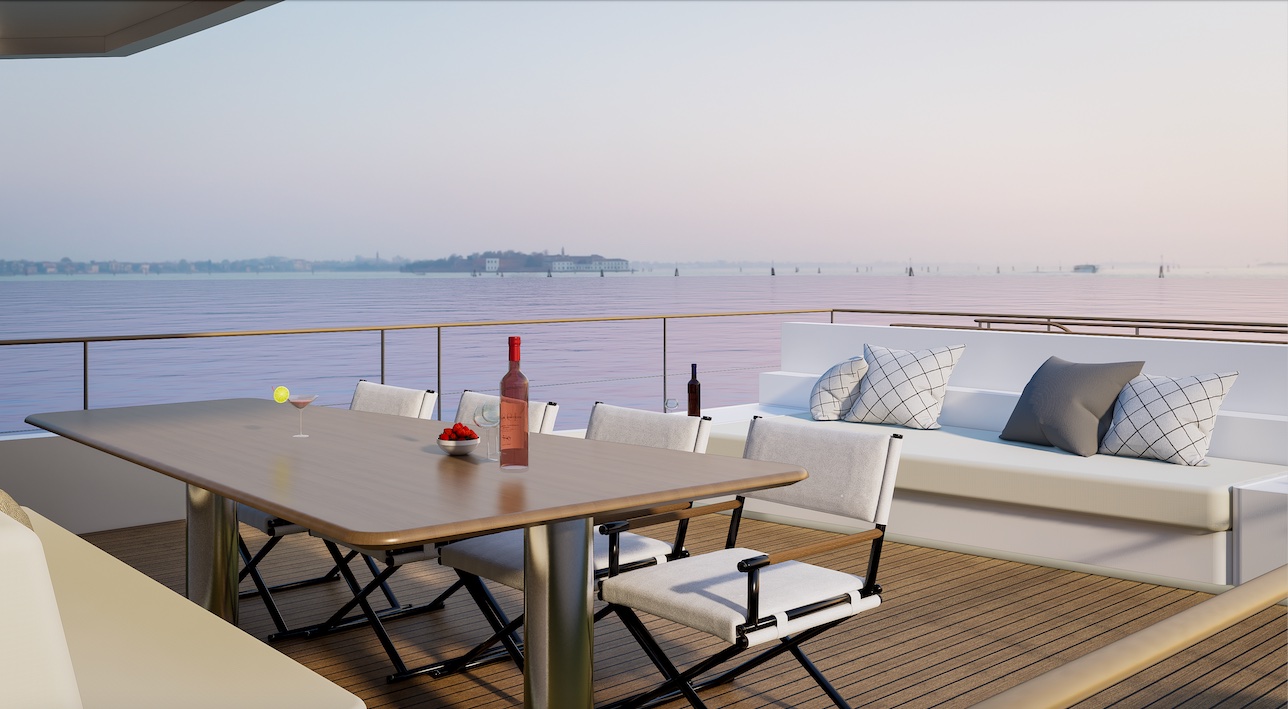

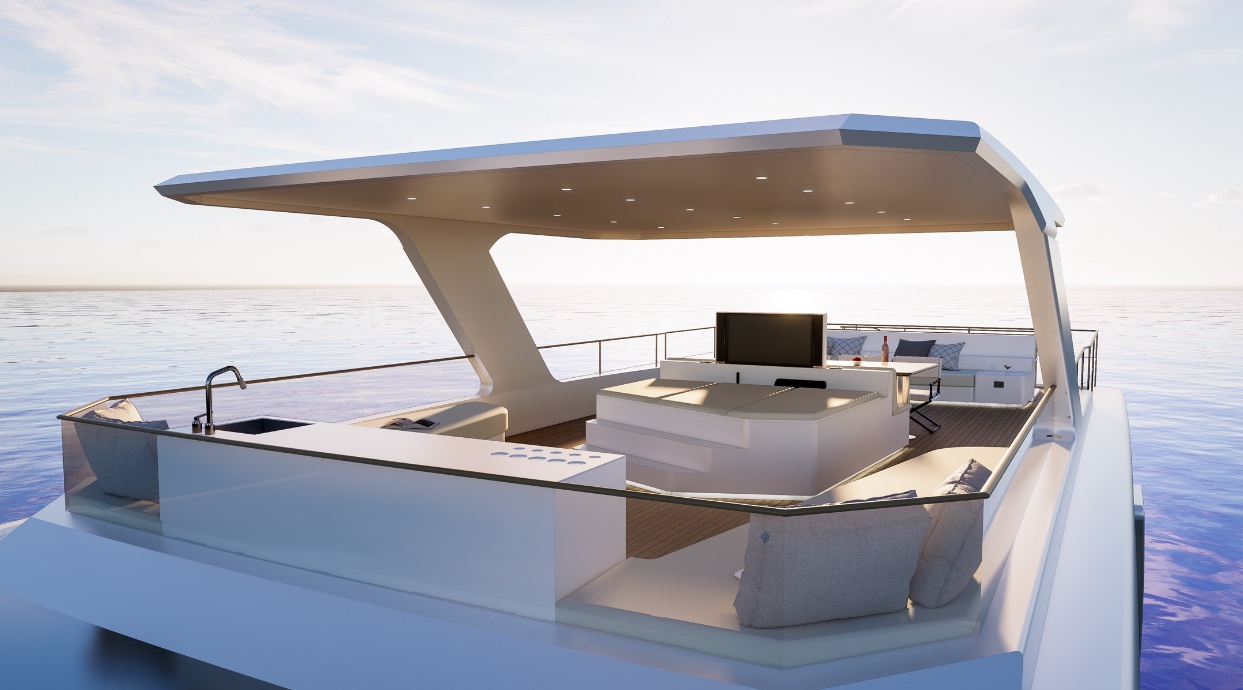

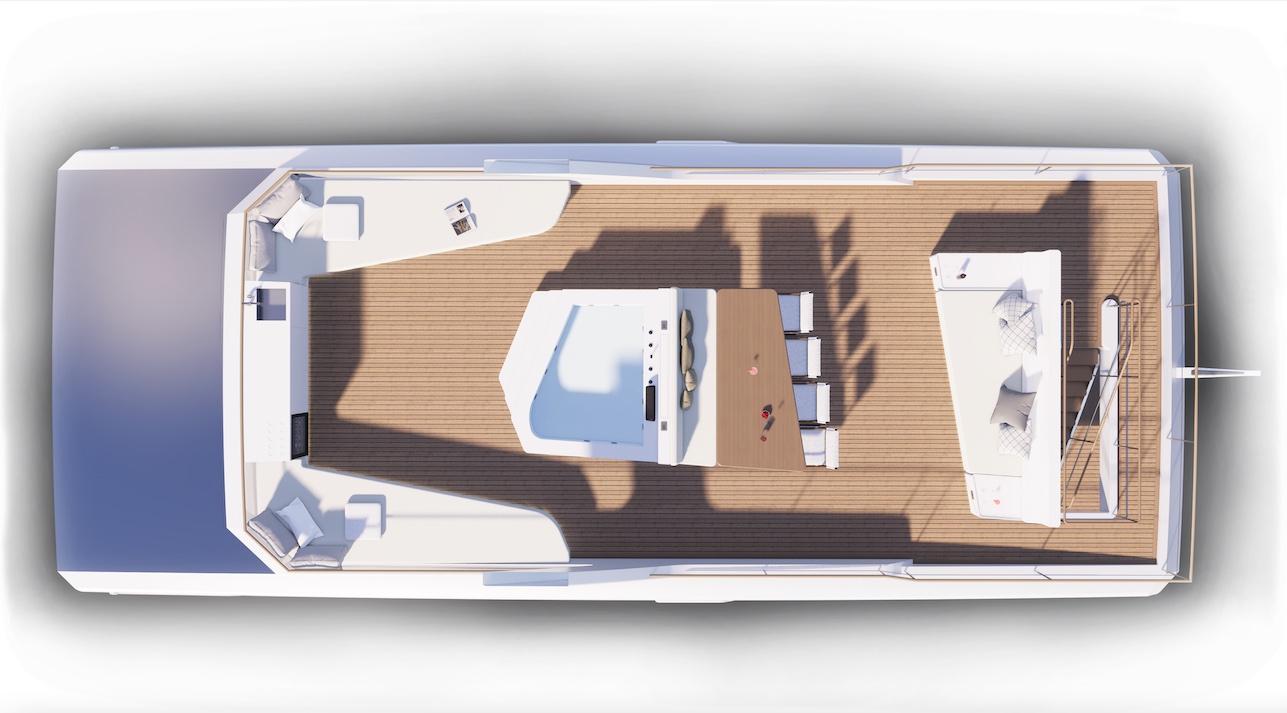

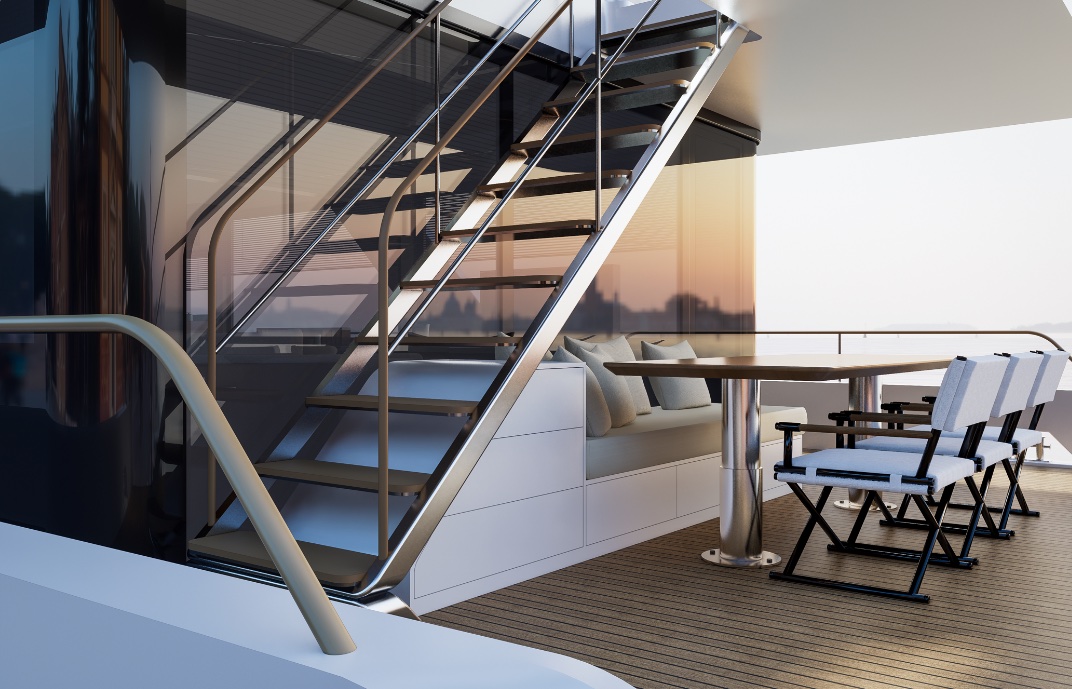

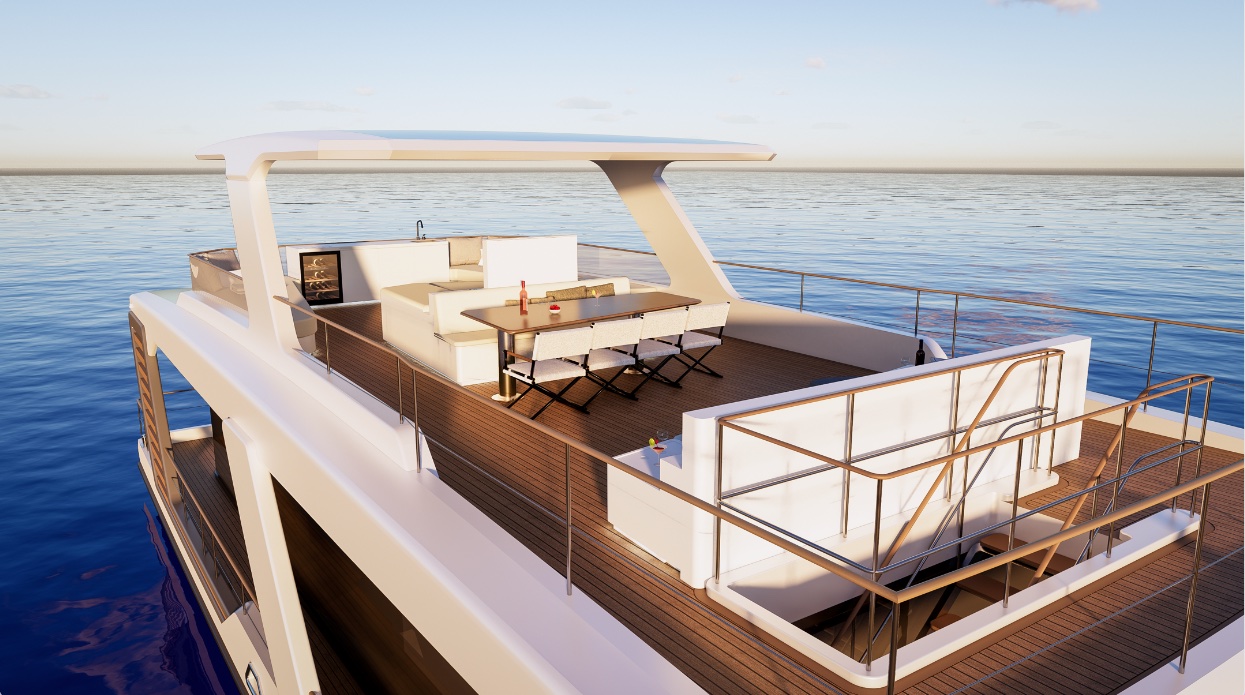

Lower Deck Terrace Area: 45 meter-square Upper Deck Terrace Area: 67 meter-square
Hull: Steel & Aluminum
Painting of the Barge: Epoxy Paint (Inside 200 microns, outside 35 to 400 microns)
Frame: Metal Structure
Floor: Teak or Burmese
Walls and Partitions: 19mm laminated panels Ceiling: Stitched Canvas
Floors Terraces: Ceramic Tiles
Motorization and Steering
Electric Motors: Outboard Engine 2x 100HP (This is the default selection, it can be modified due to customer’s needs)
Wired Cockpit: @ Main Deck
Clear Water Tank: 2500L water bag
Black Water: Biological Treatment – Tom Logisch
Water Heater: From 80L
Water Quality: Water Purifier, Filter and UV Lamp
Air Conditioning, Heating and Insulation
Main: Reversible Air Conditioning – Ceiling Cassettes
Secondary: Radiant Panels
Insulation: High performance polystyrene 15 to 17kg / cubic meter
Wall Insulation Thickness: 200mm
Floor and Ceiling Insulation Thickness: 180mm Double-Glazed bay windows: Uw equal to 1.3 (W/m2K)
DC Voltages: 12-24V
AC Voltages: 220V
Solar Panels: From 390W to 3600W solar panel packages (Due to the load analysis) Energy Storage: 120Ah or 150Ah gel batteries Generator: 12kVA marine generator Panda Fischer (optional)
The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
