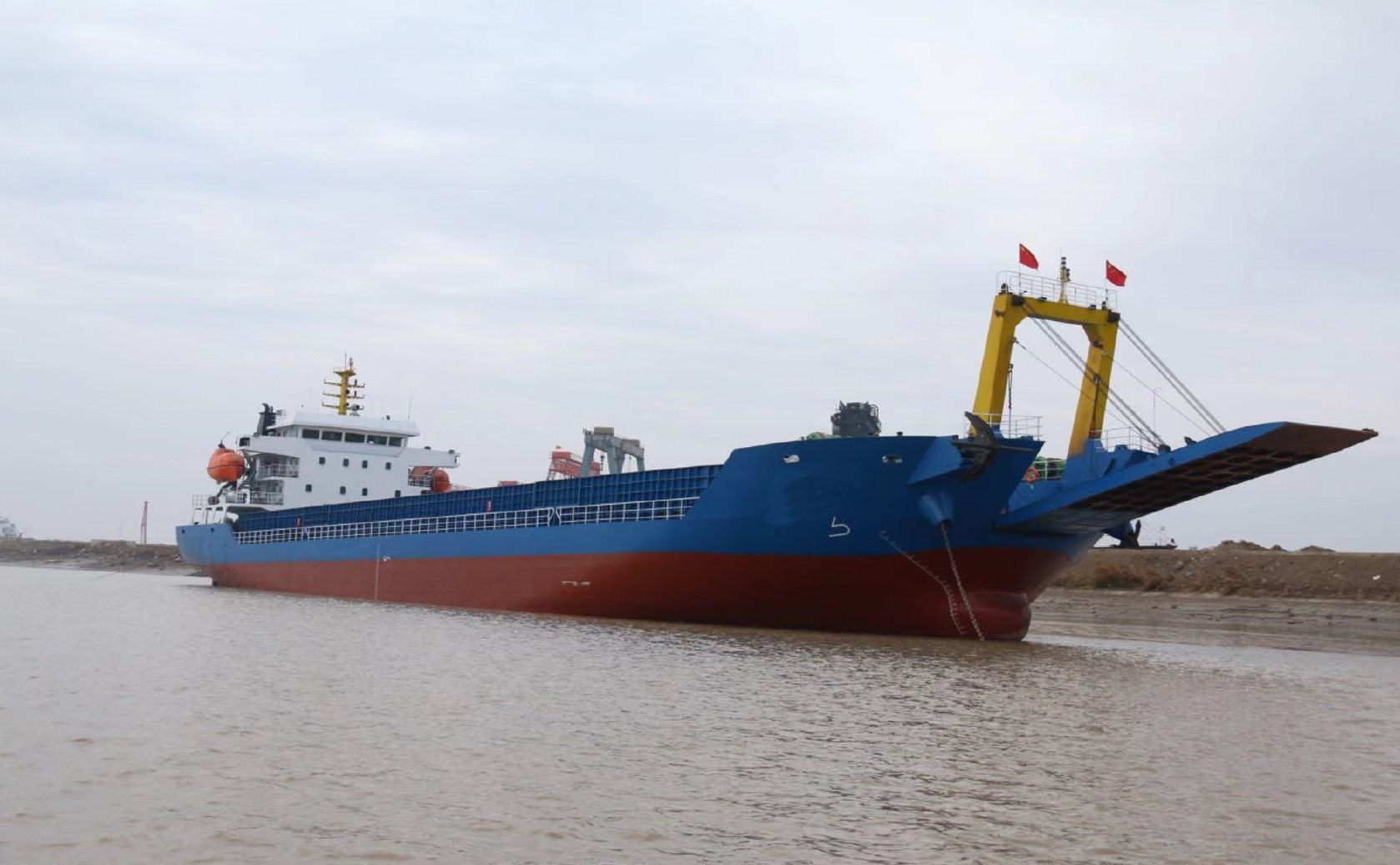

99.78m Self-Propelled LCT barge (2021)

Listing ID - 5583
Description	Self - Propelled 99.78m LCT barge
Date Launched	February 2021
Length	99.78m (327ft 4.35in)
Beam	20.78m (68ft 2.11in)
Draft	4.23m (13f 10.54in)
Note	Main Engines: 2 × CNPC JICHAI
Location	China
Broker	Ivan Colaco ivan.colaco@seaboatsbrokers.com +61 401 695 814
Price	3,200,000 USD
View As PDF

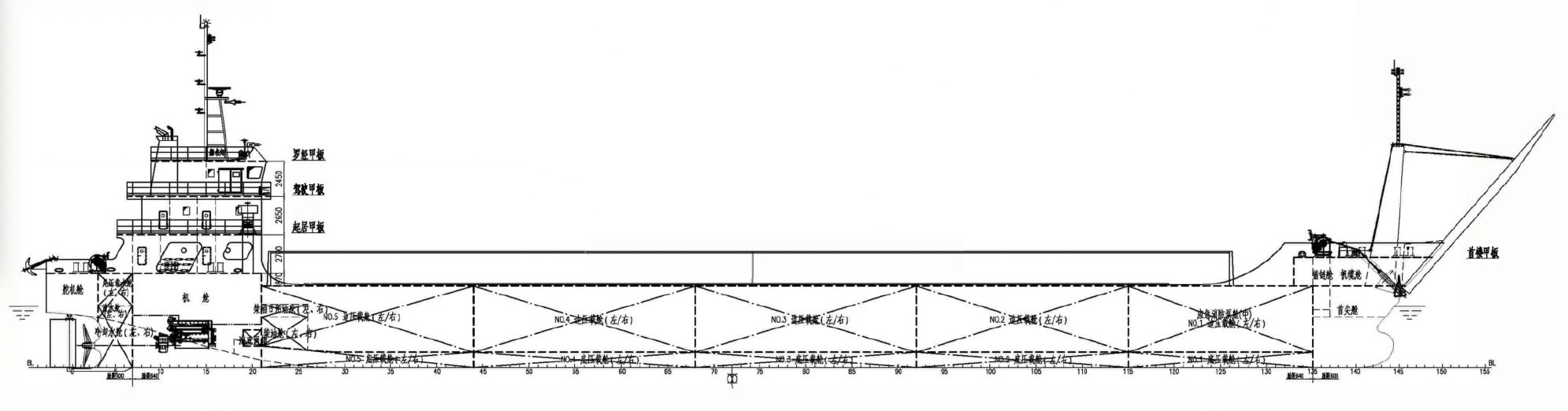

GENERAL SPECIFICATION

Vessel Type: Self-Propelled LCT / Deck Cargo Vessel

Hull No.: CB 96

Year Built: February 2021

Builder: China

Hull Material: Steel

Class: CCS (Domestic Coastal)

Trading Area: Sea / Coastal

Flag: China (subject to change)

PRINCIPAL PARTICULARS

Length Overall (LOA): 99.78 m

Length Waterline (LWL): 97.04 m

Length Between Perpendiculars (LPP): 93.60 m

Beam (Moulded): 20.78 m

Depth (Moulded): 5.65 m

Design Draft: 4.23 m

Light Draft: 3.221 m

TONNAGE

Deadweight (DWT): approx. 5,150 MT

Maximum DWT (estimated): up to approx. 6,000 MT (subject to survey)

Gross Tonnage (GT): 2,998

Net Tonnage (NT): 1,678

Loaded Displacement: approx. 6,940 MT

Light Displacement: approx. 1,743 MT

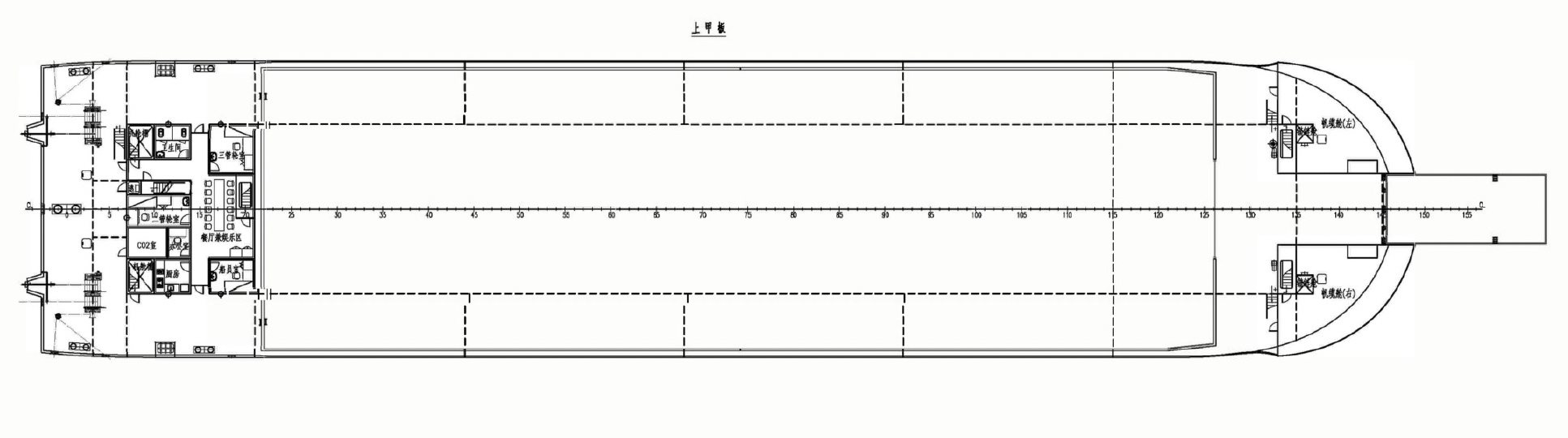

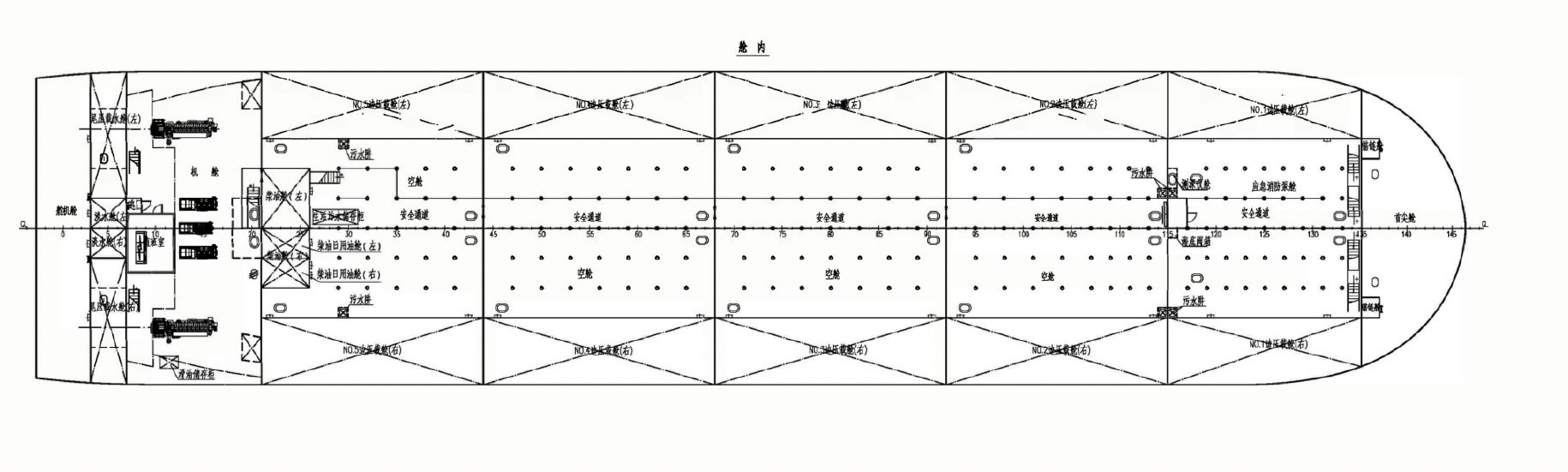

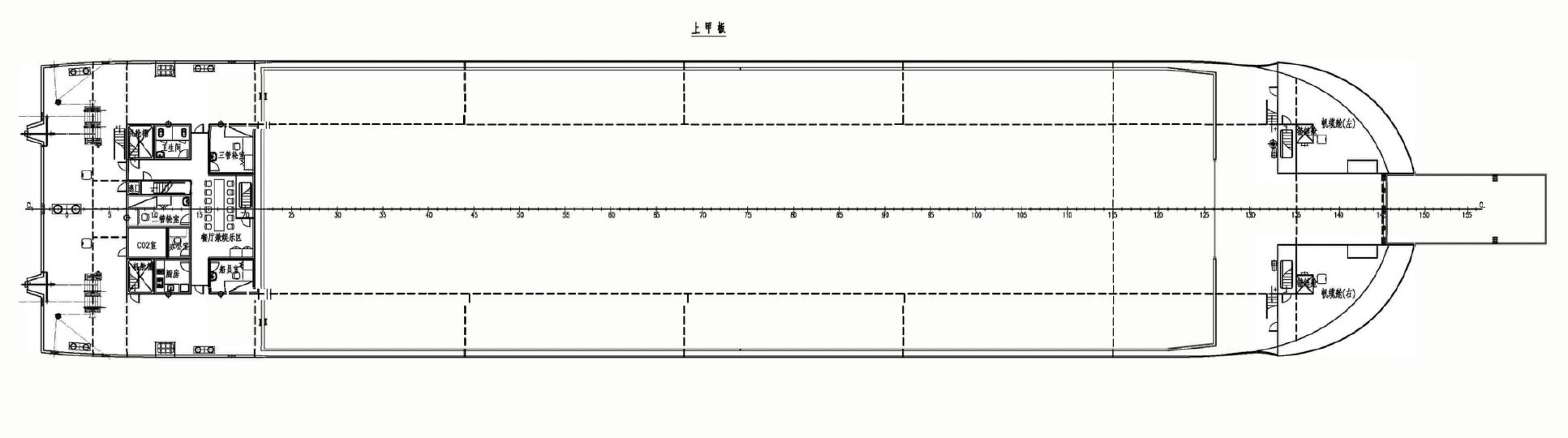

CARGO DECK

Deck Dimensions: approx. 72.0 m × 20.0 m

Deck Area: approx. 1,440 m²

Deck Strength: 5.0 t/m²

Cargo Type: Deck cargo, project cargo, vehicles, equipment, offshore materials

MACHINERY

Main Engines: 2x CNPC JICHAI diesel engines

Power: 1,500 HP each

Total Power: 3,000 HP

Propulsion: Twin screw, fixed pitch propellers

SPEED & CONSUMPTION

Service Speed: approx. 8–9 knots

Maximum Speed (light condition): approx. 11–12 knots

Fuel Consumption: approx. 3.8 MT/day

ELECTRICAL

Main Generators: 2 × 187 kW @ 1,500 rpm

Harbor / Emergency Generator:

1 × 50 kW

NAVIGATION & SAFETY

Radar

GPS

AIS

Gyro compass

Magnetic compass

Depth sounder

Lifesaving and firefighting equipment in compliance with CCS / China MSA

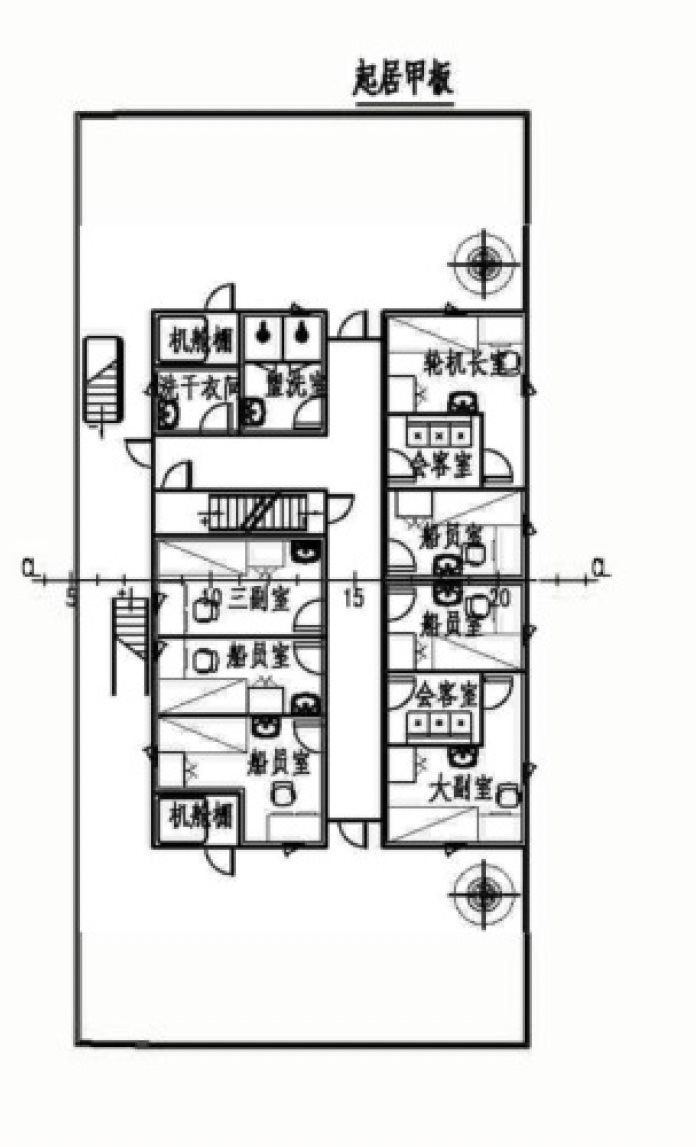

CREW

Crew Complement: 12 persons

REMARKS

Modern LCT built 2021

Large, clear deck with high deck loading

Twin-engine, twin-propeller configuration

Suitable for coastal and regional deck cargo operations

Flag and class change possible, subject to buyer’s requirements

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
