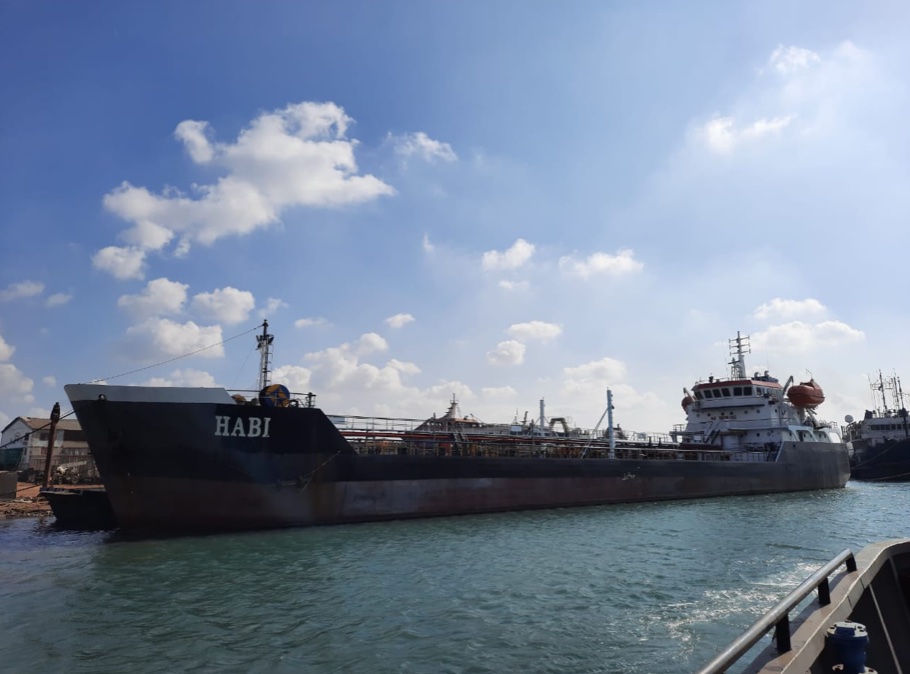

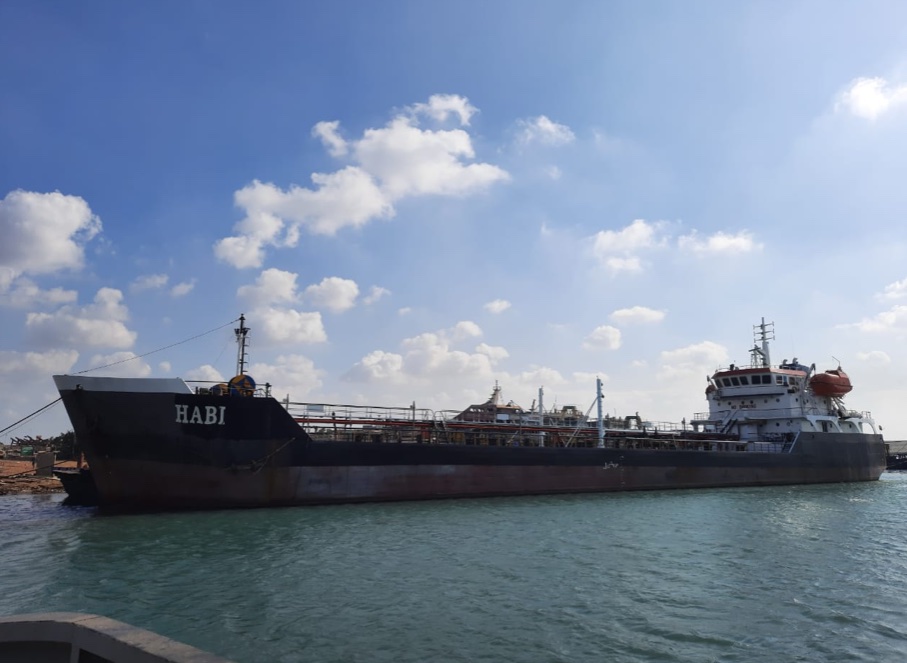

79.40m Oil Tanker For Sale

Listing ID - 4499
Description	79.40m Oil Tanker For Sale
Date Launched	2020
Length	79.40m (260ft 5in)
Beam	15m (49ft 2in)
Draft	5.5m (18ft)
Location	Egypt
Broker	Ivan Colaco ivan.colaco@seaboatsbrokers.com +61 401 695 814
Price	USD 2.5 million
View As PDF

Builder: Port Said – Egypt

Flag: Panama

Class: Phoenix Register of Shipping

SS: 30/12/2025

DD: 30/12/2023 Laid up

Hull: Double

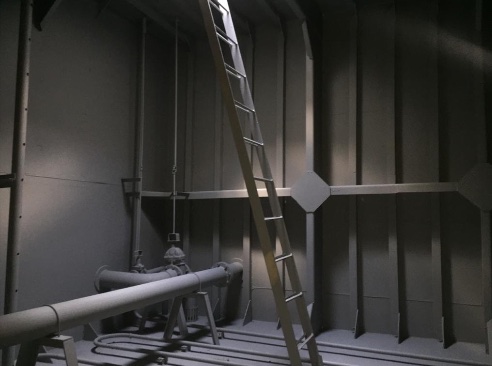

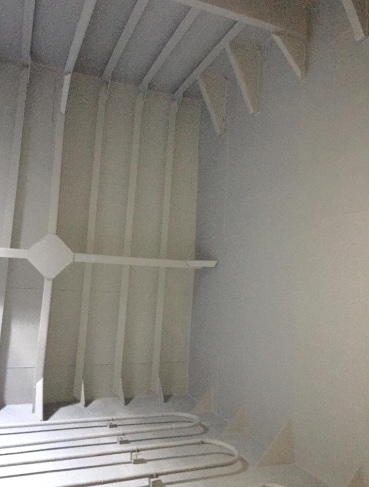

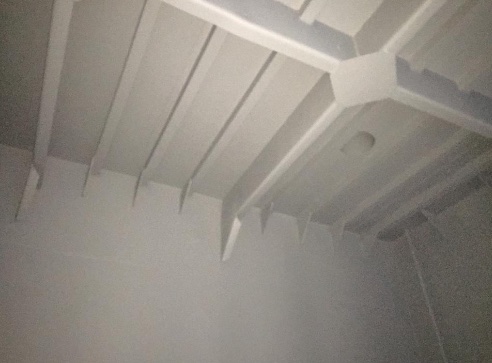

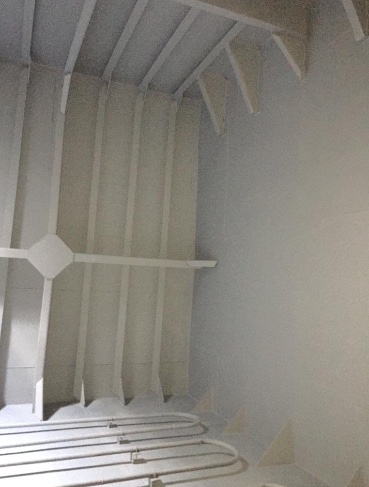

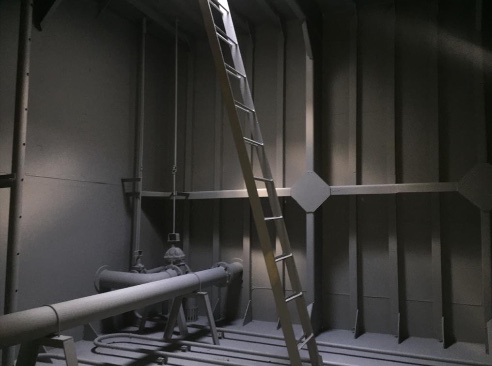

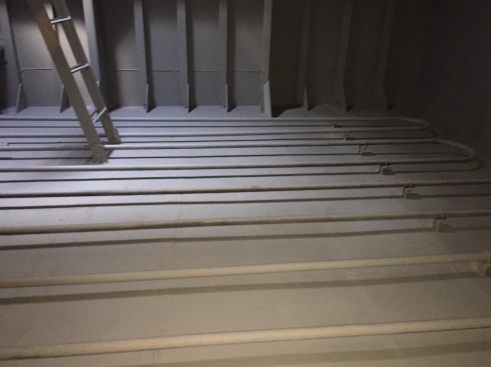

Cargo Tank: Coiled, epoxy coated

Port of Registry: Panama

Vessel’s Type: Oil Tanker

Type of Hull: Double Hull

Classification Society: Phoenix Register of Shipping

Class Notation: PHRS 100A1, IMS, Oil Tanker – Double Hull (ESP)

LOA: 79.40m

LBP: 75.90m

Beam: 15m

Depth: 5.50m

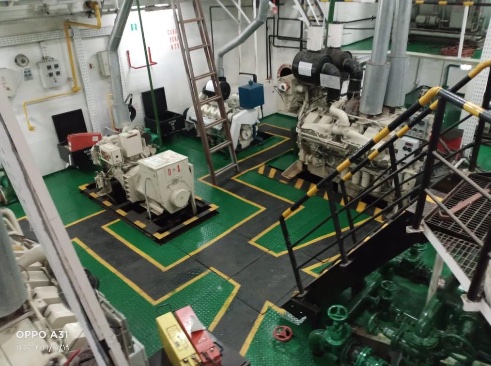

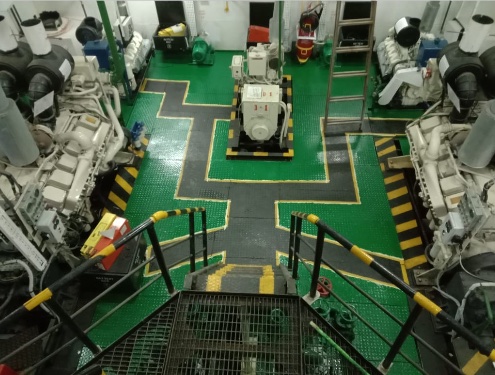

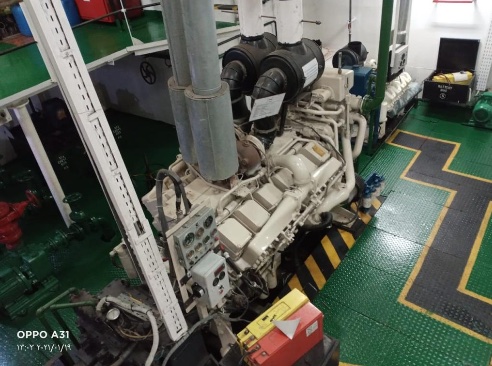

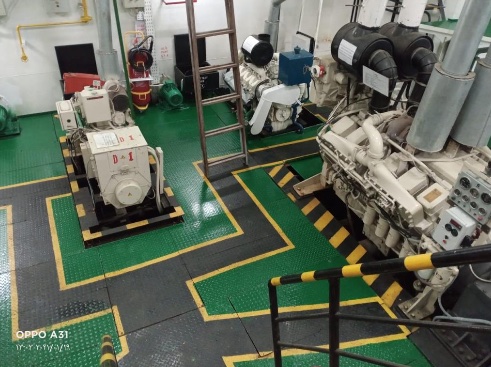

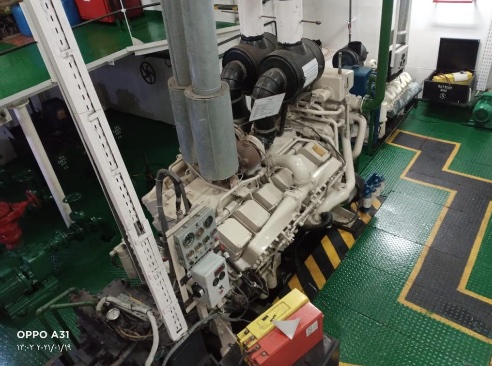

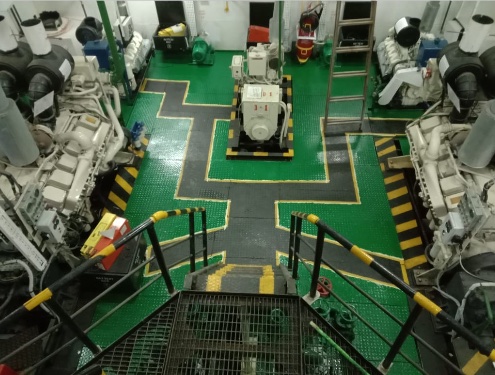

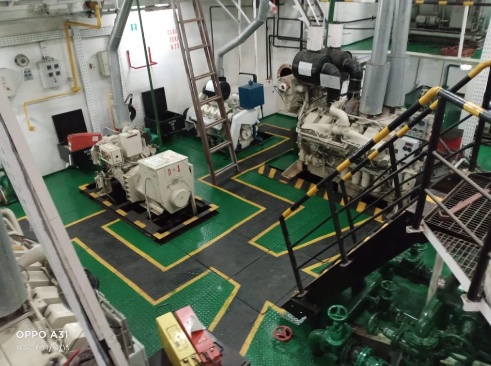

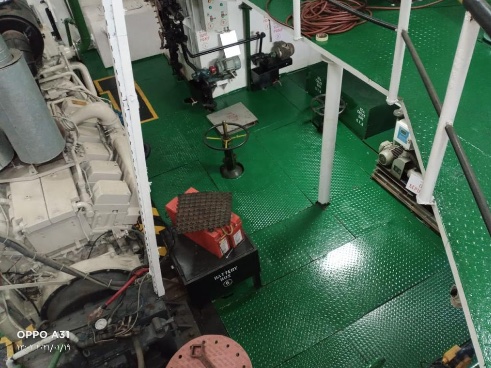

Main Engine:

2x Cummin, Type KTA38-M2

2x 1044.40 kW @ 1950 rpm (idle speed: 650 rpm)

Speed: 12 knots

Propellers: 2x Fixed Pitched Propellers

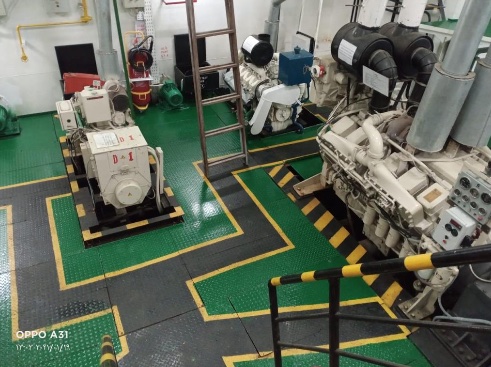

Diesel Generators: 3x Cummins, Type: 6BT5.9 D(M); 3x 91kW @ 1500rpm

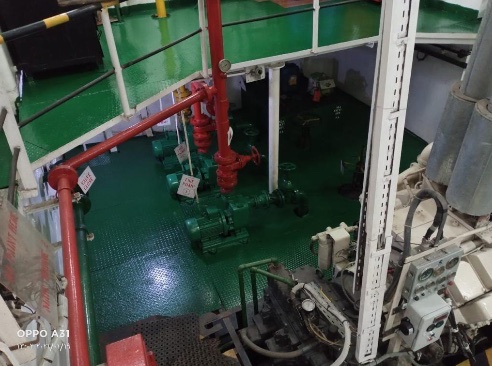

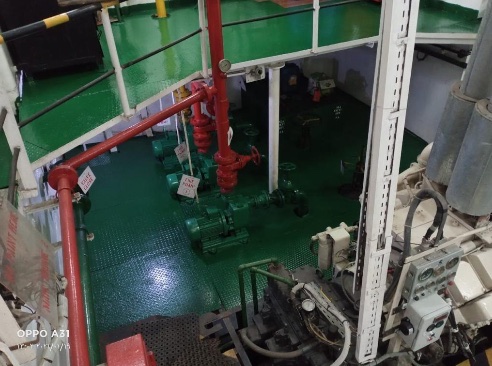

Number of Cargo Pumps

2 Cargo Pumps (Screw Type) - diesel engine driven

Total Capacity of Cargo Pumps:

2x 400 m3/h @ 4m (NPSH) 1480 rpm

Keel to Masthead (KTM) / KTM in collapsed condition (if applicable): 30m

Bow to Center Manifold (BCM) / Stern to Center Manifold (SCM): 46.75m, 32.60m

Distance bridge front to center of manifold: 19.15m

Lightship

Forward to mid-point manifold: 34.17m

Aft to mid-point manifold: 16.47m

Parallel body length: 52.11m

Normal Ballast

Forward to mid-point manifold: 34.17m

Aft to mid-point manifold: 16.47m

Parallel body length: 52.11m

Summer DWT

Forward to mid-point manifold: 34.17m

Aft to mid-point manifold: 16.47m

Parallel body length: 52.11m

FWA at summer draft / TPC immersion at summer draft

Normal Ballast: 96mm

Summer DWT: 11.167 metric tons

What is the max height of mast above waterline (air draft)

Full Mast

Lightship: 21.97m full mast

Normal ballast: 21.21m full mast

At loaded summer deadweight: 18.87m

Tonnages

Net Tonnage: 805

Gross Tonnage / Reduced Gross Tonnage (if applicable): 1994

Load line Information

Summer

Freeboard: 1.203m

Draft: 4.307m

Deadweight: 3153.26 metric tons

Displacement: 4295.36 metric tons

Winter

Freeboard: 1.293m

Draft: 4.207m

Deadweight: 3045.05 metric tons

Displacement: 4187.15 metric tons

Tropical

Freeboard: 1.113m

Draft: 4.387m

Deadweight: 3246.07 metric tons

Displacement: 4388.17 metric tons

Lightship

Freeboard: 4.13m

Draft: 1.37m

Displacement: 1142.1 metric tons

Normal Ballast Condition

Freeboard: 3.534m

Draft: 1.966m

Deadweight: 615.33 metric tons

Displacement: 1757.43 metric tons

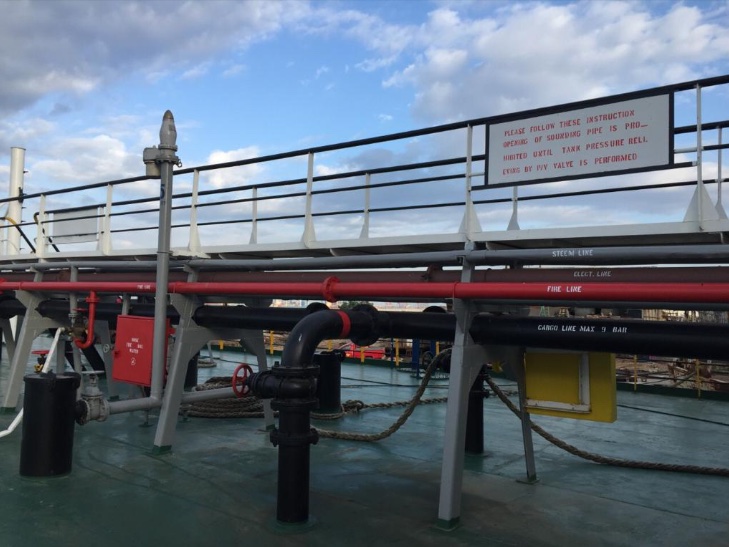

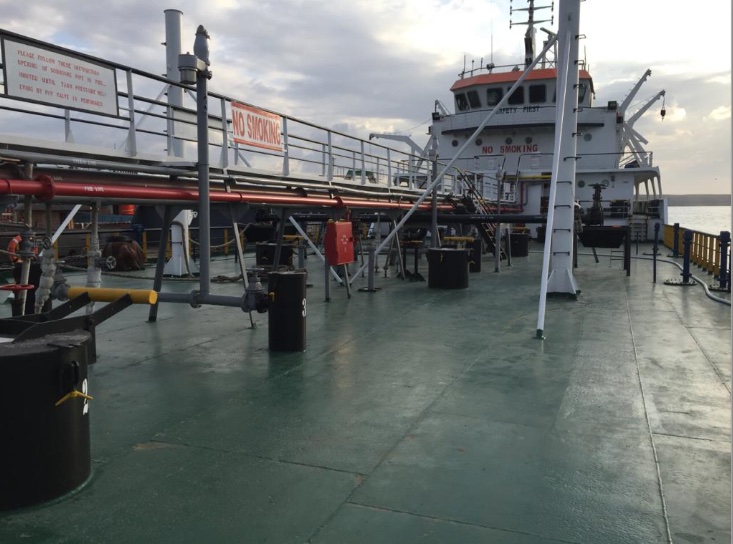

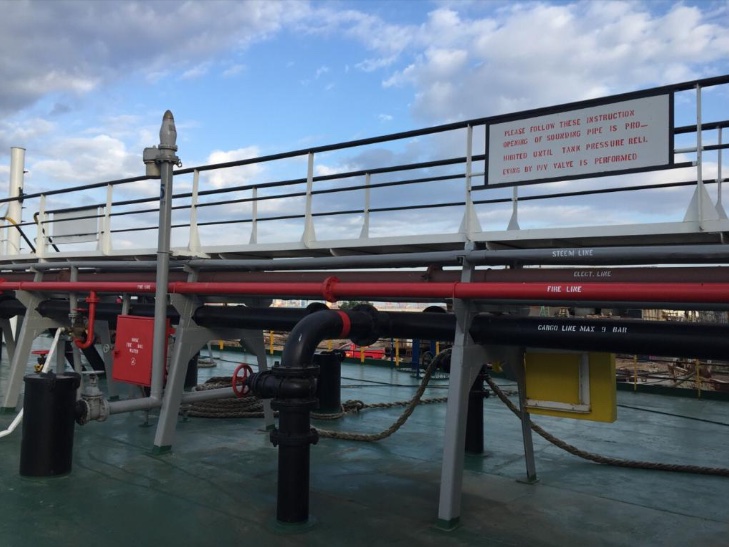

Cargo Manifolds

Does vessel comply with the latest edition of the OCIMF 'Recommendations for Oil Tanker Manifolds and Associated Equipment’: Yes

Number of Cargo Connections per side: 2

Size of Cargo Connections: 200mm

Material of the Manifold: Steel

Manifold Arrangement

Distance between cargo manifold centers: 140mm

Distance ships rail to manifold: 182mm

Distance main deck to center of manifold: 65mm

Manifold height above the waterline in normal ballast / at SDWT condition: 8.37m, 2.41m

Number / Size reducers: 6 x 150/100mm (6/4"), 4 x 200/150mm (8/6")
