60m AHTS For Sale

Listing ID - 5587
Description	60m AHTS For Sale
Date Launched	2025
Length	60.00m (196ft 10.20in)
Beam	14.20m (46ft 7.1in)
Draft	6.00m (19ft 8.22in)
Note	Main Engines: 2 × Caterpillar 3516B
Location	Hong Kong
Broker	Ivan Colaco ivan.colaco@seaboatsbrokers.com +61 401 695 814
Price	USD 14.25 Million
View As PDF

GENERAL SPECIFICATION

The vessel is designed and built as a multi-purpose offshore workboat suitable for anchor handling, fire fighting, guarding, offshore assistance and support, anti-pollution operations, supply, transportation and ocean towing in support of marine petroleum drilling platforms.

Shipyard: South China Shipyard (SCS)

Builder: South China Marine (SCM)

Design Institute: SCS Ship Design & Research Institute

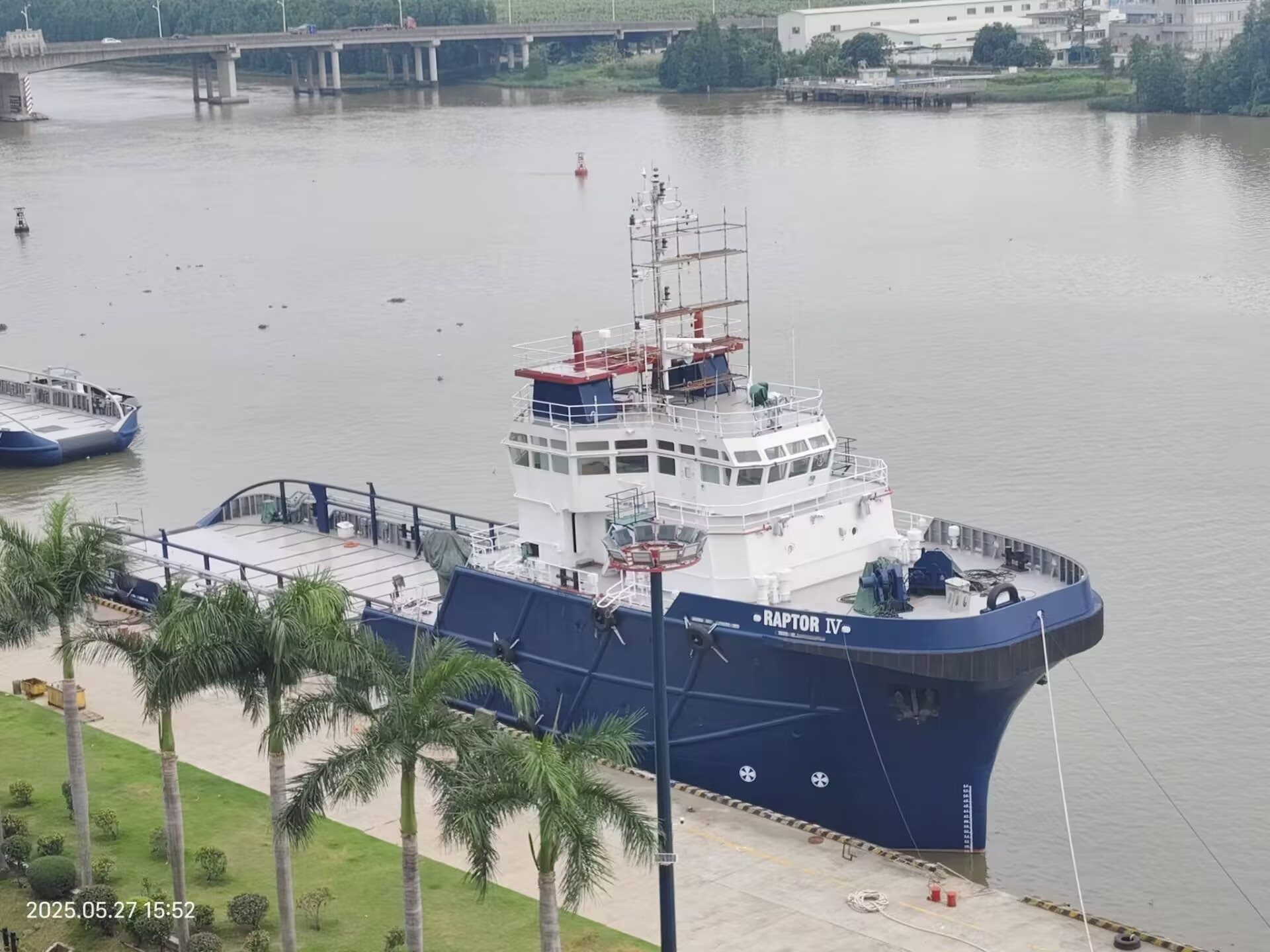

Design: RAPTOR IV

Year: 2025

Flag: Hong Kong

Navigation Area: Unrestricted

Classification: Bureau Veritas

Class Notation: HULL,MACH, DYNAPOS AM/AT-R, Supply Vessel, Tug, Fire Fighting Ship 1 (Water Spraying), Special Service – Anchor Handling Tug / Offshore Support Vessel / Standby Vessel

MAIN PARTICULARS

Length Overall: 60.00 m

Beam Moulded: 14.20 m

Depth Moulded: 6.00 m

Cruising Draft: 3.90 m

Offshore Draft: 5.10 m (maximum)

Speed: approximately 12.0 knots

Accommodation: 46 persons

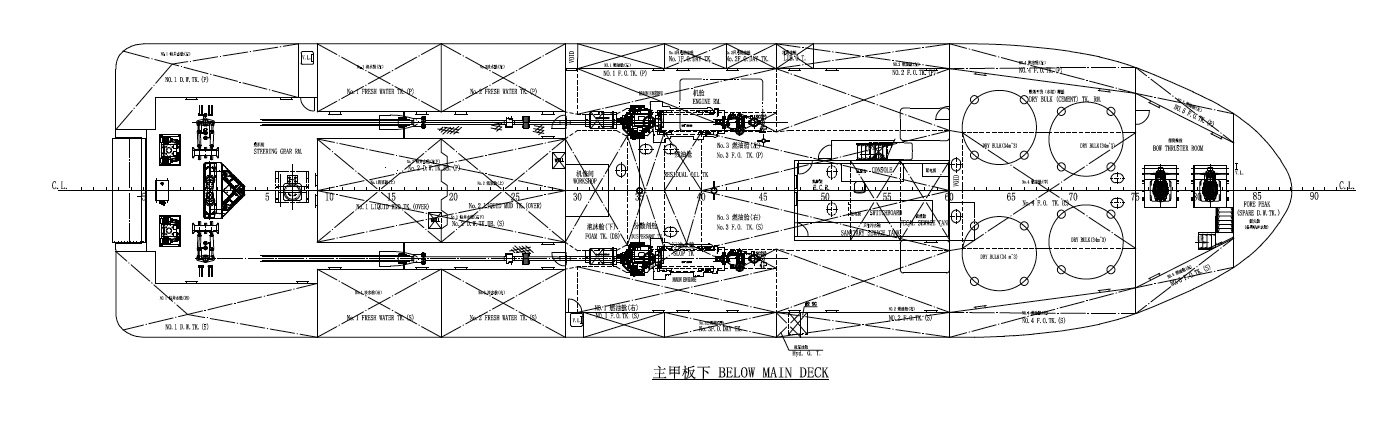

TANKS AND CARGO CAPACITIES

Fuel Oil: 583.32 m³

Fresh Water: 274.16 m³

Drilling Water: 235.53 m³

Dry Bulk (Cement): 4 × 34.00 m³

Mud Tank: 220.52 m³

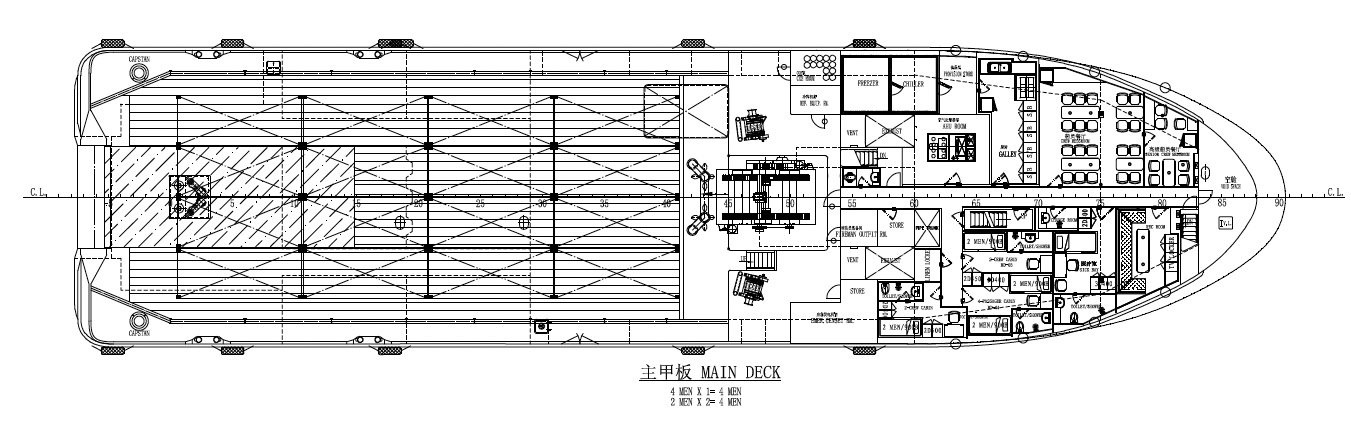

Deck Cargo Capacity: 600 tons

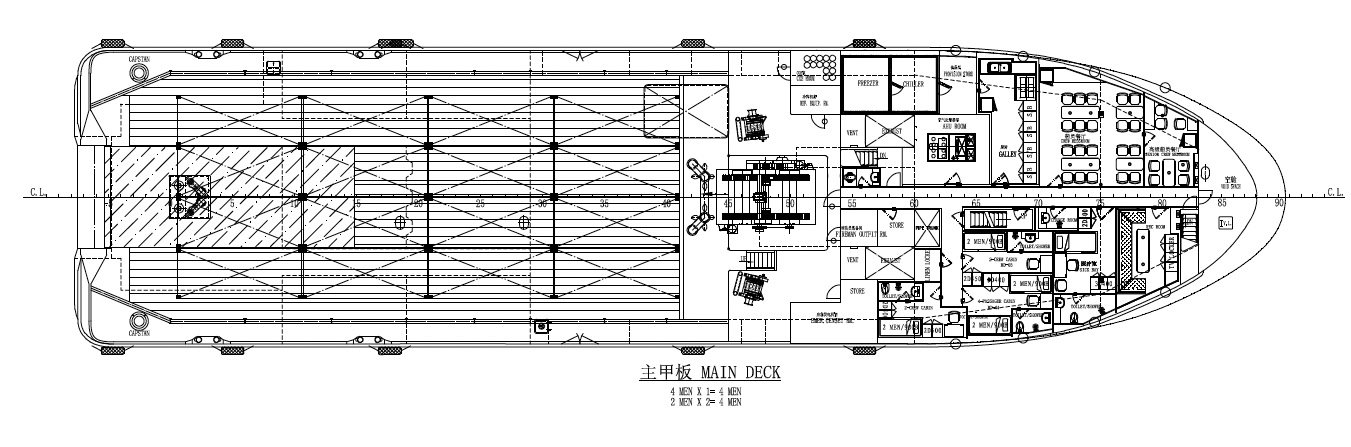

Deck Area: approximately 330 m²

Deck Strength: 7.5 t/m²

PROPULSION AND POWER

Main Engines: 2 × Caterpillar 3516B, 2,100 BHP (1,566 kW) each at 1,600 rpm

Gearboxes: Twin Disc Nico MGRP1817VC, reduction ratio 7.59:1

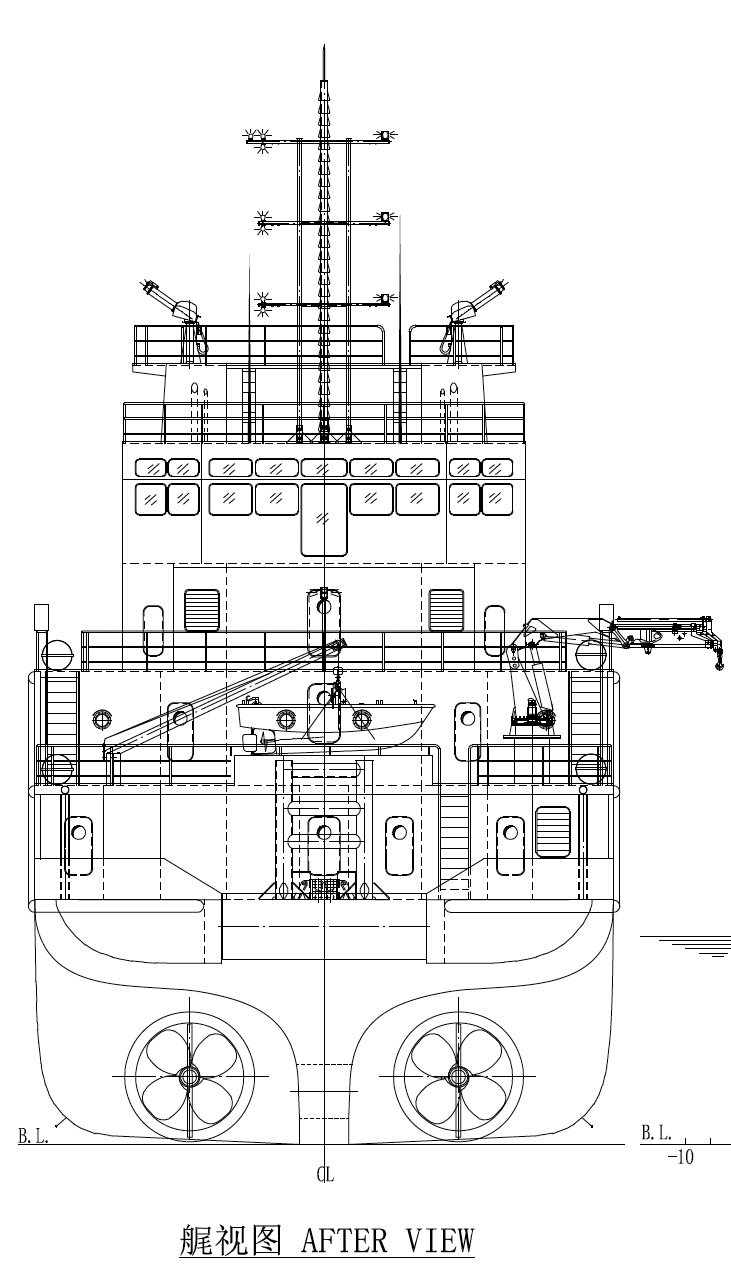

Propulsion: 2 × BERG BCP 620 controllable pitch propellers, 4-blade

Bow Thrusters: 2 × BERG BTT 315, 550 kW each

Stern Thruster: 1 × BERG BTT 213, 400 kW

ELECTRICAL POWER GENERATION

Generating Sets:

1 × Caterpillar 3406C, 245 kW

2 × Caterpillar C18, 450 kW each

Emergency Generator: 1 × 100 kW

Shaft Generators: 2 × 796 kW

DECK MACHINERY

Hydraulic windlass with rated pull 6.8 tons

Hydraulic towing winch with braking force up to 200 tons and emergency release, operable locally and from wheelhouse

Hydraulic shark jaw with 200-ton holding capacity

Hydraulic capstans and auxiliary winches

Hydraulic folding crane rated 12 tons at 2.5 m / 2 tons at 10 m

FIRE FIGHTING AND SAFETY

External FiFi-1 system by FFS Norway with two fire monitors rated 1,200 m³/h

Fire pumps with capacity up to 1,550 m³/h

Fixed CO₂ fire-extinguishing system for engine room

Fully compliant with SOLAS and BV requirements

Rescue boat for 6 persons with single-boom launching device

NAVIGATION AND COMMUNICATION

GMDSS compliant for Sea Area A1 + A2

Radar, GPS, AIS, gyro compass, echo sounder, speed log, DGPS, BNWAS

Inmarsat-C, MF/HF, VHF, NAVTEX

All navigation and radio equipment supplied by JRC or equivalent makers

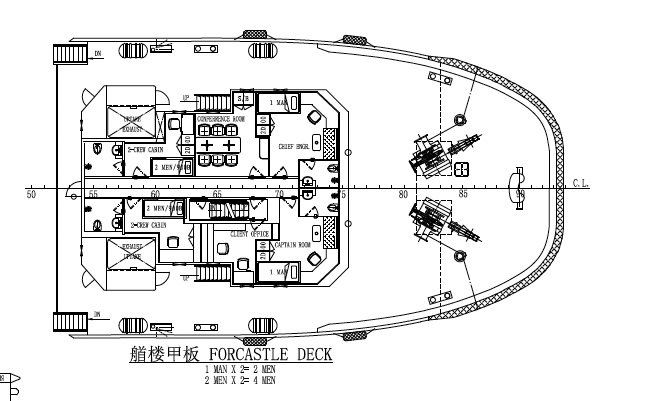

ACCOMMODATION AND FACILITIES

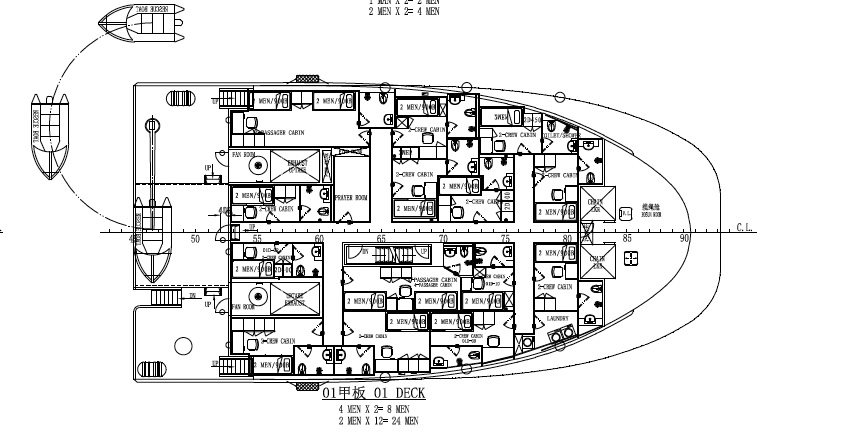

Accommodation provided for 46 persons including captain, officers and crew cabins

Mess rooms, galley, provision room, cold storage, recreation room, meeting room, client office and sick bay

Central air-conditioning system fitted throughout accommodation and working spaces

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
