Listing ID - 1299056 | |
---|---|
Description | 46.5m Bucket Dredger For Sale & Charter |
Date Launched | 1970 |
Length | 46.50m (152ft 6in) |
Beam | 9.95m (32ft 7in) |
Draft | 2.1m (6ft 10in) |
Location | East Mediterranean |
Broker | John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805 |
Price | POA |
View As PDF |
Built (year and place): 1970, NETHERLANDS
Hull material: Steel
Flag: LEBANON
Class Society and Notation: IRS ISER0 Dredger *IM
Next SS: June 2020
PRINCIPLE DIMENSIONS
Length Overall: 46.50m
Breadth: 9.95m
Depth: 3.28m
Draft: 2.10m
NT: 318 tons
GT: 520 tons
ADDITIONAL INFORMATION
OTHER DETAILS
Dredger suitable for dredging cohesive silt, sand, soft to stiff clay and acceptable for dredging loose silt, loose rocks, pre-treated rocks and very weak rocks.
Its actual production rate varies from 100 to 200 m3/hr (1600 to 3200 m3/day based on 16 effective hours/day) depending on type of soil, dredge master experience and actual site and operation conditions.
500 l buckets
Dredging depth: 20.00 m with extended ladder 23.00m
Number of main engines/Propellers: None
It moves with TUG assistance
Total Power: 900 HP
MAIN PARTS & EQUIPMENT
Under Deck including:
- General machinery compartment with electrical motors, pumps, electrical switchboard & other service equipment.

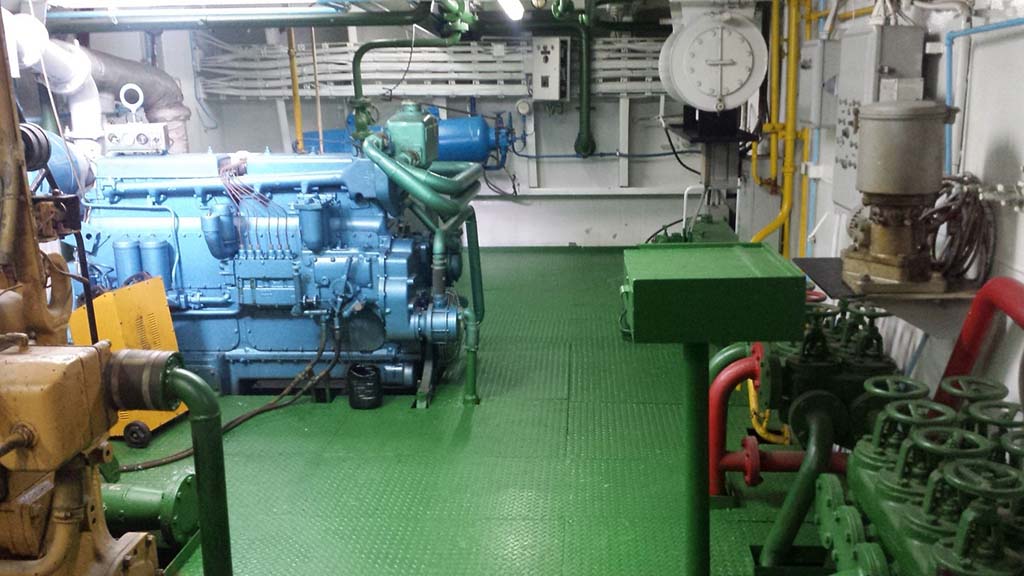

- Engine compartment includes 3 diesel generators:
- Caterpillar D 353 – 535 H.P. – 1200 RPM
- Caterpillar D 342 – 240 H.P. – 1200 RPM
- Caterpillar D 330 – 120 H.P. – 1500 RPM
- Workshop compartment with a wide range of machineries & tools.
- Spare parts compartment with wide range of various accessories
Above Deck including:

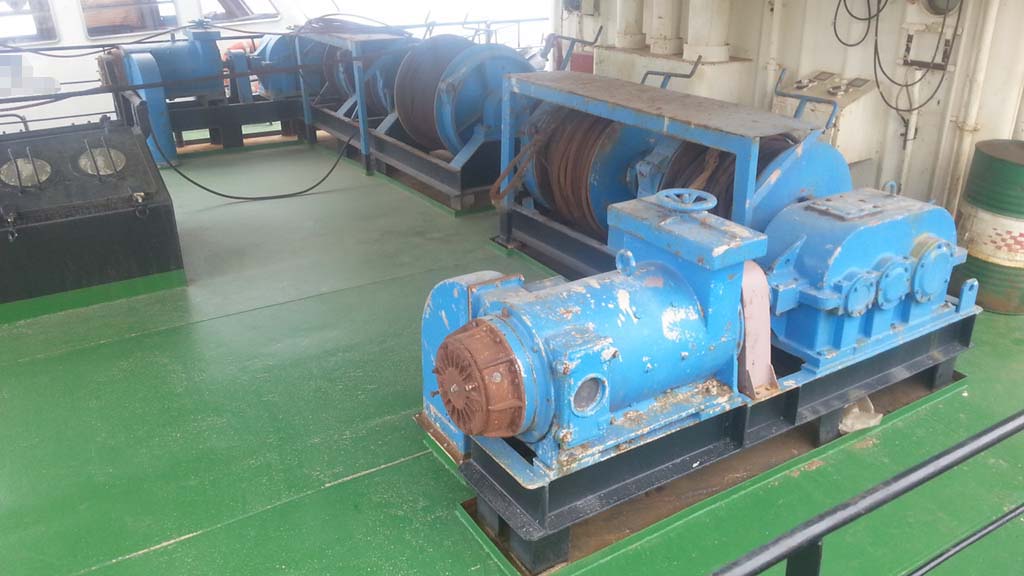

-Two twin drums aft anchor mooring winches
- Two side anchor mooring winches.
- Central crew service compartment.
- Electrical room.
- Store locker.

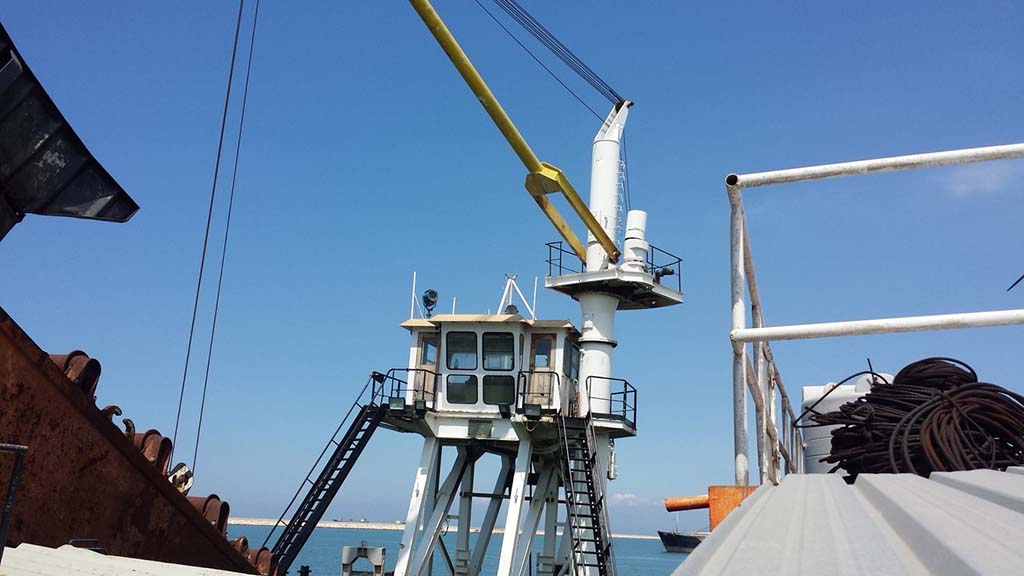

- Two service cranes.
- Conveyor boom with dredging & moving drums.
-Upper-structure central compartment includes a captain office, a common quarter, a crew section, kitchen, shower & toilet.
-Upper-structure forward compartment includes a common room and bucket conveyor hoisting winch.
The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
