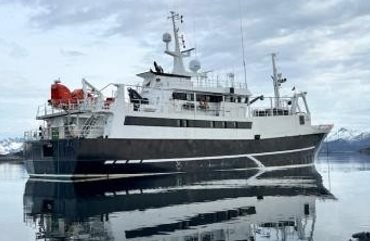

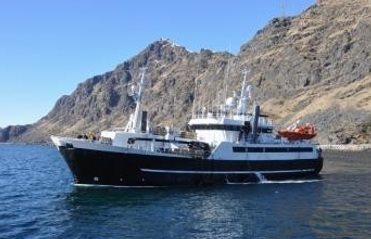

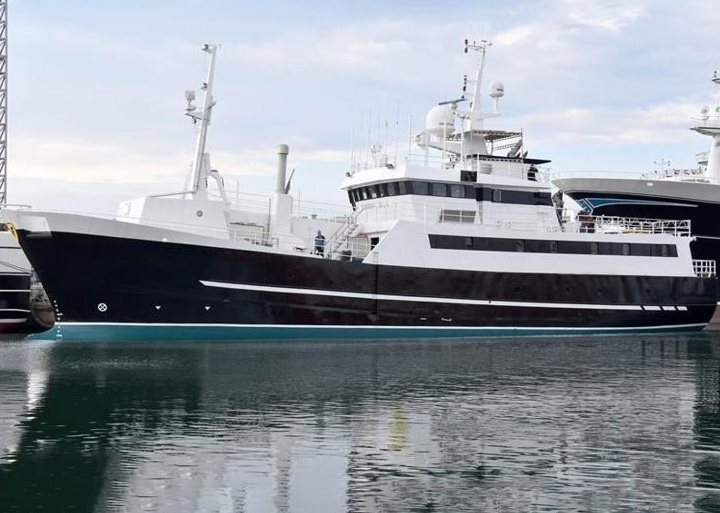

Type: Whelk vessel / Whelk Fishing / Production vessel

Built Year: 1989, Fiskerstrand Verft A/S, Fiskerstrand, Norway

Class: DNV, #1A1 Fishing vessel

Class Status: Valid until 2027

Maintenance: A lot of work done on the vessel in 2017
Wheelhouse: New arrangement 2020, 3 × NorSap Skipper Chairs
Sandblasted: 2010 – sandblasted / metallized / painted
Factory: New arrangement 2020/24, bespoke one-of-a-kind fully automated factory for processing whole whelk/ whelk meat
Fishing: New arrangement 2020, full hauling and gear handling, shooting system, comfortably hauling 2400 traps per day
Mess: All fitting inside removed and replaced with new in 2018



Conversions
2019 Deck arrangement rebuilt for whelk 2019–20
Deck arrangement rebuilt for whelk 2016–19
Rebuilt: Karstensens Shipyard 2019/20 DKK 39mil
2007 Deck arrangement renewed
Vessel rebuilt to operate as Crab Vessel and Long liner



538 GT / 204 NT
DWT 250

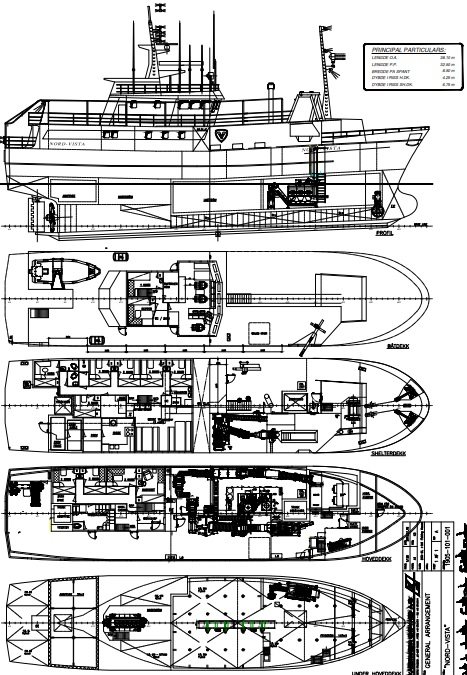

Dimensions
LOA 38.10 m
Beam 8.50 m
Max Draft 5.80 m



1,100 BHP, Alpha, Diesel 6L23/30-DKV, 825 rpm new 1989
Full Rebuild by Alpha Frederikshavn 2020 at 42,000 hrs. Engine running hrs. reset to 0 hrs.
8000 hrs. from rebuild

Propeller: Alpha Ø 2550 mm with reduction gear 214 rpm. Alphatronic Manoeuvring system, 1989

Rudder: Becker rudder

Steering Gear: Tenfjord steering machine, type H 330-130-ESG

Thrusters: 1 × Electric Bow Thruster, new 2020

Shaft Generator: 1 × Atlas Skjong shaft generator, 175 kW, 230V, 50 Hz, 1989, operated from main engine



Auxiliary Engine 1: Scania D-12, new 2011
Generator 1: Leroy Somer LSA 46L10, new 1992
Auxiliary Engine 2: Scania D-12, new 2011
Generator 2: Leroy Somer LSA 46L10, new 2011
Auxiliary Engine 3: 1 × Volvo D7AT
Generator 3: Stamford UCM274E13, new 2020



Fuel oil separator: Alfa Laval MAB 103B-24, 900 l/h, 1989
Sounding system: PELIO Sound 482 822-202-2, 1989
2 × Sperre charging air compressor HLF 2/77 9 m³/h 30 bar, 1989
1 × Working air compressor Hydrovane get 33, 50 m³/h 7 bar, 1989
Air-driven foam plant with 150 l tank, 3 outputs
2 × High pressure pumps 190 bar 21 l/min – type Nordic connected to central plant
Hauling and shooting doors hydraulically operated sec. to regulations
5 × Exh. Buxt pumps on factory deck
2 × Bilge pumps connected to valve control



340 m³ freezing hold in two holds – frozen
Forward freezing hold: 90 tons
Aft freezing hold: 100 tons
Tunnel freezer: 10 tons
Forward bait hold: 15 tons
Bait store capacity: 32 m³



New Evaporator 2020



For 20 persons, 13 cabins (20 berths)
All cabins with new fittings (replaced 2018)
Mess: All fitting inside removed and replaced with new in 2018



Mustad Autoline System shooting system (2007), comfortably hauling 2400 traps per day
Brattvaag B5-2K anchor/mooring winch, 1989
High pressure line hauler installed Feb. 2007
Hydraulic aggregate for deck equipment – Odim
2 × 65 t/min 100 bar, 1989
1 × Thistle Marine deck crane with winches, new 2020
1 × Marine Crane Pal finger PK 12000, new 2015
Equipment for longlining and crab fishing kept in storage



IQF @ -24, takes 22 minutes. Bait mincing machine capable of processing 20kg frozen blocks
Freezing medium: Freon 449a
2 × Bitzer screw compressors each 40 kW, pump circulation system (Küloeiscope), 2013
Freezing tunnel: Freezing capacity approx. 1 ton per hour
Freezing equipment for white fish kept in storage



New Ammonia System by Johnson Controls 2020. Capacity: 20 m³/h



Factory for processing whole whelk/ whelk meat
Capacity of 1,000kg whole whelk per hour
Factory equipment for processing white fish kept in storage



Navigation And Positioning Systems
1 × Max Sea Chart Plotter, 2010
1 × Max Sea Time Zero, 2013
1 × Furuno GP 80 DGPS (sat. navigator)
1 × Furuno GP 30 DGPS
1 × Furuno GP 30 GPS



Autopilots And Gyro Systems
1 × Robertson Autopilot AP 9 Mk 2, 1989
1 × Robertson Autopilot AP 45, 1997
1 × Simrad AP 70 Autopilot, 2014
1 × Sperry Gyro FR 220, 1989
1 × Robertson Gyro, 2001



Radar And Echo Sounders
1 × Furuno Radar 2115, 2003
1 × Furuno Radar RCU 014, 2014
1 × Simrad Echo Sounder EQ 60 with Colour Monitor, 2001
2 × Furuno Techis-Ecdics, 2014



Communication Equipment
1 × Furuno FS 5000, 400W, 2001
1 × Sailor Simplex Transmitter Comp., 1982
1 × Sailor R 501
2 × Sailor VHF RT 4822, 2003
1 × A3, GMDSS World Wide, 2003
1 × Furuno Navtex, 2003
1 × Furuno DS 860, 2003
1 × Thrane & Thrane Inmarsat C TT 3800E, 2003
1 × Simrad Satellite Phone, 2000 + Iridium, 2002
3 × Mobile Phones, 1999/2001



Internal Systems and Safety Equipment
1 × Vingtor Intercom VRC 112 M, 1989
1 × TV Monitoring Color, 18 Cameras, 2020
1 × Servoteknikk Fire Alarm Box, 1989
1 × Halon Plant 1301, 1989
1 × Seatel Parabolic Antenna for Radio and TV, 2013



Lighting And Additional Equipment
2 × IbaK Searchlights, 1 with Remote Control, 1989
1 × Ship Equip Satellite Phone V-Sat + Dataline (Internet), 2007



ATG WF-115-3 UV Disinfection System new 2020
Board connected to condenser battery
Hydrophone fresh water system 2500 L/h type Byrne, 1940
Hydrophone seawater system 1700 L/h type Byrne, 1940
