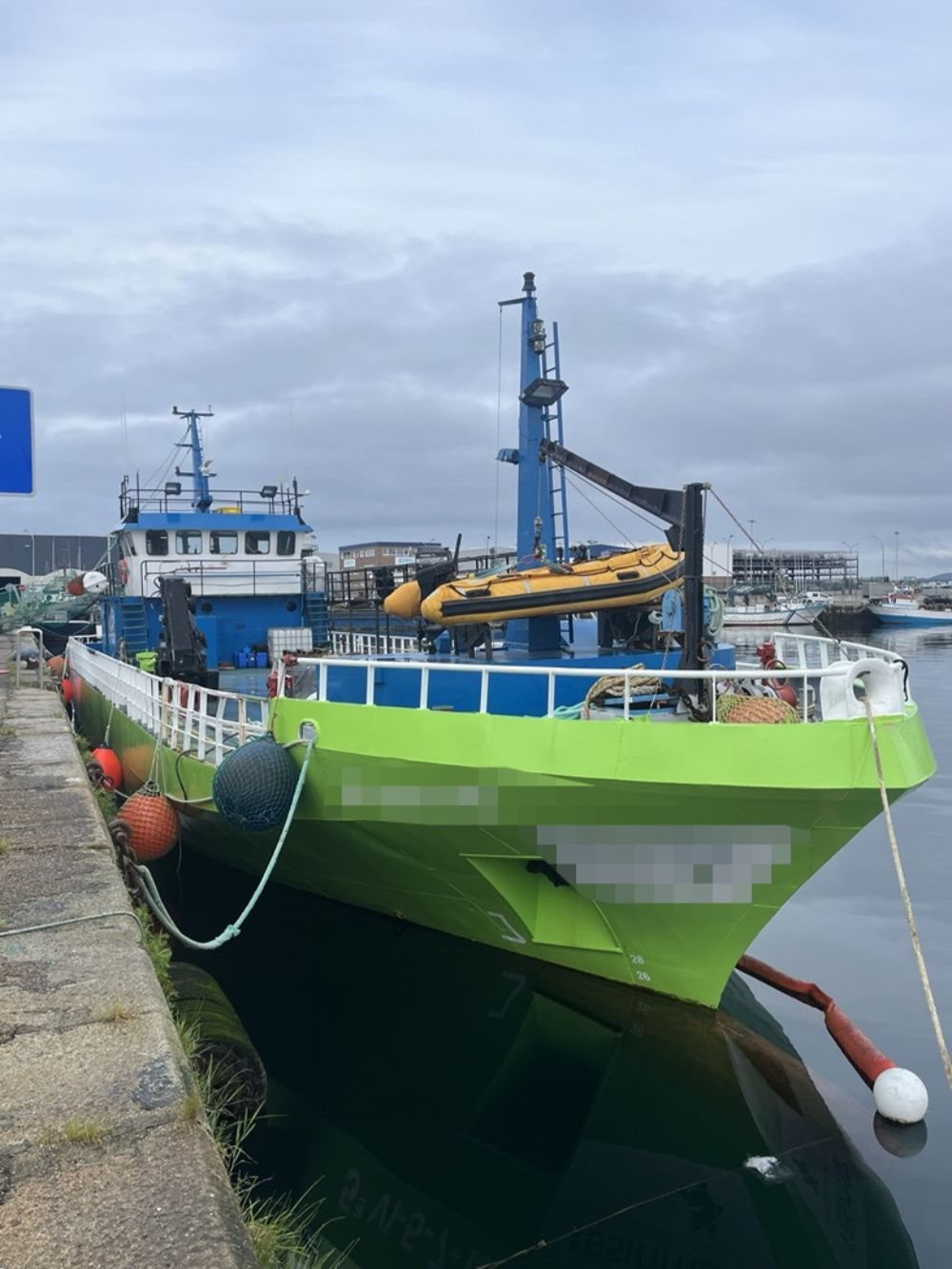

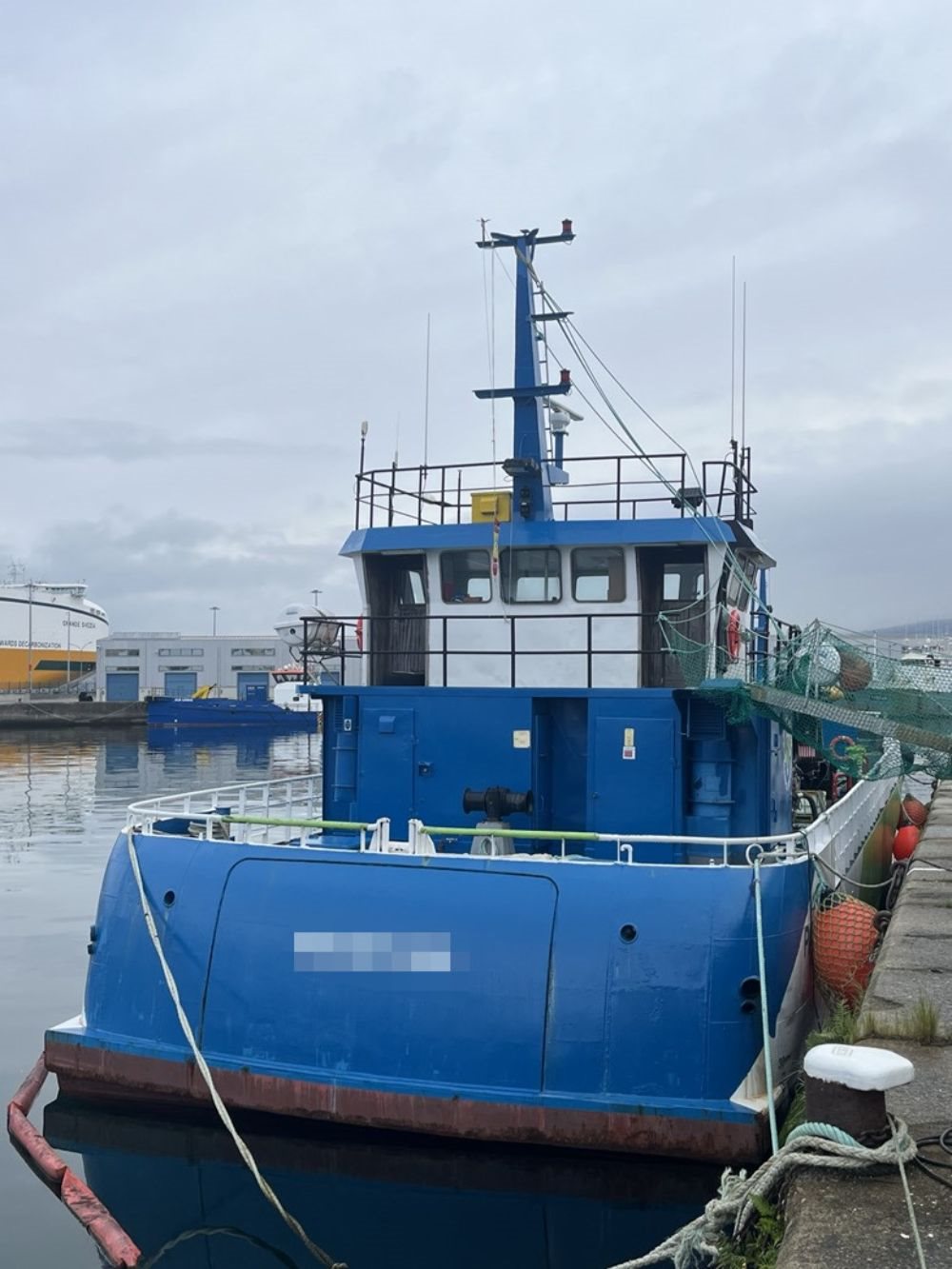

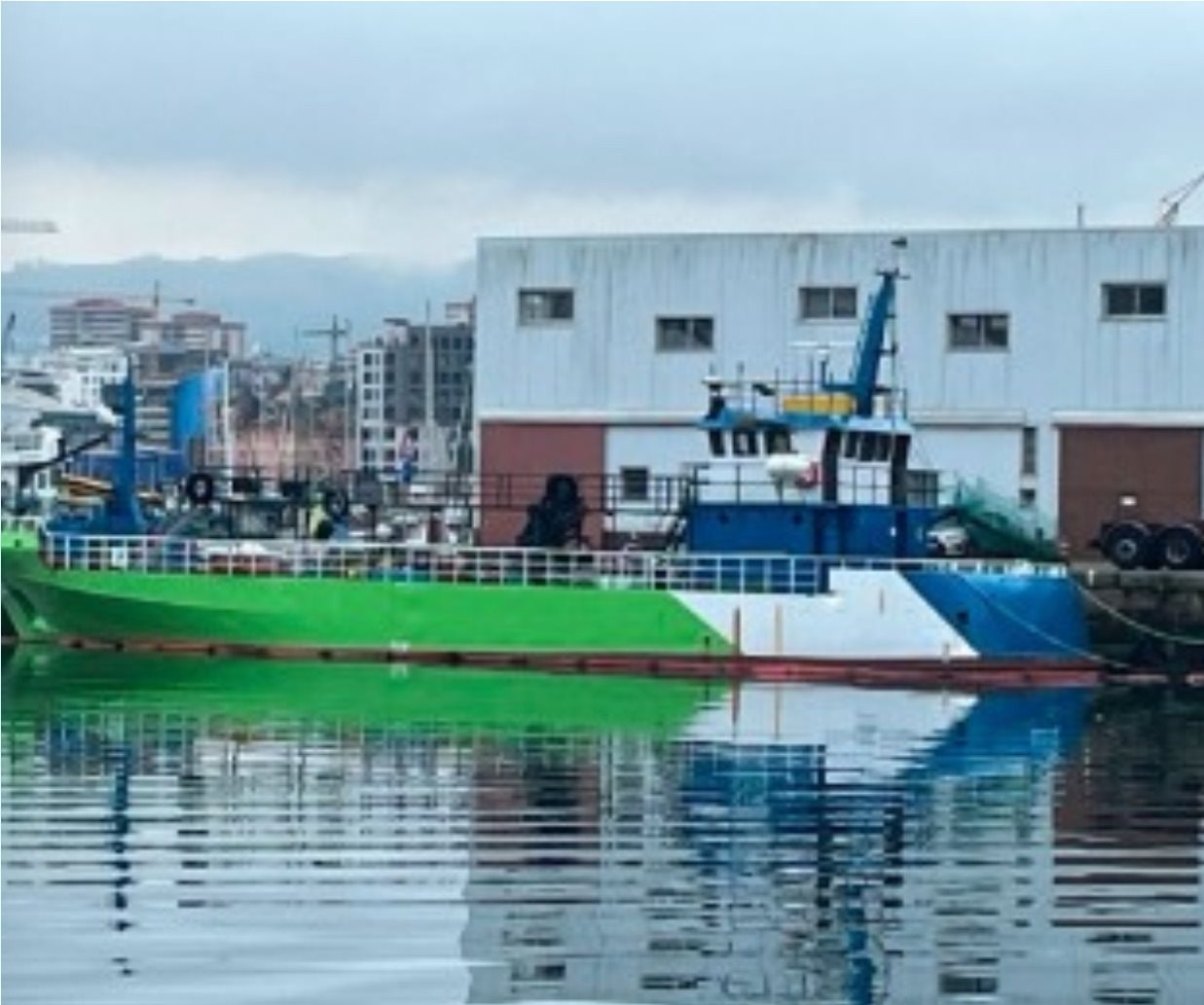

31.1m Workboat For Sale

Listing ID - 5652
Description	31.1m Workboat For Sale
Date Launched	2018
Length	31.1m (102ft 0.4in)
Beam	8.2m (26ft 10.8in)
Draft	4.2m (13ft 9.3in)
Note	Engine: 2x Baudouin
Location	North Spain
Price	1,050,000 EUR
View As PDF

GENERAL

Built year / Place: 2018 / Spain

Hull material: Steel

Flag: Spain

Class Society and Notation: Local Class, Harbour Services MAR

Next DD: 08/2026

Next SS: 08/2026

Next Annual Survey: 08/2026

PRINCIPLE DIMENSIONS

Length Overall: 31.1m

Length between perp.: 30.35m

Breadth: 8.2m

Depth: 4.2m

Draft: 2.2m

NT: 68 tons

GT: 228 tons

MACHINERY & PROPULSION

Total power output: 800 bhp

Main Engine: 2x Baudouin

Main Propulsion System: Twin Screw

Auxiliary engine: 1x 103 kW, Piller,1x 117 kW, Piller

Speed maximum: 10 knots

ADDITIONAL INFORMATION

Hull built in 2014. Firstly launched in 2021.

Steel hull made of high resistance AH-36, certified by Germanischer Lloyd.

1 x Hydraulic Crane 26.8 tons

Deck load 253,98 tons

Deck area 35 m2

Port Service Vessel (MARPOL Waste Collection) Group III, Class S, Over 100 GRT, List 5

Maximum displacement: 392,264 Tons

Deadweight: 267,014 Tons

Total tonnage (1969): 228 GT

National tonnage: 219.7 TRB / 82.7 TRN

Capacities

Fuel capacity: 17.96 m3

Fresh water capacity: 0.15m3

Marpol Annex I waste capacity: 253.99 m³

- Type C Waste Tank, No. 1 Port 22.732 m³

- Type C Waste Tank, No. 2 Starboard 22.732 m³

- Type B Waste Tank, No. 1 Port 38.471 m³

- Type B Waste Tank, No. 2 Port 38.471 m³

- Type B Waste Tank, No. 3 Port 65.791 m³

- Type B Waste Tank, No. 4 Port 65.791 m³

Ballast Tank Capacity: 81.22 m³

Maximum Speed on Trials: 10 knots (approx.)

Electrical Generator Power: 2 x 117 KVA

Accommodation: 4 berths in 2 cabins

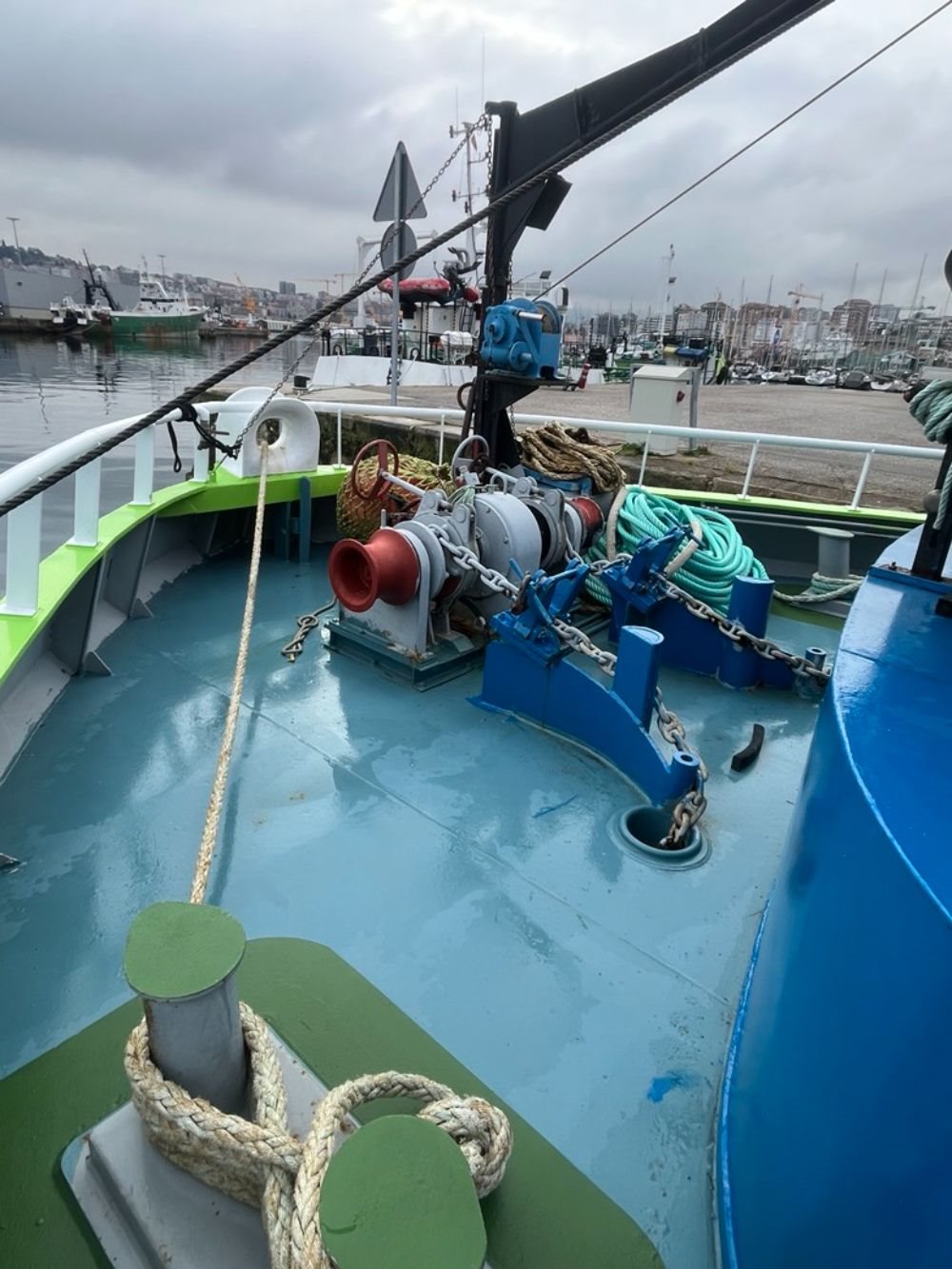

The deck equipment consists of a crane for launching the rescue boat (Duarry SR-5) forward, a double-drum electro-hydraulic windlass for two 300 kg anchors, each 100 meters long. A winch is located aft. Amidships, to starboard, is a HIAB 290 AW deck crane with a 15.60-meter reach and a 1.52-ton lifting capacity.

Some of this equipment is second-hand but is reported to be in good working condition.

2 reserve gearboxes Twin Disk MGN-80, 2.52:1.

Twin Screw - 2 x 3 blade fixed pitch propellers 2 secondary auxiliary engines: Piller, 117 KVA, 400 V at 50 Hz, driven by MAN diesel engines, 2566 ML, 103 kW at 1,500 rpm.

MARPOL waste collection equipment: two Alconza vertical electric pumps, model DNV 132-SB-2, 6.6 kW each, which draw from any of the waste tank sumps and discharge to either of the two discharge valves located on deck, one on each side, to the MARPOL collection point via hoses.

For general seawater services (ballast, bilge pumping, washing, firefighting), there are two Azcue electric pumps, model CA/2B1,40 m³/hour at 20 m head. For fuel transfer, an Azcue brand electric gear pump, model B-TIN 4502, of 5 m3/h at 40 m.c.a. is used.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
