27m Tug - ASD - SeaBoats

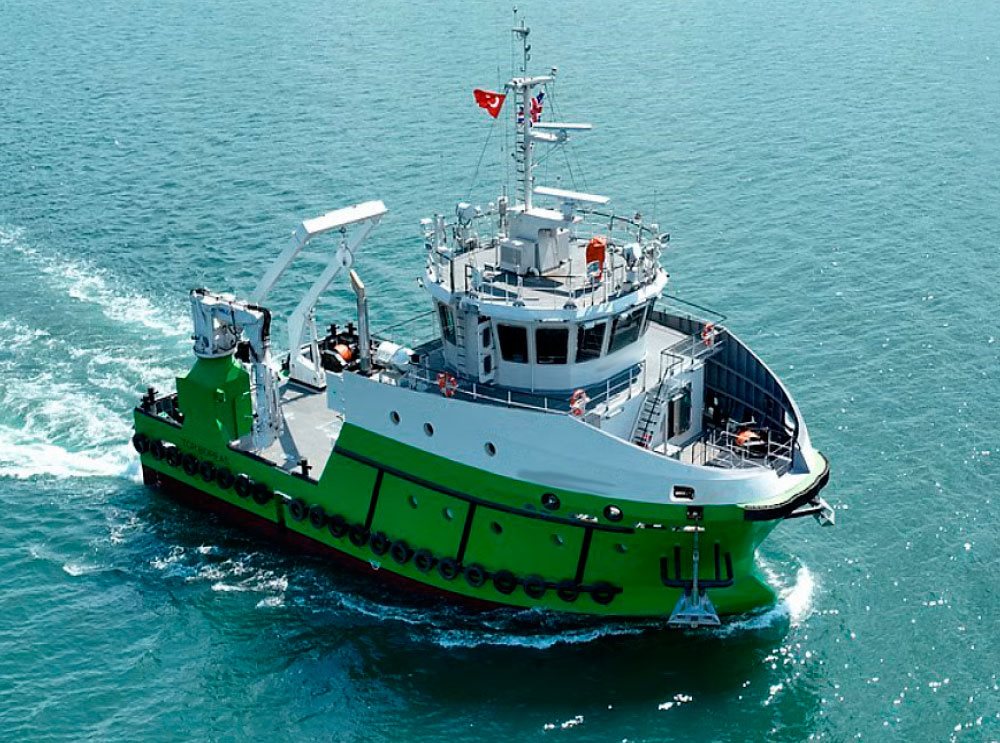

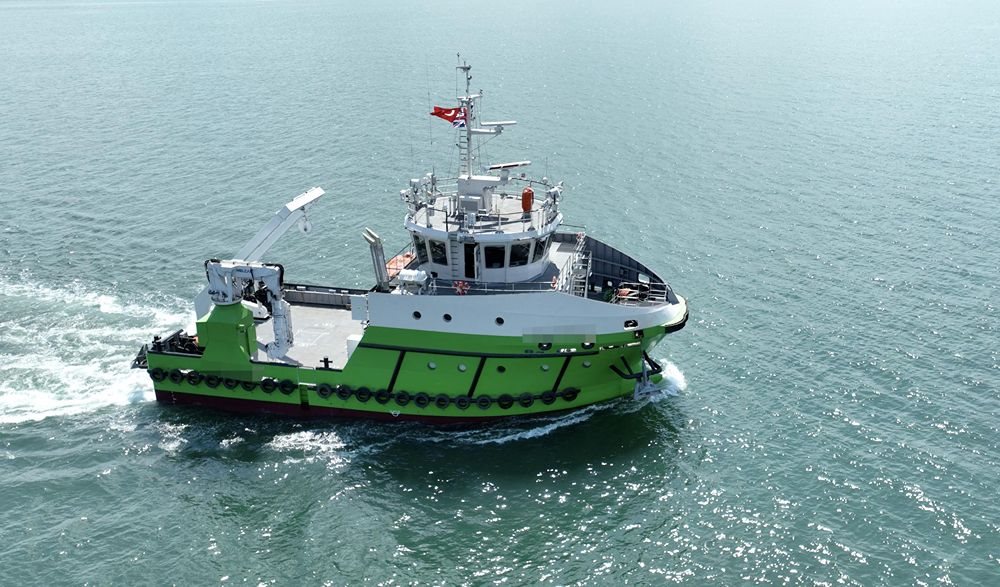

27m Tug - ASD

Listing ID - 5879
Description	27m Tug - ASD
Date Launched	2024
Length	26.95m (88ft 5in)
Beam	11m (36ft 1in)
Draft	3.25m (10ft 8in)
Note	Engine: 3x MAN
Location	North Europe
Price	POA
View As PDF

Built year / Place: 2024 / United Kingdom

Hull material: Steel

Flag: United Kingdom

Class Society and Notation: BV Wind Farm, Service Ship-M2 Tug

PRINCIPLE DIMENSIONS

Length Overall: 26.95m

Breadth: 11m

Depth: 4.35m

Draft: 3.25m

MACHINERY & PROPULSION

Total power output: 1367 bhp

Main Engine: 3x MAN

Main Propulsion System: 2 × Schottel SRP 210 FP

Speed cruising: 8.5 knots

ADDITIONAL INFORMATION

FW Pump 1 × 3 m³/h × 2 bar

ASD Prime Mover 2 × 500 kW, VEM Permanent Magnet e-motor

Harbour Generator 1 × Baudouin 4W105, 1 × 76 eKW, 400V, 50Hz

Bow Thruster 1 × Veth VT-90

Gyro Stabiliser 1 × VEEM VG140SD

Service Air Compressor 2 × 1.5 kW, 10 bar compressor, 1 × 18

m³/h dryer, 1 × 300 l air receiver

Oily Water Separator 1 × 0.5 m³/h and 15 ppm

Sewage Treatment 1 × for 20 persons

GS & Bilge & Fire Pump 2 × 25 m³/h × 4 bar

Oily Water Transfer Pump 1 × 3.5 m³/h × 2 bar

Sludge Pump 1 × 3.5 m³/h × 2 bar

Fuel Transfer Pump 1 × 10.4 m³/h × 2 bar

Freshwater System Black & Grey Water 1 × 5 m³/h × 2 bar

Transfer Pump LO Transfer Pump 1 × 2.27 m³/h × 2 bar

FW Cooling Pump 2 × 17 m³/h × 2.5 bar

Fire Pump 2 × 17 m³/h × 2.9 bar

FW Hydrophore Set 2x3.2 m3/h - 200 lt with UV, 200 lt 2 x 6 kW heater

Safety Equipment 2 × 20-man inflatable life raft

Fire Fighting System Novec MX 1230 System

Accommodation Accommodation alarm and fire protection

compartment monitored from wheelhouse & call alarm

Alarm System General alarm system from central alarm panel

Rescue Boat 3.92 m aluminium rescue boat, 6 persons, 40 HP outboard

Air Draught (Max) 18.00 m

Bollard Pull 15.7 TBP

Endurance 21 days (service speed)

Accommodation 12 passengers

Capacities

Fuel 75 m³

Fresh Water 35 m³

Black Water 7.5 m³

Grey Water 7.5 m³

Sludge 4 m³

Lube Oil 4 m³

Bilge 10 m³

Clear Deck Area 70 m²

Deck Loading 5 t/m²

Moonpool 1.34 m × 1.38 m

Anchor & Chain

Forward Anchors 2 × 825 kg Delta Flipper Anchor

Aft Anchors 2 × 750 kg Delta Flipper Anchor

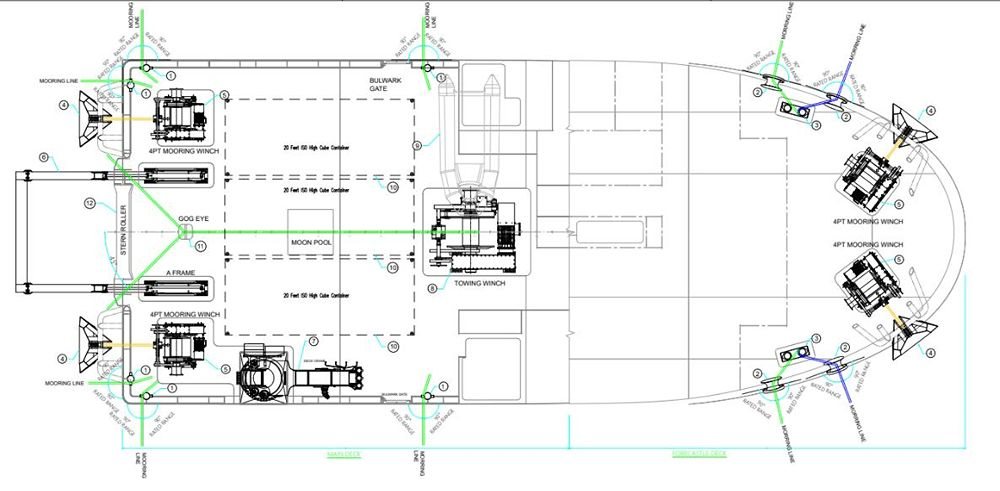

4-Point Mooring Winches

Quantity 4

Type Electric driven, deck and bridge controlled

Drum Type Single Drum

Storage Capacity 600 m of 20 mm wire rope

Brake Holding Load 25 tons

Duty on 1st Layer 4-8 tons @ 7.5-12 m/min

Monitoring Length, tension and speed monitoring system

Aft Towing Winch

Type Electric driven, deck and bridge controlled

Drum Type Single Drum

Storage Capacity 600 m of 34 mm steel wire

Pull (1st layer) 25 tons @ 10 m/min

Pull (higher speed) 8 tons @ 20 m/min

Monitoring Tension, length and speed monitoring system

Offshore Crane

Type Hydraulic driven, local and remote controlled

Maximum Outreach 12.7 m

SWL @ Sea State 3

4.0 m 13,000 kg

7.2 m 8,400 kg

9.0 m 6,500 kg

10.9 m 5,300 kg

12.7 m 2,400 kg

A-Frame

Type Hydraulic Driven

SWL @ Sea State 3 (Onboard) 1,000 kg @ 4 m

SWL @ Sea State 3 (Outboard) 5,000 kg @ 3 m

Stern Roller

SWL 30 tons

Dimensions 3000 mm × 500 mm

Accommodation

Cabins 2 × 1-man cabin (en-suite)

8 × 2-man cabins (en-suite)

Facilities Galley, Mess & Lounge

Additional Rooms Survey/Dive Control Room, Embarkation Lobby

Air Condition

Heating Capacity 15 kW

Cooling Capacity 18,000 W

Distribution Fan coil in each cabin

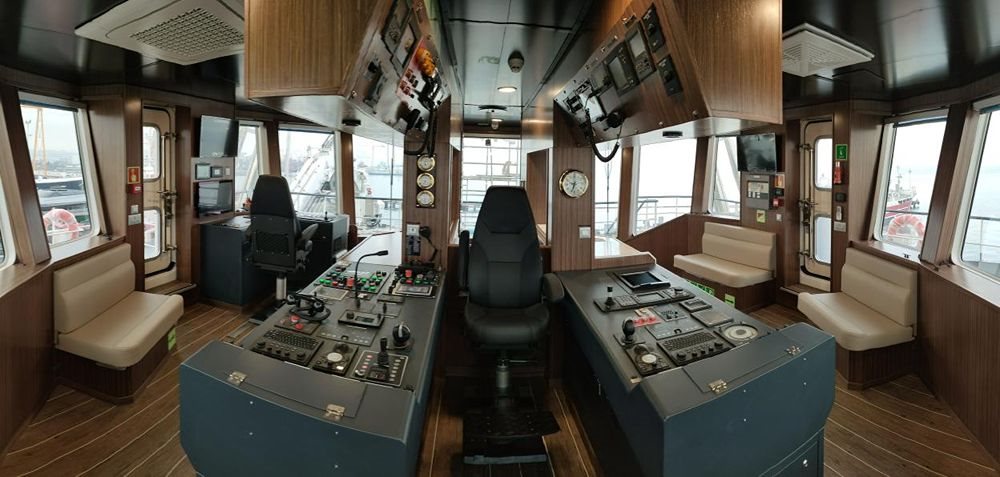

Navigation & Communication Equipment

DP1 System 1

Radar (X & S Band) 2

ECDIS 1

Echo Sounder 1

Speed Log 1

AIS 1

Auto Pilot 1

GPS Receiver 1

BNWAS 1

S-VDR 1

Magnetic Compass 1

INMARSAT Mini C 1

NAVTEX 1

VHF Sets 1

MF/HF 1

GMDSS VHF 3

EPIRB 1

SART 1

Additional VHF 1

VSP Telephone 1

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
