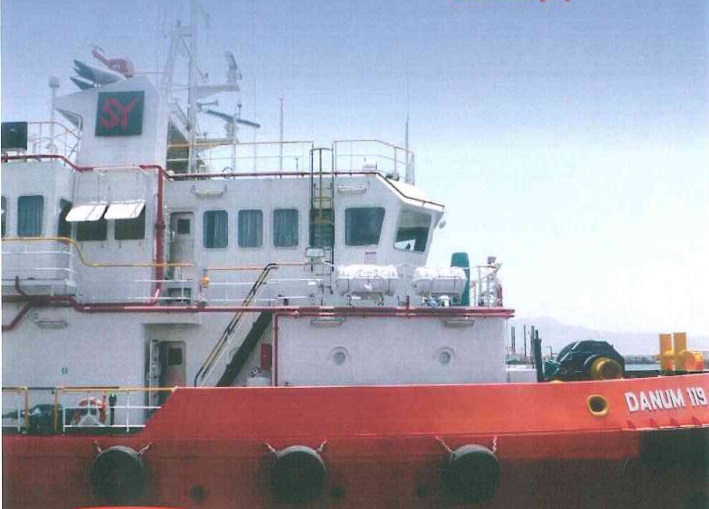

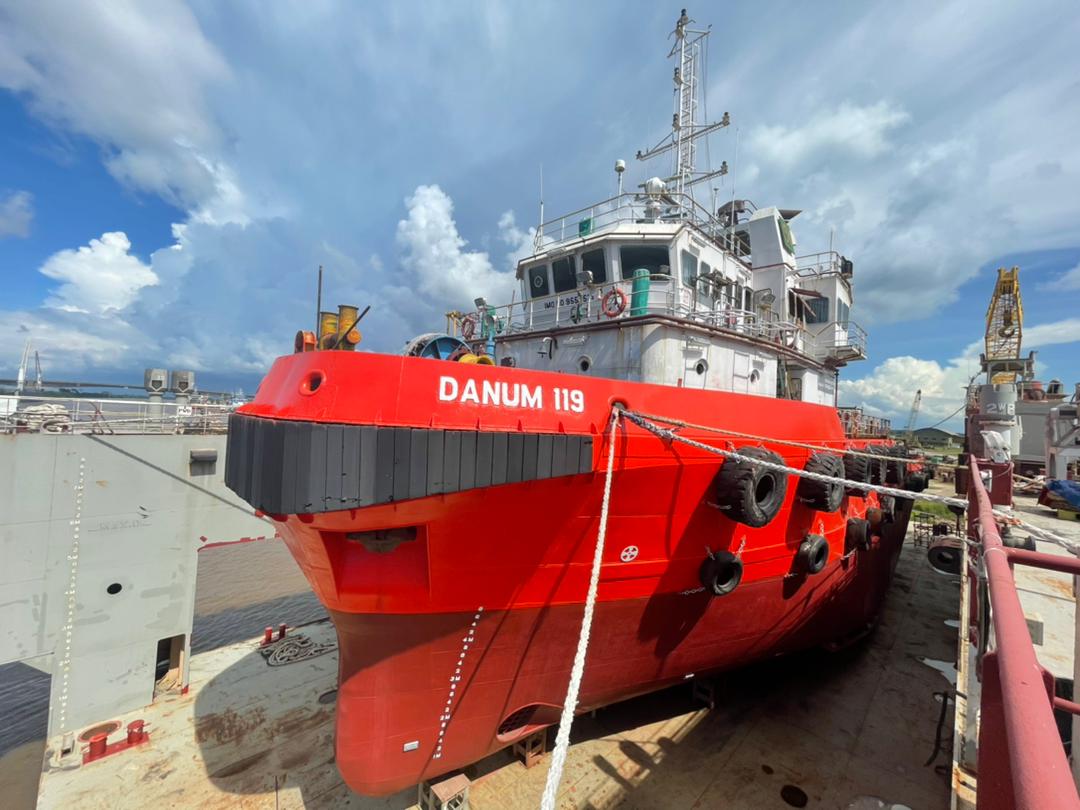

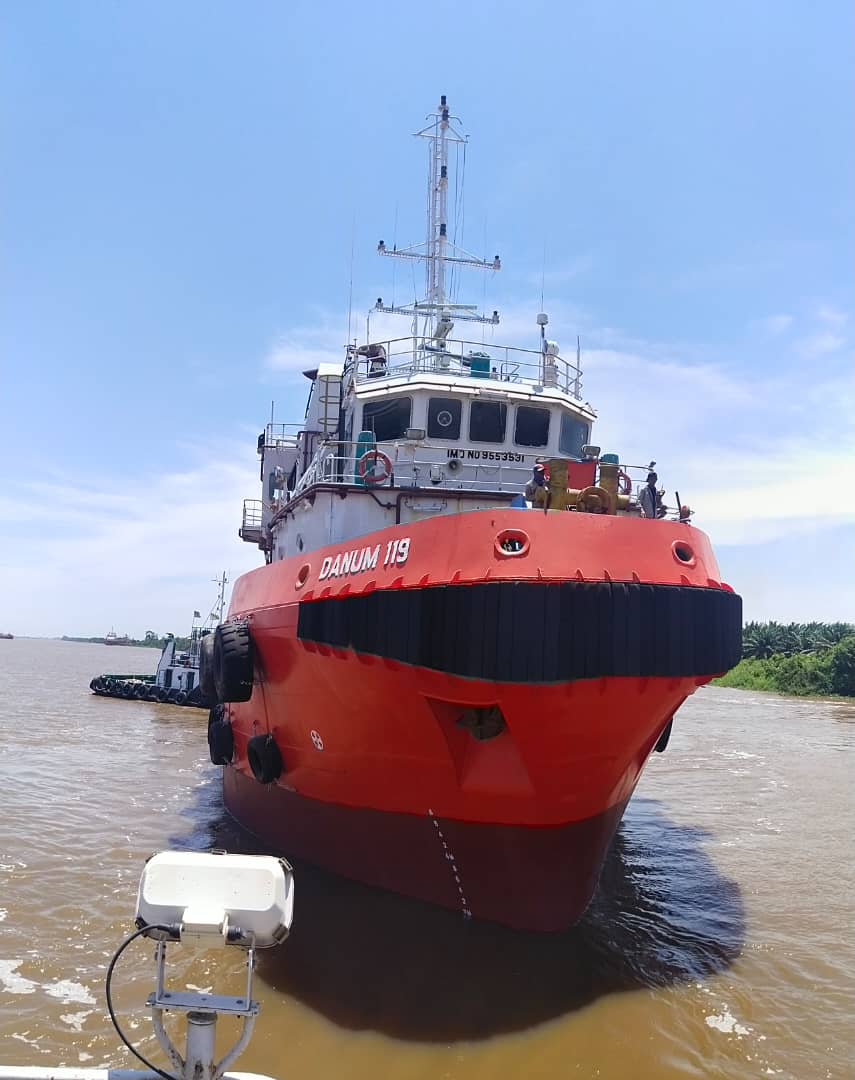

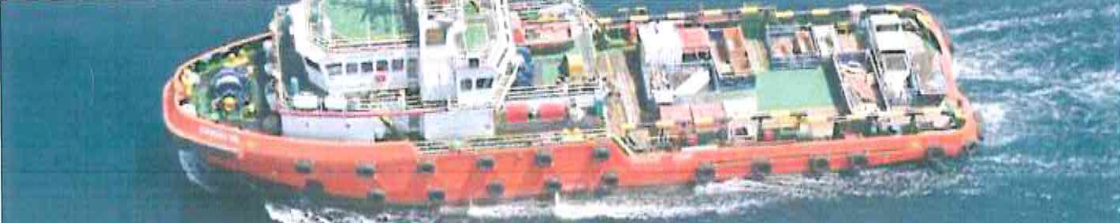

2008 50m 4400 BHP AHT Danum 119

2008 50m 4400 BHP AHT

Listing ID - 3705
Description	50m 4400 BHP AHT
Date Launched	2008
Length	50m (164ft)
Beam	12.60m (41ft 4in)
Draft	4.80m (15ft 8in)
Location	Malaysia
Broker	Hanni Ajik
Price	POA
Price Notes	As is where is. Vessel is available for inspection by appointment. Negotiable for serious buyer.
View As PDF

Dimensions

LOA: 49.95m

Breadth Moulded: 12.60m

Depth Moulded: 5.75m

Draft: 4.80m

Deadweight: 700 T

Registered Tonnage: GRT 959 T, NRF 287 T

Registration

Year / Built / Builder: 2008 / Shin Yang Shipyard SDN BHD

Flag / Port of Registry: Malaysia / Kuching

Class: BV

Capacities

Fuel Oil: 500m3

Fresh Water: 242m3

Water Ballast / Drill Water: 65m3

Dispersant / Foam: 19m3 / 16m3

Freezer and Cooler: 5m3 / 5m3

Clear Deck Area: 220m3

Deck Strength: 5T

Navigation and Communication

Inmarsat C: 2 x Furuno Felcom 15

GMDSS: Comply GMDSS A1+A2+A3

Radars: 1 x Furuno FE-700, 1 x Furuno FR-1510 Mark II

GPS Navigator: Furuno GP-150

Autopilot: Simrad AP-50

Navtex Receiver: Furuno NX-700

Gyro Compass: Tokyo Kelki TG-8000

Magnetic Compass: Daiko SR-150 PK

Communications: Data / Fax / Phone: FBB Sailor 150

MF / HF SSB DSC: Furuno 2571C

Echo Sounder: JMC F2000

VHR Radio Telephone: 2 x Furuno FM-8800

GMDSS Hand Held Radio: 3 x ICOM ICGM-1600

SART: 2 x Sevenstar S701

EPIRB: GME MT 403 FF

Wind Indicator: Clipper

Barometer: Hanseatic

AIS: Furuno FA-150

BNWAS: SME Electius le guardian 2025

ECDIS: Trasan NS400

SVDR: Headway SVDR

SSAS: Furuno Felcom 15

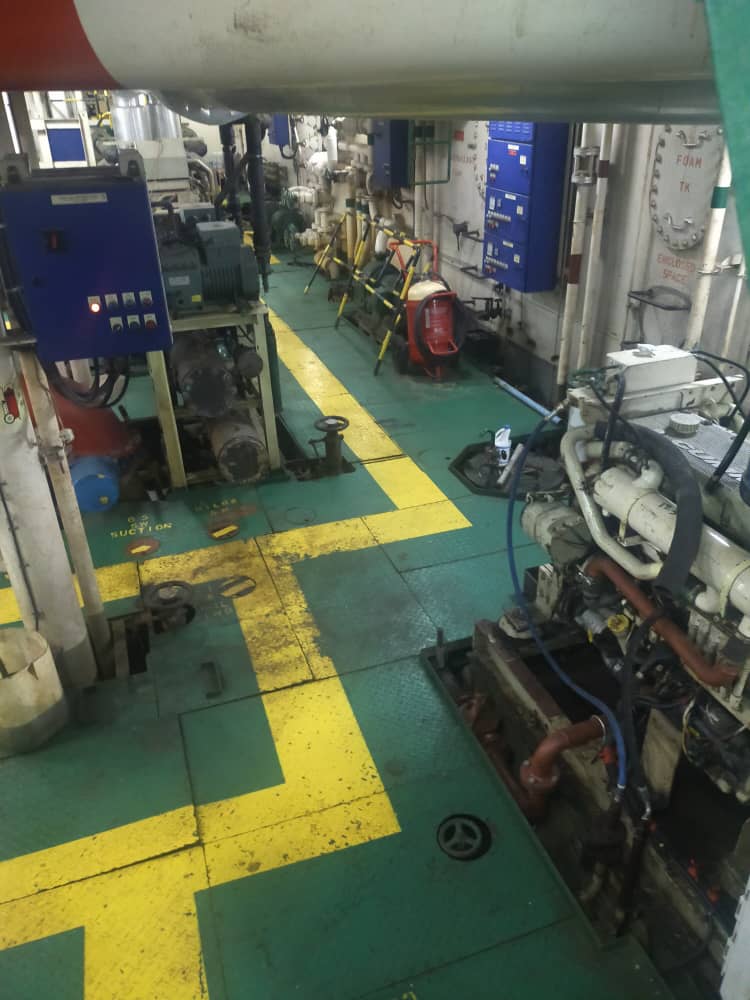

Machinery

Main Engines: 2 x Cummins QSK 60 (2 x 2200 BHP)

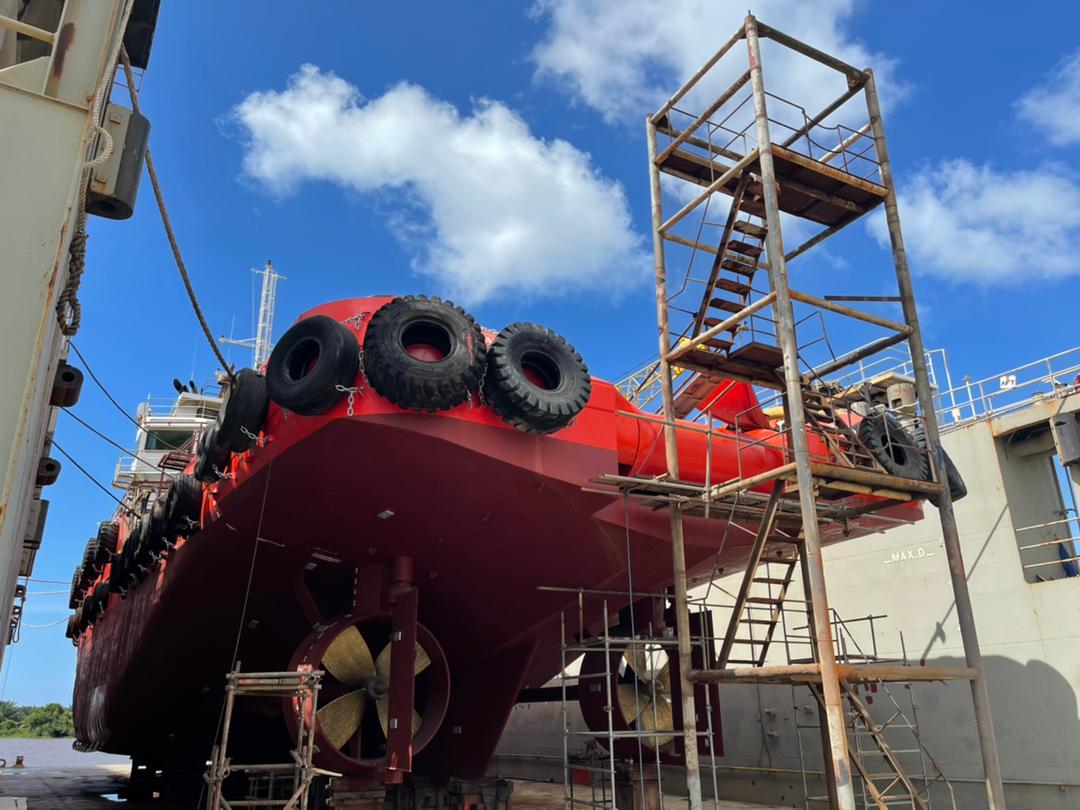

Propulsion: Manganese Bronze / 4 Blade solid fixed pitches in Kort Nozzle

Bow Thrusters: 3.5 T / 350 HP (Cummins Engine)

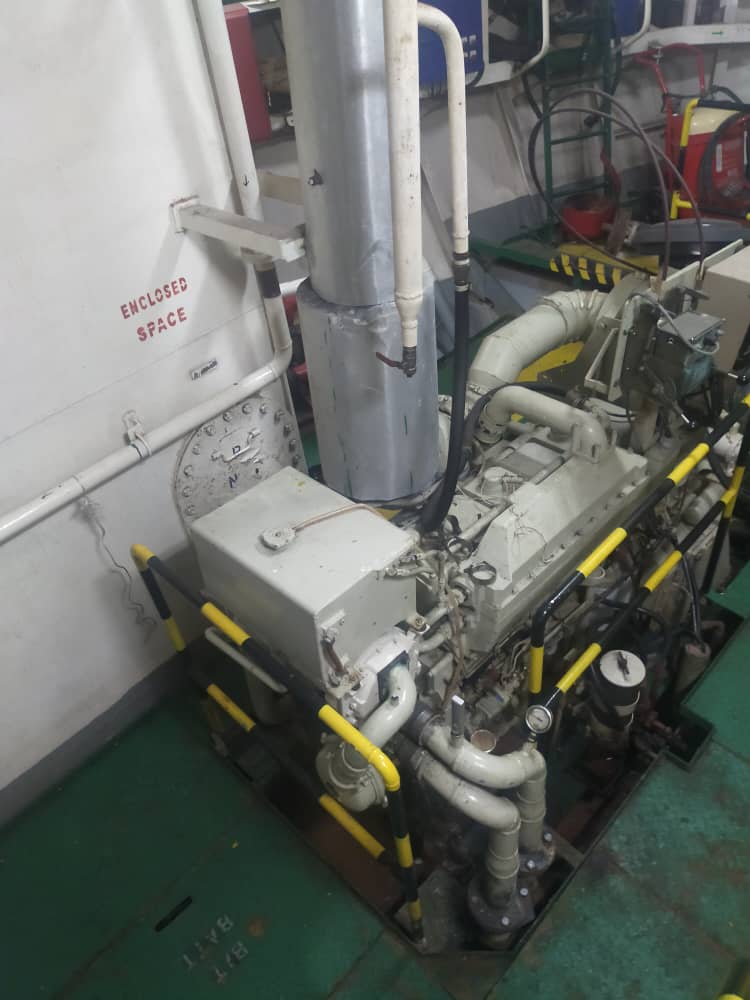

Main Generator: 2 x Cummins QSM11-D(M) 2 x 265 kW

Emergency Generator: 1 x Cummin 6CT8.3-D (M) 150 kW

Oily Water Separator: Georim Engineering, GRS-10EB, 1m3/hr

Sewage Treatment Plant: ISS-35 (2.1m3 /day)

Towing / Anchor Handling / Mooring

Towing Drum Wire: 52mm x 1000m

Stern Roller: 120 T

Karm Fork / Towing Pin: 200 T / 200 T

Towing Winch: 80 T Double Drum

Anchor Windlass: 6.2 T x 10m / min

Anchors: 2 x Stockless Bower Anchor 1300kg

Anchor Chain: 38mm Dia. X 27.5m x 20 length each side

Capstan: 2 x 5T @ 15m/min

Performance

Max Speed: 12 knots

Service Speed: 10 knots

Bollard Pull: 54.8 T

Transfer Rates

Fuel Oil: 70m3 /hr @ 50m head

Fresh Water: 70m3/hr @ 50m head

Fire-fighting and Anti-pollution Equipment

FIFI System: FiFi-1

FIFI Monitors: 1200m3/ hr (Water), 300

/hr (Foam)-Joystick controlled

FIFI Pumps: 1200 m3 /hr @ 120m head

CO2 System: 16 x 45 kg CO2

Fire Hydrants: 12 nos.

Fire Extinguishers: 2 x 45 L foam, 5 x 9 L water, 6 x 9 L foam, 1 x 9 kg, 14 x 6 kg DP

Fast Rescue: Rigid Rescue Boat, 6 Persons, SC45KR, 30 HP Petrol Engine

Safety Equipment: 4 BA Set, 13 EEBD, 2 x 20 and 2 x 25 per life raft

H2S: Crowcon, 4 Sensors

Accommodation

27 Men

1 Man x 3

2 Men x 6

4 Men x 3

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
