Listing ID - 406742 | |
---|---|

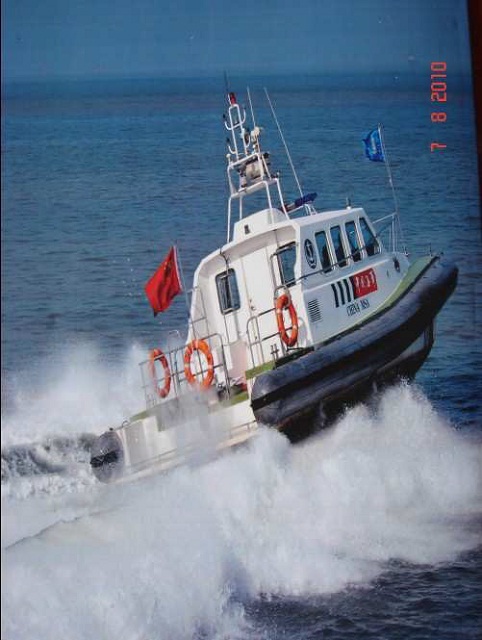

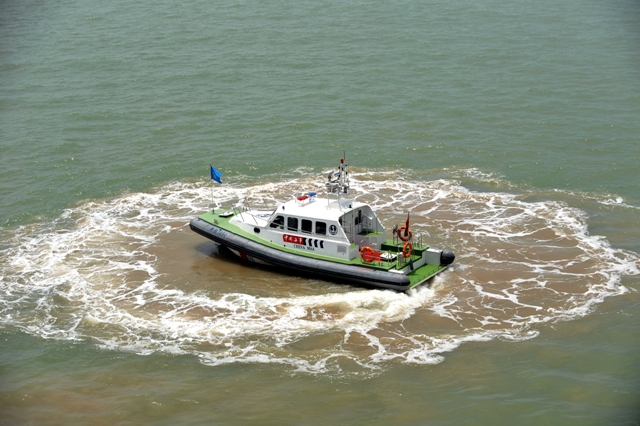

Description | 13.3m High Speed Patrol Boat |
Date Launched | BUILT TO ORDER |
Length | 13.325m |
Beam | 4.00m |
Draft | 1.70m |
Note | 12T approx. |
Location | ex Factory, China |
Broker | Geoff Fraser geoff.fraser@seaboats.net +64 21 61 222 5 |
Price | POA |
View As PDF |
DESIGN PURPOSE
This high speed patrol/military boat is designed for below multi-mission/purposes:
a. Anti-piracy, anti- smuggling and anti-drug trafficking operations.
b. Search and Rescue operation in inland, offshore and coastal areas.
c. Fishery protection, intercepting and patrol in and around ports and coastal areas.
d. Disaster Relief operations.
e. Patrol in inshore and offshore area.
f. Surveillance.
TECHNICAL DATA
LOA: 13.325m
Mold Length: 12.0m
Beam (max): 4.0m
Depth: 1.70 m
Draft: ^0.7 m
Displacement (Full Load): ^12 tonnes
Hull Material: FRP (Kevlar + Vinyl ester)
Boat Type: mono-hull deep-V form
Passenger Capacity: 6-8 persons
Cruising Range: 250 nautical miles
Mas Speed: 40 knots
Stern Drive: 2 X HJ364
Power System
Engine: 2X MAN R6-730/537KW
Flexible Shaft Control Unit
Hydraulic Control System
Engine Speed Indicator
Oil Pressure Gauge
Water Thermometer
Voltmeter
Ammeter
Fuel Consumption Indicator
Anchor Gear
Tiller Telltale
Anchor Gear
Electronic Anchor
Electrical Windlass
Maxwell High Holding Power Anchor
Towing & Mooring Units
Stainless Steel Mooring Unit
Mooring Cleat
Ridding Bitt
Side Chock
Three Standard Braided Polyester Nylon Rope
Control System
Main Bridge
Steering Wheel
Electric Flexible Shaft Control Unit
Hydraulic System
HJ Propulsion Control Unit
Survival & Fire Fighting Apparatus
Lifeline
Life Vest
Parachute Distress Rocket Signal
Red Hand Flare
Orange Smoke Signal
Cabin Insulation System
Extra-fine Glass Wool Thermal-protective Coating
Fire-proof Insulation Spacer Layer
Deck Fitting Features
Deck Fittings
Stainless Steel Railing
Flagpole
stern light Pole
Stainless Steel Handrail
Weather-tight Back/Side Door
Engine Cabin Shutter
Wheelhouse Multi-functional Skylight
Galley/Toilet Multi-functional Skylight
Crew Lounge Multi-functional Skylight
Cabin Features
Bridge
chart Table
Tool Box
Twin Soft Damping Seat: 5
Single Bed in Rest room: 2
Bed Stand
Cabinet
Dish Washing Pool
induction cooker
Patented Toilet Device
Electrical & Electric System
Generator
Distribution Panel
Air Conditioner
Sea Water Pump
Sea Water Filter
Pump Controller
Fan-coil Unit
Cabin Heat Insulation
Lighting System
Cabin Lighting: LED Lamp
Instrument Lighting
Engine-room Lighting: LED Lamp
Communication System
VHF Wireless Telephone
Walkie-talkie
Internal & External Broadcast System
Navigation System
Radar
Magnetic Compass
Military Binoculars
GENERAL ARRANGEMENT

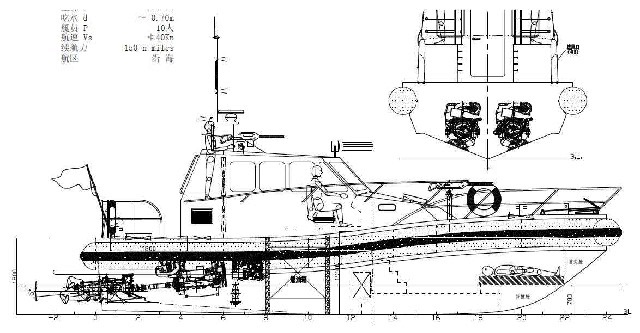

Side View

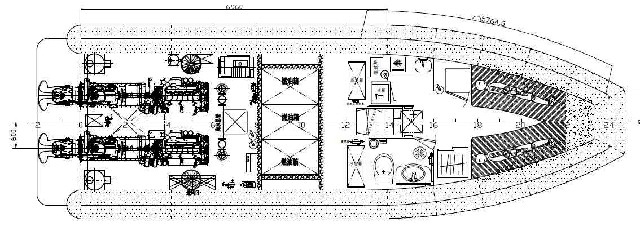

Main Deck

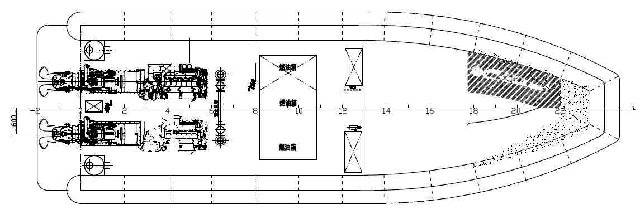

Lower Deck
The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
