Listing ID - 387386 | |
---|---|

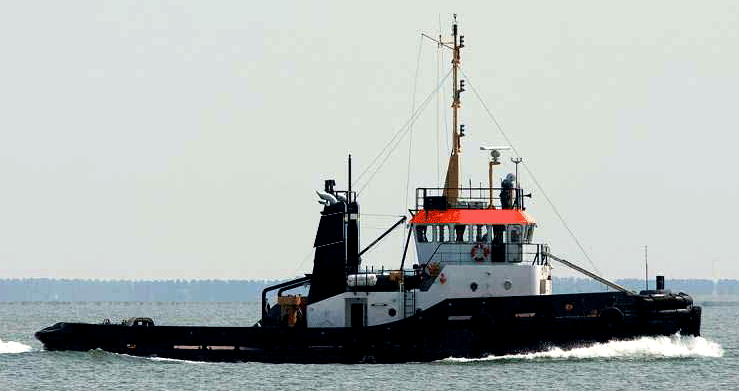

Description | Twin Screw Harbour and Ocean-going Tug |
Date Launched | 1992 |
Length | 29.02m |
Beam | 9.49m (31ft 1in) |
Draft | 3.77m |
Note | 31.3T Bollard Pull |
Location | Black Sea |
Broker | John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805 |
Price | EUR 800,000 |
View As PDF |
Built (year and place): 1992, Singapore
Hull material: Steel
Flag: Saint Kitts & Nevis
Class: Lloyds Class 100 A1, tug service LMC Unrestricted navigation
Next DD: September 2020
Next SS: September 2022
PRINCIPLE DIMENSIONS
Length Overall: 29.02 m
Breadth: 8.62 m
Draft: 3.77 m
Air Draft: 4.11 m
Light weight: 243 ton
Net Registered Tonnage: 65 tons
Gross Registered Tonnage: 219 tons
Displacement: 438 mt
MACHINERY & PROPULSION
Total power output: 2400 hp

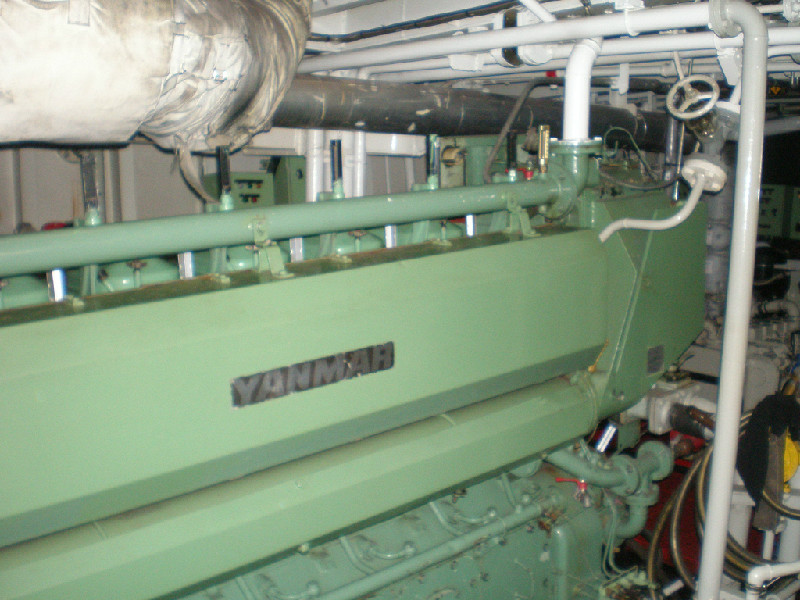

Main Engines: 2 x YANMAR M220 @ 1000rpm
Main Propulsion System: Engines running on GO
2 x F. P. Propellers
2 x reduction gearboxes
Auxiliary engines: 3x380V@50Hz, 220V AC, 24V DC

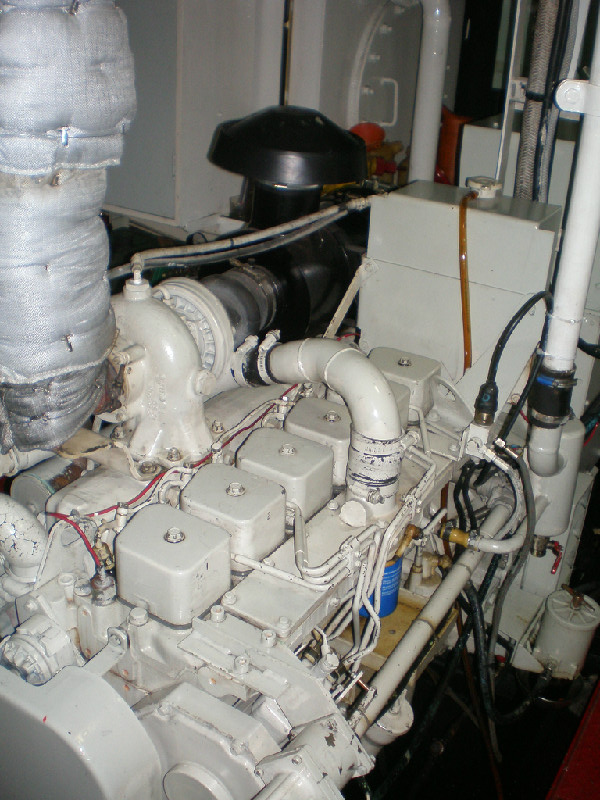

2 gen sets, CUMMINS 6BTS9G2, each 60 kW
Speed (cruising - maximum): 11 knots
ACCOMMODATION
Night acc Crew members: 3 x 1 men cabins + 1 x 6 men
Fully air conditioned
Sanitary block: toilet + shower
Crew: 5 people

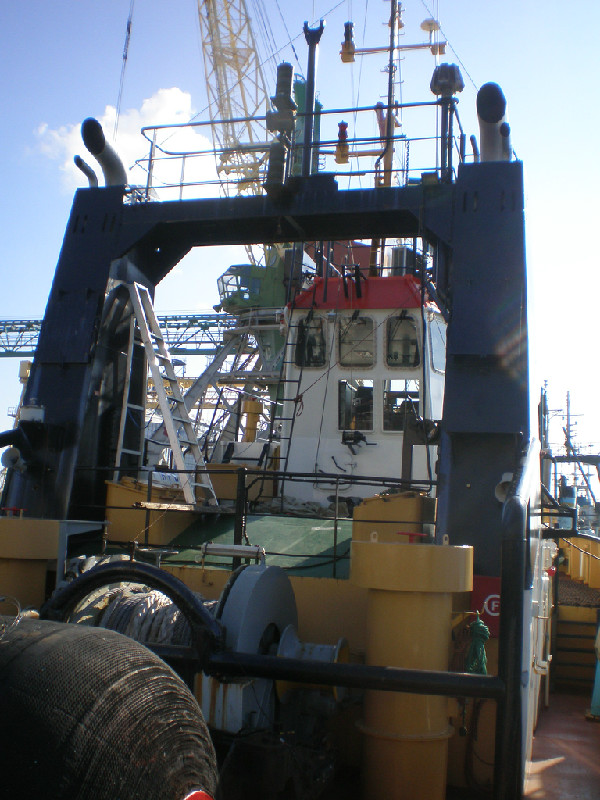

TOWING AND CARGO EQUIPMENT
Towing winch: 1 x (aft) Plimsoll, 1 single drum
Break holding 45 t, wire 250 m
Towing hook: 1 x (aft) Mampaey, SWL 50 t with quick release
Anchor winch: 1 x (forward) with 2 anchor chains
2 warping heads
Max bollard pull ahead: 31.3 t
CARGO CAPACITIES
Deck Cargo: 300 mt
Deck Area: 80 m²
Deck Strength: 4.5 tons/m²
MDO (vessel): 164.6 cbm
Potable Water (vessel): 18.59 cbm
Ballast water: 15 cbm
Range at sea: 10000 miles
Endurance: 40 days
Fuel consumptions:
2 cbm/day at 5 kts, 500 rpm
3.5 cbm/day at 7-8 kts, 650 rpm
4.5 cbm/day at 11 kts, 750 rpm
5 cbm/day at 13 kts, 800 rpm
OTHER DETAILS
GMDSS Class A1 + A2
CO2, fire pump, air-starting, pre-starting heating system fitted, main air-compressor, emergency diesel-air-compressor fitted
ALSO AVAILABLE FOR LONG TERM CHARTER

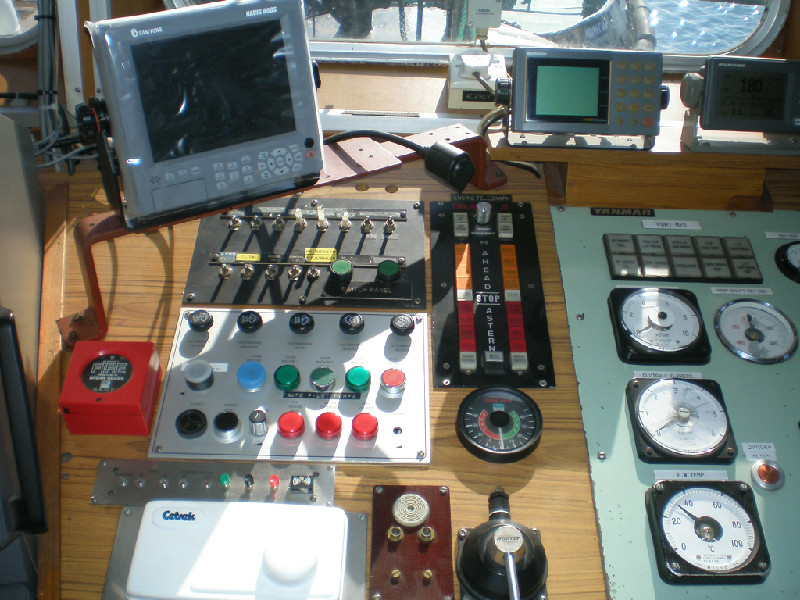

NAVIGATION AND COMMUNICATION EQUIPMENT
1 X-band FURUNO radar
2 magnetic compass
2 GPS navigator
1 Satellite compass
1 Autopilot system
1 plotter with electronic charts & AIS navigation system
1 echo – sounder
1 SAILOR EPIRB
1 SAILOR SART
1 NAVTEX
2 VHF system SAILOR
1 VHF system DSC SAILOR
2 VHF GMDSS portable SAILOR
1 MF/HF with DSC station
1 GMDSS approved battery charges
1 AIS class B
1 MFC scanner
The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
