Listing ID - 1267502
|Description||NEW BUILD - Wildcat 40 Windfarm Support|
|Date Launched||Built to Order|
|Draft||1.3m (4ft 3in)|
|Location||ex factory, Ireland|
|Broker||Geoff Fraser or John Kearns|
|View As PDF|

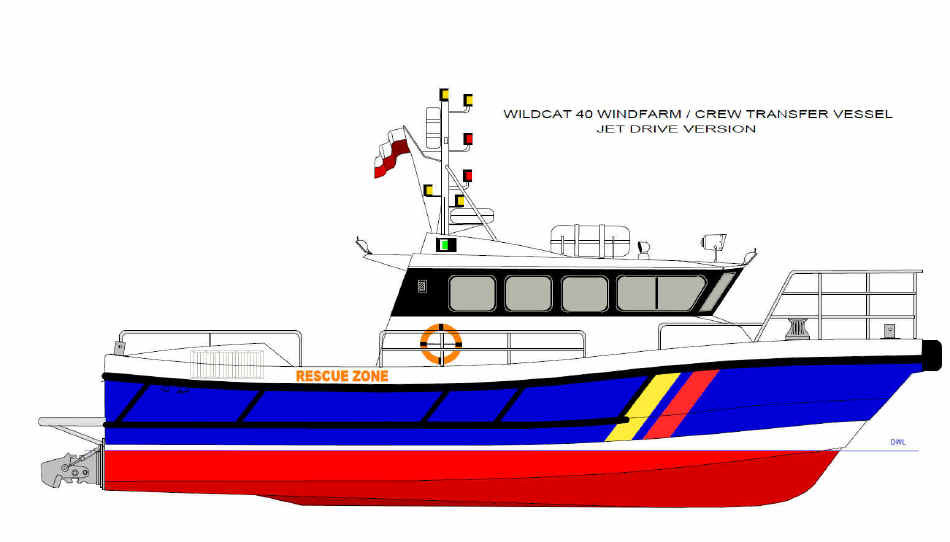

The Wildcat 40 Wind Farm version is an adaptation based on our proven and respected Wildcat 40 Cameraman hull.
Length Moulded: 11.8m
Beam Moulded: 4.8m
Seating: 12 Pass, 3 Crew
Fuel Capacity: 1000L
Power Output: 250-500hp
Gearboxes: Twin Disc 5126
Operational Speed: 16-25kts
Max. Speed: 30kts+
Certification: MCA Bureau Veritas

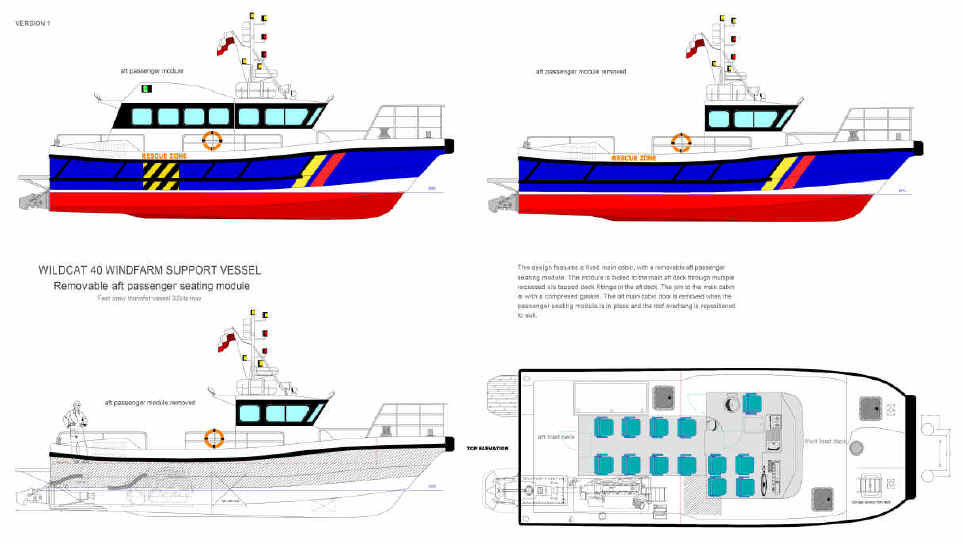

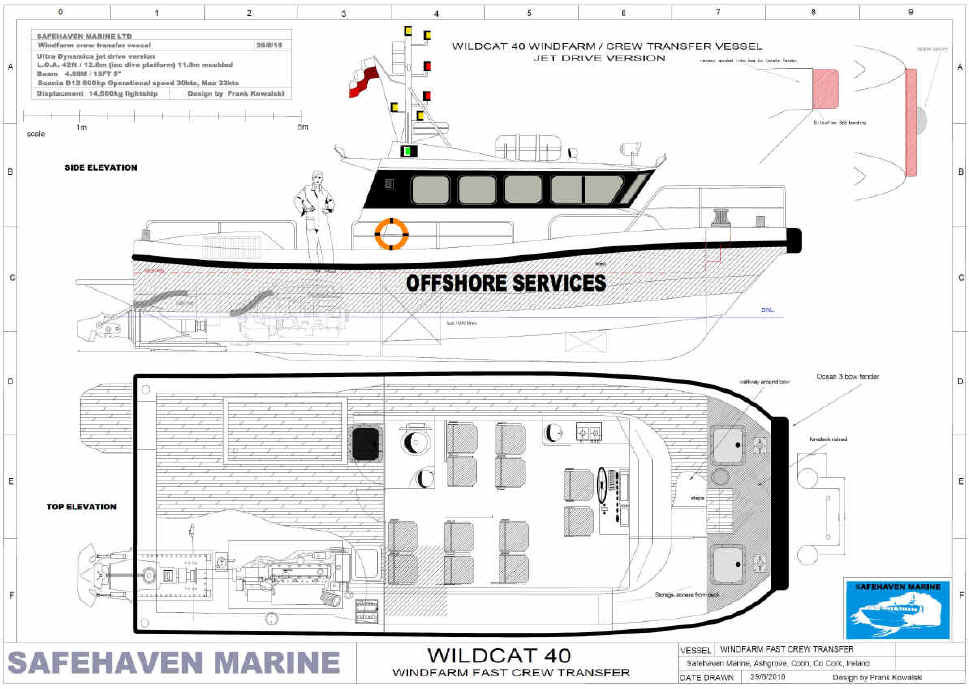

The bow of the vessel is modified dispensing with the cosmetically pleasing 'pickle fork' bow for a more practical square bow. This allows for the incorporation of the essential bow boarding area with an especially strengthened and fendered bow. The overall design is for a 10-12 passenger crew transfer design, featuring an island wheelhouse allowing crew to walk safely around the vessel and up to the bow behind secure bulkheads. An alternative configuration features a fixed main cabin with a removable aft passenger seating module. This allows the vessel to configured for a multitude of roles from Cargo carrying to passenger transfer. The aft passenger module can be quickly removed with a mobile crane and taken into storage on a flat bed trailer.
On the standard fixed cabin version, the vessel has a large, clear aft deck area for carrying light cargo, which can be loaded via a 2 ton HIAB crane. The vessel can be fitted with water jets for speeds of 30kts+ or conventional stern gear for a 25kts operational speed.
STANDARD FIXED CABIN VERSION
The benefits of the catamaran hull form are:
Transverse static stability, less rolling and motion
Directional stability in following sea conditions
Lower vertical accelerations smother motion in choppy head seas
Lower power requirements
Greater economical operational range
Head sea abilities
Due to the slender nature of the hulls, in choppy conditions vertical accelerations are much reduced in comparison with mono hulls giving a gentle ride and motion. However previously the biggest disadvantage of the older type of catamaran hull which featured very fine sections fwd with little reserve buoyancy, giving a very smooth ride in short sea states but suffering badly in ocean swell conditions due to slamming on the bridge deck. This shortcoming has been solved with much fuller fwd sections and much greater buoyancy, giving the hull the necessary lift to prevent slamming on the bridge deck, allowing higher speeds to be maintained into larger ocean swells.
Due to the low resistance of the slender catamaran hulls, performance is excellent, especially at moderate speeds up to 20kts. Typically, horse power requirements are lower than in a similar sized mono hull. Furthermore, the flat running angles of the catamaran hulls, with no hump to overcome means that there is a wide range of economical speeds, incurring no penalty in fuel consumption at transition speeds often dictated by weather conditions.
Probably the greatest benefit of the catamaran hull form over the monohull is its transverse static and dynamic stability. With GM figures typically 3-4 times greater than a similar sized mono hull the operational envelope in rough weather is extended. The Catamaran is able to provide a much more stable work platform at rest than a monohull with greatly reduced rolling and motion. In extreme conditions they are often the safest due to their great transverse stability.
The main accommodation on the Wildcat 40 is fully customizable, typically on a hydrographic vessel it will incorporate a central helm position with alongside seating for the hydrographical equipment operator / navigator and provides panoramic vision all round with all the electronic navigation and hydrographic displays situated in a large console. A work bench is fitted to the port side of the cabin stretching its full length, all the computers for the hydrographic equipment are stored in a vertical rack / cabinet fitted at the aft of the cabin. To port is a large dinette seating area with a table between. In the st/bd hull is a large heads compartment which is fully lined in white Formica fitted with an electric toilet and sink. In the port hull f/wd is a full galley with 240v hob, sink, fridge and storage lockers. Onboard electrical power is from a 10kw 240v generator supplying multiple sockets throughout the vessel. Other equipment can include a 1500W electric capstan, Electric 95kgf bow thruster, Electro hydraulic 013T HIAB crane, Dive platform, security alarm system and a full compliment of navigation equipment. The vessel can also be fitted with a 24,000btu air conditioning unit with high level outlets in the cabin roof for efficient cooling, The Wildcat is very quiet, only 70db being recorded in the cabin at 15kts, reducing to just 65db at 7kts survey speeds.
Safehaven's depth of engineering expertise is demonstrated by our Multi Beam deployment system
The advantage of a catamaran when designing a deployment system for the expensive multi beam sonar head is that by deploying the sonar head through a moon pool in the catamarans bridge deck, a high degree of protection is provided by the twin hulls. The system is designed to lower the sonar head mounted on a 4m aerofoil design support to just below the vessels keel, operation is through a 2m stroke stainless steel cylinder with electro hydraulic operation mounted on the back of the wheelhouse on the aft deck, which lowers the head through a hatch integrated into the bridge deck forming a ‘moon pool’ the sonar head then extends down to below the keel line whereby sonar data can be collected at low speeds. For fast transit speeds the sonar head is raised and the moon pool hatch closed, whereby the vessel can again operate at high speed with the sonar head safely protected.
The sonar will be mounted as close to the centre of gravity as possible. Ducting will be provided for the cable to the survey position. The diameter of this cable will depend on the chosen system, and an allowance will be made for this in the design. The sonar will therefore be mounted solidly to the hull. This will allow a minimum amount of flex between the systems employed on the vessel, to ensure the accuracy of the measured depth
It is anticipated that the multibeam system to be fitted to the vessel will be either a Kongsberg 3002 or a Reson 8125, The system will be chosen for the engineering capabilities.
