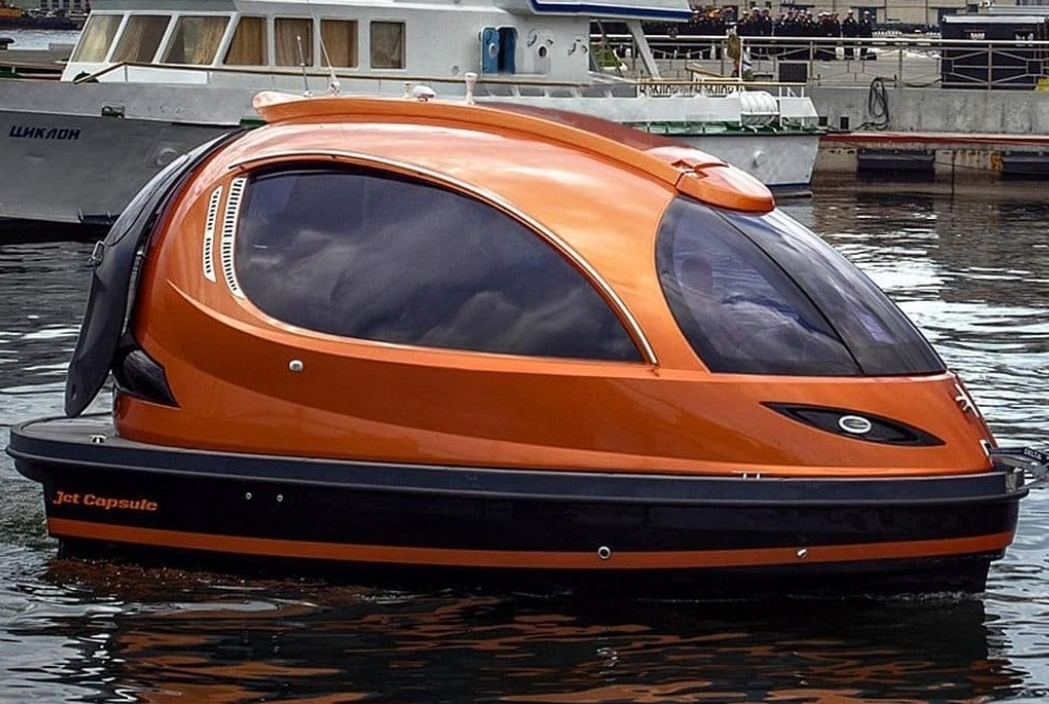

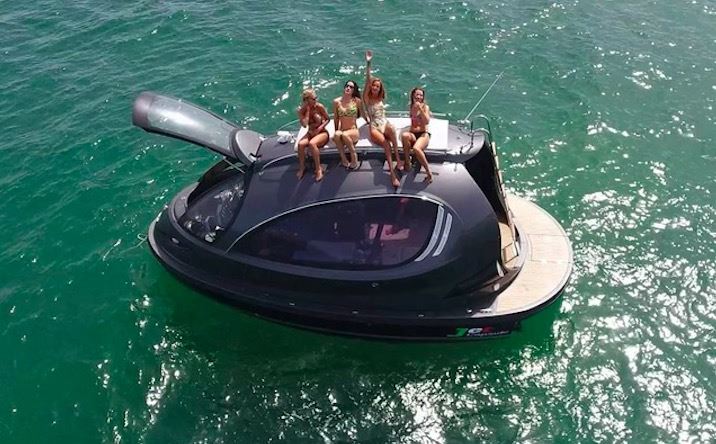

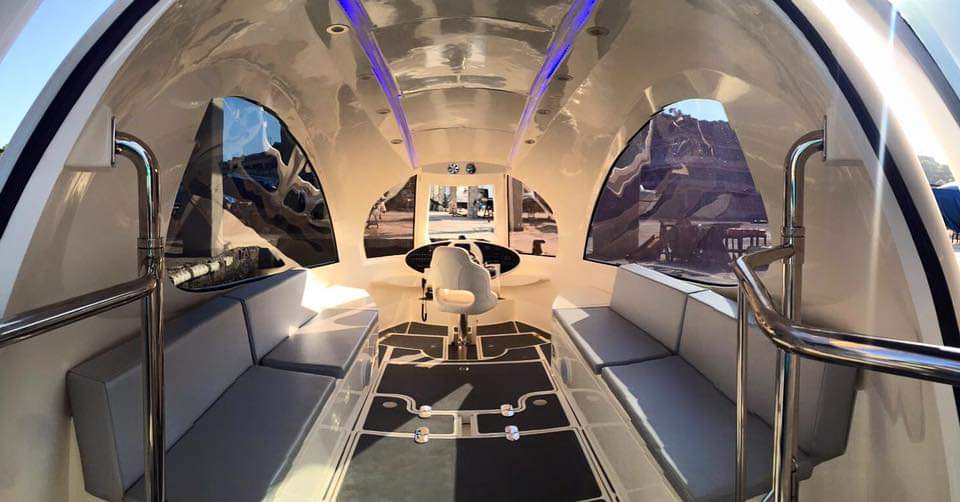

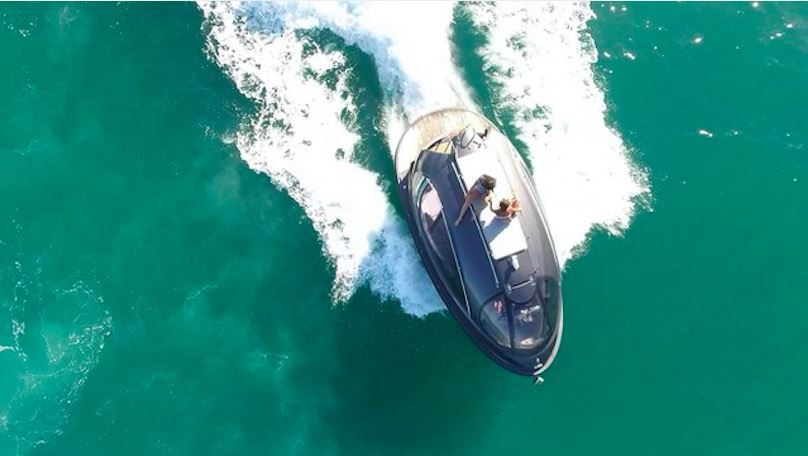

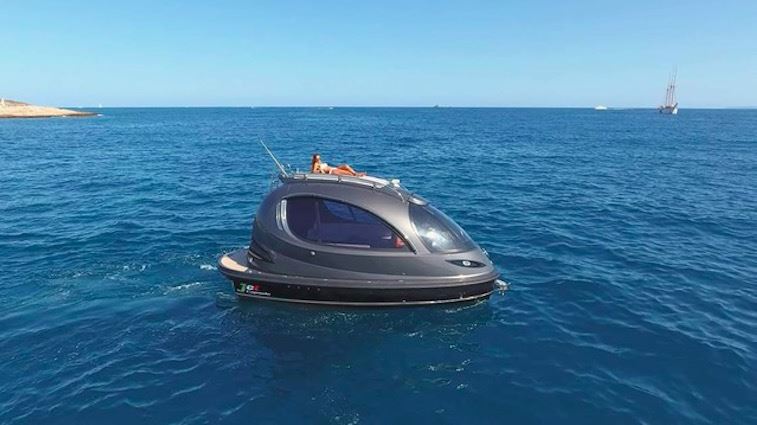

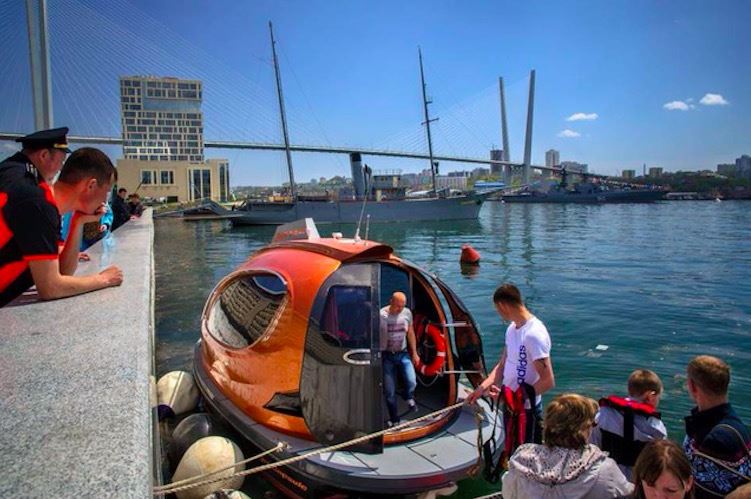

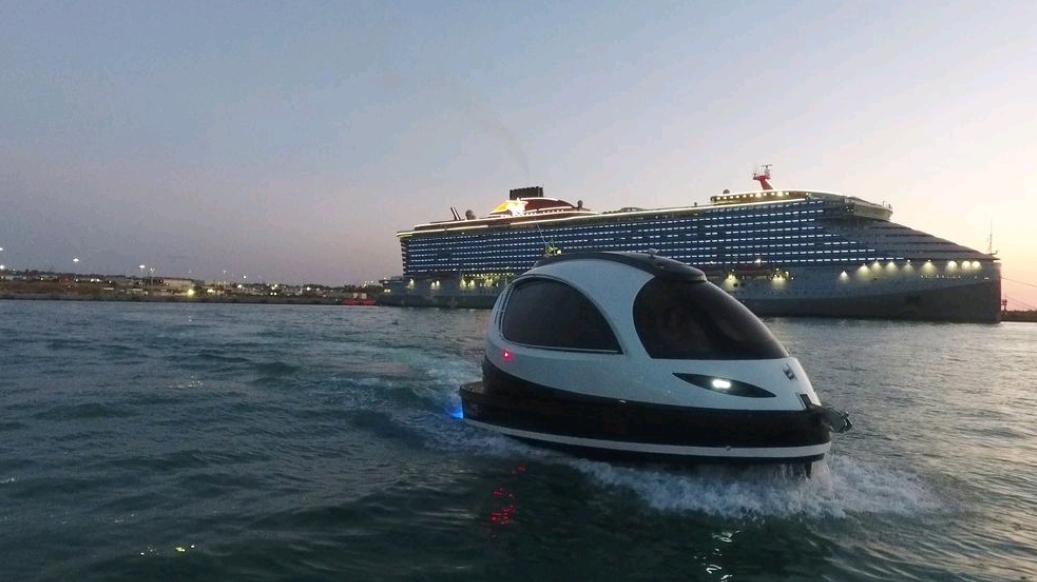

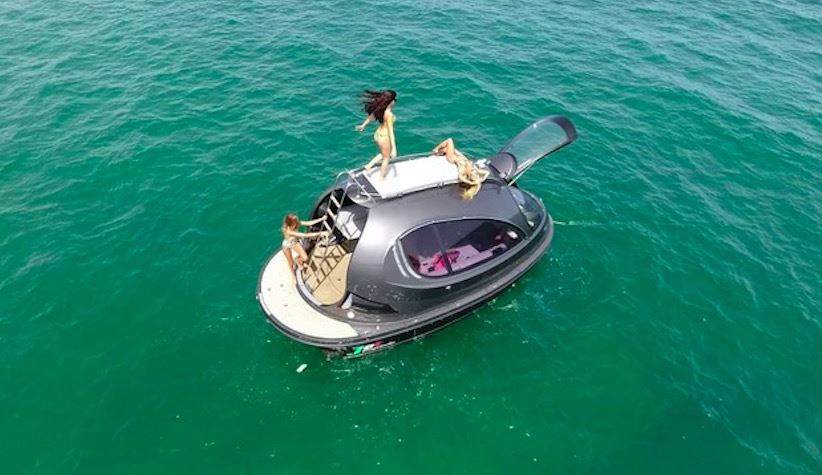

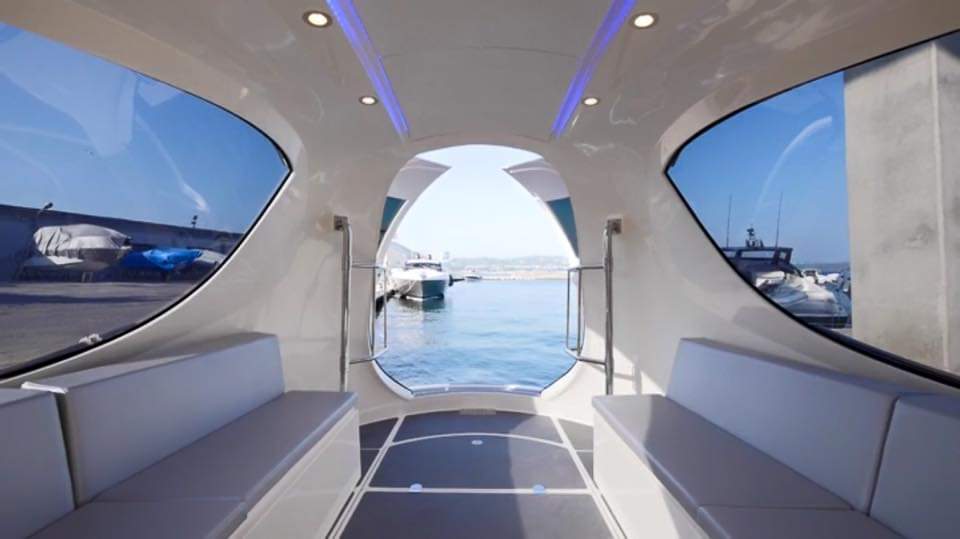

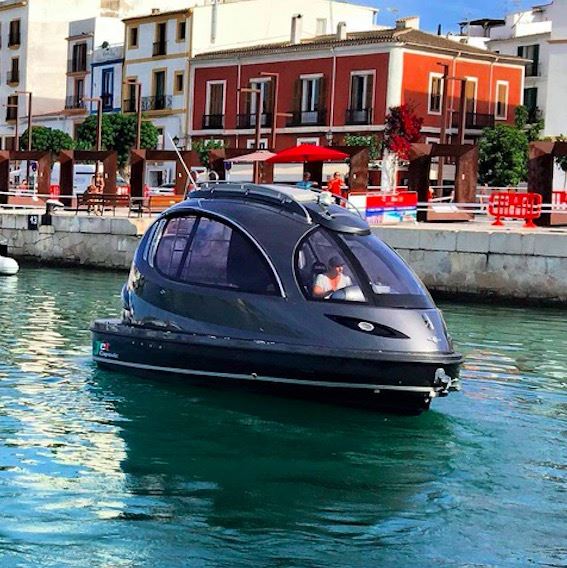

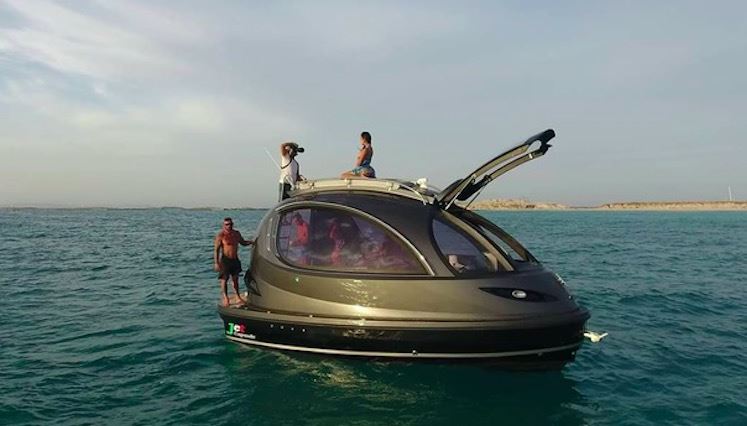

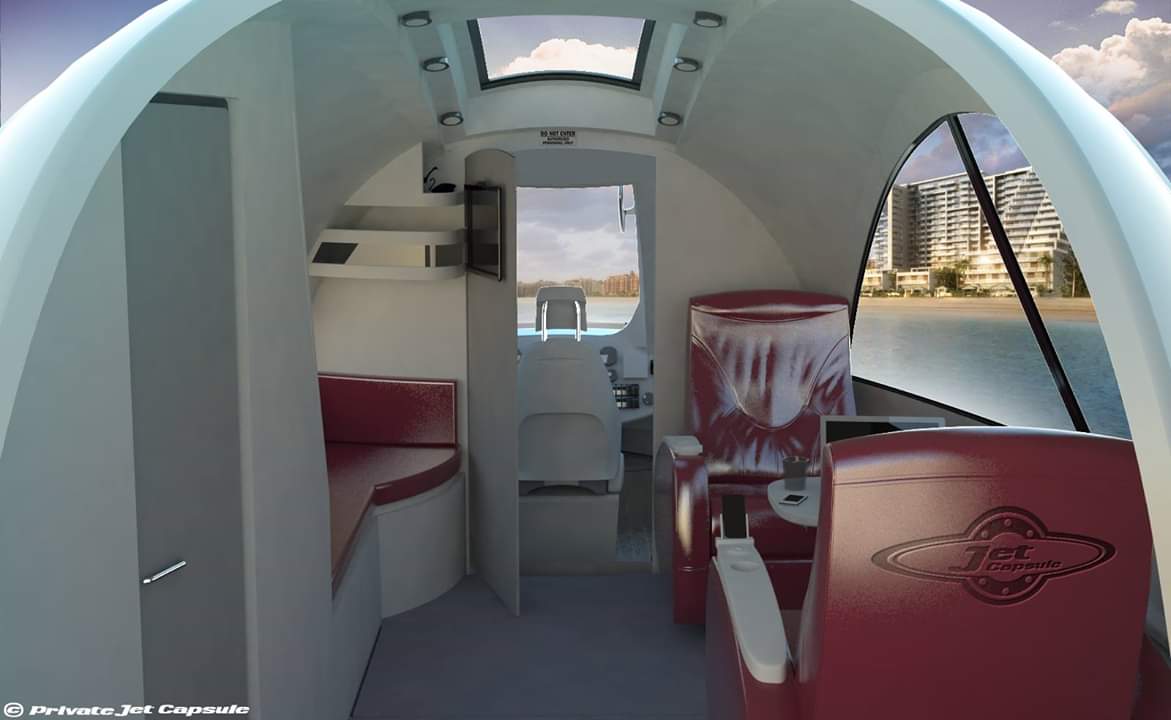

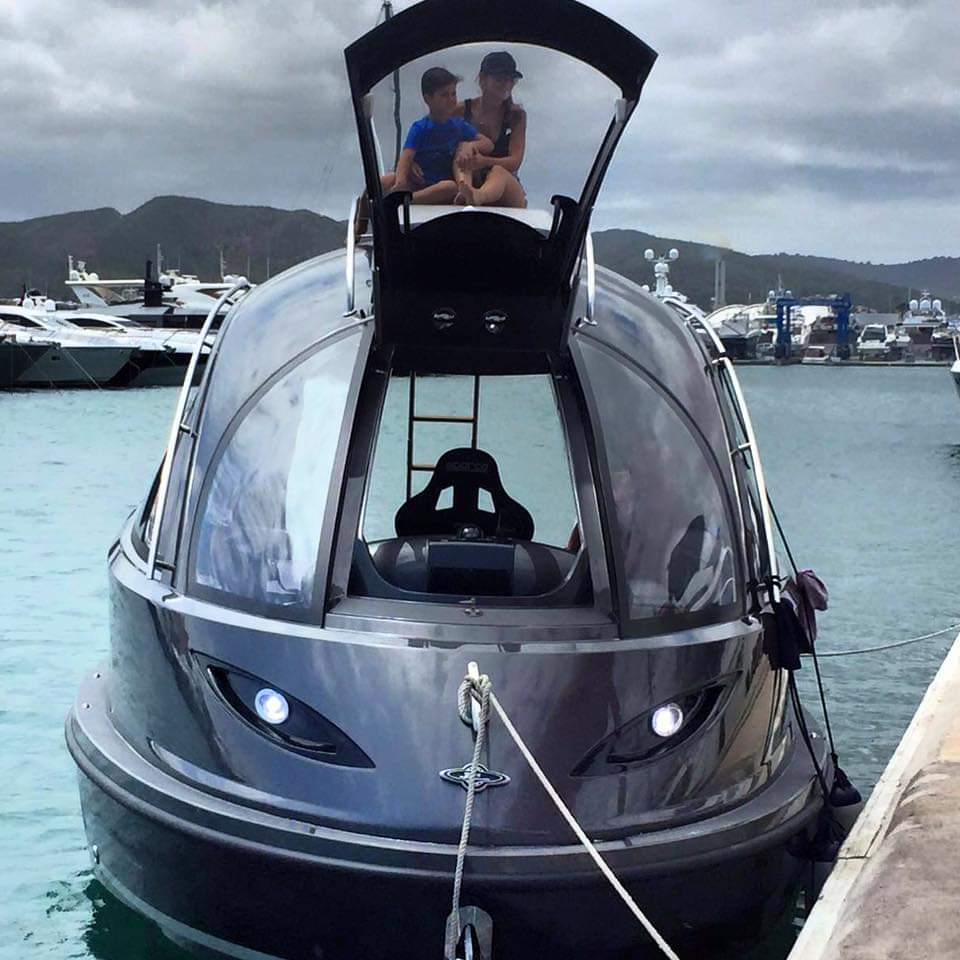

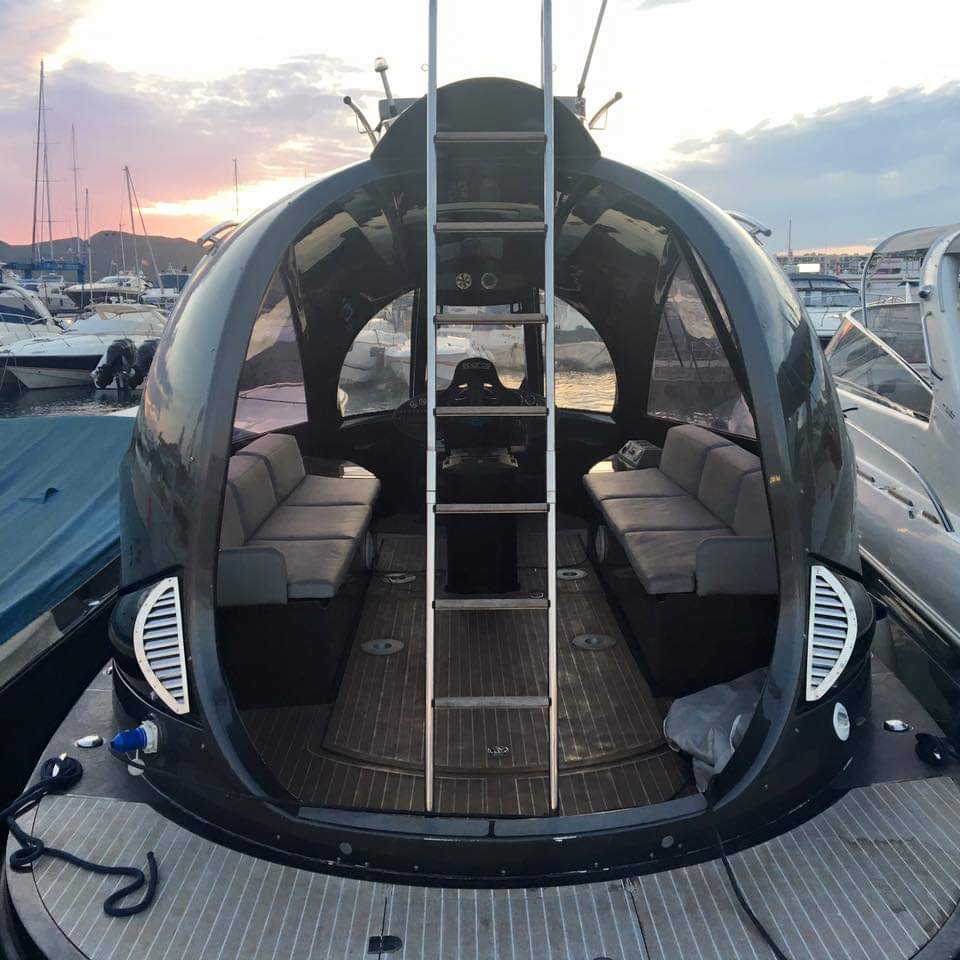

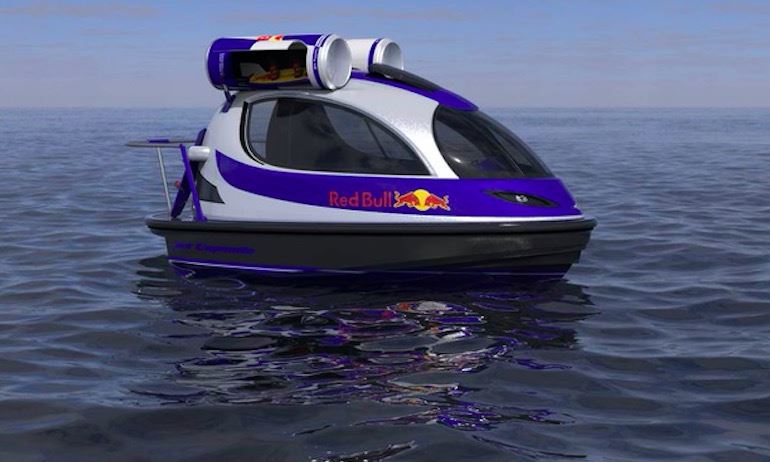

The Jet Capsule is designed by Pierpaolo Lazzarini. The boat is small enough to be easily manoeuvred, yet spacious enough to take a group of friends out for an evenings entertainment and much more. It is designed to appeal to youthful yacht owners who want a small and flambouyant looking yacht. Based on a variable-deadrise powerboat hull, it is built to design category C of the Recreational Craft Directive and is certified by RINA. The spaceship like housing is certainly different, but practical and is guaranteed to turn heads. The large internal cabin floor lends itself to many different layouts.



Length overall: 8m

Maximum width: 3.44m

Hull width: 3.38m

Maximum immersion: 0.55m

Design category: C

Certified by RINA

Dry displacement: 3.20t

Displacement at full load: 4.50t

Fuel capacity: 330L

Max power single engine installed:  1 x 315 hp (Yanmar 6LPA)

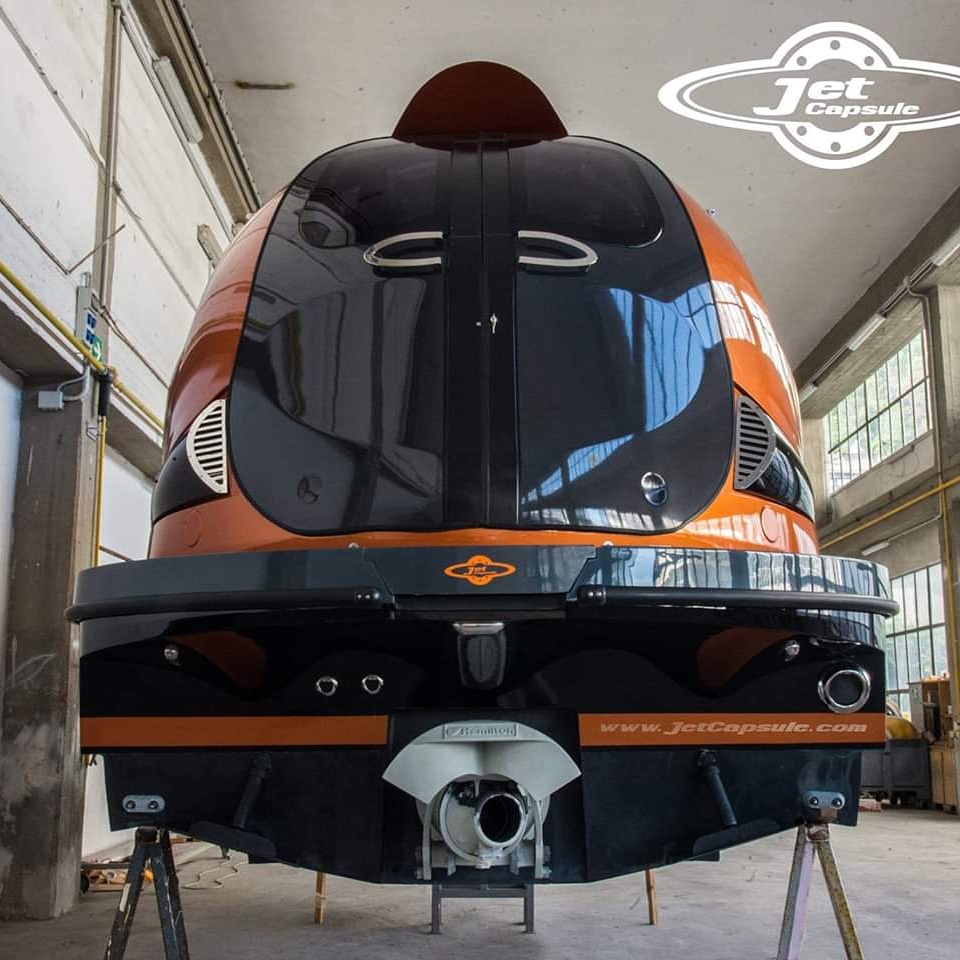

Propulsion: Waterjet

Maximum speed: 23 knots

Cruising speed at full load:  18 knots

Autonomy: 130     Nm

Maximum load:  8+1 ps

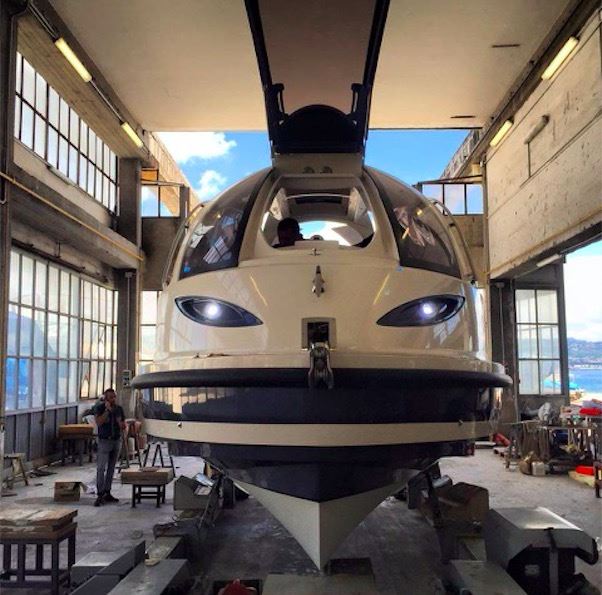

V shaped hull with variable deadrise angle with longitudinal hydrodynamic spray-rails;

Hull sides and deck lamination by infusion with vinyl-ester resin and multiaxial glass reinforcements;

N°2 AISI 316 stainless steel handrails on superstructure sides;

Painting of the hull and deck with neopentylic gel-coat;

Painting of the hull with anti fouling and waterline band;

Thermal and acoustic insulation of the engine compartment;

Pipes in stainless steel, copper and rubber approved by RINA ® or CE marked;

Main equipment CE marked.



Chain locker with deck hatch and nautical equipment storage;

Nr. 1 Anchor 6 kg (with steel toe steel AISI 316) and chain 5 m, 8 mm, 30m ropes;

Stainless steel shield with wheel on the bow;

Electric Winch windlass with control from the bridge;

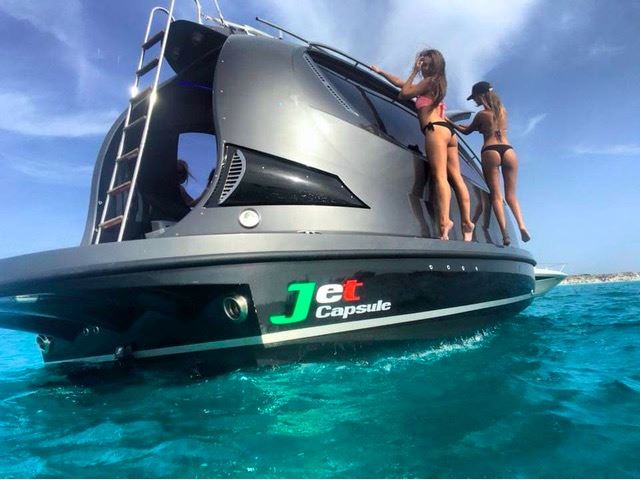

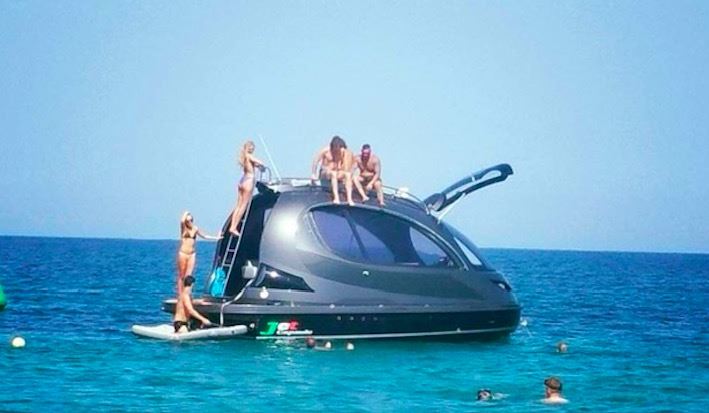

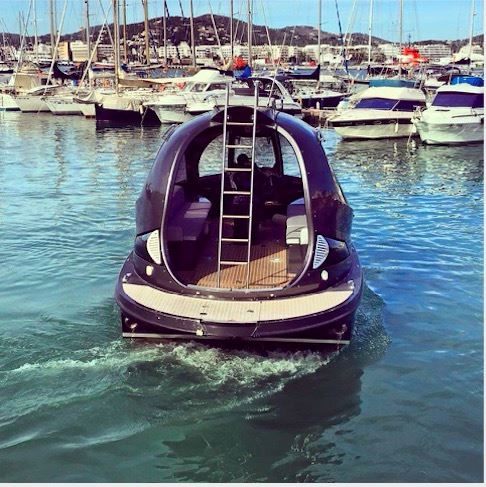

Retractable sea ladder;

Nr. 4 bow cleats, nr. 2 stern cleats in stainless steel AISI 316;

Side and front plexiglass windows;

Fuel filling cap;

Venting line of fuel tanks with Stainless steel net and anti spray riser;



Self-draining cockpit;

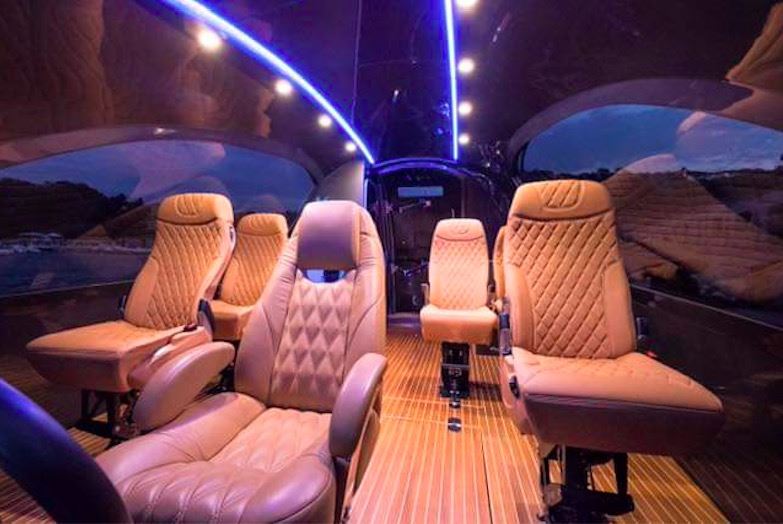

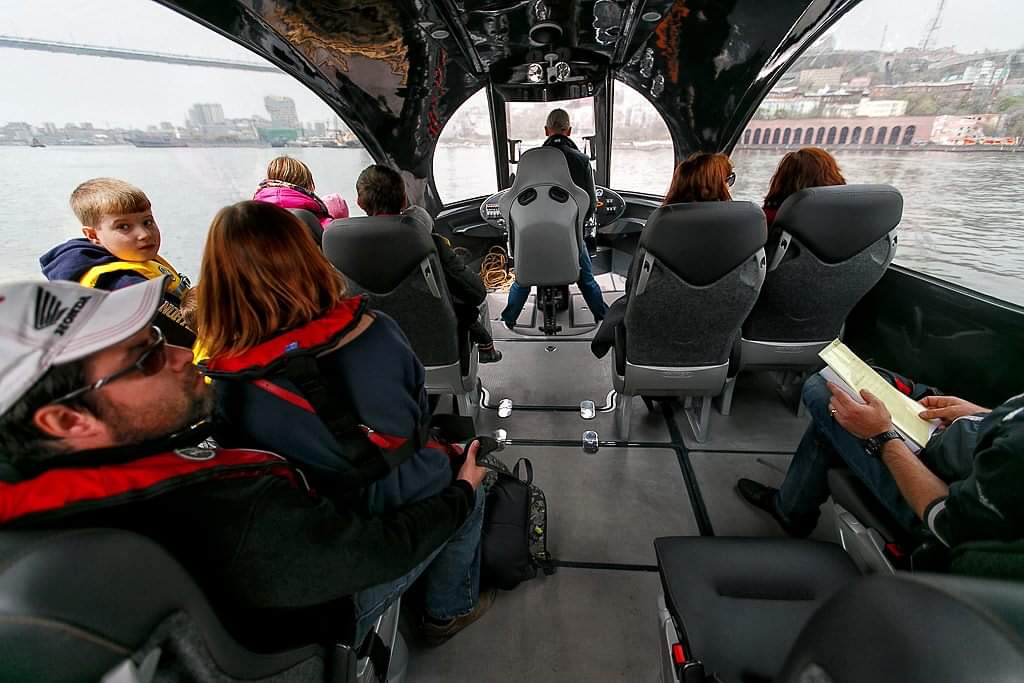

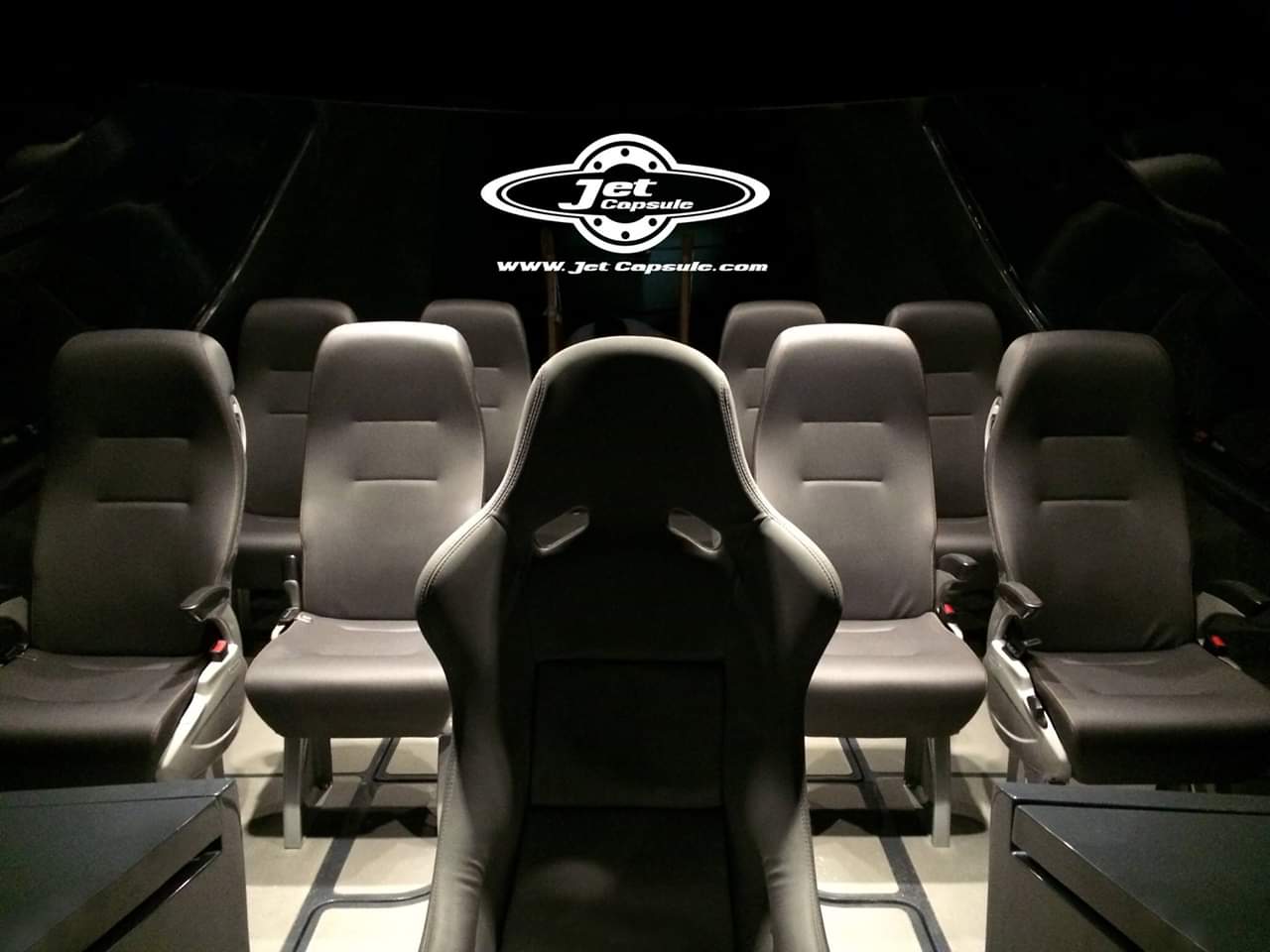

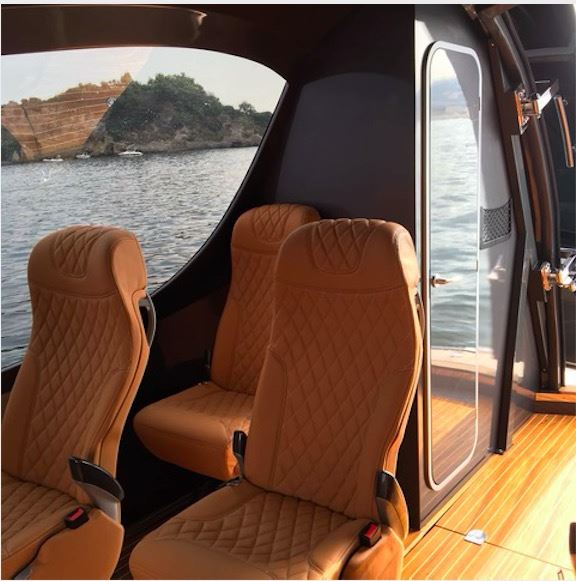

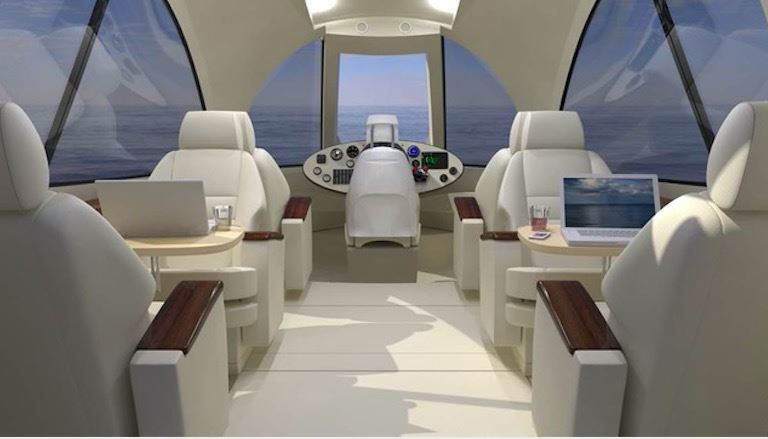

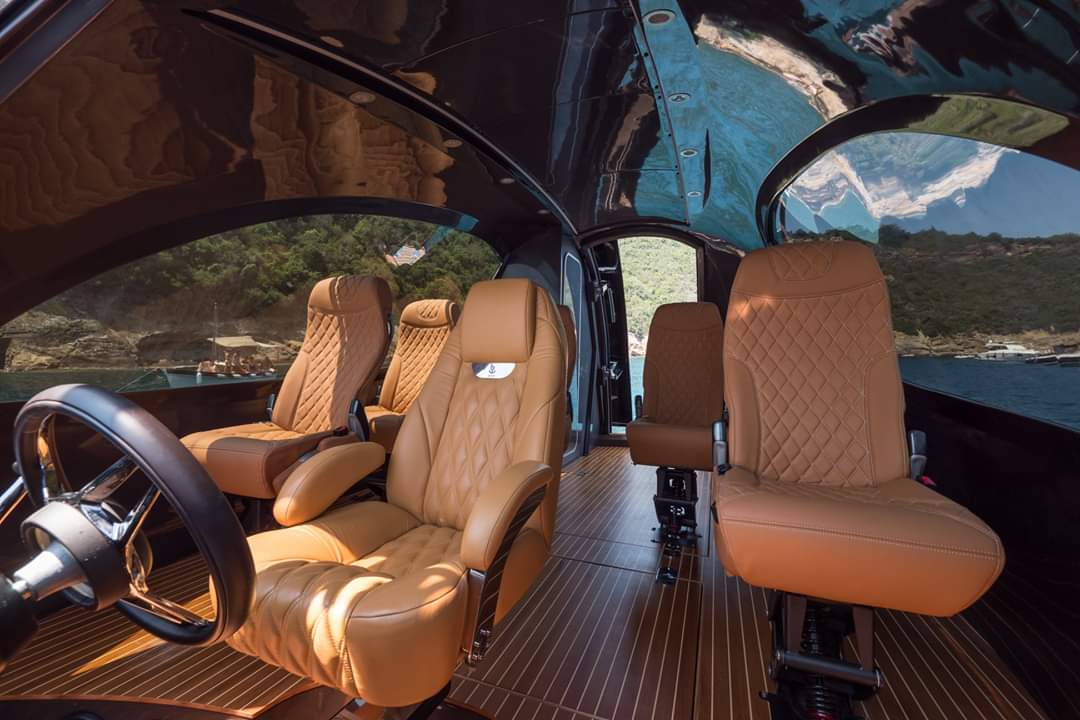

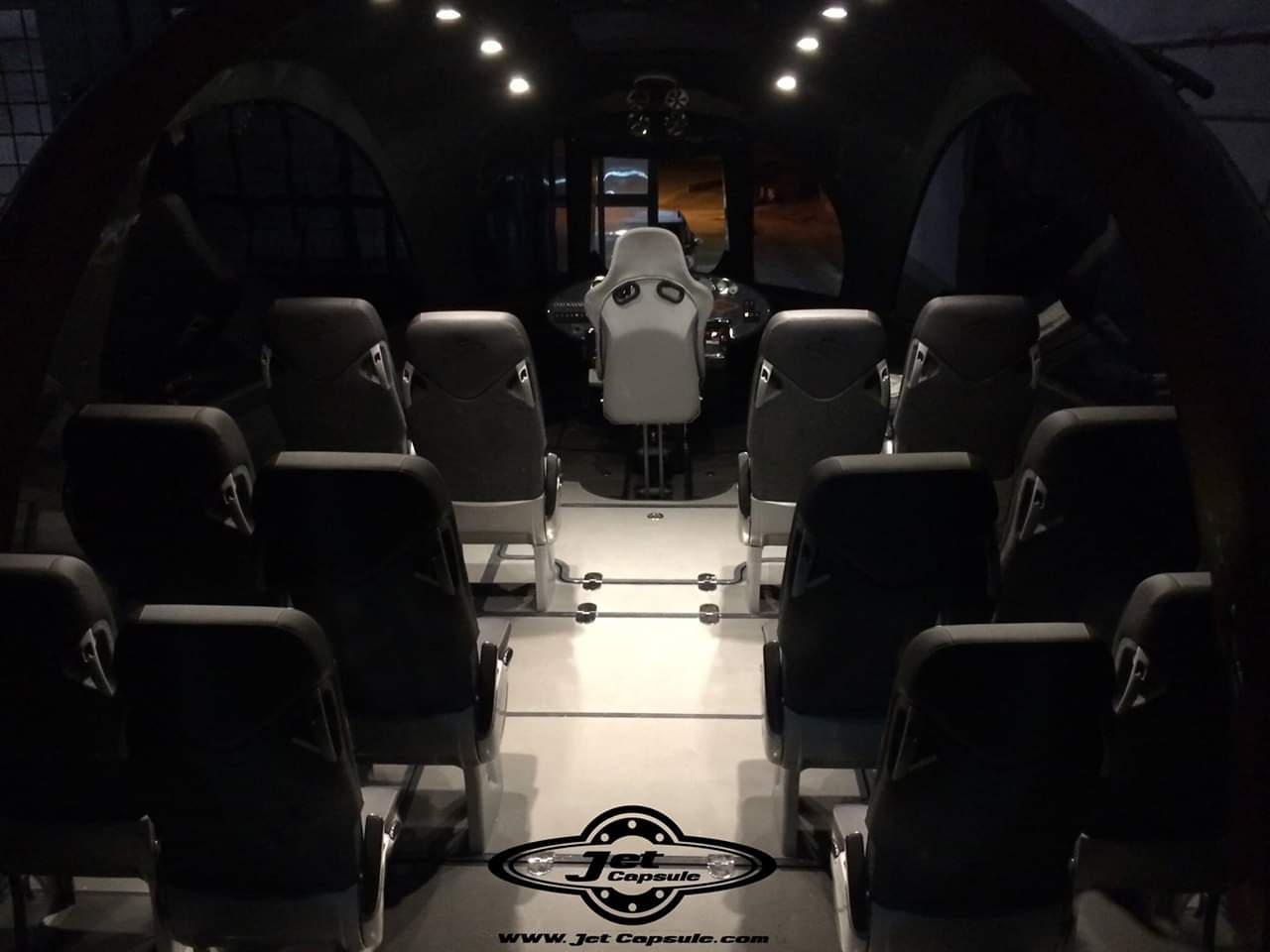

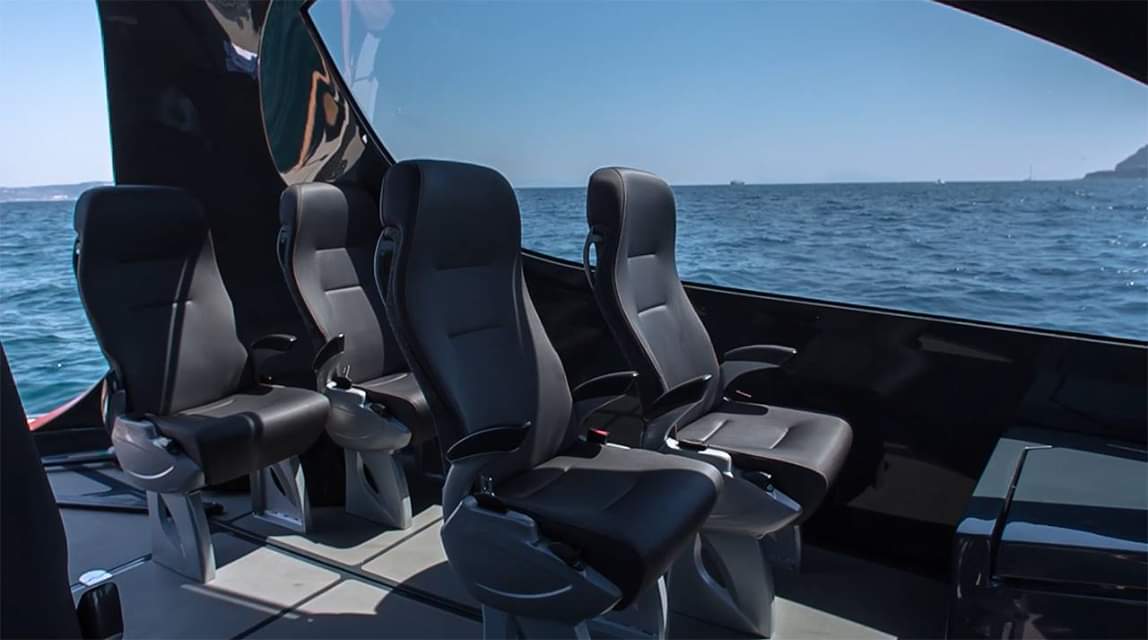

8 single removable seats for passengers with handles;

Led spotlights for cockpit lighting;

grey gelcoat antiskid on FRP floor deck;

Engine compartment access hatch with gas springs;

Central locker access hatch;

Manual fire extinguishers



Carling Switches for main equipment;

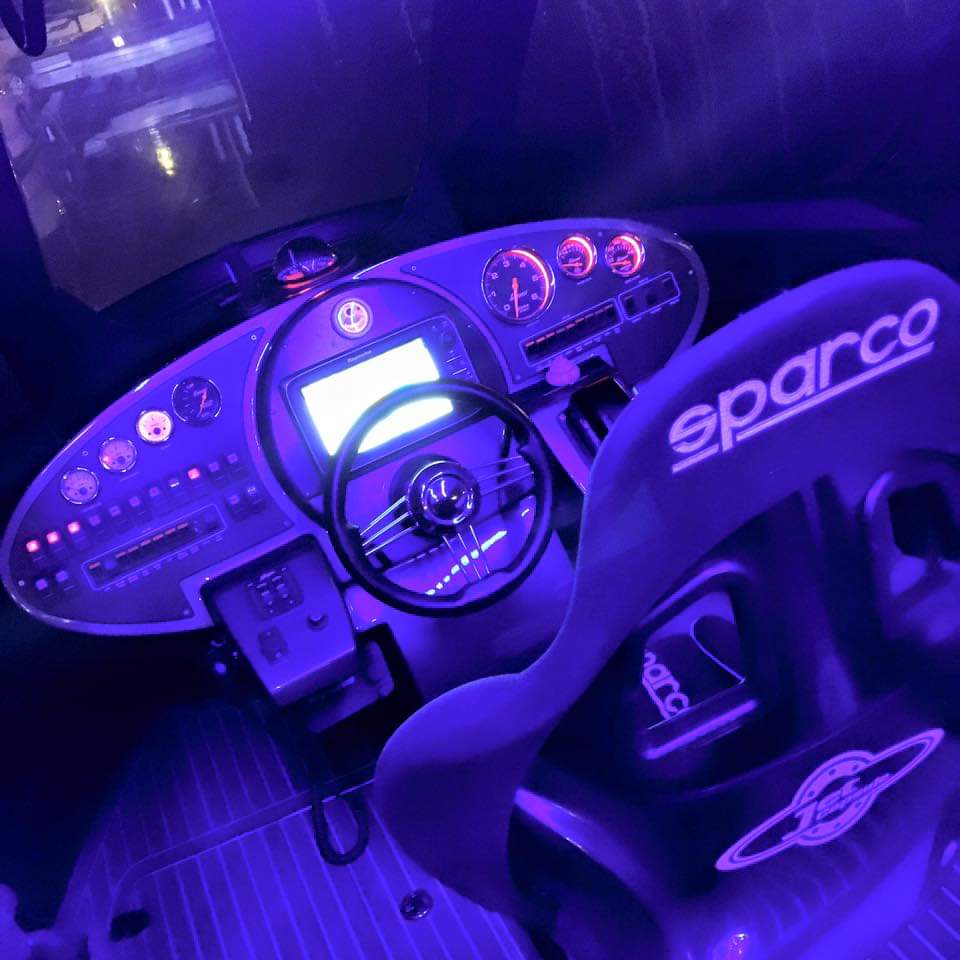

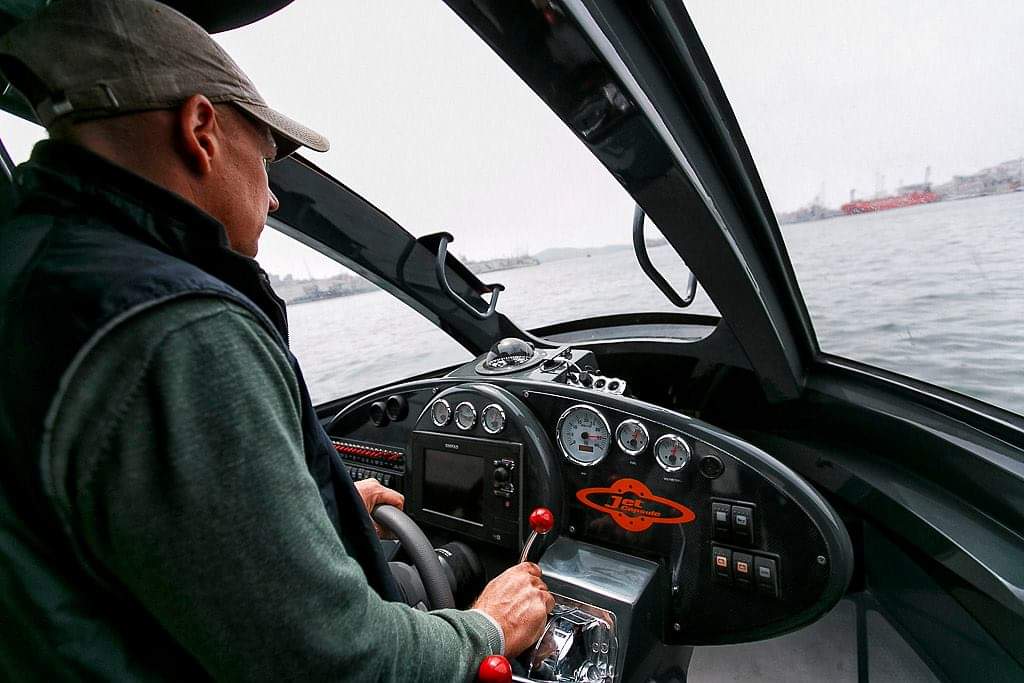

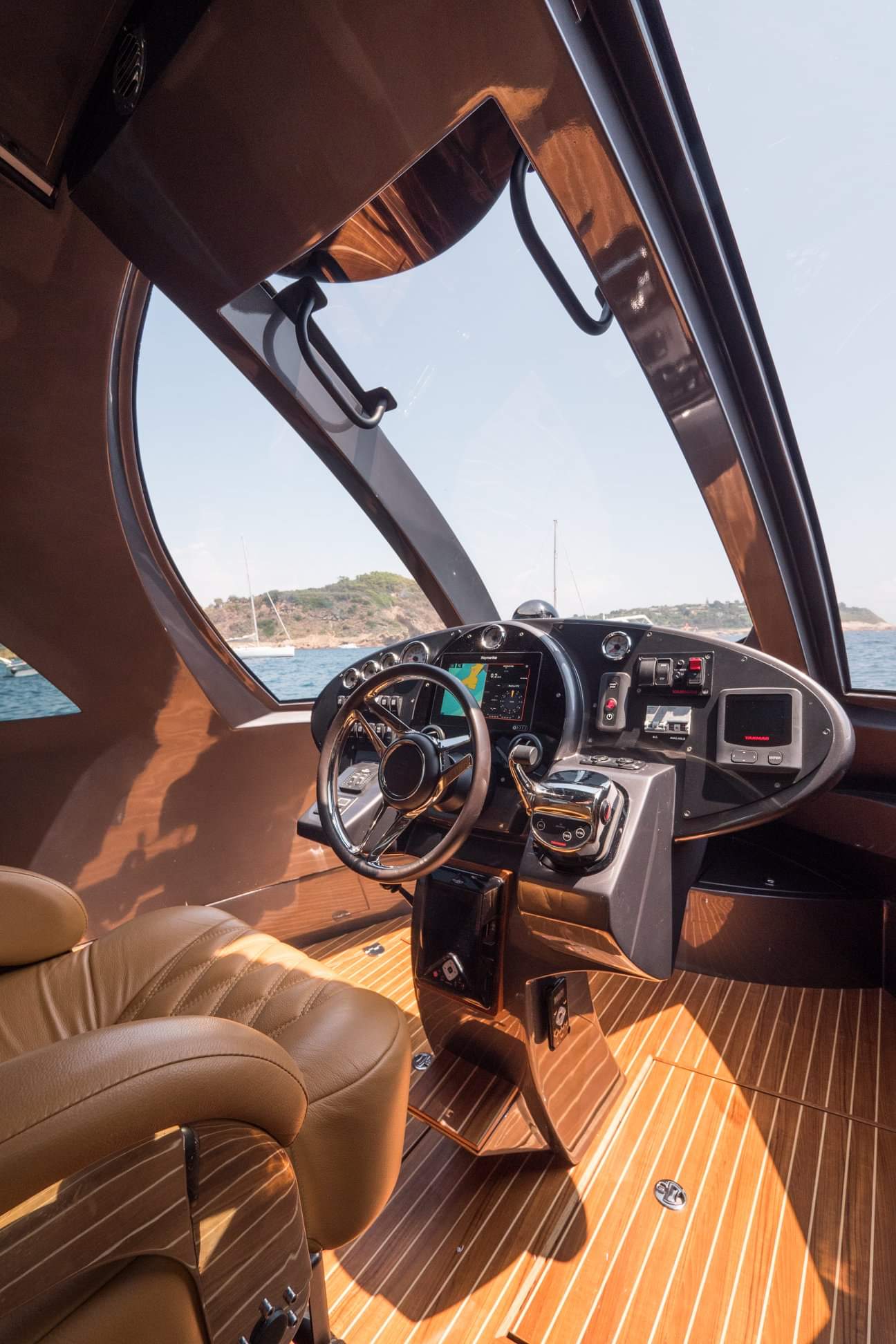

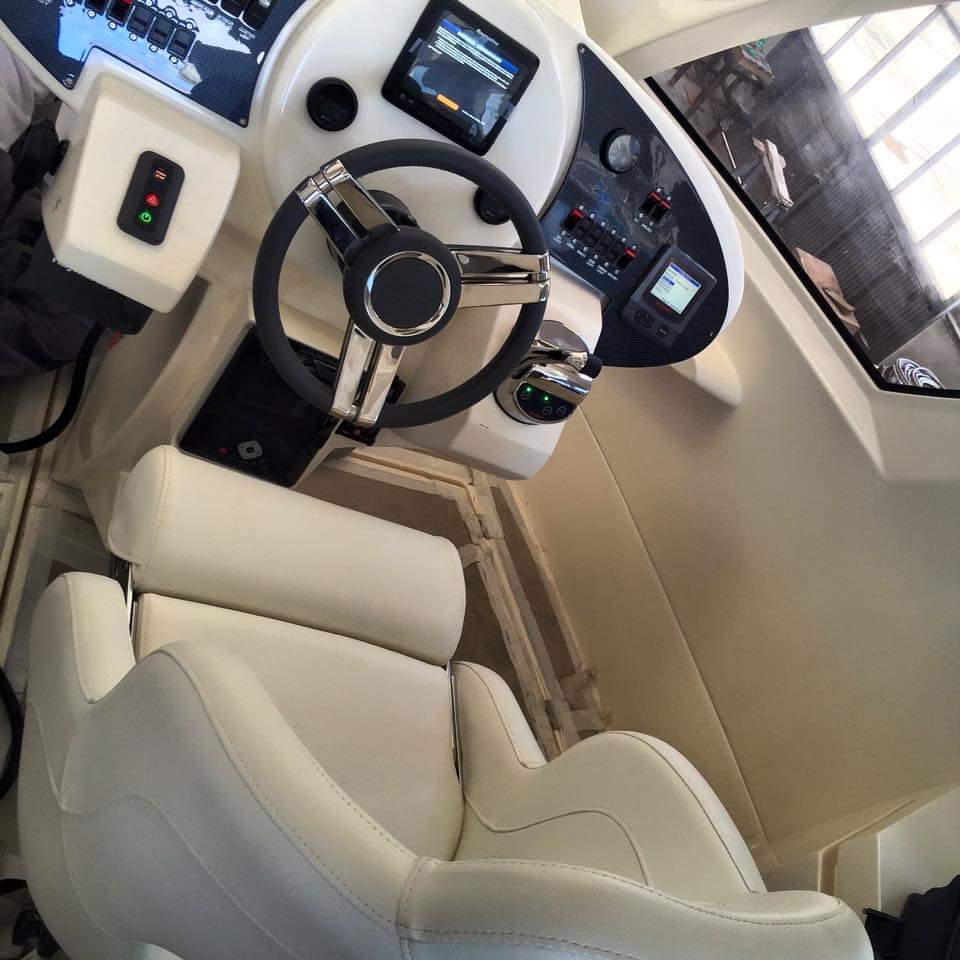

Engine/gear controls;

Propulsion control (WaterJet version)

Electro-hydraulic steering

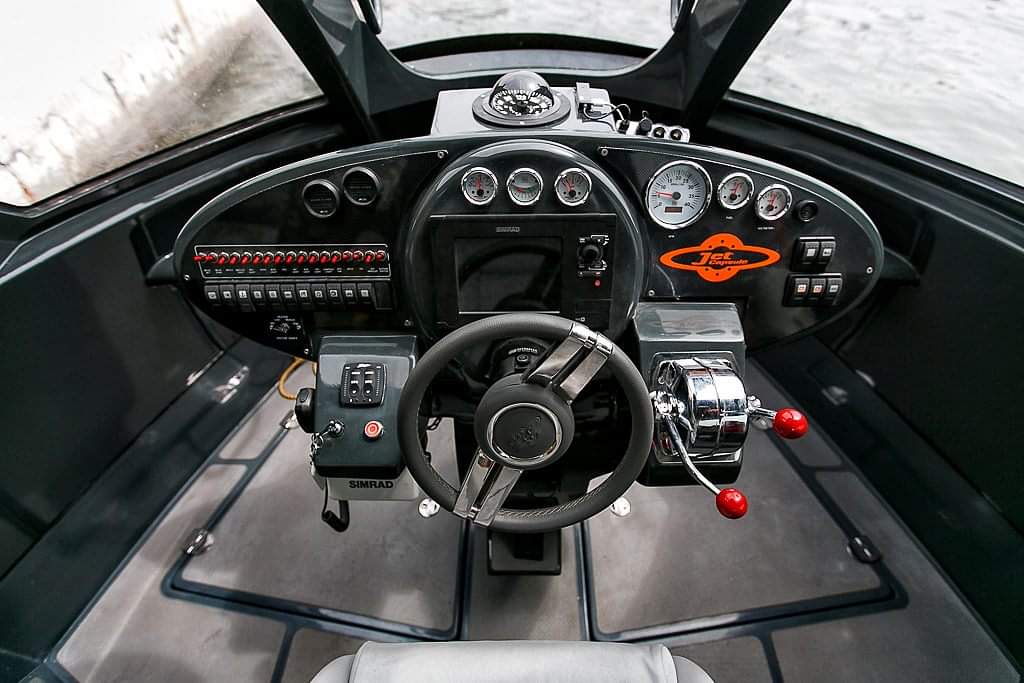

Analogic Instrumentation for engine and gearbox monitoring: oil pressure, water temperature, voltmeter and rev counter, warning lights and audible alarm for motors, rudder angle, fuel tank levels

CE certified steering wheel;

Magnetic compass;

Windlass;

Controllable trim tabs;

Bilge pump controls.



Engine start and stop panel;

Nr. 1 sealed battery 160Ah for engine start according to supplier requests;

Nr. 1 sealed battery 120Ah for onboard services;

Navigation lights Colreg 72 compliant;

Control panel, with circuit breakers, residual current circuit breaker, measuring instruments and control panels printed;

Parallel system for engine starting battery services;

RINA approved horn;

Galvanic protection with zinc;

Manual battery switches and parallel switch;



Bow spotlight ;

Underwater lights;

Navigation lights;

Internal lights;

Engine compartment lights;



N. 2 self-priming pumps for bilge suction with suctions, auto-switches and alarms in both compartments;



Additional fuel prefilter (water separator);

Electrical Trim tabs  with controls and position indicators;

Fire-extinguishing system with automatic and manual activation from the bridge;

Thermo-acoustic insulation;

Fuel level gauge;

Nr. 2 air inlets, nr. 2 air outlets;

Nr. 1 Fuel tank, CE marked;

Safety valves on seawater inlets and discharges;

Bronze sea water intake;



Engine oil low pressure alarm;

Engine water  high temperature alarm;

Gearbox oil low pressure alarm;

Alarm for presence of water in the bilge of each watertight compartment.



Navigation compass

RPM counter control;

Fuel level control;

GPS Antenna (only cable way);

VHF Antenna; (only cable way);

Depth gauge (only cable way).



Nr. 3 Underwater lights aft;

Nr. 2 underwater lights on each side;

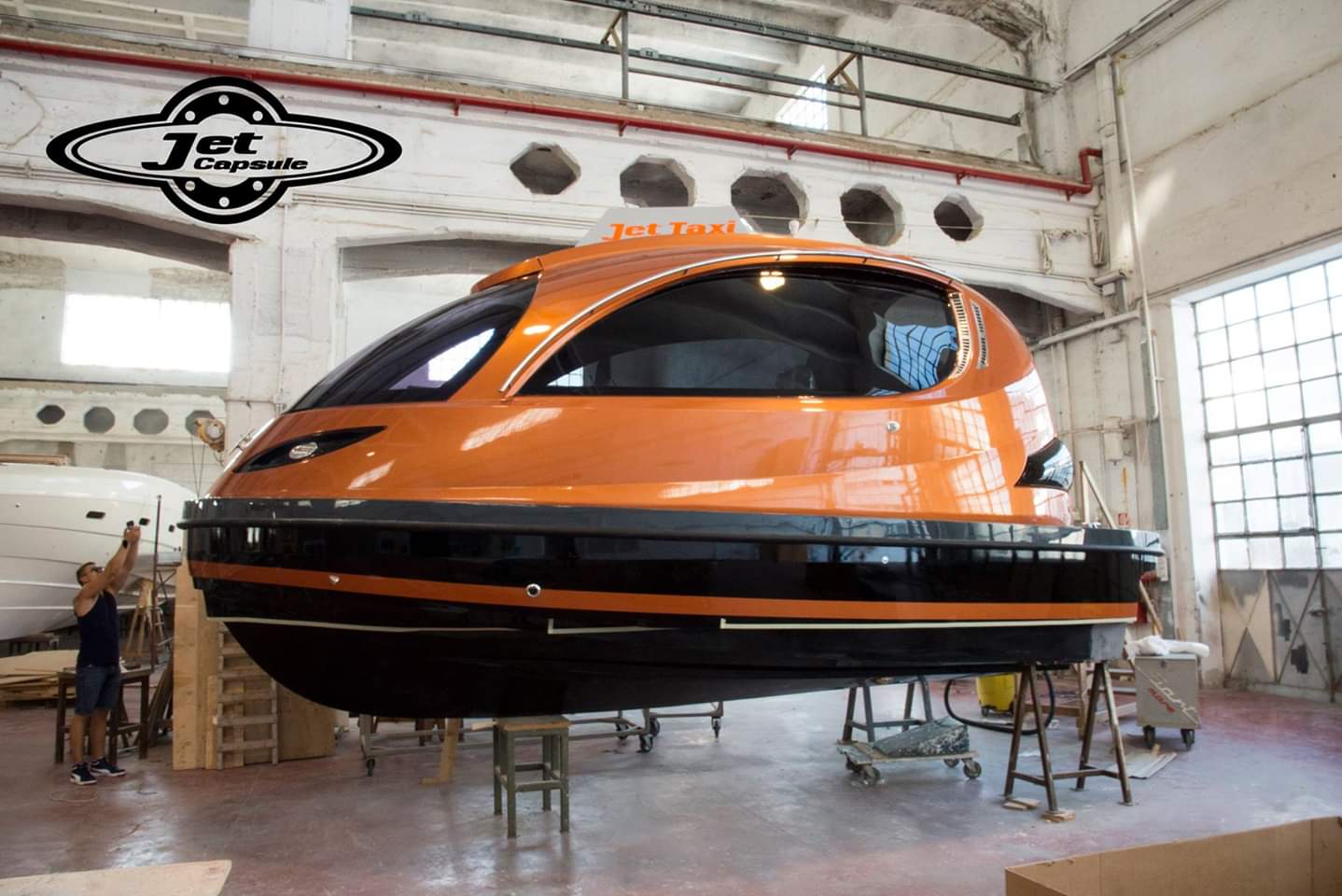

Custom gelcoat color for taxi version for hull, deck and superstructure;

Lightened advertising on the top;

Air Conditioning with Heat pump for Nordic version;

RINA certification;

Rear manual doors (see quotation);

Hi-Fi dock for Iphone / Ipod/ Ipad;

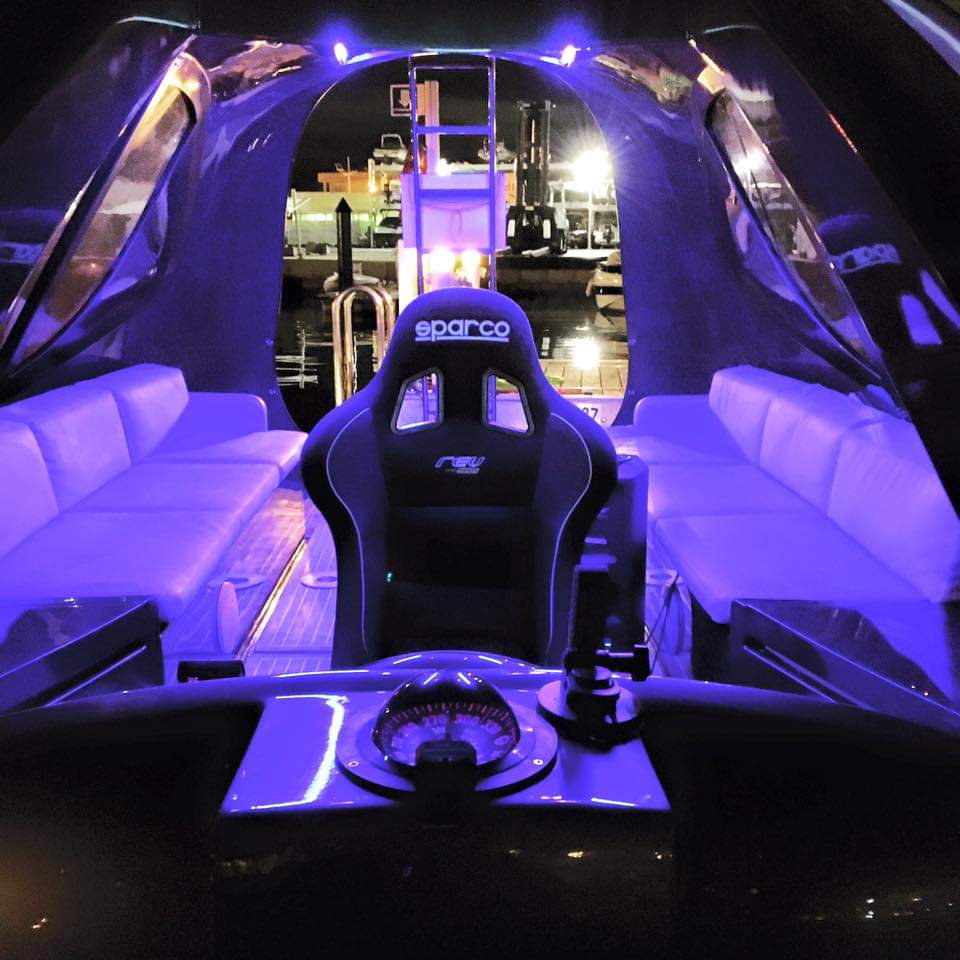

Driver's adjustable sport seat; with professional shock absorbing system.
