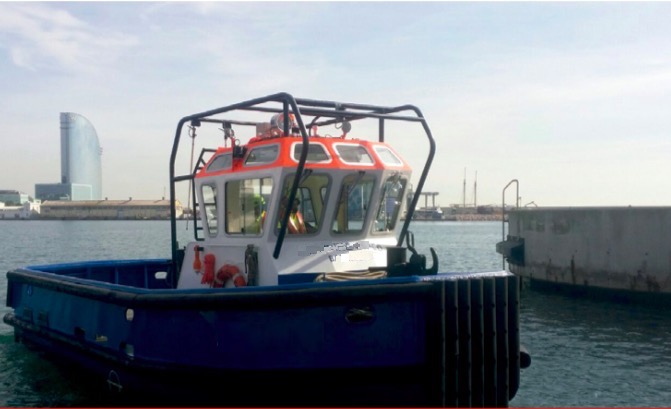

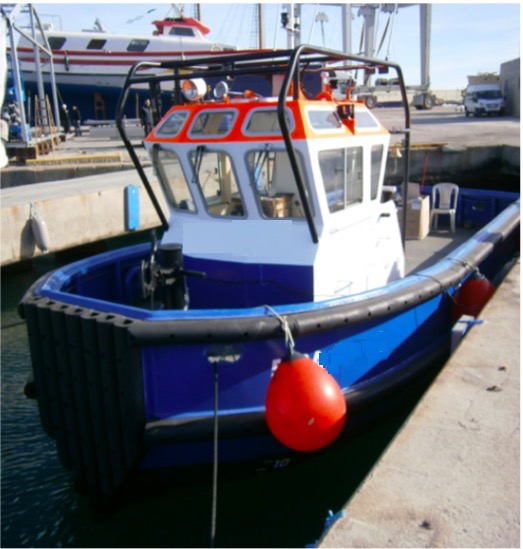

NEW BUILD - 8.7m Harbour Tug


Listing ID - 1365


DescriptionNEW BUILD - 8.7m Harbour Tug
Date Launched
Built to Order
Length8.7m (28ft 6in)
Beam3.6m (11ft 9in)
Draft1m (3ft 3in)
Note2.05T Bollard Pull
Locationex Shipyard, Spain or Dominican Republic
BrokerReynaldo Gil J.
View As PDF


L.O.A.: 8.7m
Beam: 3.6m
Draught: 1m
Depth: 1.5m
Full Displacement: 18 ton
LBP: 8.35m
Power: 1x230 hp at 2,200 rpm

BASIC FUNCTION
Towing and mooring operations
Passenger capacity 12 pax Deck cargo 1 ton

CLASSIFICATION NOTES
SPANISH FLAG: Grupo III, Class S

PERFORMANCES
Bollard Pull: 2.05 ton
Speed: 8 knots

STEERING SYSTEM
Rudder Blade: 1 x high performance rudder
                        Blade with flap
Rudder Shaft: Stainless Steel AISI 316 L
Rudder Bearings: Thordon SXL

TANK CAPACITIES
Diesel Oil: 1,2 m3
Oil: 60L
Bilge Tank: 60L

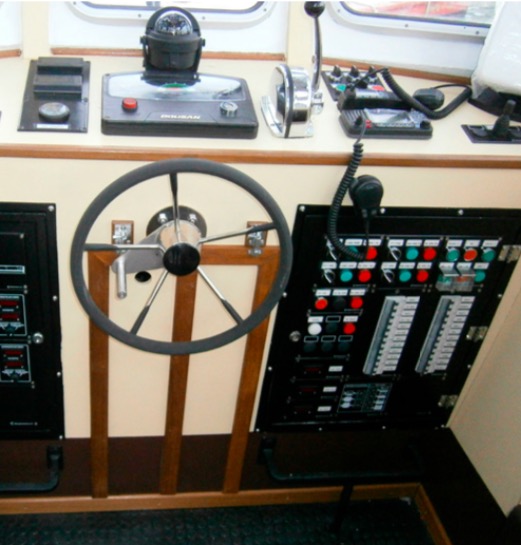

ACCOMMODATION
The wheelhouse are completely insulated and finished with durable modern linings and composite synthetic floor.

PROPULSION SYSTEM
M.E. Maker: DoosanIntracore Co.
Model: L-136 TI
Total Power: 1x 230 hp at 2,200 rpm
Tail Shaft: Stainless Steel AISI 316L
Tail Shaft Bearings: Thordon SXL
Gearboxes / Ratio: DMT-110 / 3,19:1
Propellers: 1 unit, 4 fixed Blades 840 mm diameter
Engine Control: Doosan
Rudders: 1 double plate high performance
Steering Gear: Powered hidraulic 35o + rudder indicators

MOORING & TOWING SYSTEM
Anchor Winch: Electrically driven 24V
Towing Hook: Manual DGMM approved

AUXILIARY EQUIPMENT
Battery Sets: 2x 24V 230 Ah.
Generator: 1x Driven Generator PRESTOLITE 175
Bilge / Fire Fighting Pump: 1x Engine driven JABSCO 51200, 12 m3/h with manual clutch
Engine Room Ventilation: Creixenti electro fan 6,000 m3/h
Fire Extinguishers: 2x5 Kg CO2 and 5x6 dry powder

COMMUNICATION & NAVIGATION SYSTEM
Searchlight: 2X150W
Magnetic Compass: Ritchie B-81-WM
Ais: ICOM MA500TR
Echo Sounder: FURUNO FCV627
Vhf Gmdss: Entel HT 649
Vhf Radio Telephone: 2x ICOM ICM323
Floodlight: 2x150W on aft deck and 1x150W on fore deck




1365: NEW BUILD - 8.7m Harbour Tug - 095.jpg





The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
