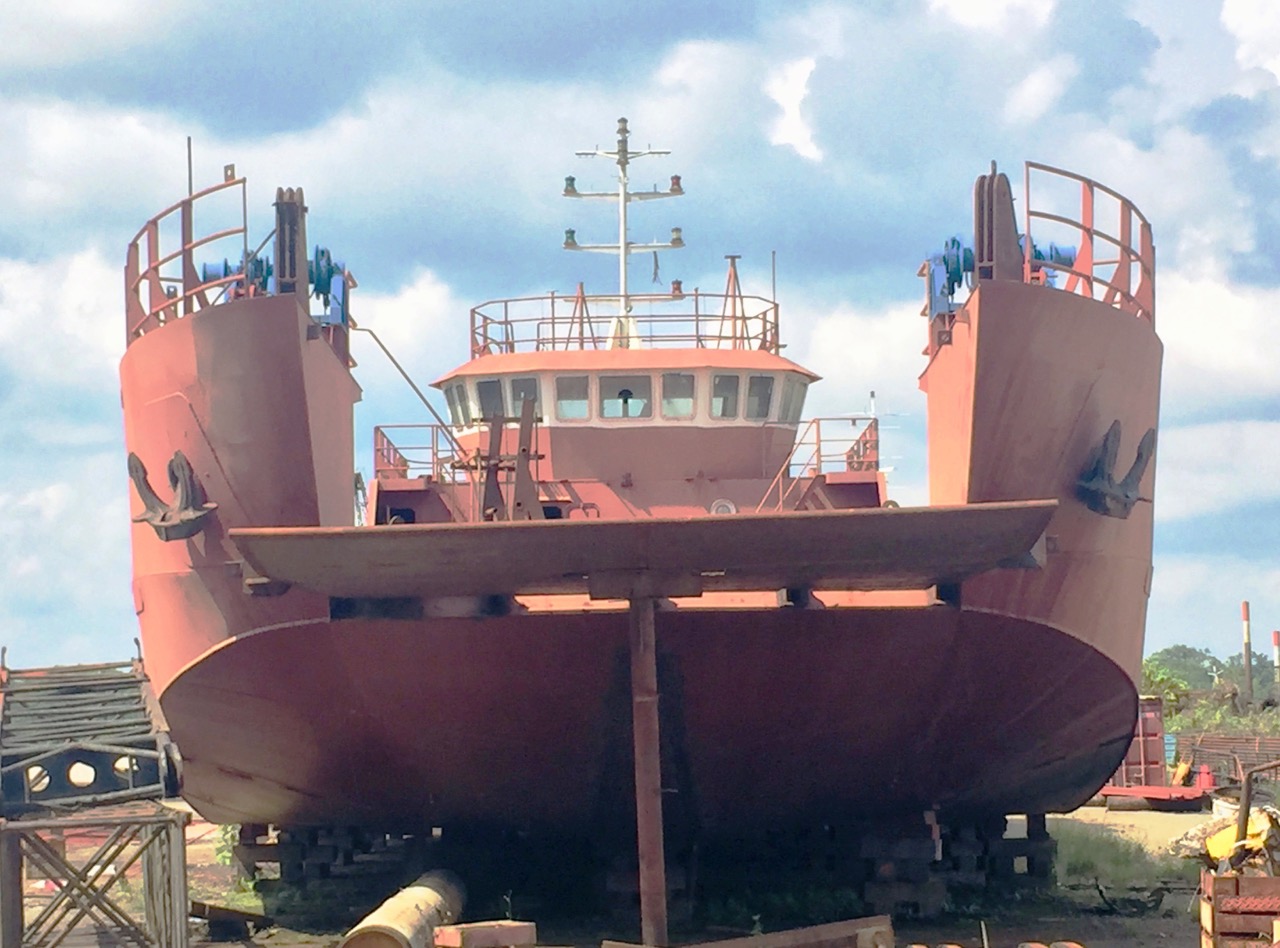

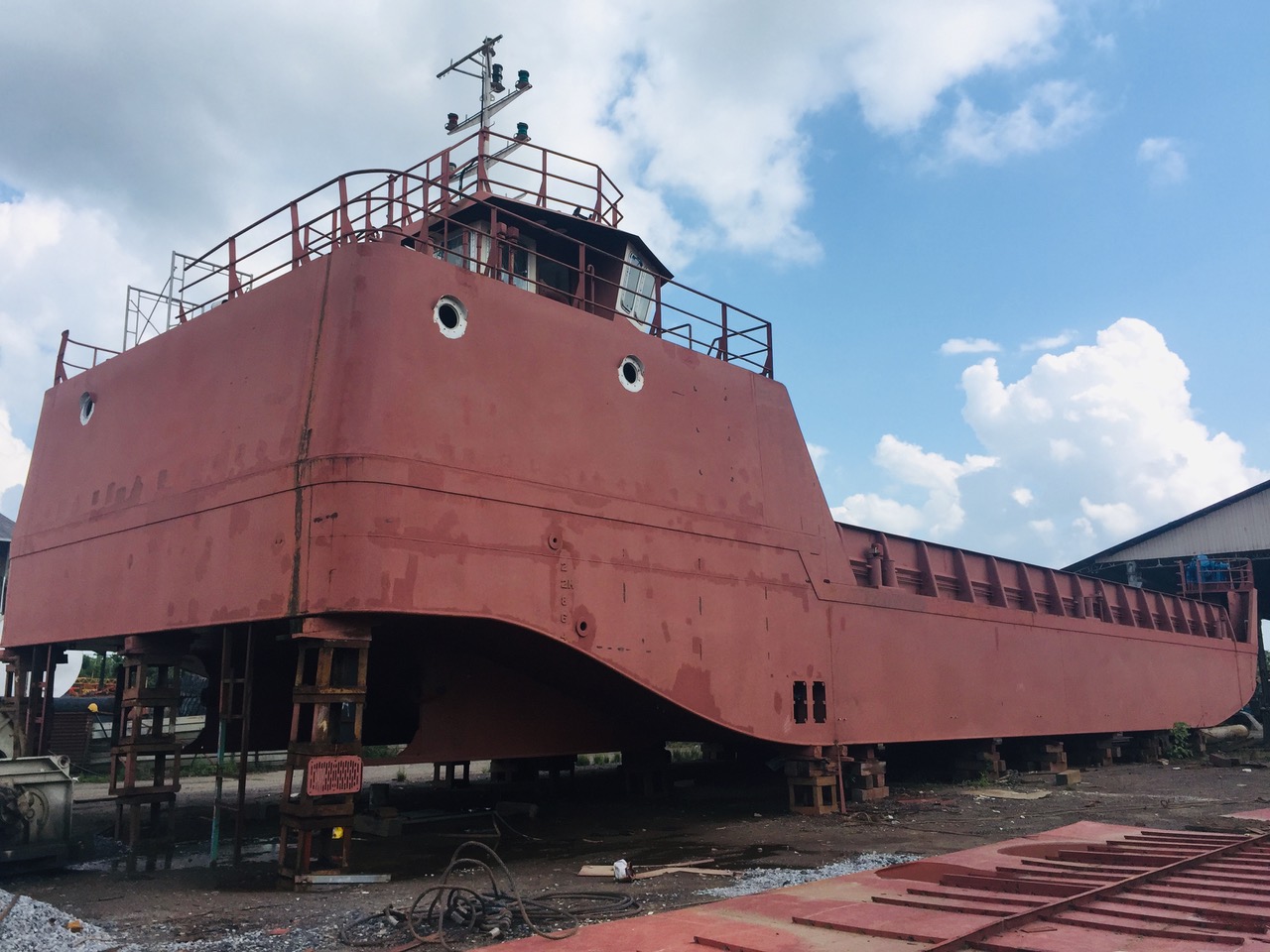

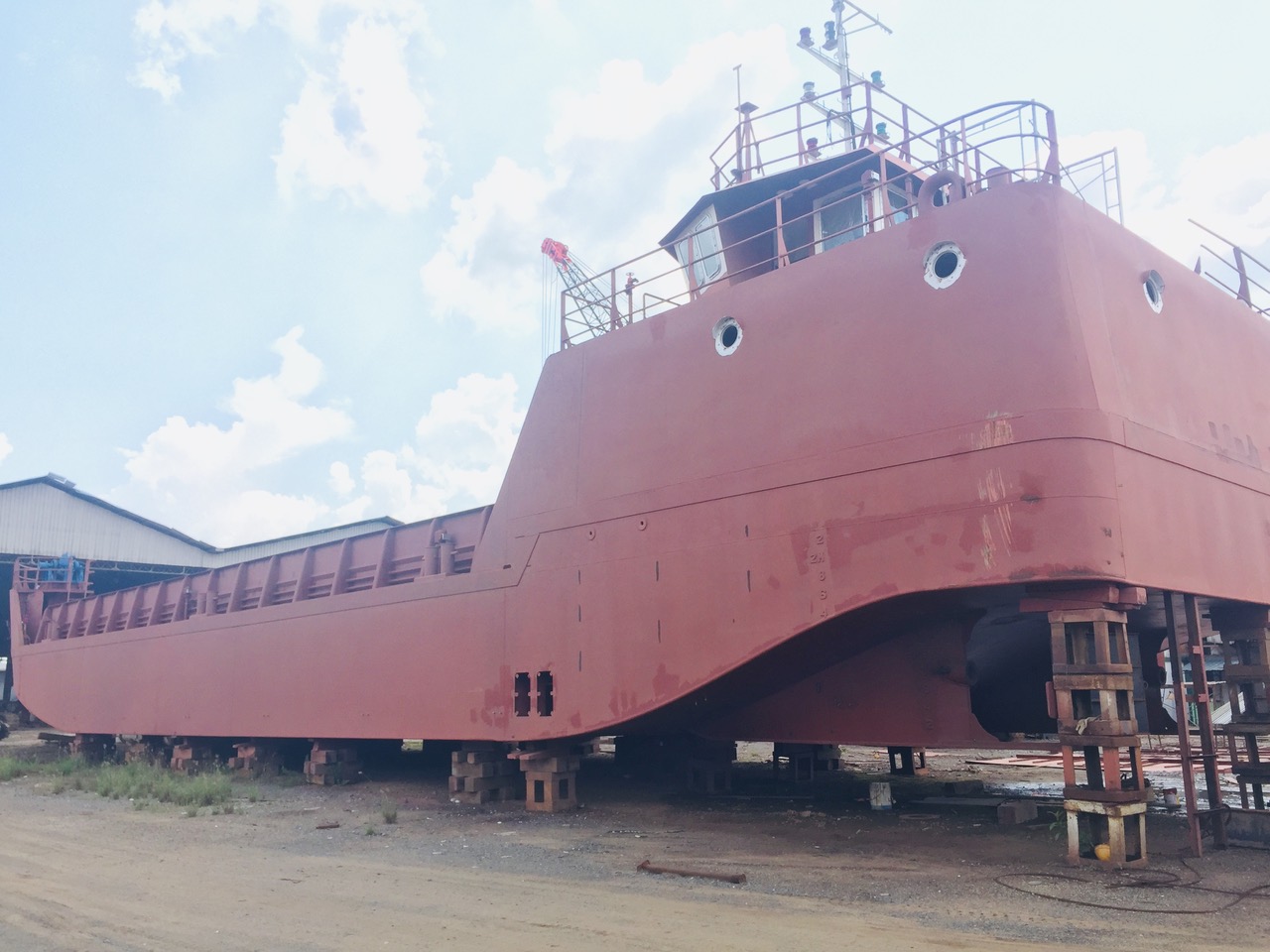

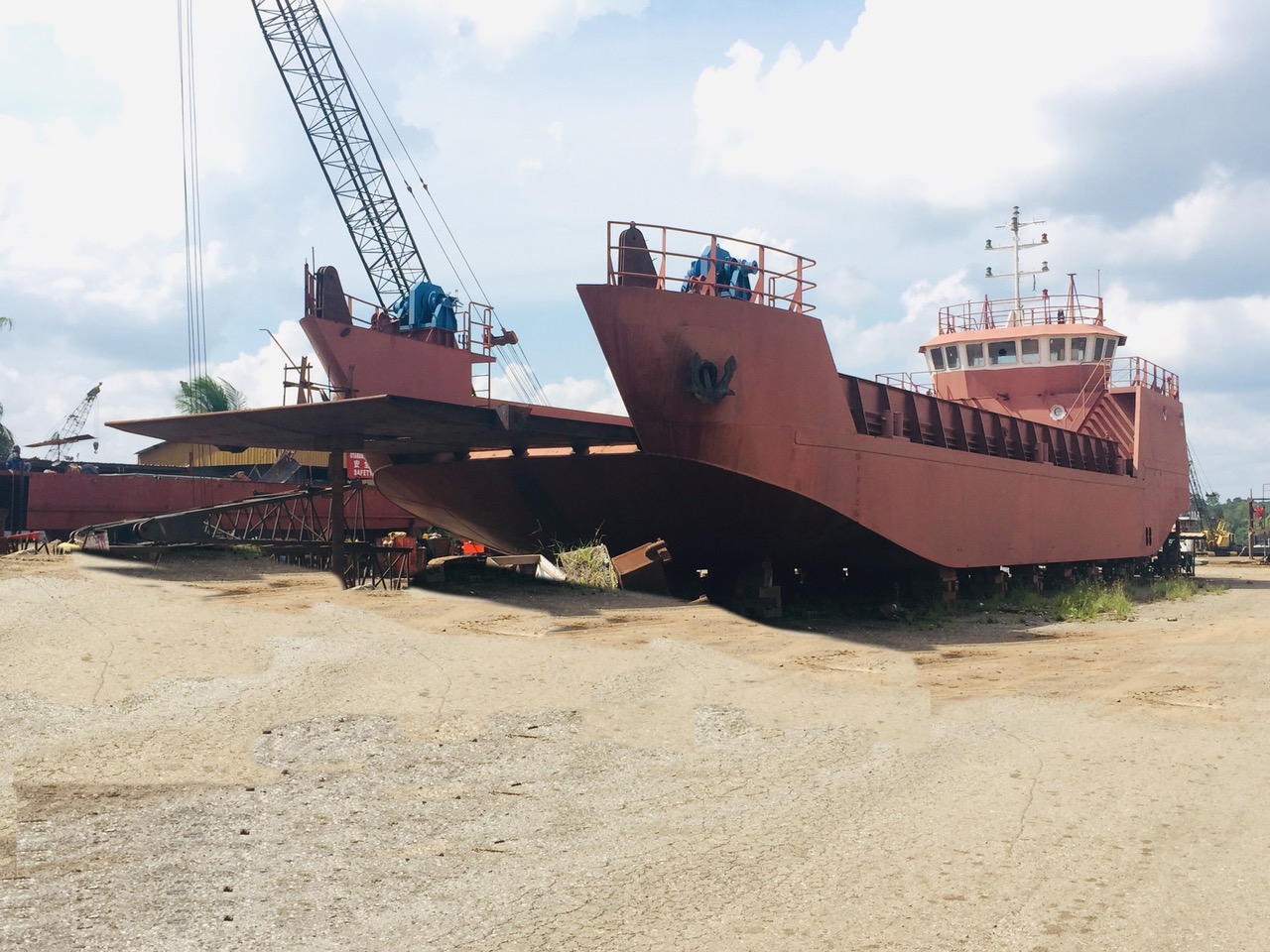

NEW BUILD - 39m Landing Craft

Listing ID - 1733
Description	39m Landing Craft
Date Launched	New Build
Length	38.225m (125ft)
Beam	9.50m (31ft)
Draft	1.65m (5ft 4in)
Location	ex Shipyard, Malaysia
Broker	Hanni Ajik
Price	KM classification USD 850,000 / RINA classification USD 1,050,000
Price Notes	Lead time 7-8 months.
View As PDF

Length Overall: 38.225m

Length (Main Deck): 36.576m

Breadth Mld: 9.50m

Depth Mld: 2.40m

Designed Draft: 1.65m

Crew: 8 Men

Fuel Oil: Approx. 150m³

Fresh Water: Approx. 14m³

Machinery Specification

Main engine: Cummin 500 hp

Gear box: advance @ 4.78:1

Generator set: Yanmar 40kw/ Cummin 40kw

Steering system: Singapore made

Navigation: Area 1

List Of Main Equipment For Machinery

2x Marine Engine; 500hp@ 1800rpm Cummins

2x Genset: 4tnv98-Gge2; 28kw Yanmar

2x Gearbox: T300; Ratio: 4.73:1; Advance

2x Propeller Shaft; Dia. 5”

2x Propeller; Dia. 1270mm; Mentrade Or Equal

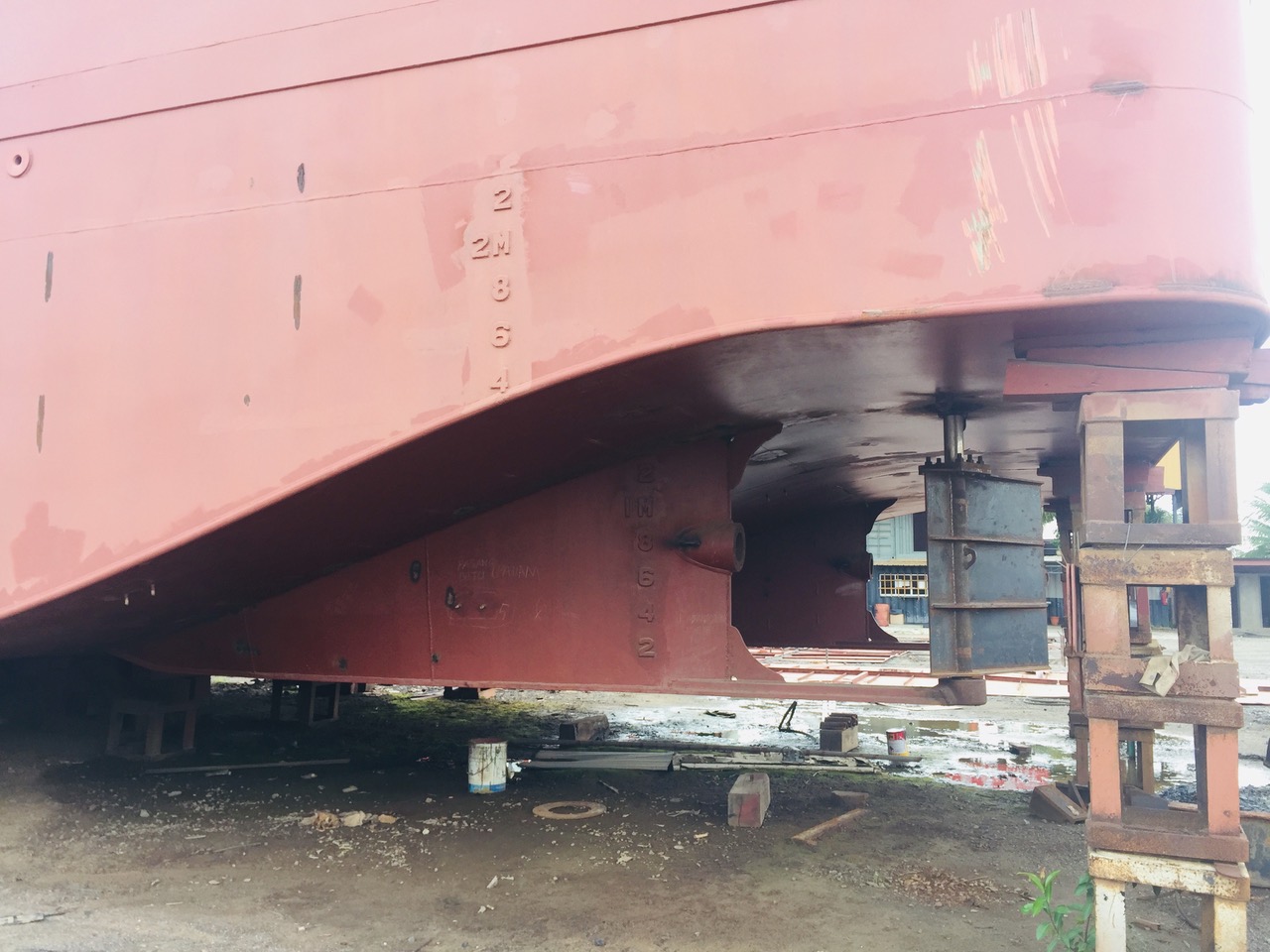

2x Rudder Shaft; Dia. 3.5”

2x Rudder Plate; 1.0m²

1x Electro-Hydraulic Steering Gear Total 1.5t.M. Riq Or Equal; Port & Starboard

1x Bilge/Ballast Pump; 25m³/Hr@15m; Desmi Or Equal

1x Fire/G.S Pump; 25m³/Hr @ 15m; Desmi Or Equal

1x Emergency Fire Pump 15m³/Hr @ 15m Desmi Or Equal Portable

1x Fuel Oil Transfer Pump 25m³/Hr @ 15m Desmi Or Equal

1x Sea Water Pressure Set 3m³/Hr @ 15m Desmi Or Equal

1x Fresh Water Pressure Set 3m³/Hr @ 15m Desmi Or Equal

1x L.O. Hand Pumps

1x F.O. Hand Pumps

2x Engine Room Supply Fan; Uz-50; 4kw

1x Gallery Exhaust Fan; Uz-20; 0.25kw

1x W.C. Exhaust Fan; Uz-20; 0.25kw

Navigation Equipment

List Of Navigation Equipment

1x Furuno Radar; 1715 (24nm)

1x Furuno Gps Navigator Gp-39

1x Furuno Echo Sounder; Fcv-688

1x Icom Ssb Radio; Ic-M710

1x Samyung Vhf/Dsc C/W Converter Str-6000a

1x New Sunrise Bnwas; Nbw-1000

1x New Sunrise Navtex; Nvx-1000

2x New Sunrise Gmdss Portable Vhf Ntw-1000

1x New Sunrise Sart; Nrt-1000

1x Gme Epirb; Mt-403ff

1x Daiko Table Compass; T-150b

1x Alltek Class B Ais Explorer 5

Deck Machinery & Equipment

List Of Main Equipment For Deck Machinery & Outfitting

Anchor

2x Stockless Anchor; 420kg Each

1x Chain 302.5m In Length Q2 Chain Diameter: 20.5mm

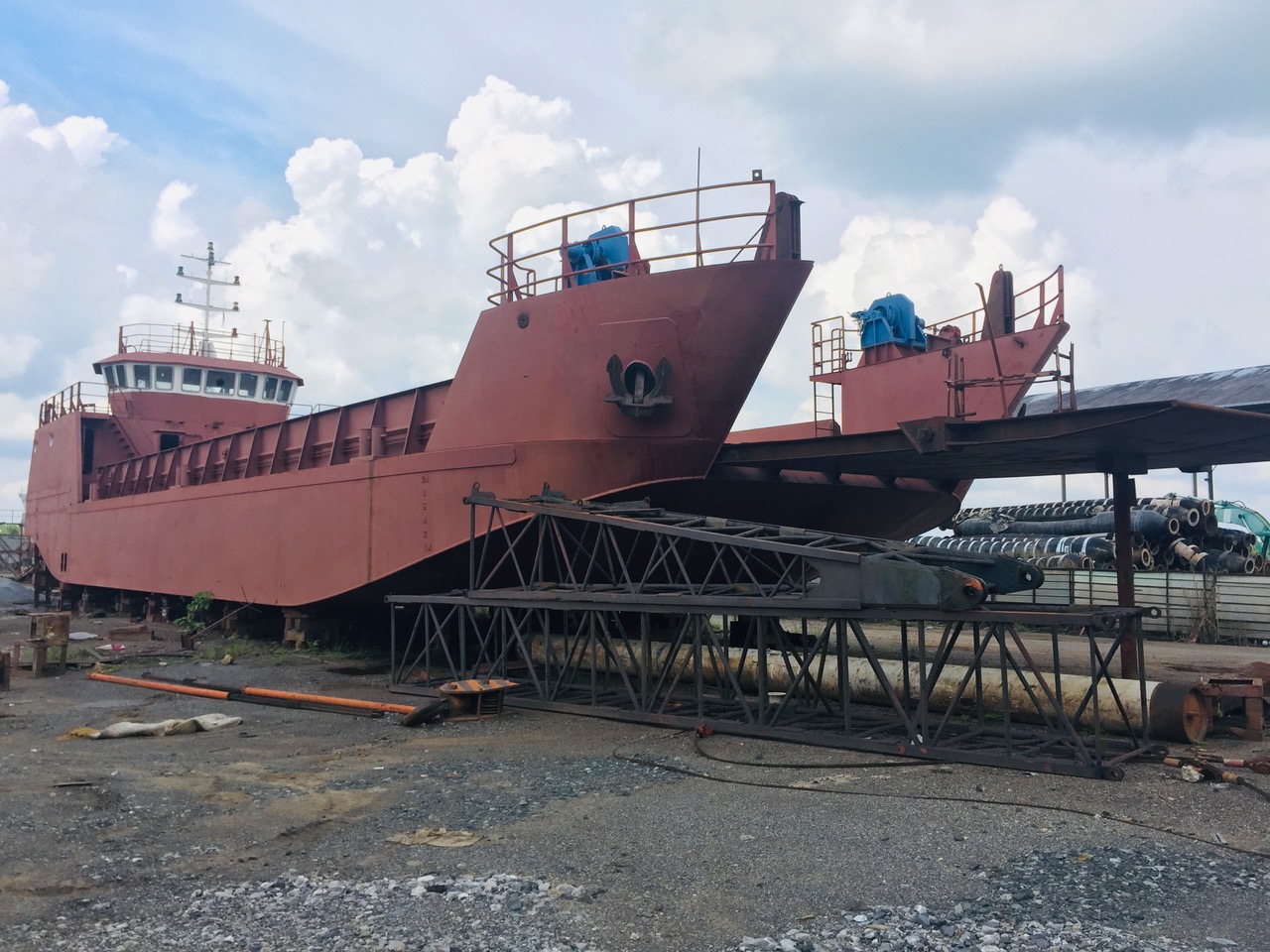

1x Ramp & Anchor Winch; Hy Raw C19 3t; Capacity: 3ton@10m/Min

Mooring

4x Double Bollard Dia. 200mm

2x Single Bollard Dia. 200mm

3x Mooring Lines

1x Tow Lines

Safety Equipment

List Of Life Saving Equipment

1x Liferaft 6 Men

2x Lifebuoy C/W Smoke Signal & Self-Ignting Light

2x Lifebuoy C/W 30m Buoyant Line

2x Lifebuoy C/W Self-Igniting Buoyant Light

10x Lifejacket Fitted With Retro Reflective Tapes,

Seawater Activated Light And Whistle

12x Smoke Signal

1x Line -Throwing Appliance C/W Lyle Gun (4 Lines)

2x Embarkation Ladder

12x Rockets Parachute Flare

1x First Aid Kit

6x Hand Held Flare

Fire Fighting Equipment

List of Fire Fighting Equipment

6x Powder Fire Extinguisher 5kg With Spare Charge Each

1x Portable Foam Fire Extinguisher 45l

1x Sandbox

1x Fireman’s Outfit Come With,

-One Aluminum Asbestos

-Protective Clothing

-One Breathing Apparatus With

-Air Tank And Mask

-One Fireman’s Axe

-One Set Of Gloves And Boots

-One Length Of Lifeline

1x Fire Axe

3x Fire Buckets; Galvd. Steel Bucket

1x Fire Blankets

3x Fire Box

3x Fire Hose And Hydrants, Bronze Jis Type Or Equivalent,

40a Hydrant, 15m Hose Length

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
