Listing ID - 675493 | |
---|---|

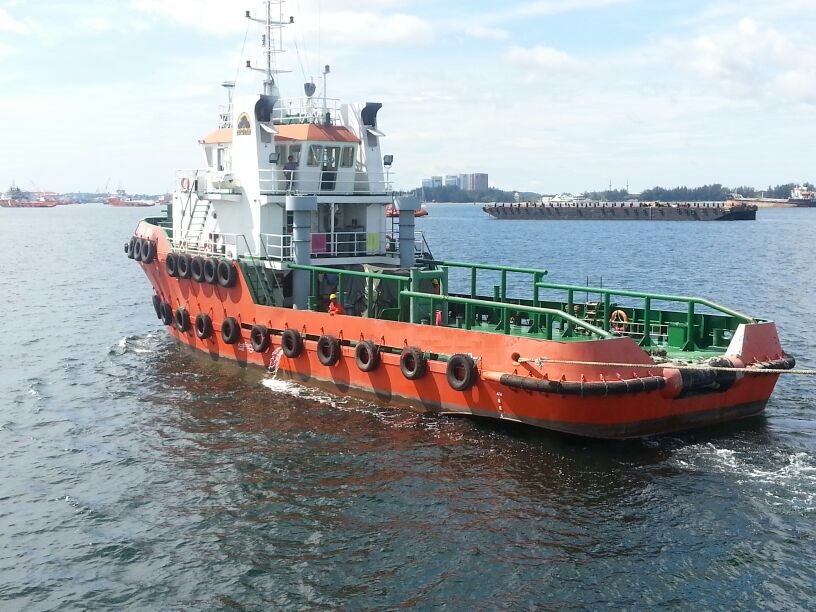

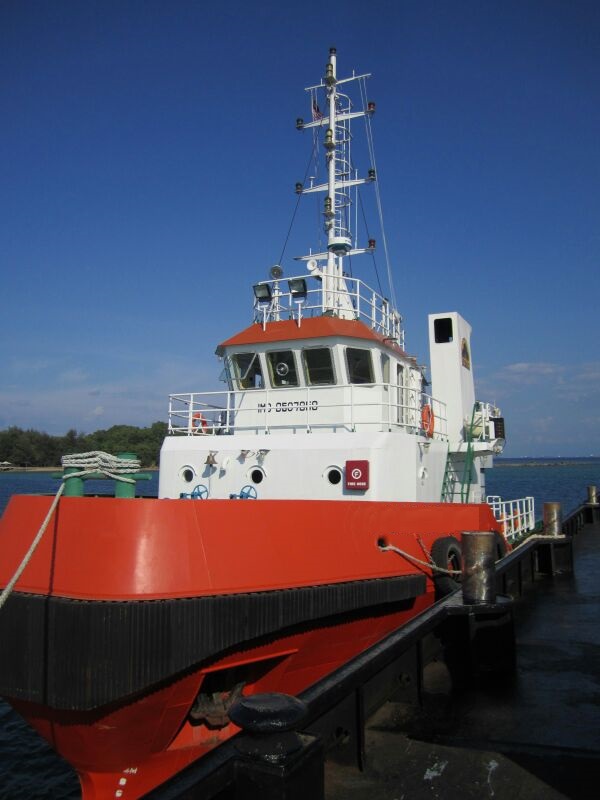

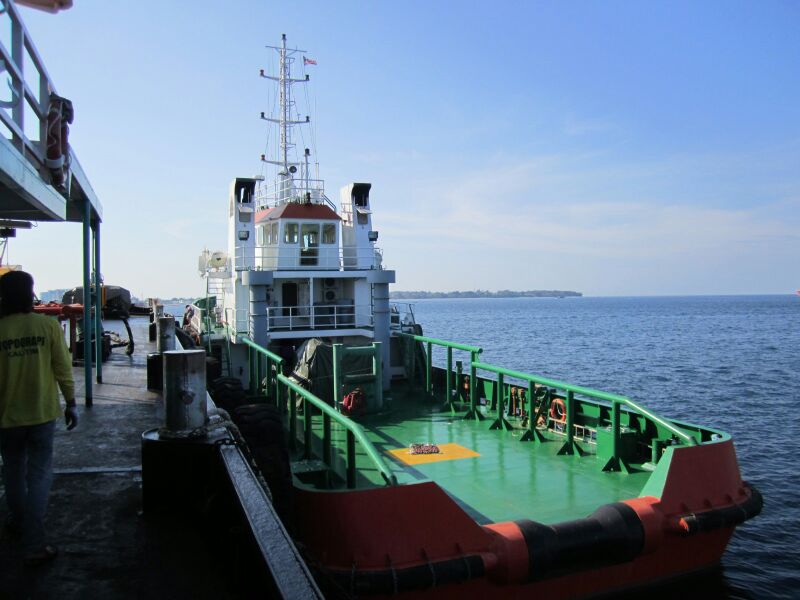

Description | NEW BUILD - 32m AHT |
Date Launched | BUILT TO ORDER |
Length | 32.1m (105ft 3in) |
Beam | 9m (29ft 6in) |
Draft | 3.6m (11ft 9in) |
Location | Sabah, Malaysia |
Broker | Geoff Fraser geoff.fraser@seaboats.net +64 21 61 222 5 |
Price | USD2,230,000.00 Ex-Shipyard |
Price Notes | Delivery 1 month after MOA |
View As PDF |
LOA: 32.1m (105ft 3in)
Length BP: 29.36m (96ft 3in)
Breadth mld: 9m (29ft 6in)
Draft mld: 3.6m (11ft 9in)
Depth mld: 4.2m (13ft 9in)
GRT / NRT: 290 / 87
Speed: 12 knots (approx)
Classification: GL
Machinery and Propulsion
Diesel Main Engine: 2x Cummins KTA-50-M2 1600bhp @ 1800rpm
Gearbox: Reintjes WAF 665 5.950:1 Ratio
Propeller: 2x Fix Pitch Propeller (FPP)
Generator: 2x 78kW, 3p / 50hz / 415v
Life Saving Equipment
Life Raft: 2x 15 men
Life Buoy: 8
Life Jackets: 20
First Aid Kit: 1 set
Navigation Equipment
Eco Sounder: 1 set
Speed Log: 3 pcs
GPS: 1 set
Magnetic Compass: 1 set
Radar: 1 set
MF / HF Radio: 1 set
VHF Radio Tele: 1 set
SART: 1 set
EPIRB: 1 set
Navtex Receiver: 1 set
VHF Radio Portable: 2 set
GMDSS Radio: 1 set
Inmarsat C: 1 set
Accommodation
5x 2 berth Cabin: 10 men
1x 4 berth cabin: 4 men
2x 1 berth cabin: 2 men
Total: 16 men
Cargo Capacity
Fuel Oil: 176m3
Fresh Water: 48m3
Discharge Rates
Bilge & Ballast Water: 30m3/hr @ 30m head
G.S. & Fire Pump: 30m3/hr @ 30m head
Fuel Oil Transfer: 10m3/hr @ 25m head
Supply and Drainage Plant
Oily Water Separator: 0.25m3/ H
Electric Water Heater: Joven Water Heater
Sewage Treatment Plant: 15 men
Deck Equipment
Anchor Windlass: Hydraulic Anchor windlass 22m U2 Chai c/w 2 warping drums
Anchor: 2x 570kg stockless bower anchor
Towing winch: electro hydraulic, single warping ends type of 40t SWL with drum cap. 750m x 44mm wire rope. (wire rope excluded)
Towing Hook: 40 tons
Capstan: 3 tons
Stern Roller: Available
Fire Fighting System
Fire Detection & General
Alarm System: 1 shipset
Fire Extinguisher: 9x9 litre ABC Dry powder; 1x9 litre Foam; 1x45 litre “foam” wheeled
Fireman suit: 1 set
Emergency Fire pump: 1 unit
The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
