Listing ID - 675387 | |
---|---|

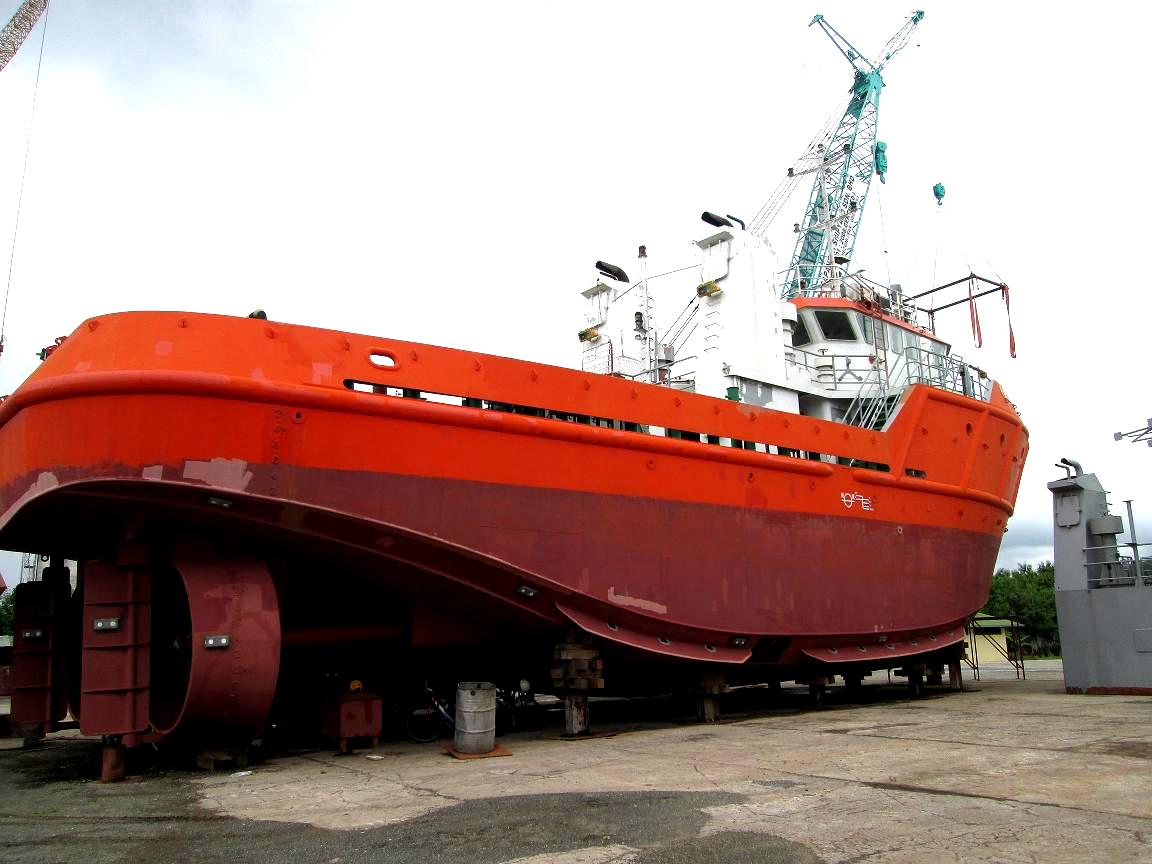

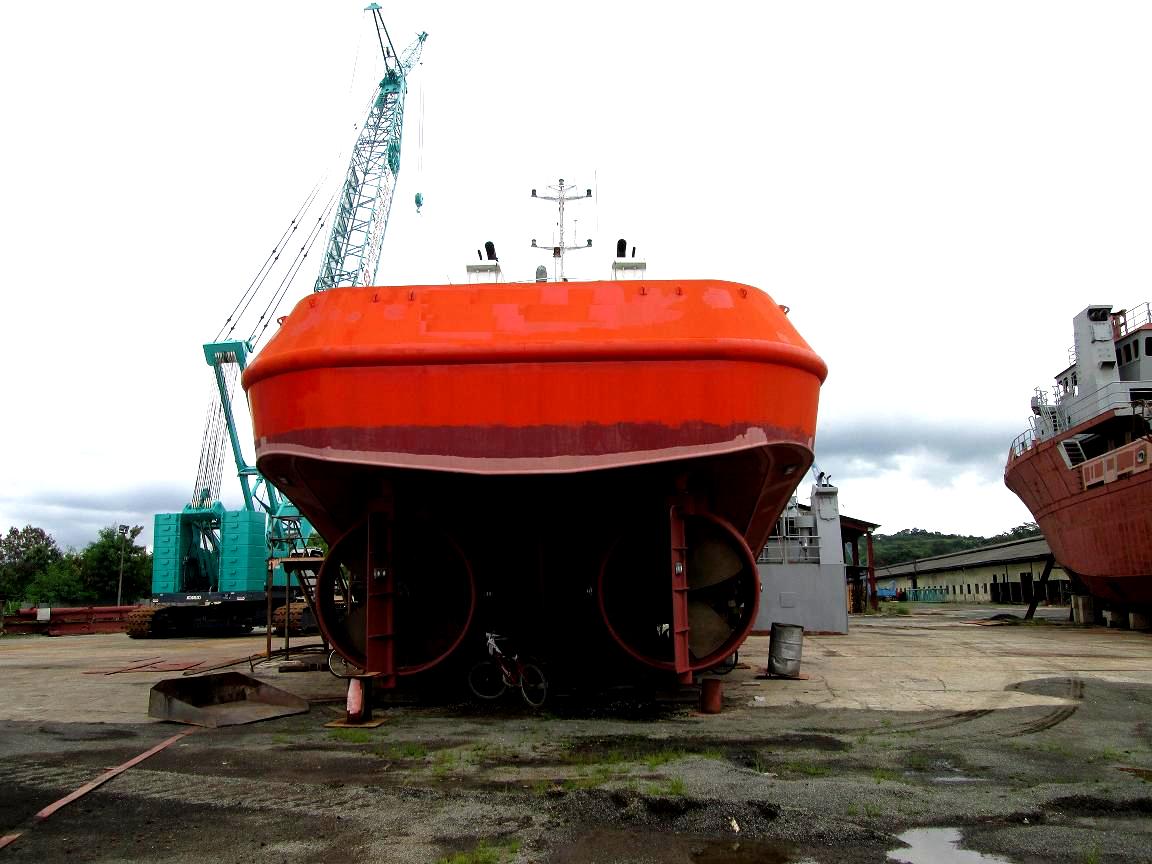

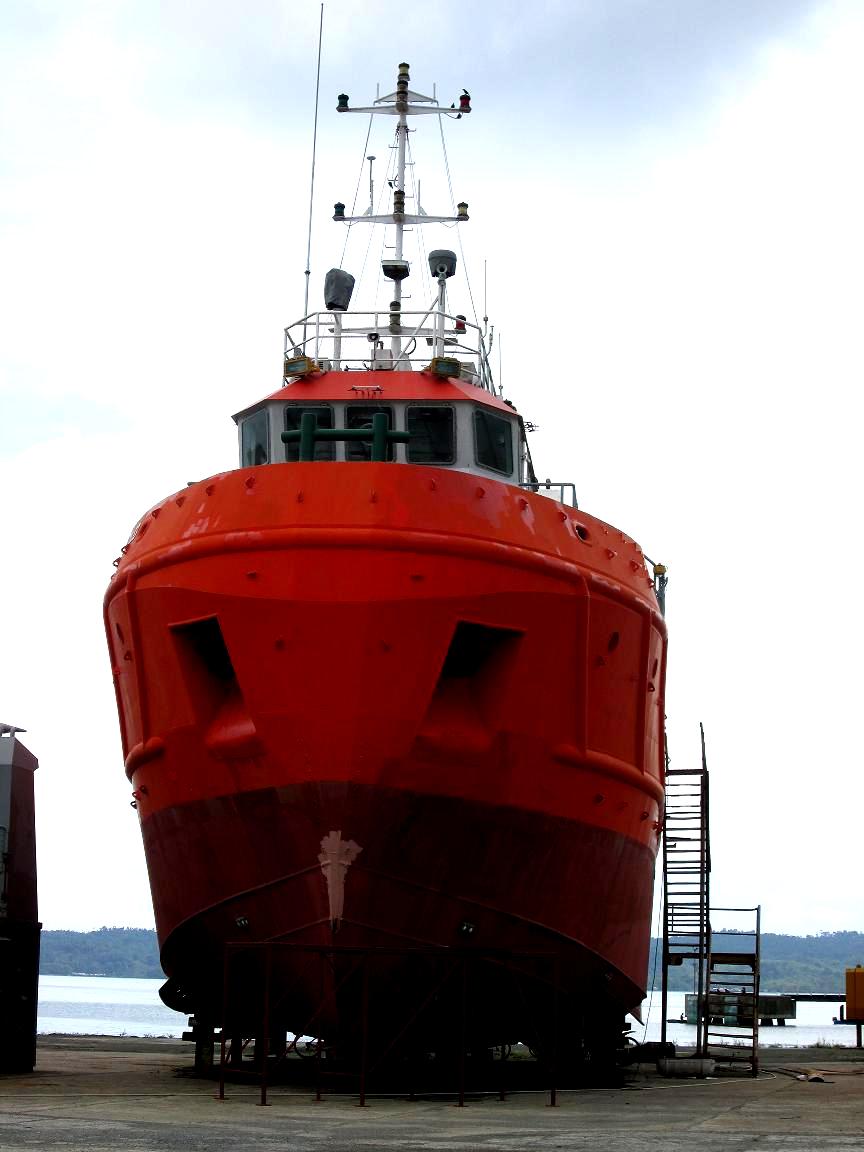

Description | NEW BUILD - 30m Twin Screw Tug |
Date Launched | BUILT TO ORDER |
Length | 30.218m (99ft) |
Beam | 9m (29ft 6in) |
Draft | 3.68m (12ft) |
Location | Sabah Malaysia |
Broker | Geoff Fraser geoff.fraser@seaboats.net +64 21 61 222 5 |
Price | USD1,650,000.00 Ex-Shipyard |
Price Notes | Delivery 1 month after MOA |
View As PDF |
LOA: 30.218m (99ft)
Length BP: 27.905m (91ft 6in)
Breadth: 9m (29ft 6in)
Draft: 3.68m (12ft)
Depth: 4.38 (14ft 4in)
GRT / NRT: 287 / 87
Speed: 12 Knots (approx)
Classification: NKK
Machinery / Propulsion
Diesel Main Engine: 2x Cummins KTA-38-M2; 895kW @ 1800rpm
Gearbox: 2x Reintjes WAF 562L 5.947: 1 Ratio
Propeller: 2x Fix Pitch Propeller (FPP)
Generator: 2x 78kW, 3p/50hz/415v
Life Saving Equipment
Life Raft: 2x 15 men
Life Buoy: 8
Life Jackets: 16
First Aid Kit: 1 Set
Navigation Equipment
Eco Sounder: 1 set
GPS: 1 set
Magnetic Compass: 1 unit
Radar: 1 set
MF / HF Radio: 1 set
Telephone: 1 set
VHF Radio Tele: 1 set
EPIRB: 1 set
Navtex Receiver: 1 set
VHF Radio Portable: 2 set
Accommodation
2x 1 berth cabin: 2 men
1x 2 berth cabin: 2 men
1x 8 berth cabin: 8 men
Total: 12 men
Cargo Capacity
Fuel Oil: 268.45m3
Fresh Water: 23.56m3
Discharge Rates
Bilge & Ballast Water: 28m3/hr @ 30m head
GS & Fire pump: 28m3/hr @ 30m head
Fuel Oil Transfer: 28m3/hr @ 15m head
Supply and Drainage Plant
Oily Water Separator: 0.25m3/H
Electric Water Heater: Joven Water Heater
Sewage Treatment Plan: 24 men
Deck Equipment
Anchor Windlass: Hydraulic Anchor Windlass 22m U2 Chain c/w 2 warping drums
Anchor: 2x 570Kg Stockless Bower Anchor
Towing Winch: Double Drum Hydraulic Winch working load 300kn 750m x 38mm wire rope (wire rope excluded)
Fire Fighting System
Fire Detection & General
Alarm System: 1 Shipset
Fire Extinguisher: 8x 9 litres ABC Dry powder
1x 45 litre FOAM
Emergency Fire Pump (portable): 1 unit
The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
