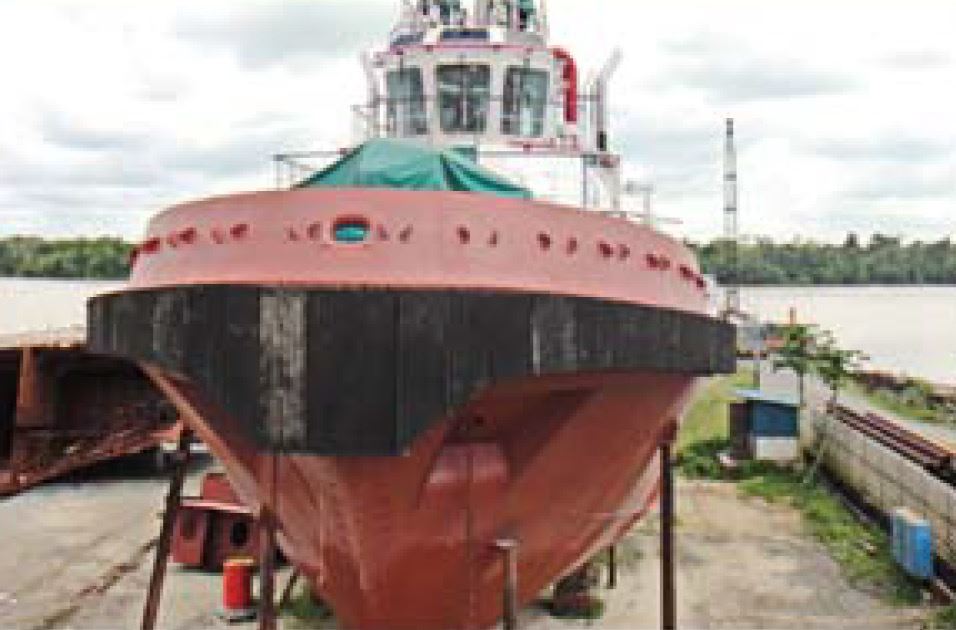

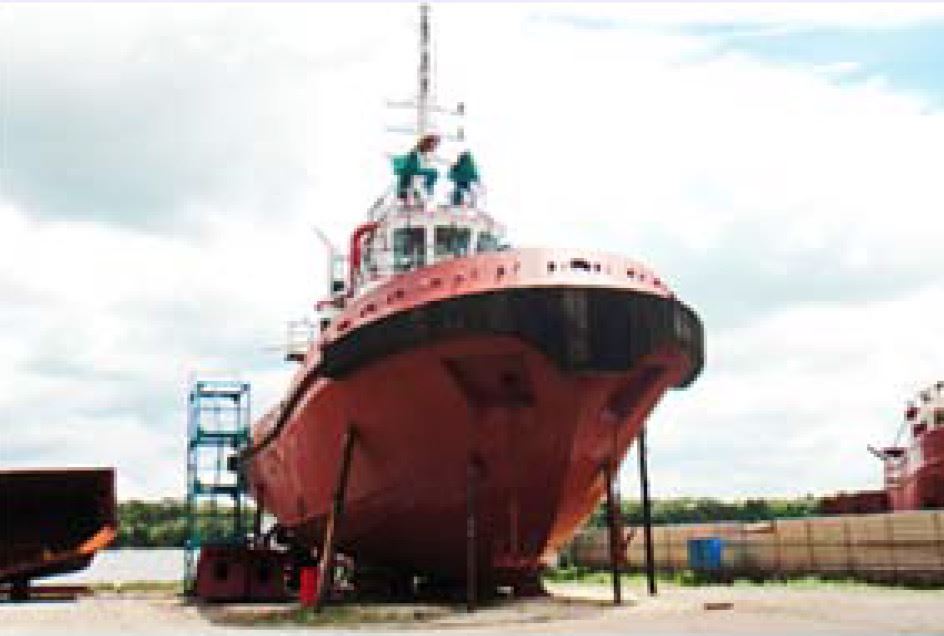

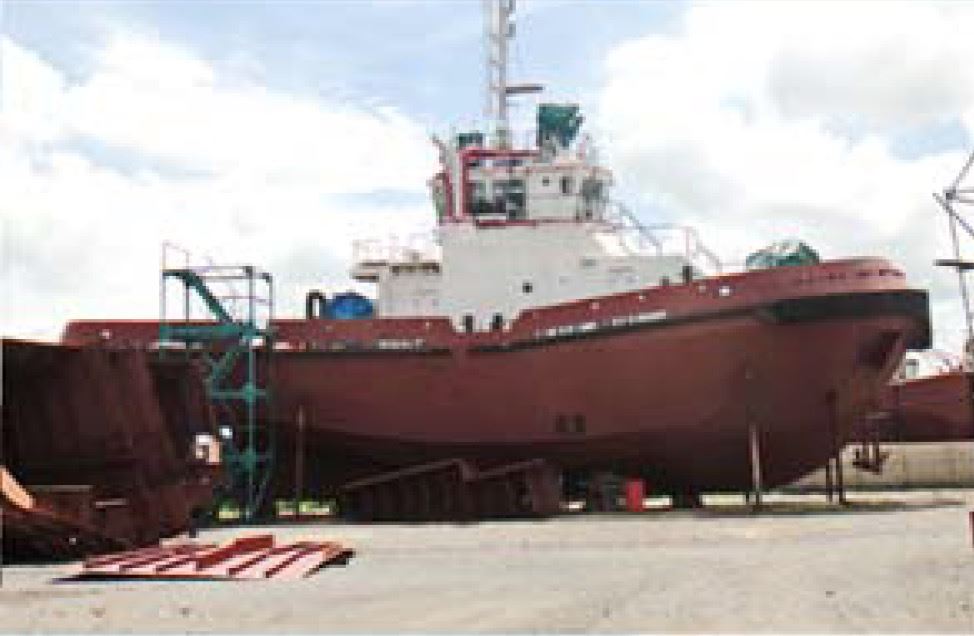

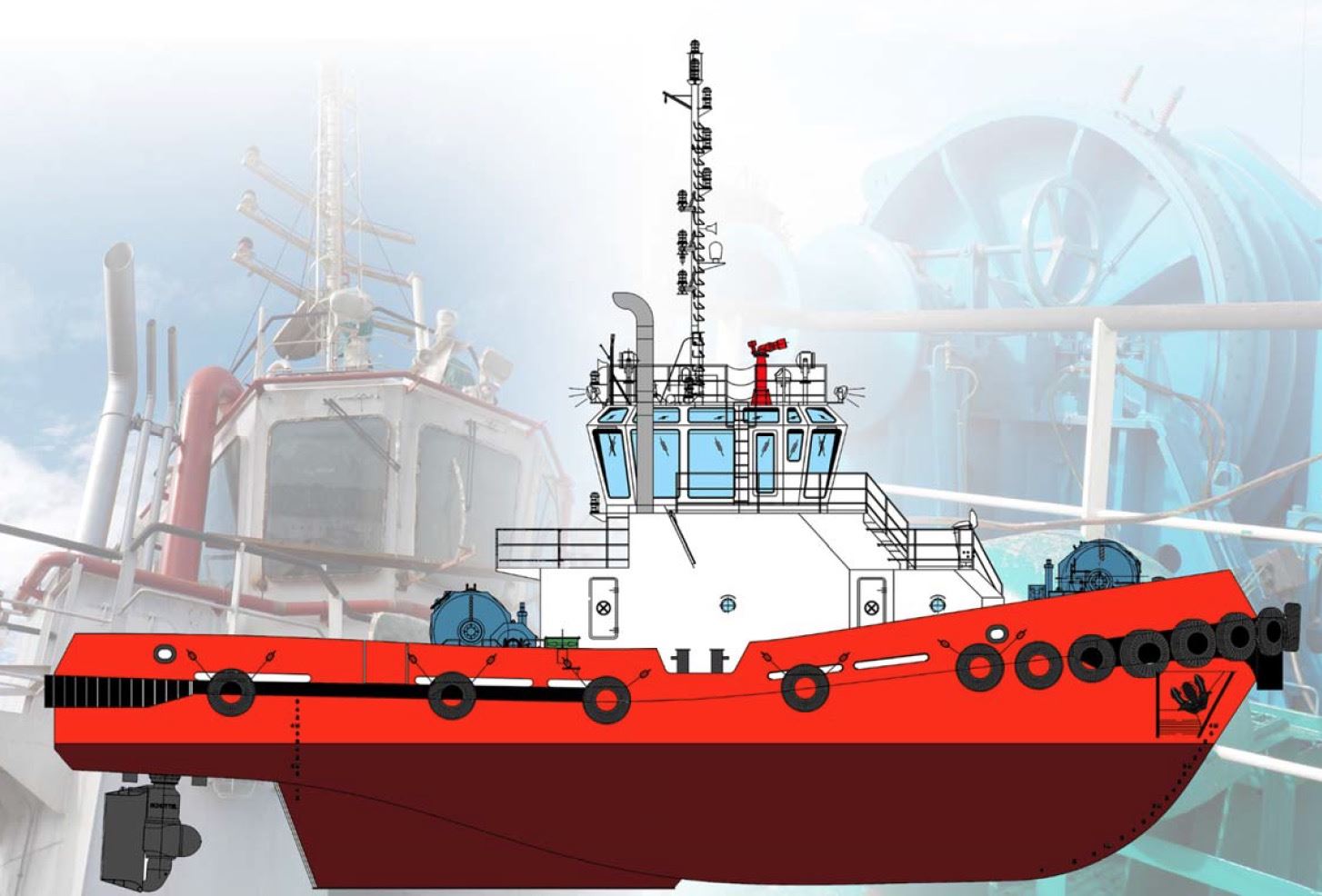

NEW BUILD - 29.95m ASD Tug

Listing ID - 1143
Description	NEW BUILD - 29.95m ASD Tug
Length	29.95m (98ft 3in)
Beam	9.8m (32ft)
Draft	3.6m (11ft 9in)
Note	40T Bollard Pull
Location	ex Shipyard, Malaysia
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	USD 3,838,000
View As PDF

Basic Function: Multi‐Purpose ASD Tug

Classification: Nippon Kaiji Kyokal

Notation: TBA

Descriptive note: Multi‐purpose tug (ASD)

GRT: 292 T

Flag: Singapore

DIMENSIONS

Length O.A: 29.95 m

Length B.P: 26.67 m

Breadth MLD: 9.8 m

Depth MLD: 4.9 m

Design Draft: 3.6 m

Endurance est.: 14 days

Deck space: 63.03 m2

Deadweight: 270.49 tons

TANK CAPACITY

Ballast water: 33.25m3 (98% full)

Fresh water: 28.42m3 (98% full)

Fuel oil: 145.94m3 (98% full)

Misc: 31.45m3 (98% full)

Chain locker: approx. 16.57m3

PERFORMANCE

Bollard pull: ABT. 40 T

Free running speed: 12 KNOTS

F.O. Cons Max Speed ABT. 14T/Day

F.O. Cons Service Speed ABT. 8T/Day

F.O. Cons Towing ABT. 14T/Day

F.O. Cons Standby ABT. 0.276T/Day

PROPULSION SYSTEM

Main Engine: 2X Cummins KTA50, 4‐Stroke Diesel 1193kW at 1800rpm

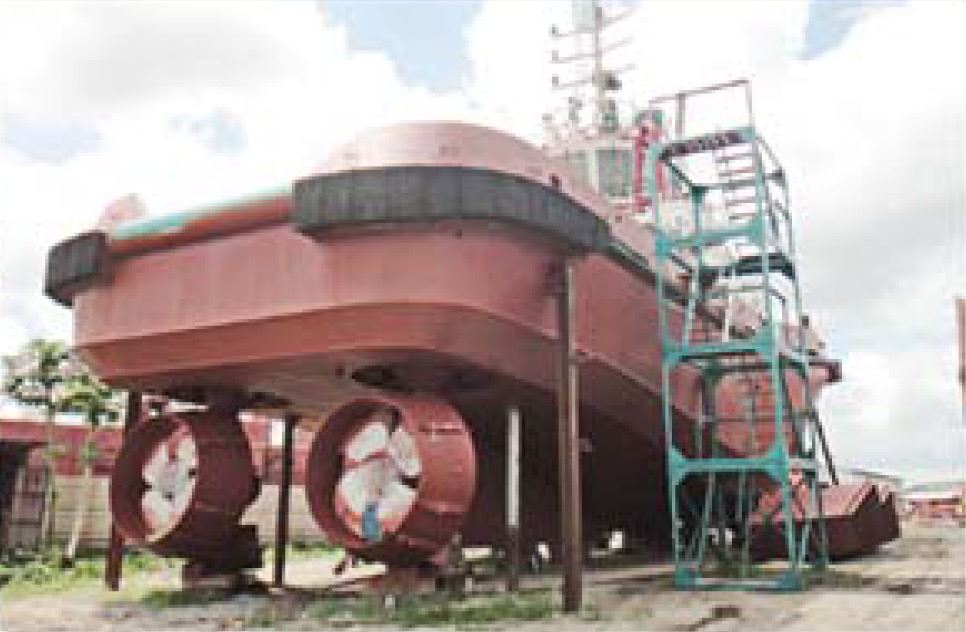

Rudder Propellers SRP : 2X Schottel Rudder Propeller 1012 CP, CPP, 2100mm Dia, 4 Blades, WAG 19A modified type nozzle. 1193kw input Power, 1800 rpm speed, Nkk Class 1

AUXILIARY EQUIPMENT

Network 415V, 50Hz

Marine Generator Engine: 3X CUMMINS 6BT5.9‐D(M), 78kW, 122BHP at 1500rpm

PUMP EQUIPMENT

Bilge / ballast / G.S / fire pump: 2X Self‐priming centrifugal SW pump, 40m3/hr @, 40m TH

F.W & S.W Pressure Set: 2X 4m3/hr @ 40mTH

Dirty oil pump/Sludge Pump: 1X 5m3/hr @ 45m TH

Fuel oil transfer pump: 1X 10m3/hr 18m TH

AUX SW cooling pump: 2X 30m3/hr @ 25m TH

Air‐Cond SW Cooling pump: 2X 25m3/hr @ 20 m TH

O.W.S: 1X GRS‐03EB, Brand: Georim, 0.3M3/H 15PPM

Sewage Treatment Plan: 1X 15men (Biologic fixed Media Type) Capacity: 1050L/day

Sewage Discharge Pump: 1X 3m3/hr @ 15mTH

FIRE FIGHTING CLASS ‐1

Capacity: 2x 1200m3/hr, per Monitor

Throw x Height: 120 m x 45 m

Foam Max: 1x Foam inductor adjustable, 300 I/min, 15.2 bar inlet pressure

Oil Dispersant: 2x 1‐1/4” UOC 600 Nozzle, Flat Spray Type

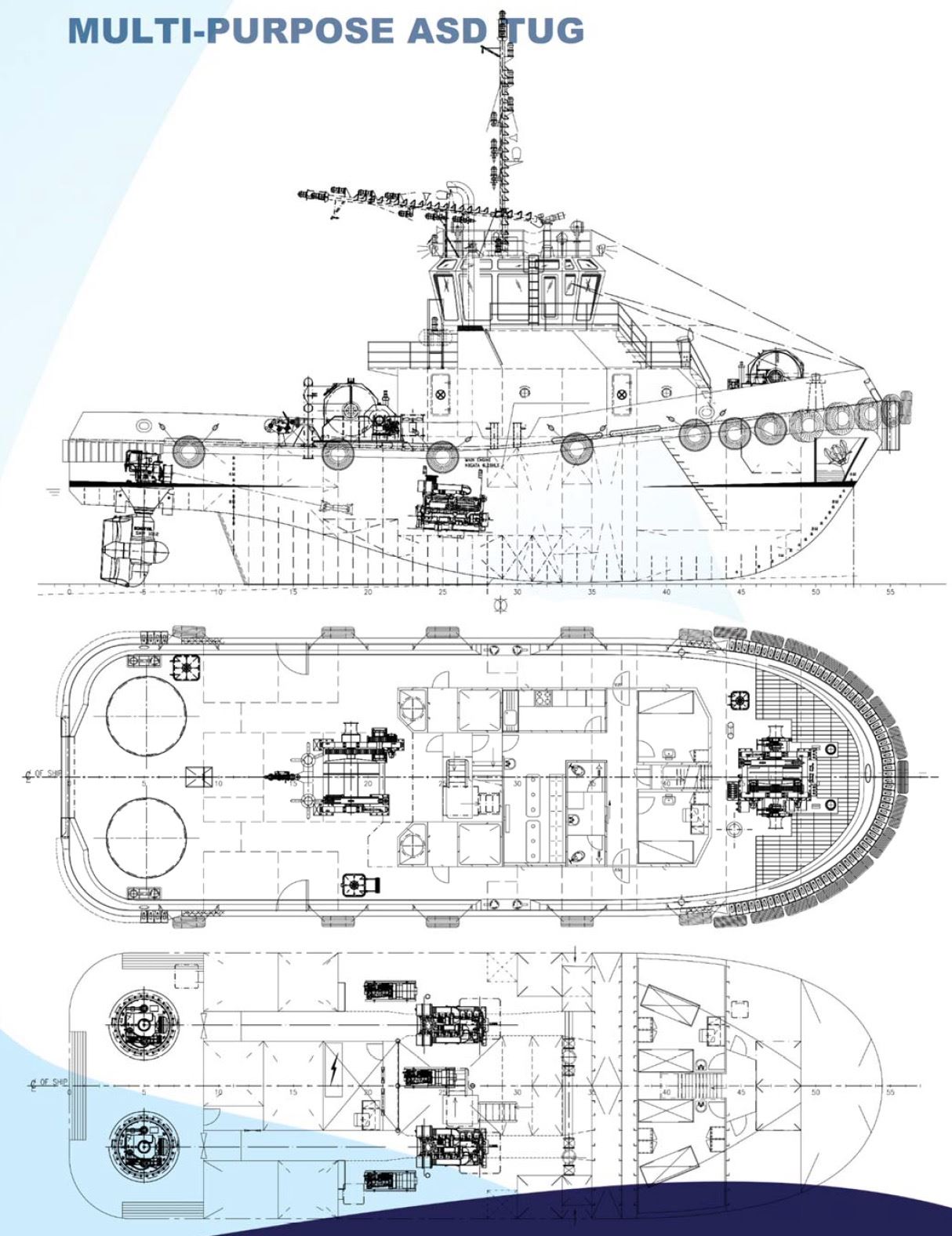

DECK LAY‐OUT

Hydraulic anchor Windlass / Towing winch: 1X 220m X Dia. 60mm (P.P Rope), 60kW

Hydraulic towing Winch: 1X 500m X Dia.72mm (P.P Rope), 60kW

Towing hook: 1X Disc type, pneumatic quick release, 40T (rated), 60T (proof), 24V DC

ACCOMMODATION

Berths: One (1) men Room x 2

Four (4) men Room x 2

Berths total: 10 Men

NAVIGATION & COMM EQUIPMENT

Navigation system: 1x DAIKO T‐150B table compass c/w std. access

Radar 1x Furono, 1945

GPS 1x JRC, JLR‐7500

GMDSS 1x JRC‐150W, JSS‐2150

VHF/DSC Radiotelephone: 1X JRC, JHS‐7705

AIS 1x Sumyung, 50‐N

Echo Sounder 1x JRC, JFC‐600

Navtex Receiver 1x JRC, NCR‐333

EPIRB 1x GME, MT4.3FF

SART 1x ACR, PATH FINDER 3

BNWAS 1x SM

Portable VHF Hand held Transceiver 2X Entel Multi‐Channel, HT‐644

1143: NEW BUILD - 29.95m ASD Tug - 095.jpg

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
