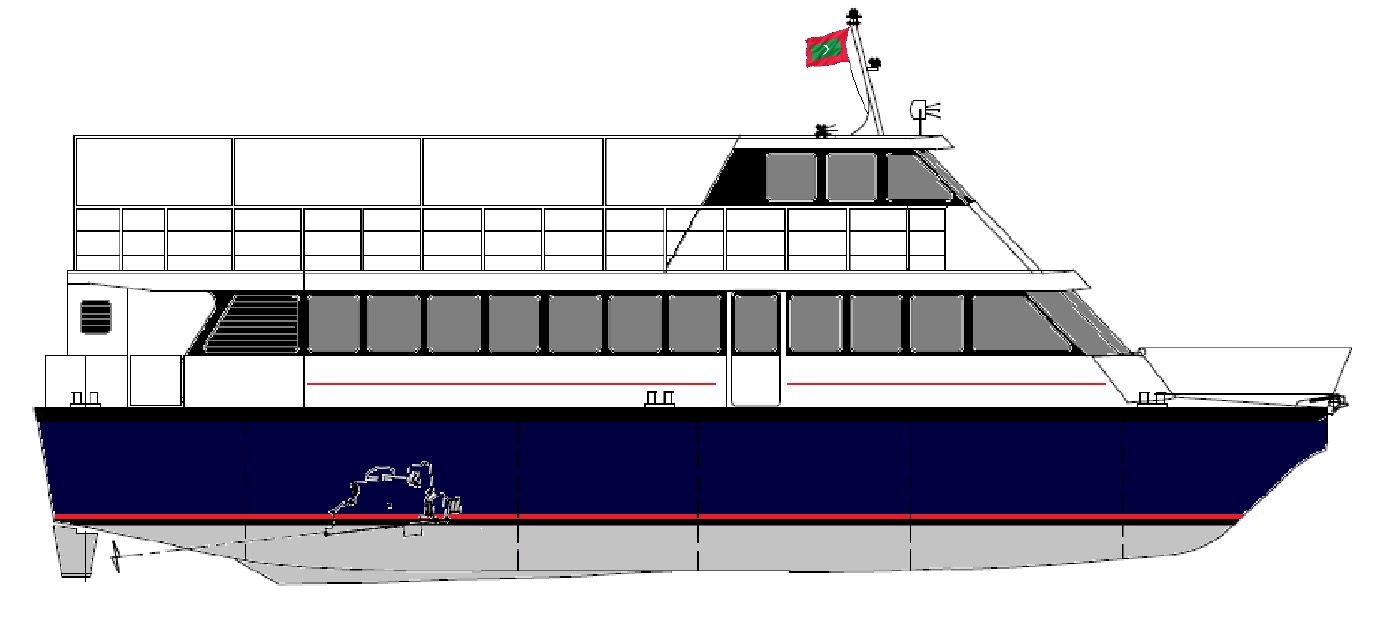

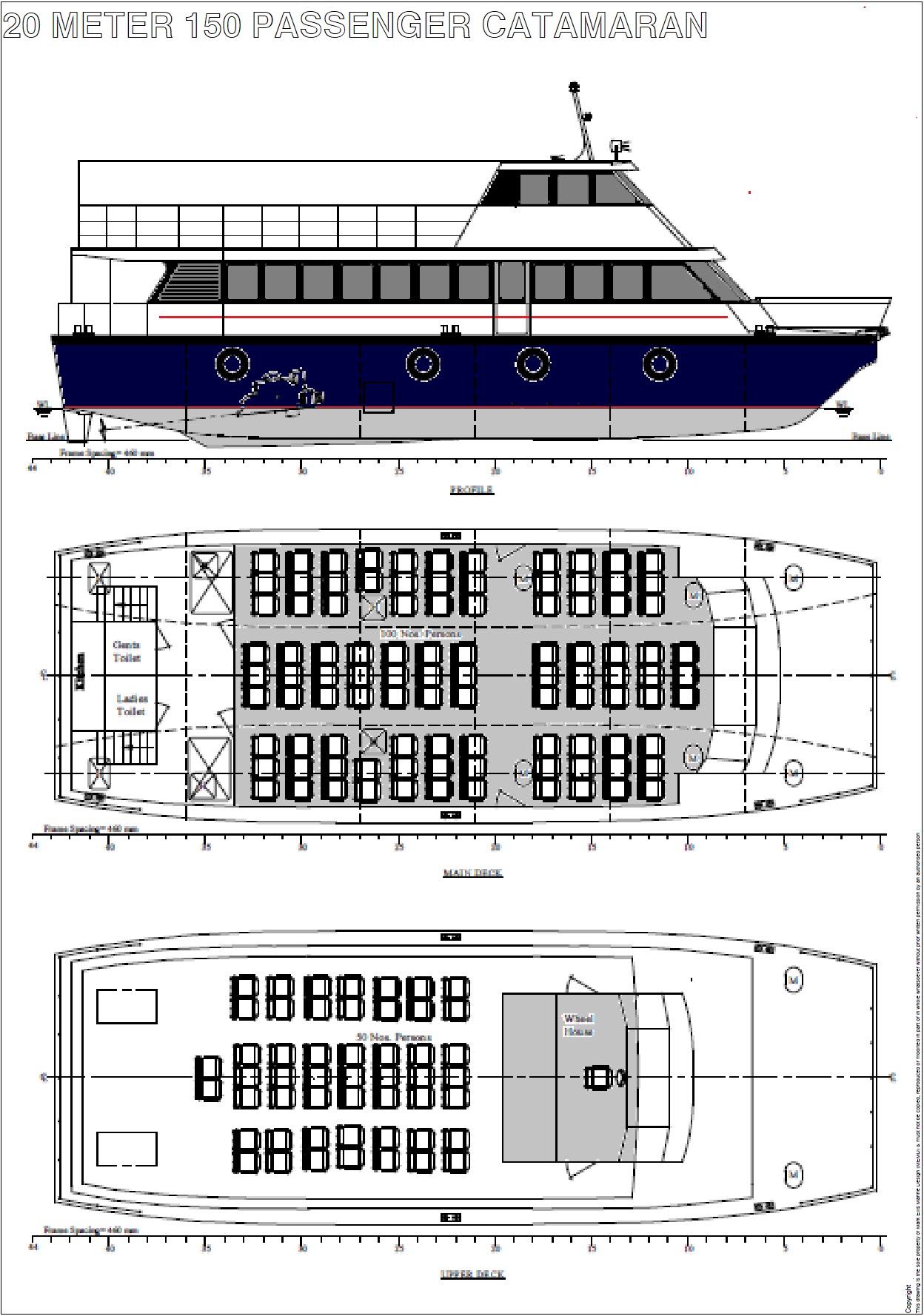

The vessel shall be arranged as shown in the preliminary drawing.



The Vessel is of the Twin Hull ‘Catamaran’ type and based on PRAGA’s highly successful and well proven Fibreglass (GRP) 20.00 meter Catamaran of which Five vessels have already been built in India to the design of M/s DON TATE ASSOCIATES of the U.K. The vessel is to be constructed in accordance with the IV Act under the Supervision and Certification of IR Class.



The Catamaran is designed to give a very stable and spacious craft with One decks which allow craft for a variety of purposes. The main deck can be fitted out with seating for 100 persons + 50 persons on the Upper Deck.



She can be used in Coastal Waters as well as in Rivers and Backwaters. Operation of the vessel is very economical since the power requirements of the very efficient Catamaran hulls is surprisingly low allowing a larger budget for fit-out. A Speed of 8.0 knots can be achieved with just 2 x 88. hp Marine diesel Engines.



Length Overall (Moulded): 19.59m

Length at Waterline: 19.30m

Beam (Moulded): 7m

Beam (Hull): 1.87m

Hull Draft (Moulded): 0.78m

Hull Draft (Loaded): 1.28m

Freeboard (Loaded): 1.45m

Freeboard (Lightship): 1.5m



Passengers: 15

Crew: 4

Fuel: 720 litres

Water: 500 litres

Sullage: 100 litres



IR Class (Indial Register of Shipping): SUL, HSC/LC, RS2 Passenger IY



Main Engine (Make-Model): Sole S.A. – SDZ 165; 2x 160HP @ 2300 rpm

Propellers: Sole S.A



Loaded: 14.20 knots (91% MCR)

Loaded: 12.00 knots (78% MCR)



The Hulls of the Vessel shall be of GRP, stoutly built to withstand the intended use with minimum maintenance. They shall be sufficiently stiffened and divided into 6 Watertight compartments in each Hull, by means of Marine Plywood Bulkheads. The Scantlings shall be in accordance with those approved by the IRS. The hulls shall be joined together in a manner which will ensure complete integrity of the whole vessel and able to withstand the intended loads and conditions of use.



The Deck and Superstructures shall be constructed with GRP composite. Decks will be sheathed with GRP layers to ensure full waterproofing.



The vessel/s shall be arranged as follows:



The wheel-house is mounted at the forward end of the Upper Deck enabling the Helmsman to have clear and unobstructed view in all directions. All Steering and Controls for operation of the vessel including all instrumentation is provided at a console in front of the Helmsman allowing full and easy control of the vessel from the Steering Position. A windscreen wiper will be provided. The benches are provided on each side of the wheelhouse for the crew. Access is from a door at  the rear of the wheelhouse.

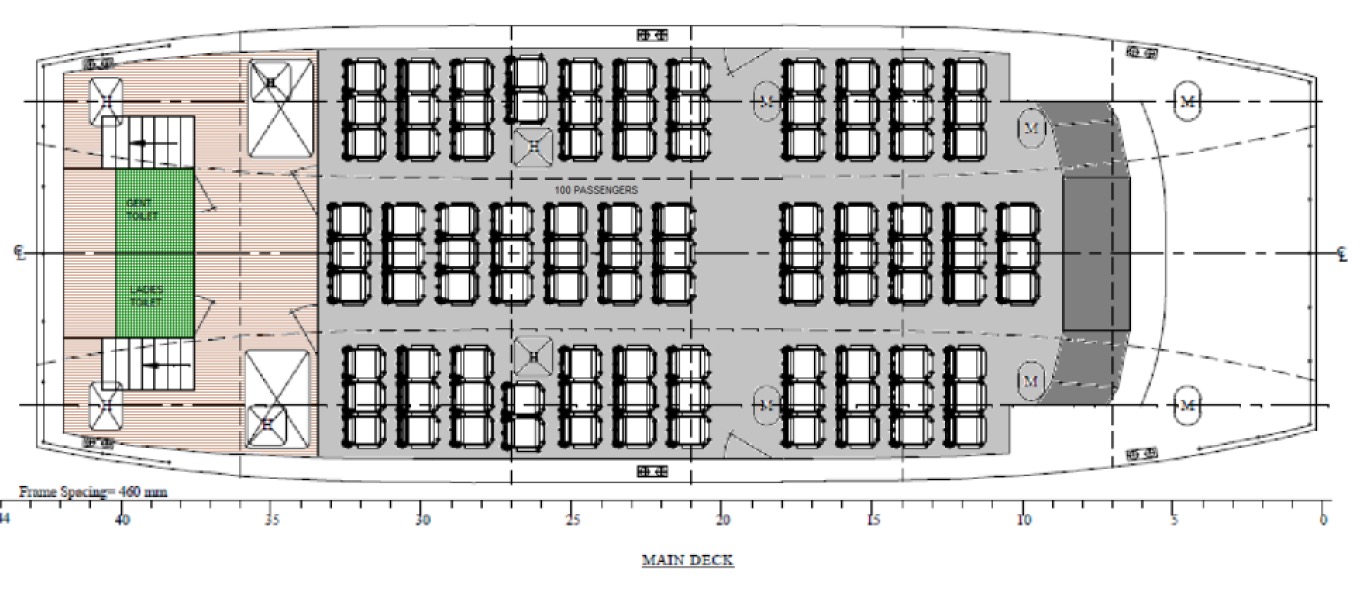

The main deck can be arranged to seat up to 100 Passengers. The central row of the seats can be raised by 200 mm above the deck level if required.

Windows shall be of tinted glass.



Toilets : Two toilets are constructed separately at the aft end of the lower deck, shielded by a screen. Water closets and washbasins are provided. A separate Crew’s toilet (Optional Extra) can also provided with shower facilities.



Crew Galley: (Optional Extra) will be fitted with a kerosene cooking stove, storage lockers and small sink with fresh water connection.

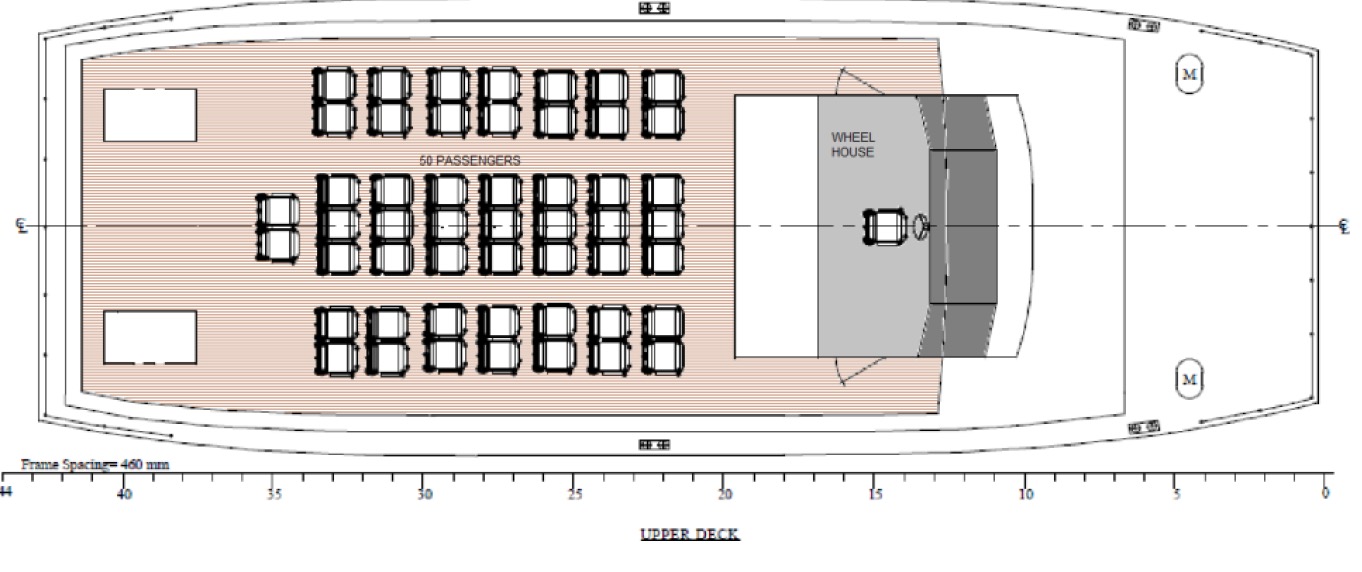

The Upper Deck shall be arranged to accommodate 50 passengers as shown on the General Arrangement Drawing. The builder will provide a Targa Top with foul weather protection.

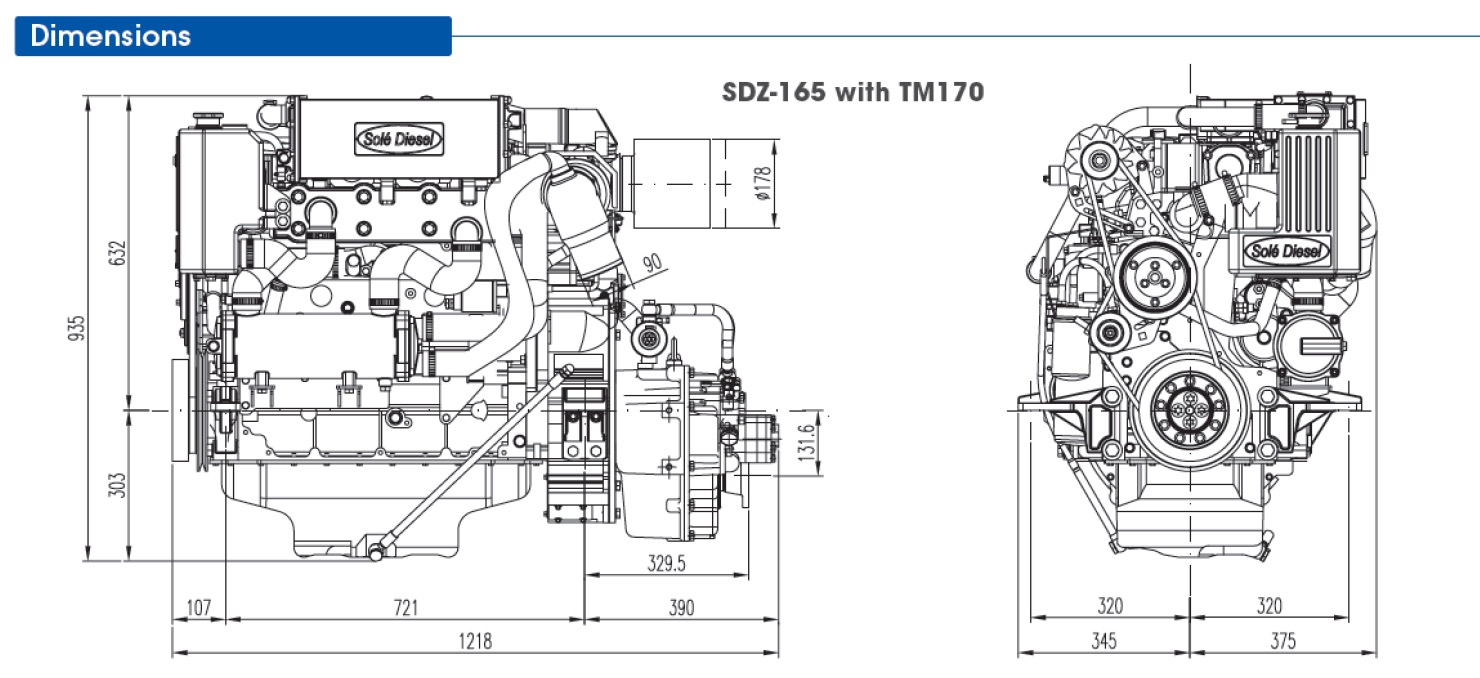

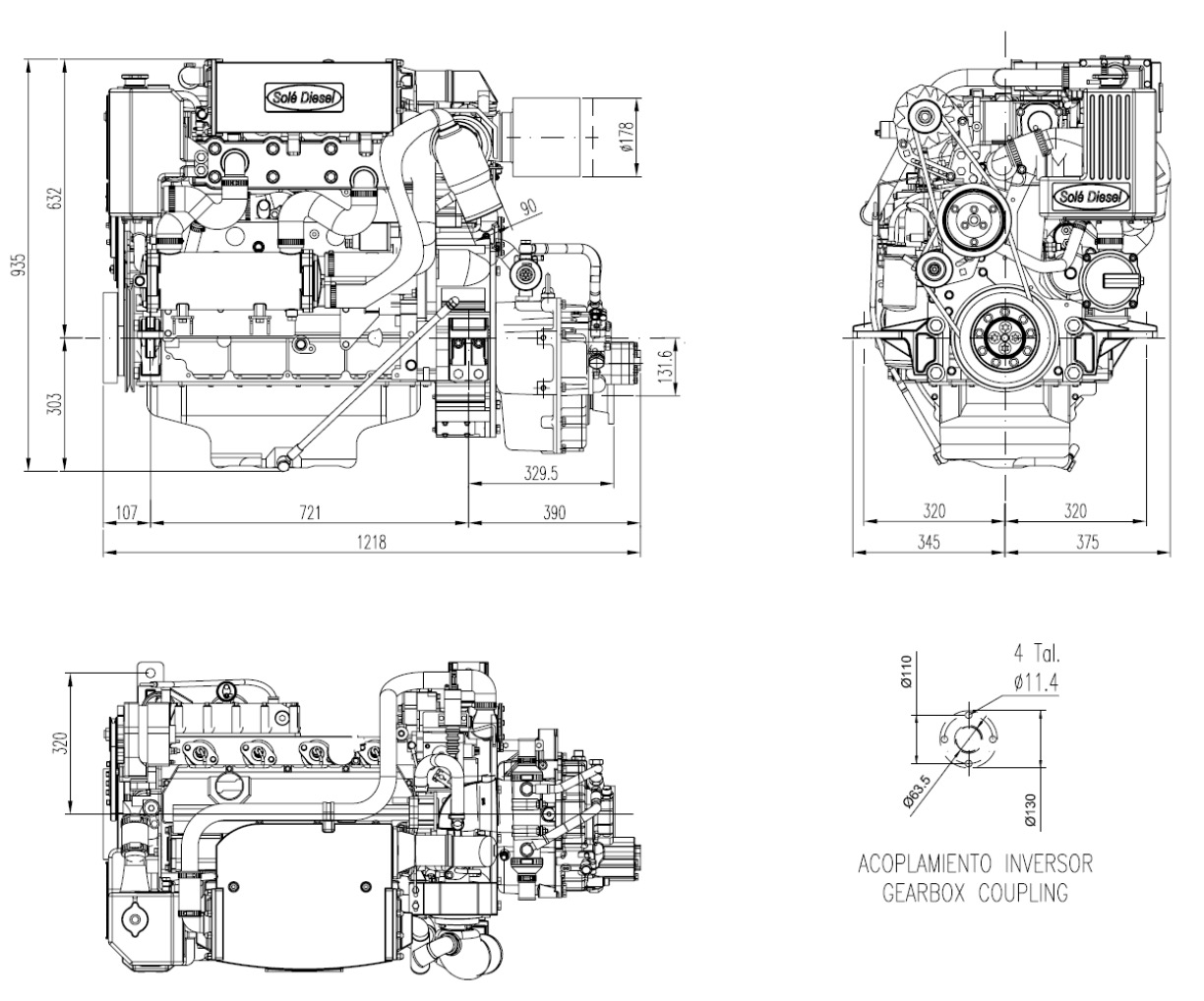

Two (2) off freshwater heat exchange, sea water cooled, Sole S.A. (Sole Diesel) model – SDZ 165 (160 HP @ 2300 RPM), medium continuous rating diesel engines shall be installed coupled to Twin Disc Technodrive

TM-170 Gear  Boxes Ratio 2.04:1. Alarms on main engine function (no shutdowns).



The Range and Speed estimates are given below based on Engine Data and Standard Propeller Efficiencies.

20 Meter Displacement Catamaran

Shaft Drive – Passenger Catamaran

Main Engines – Sole Diesel 2 x SDZ-165 (160 BHP @ 2300 rpm) Displacement – 32 Tonnes

Fuel – 720 Litres



A 12 v DC and a 220v AC 3 – phase system will be provided.

The 12v system is powered by 4 Nos. of heavy-duty 180 amp/hr batteries, in two banks of 2 batteries each connected to and charged by Alternators on each engine.
