Listing ID - 3026 | |
---|---|
Description | NEW BUILD - 18m Catamaran Workboat RT18 |
Date Launched | Built to Order |
Length | 18.75m (61ft 6in) |
Beam | 8.7m (28ft 6in) |
Draft | 1.3m (4ft 3in) |
Location | ex factory, United Kingdom |
Broker | Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323 |
Price | POA |
View As PDF |

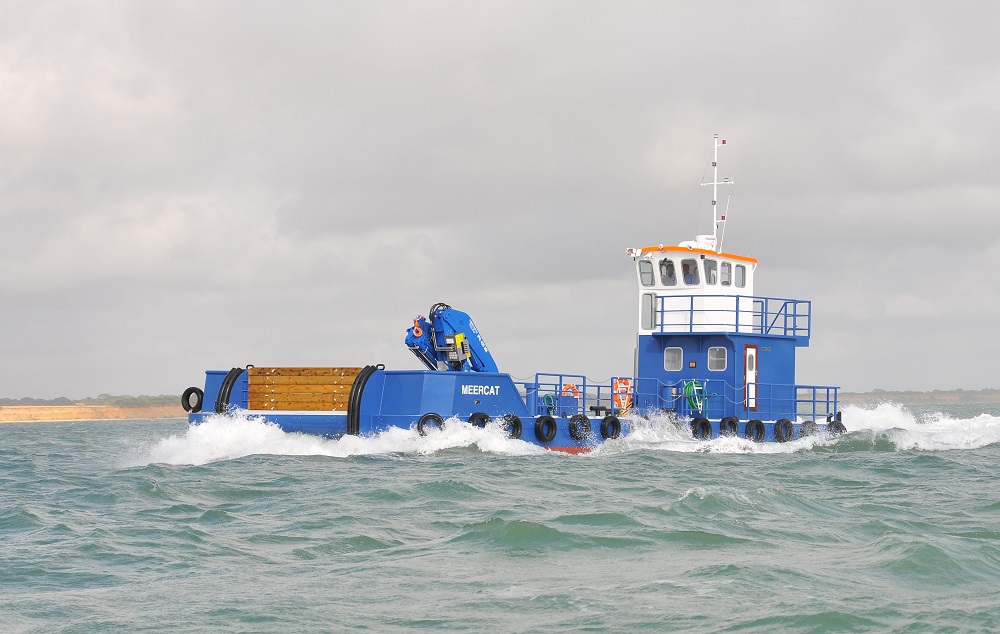

The RT range of vessels at Meercat Workboats are our Road transportable varieties, ranging from 14 to 18metres as standard with an ability to extend to 22metres built in our new facilities in Hythe, Southampton.

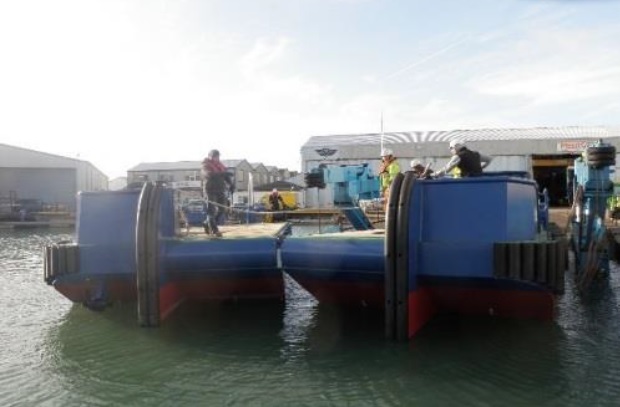

The standard 18metre is a twin hulled vessel, with the options to add additional hulls to extend the beam and deck area. The increased beam offers a significant increase in crane lifting, cargo capacity, whilst still maintaining its shallow draft, manoeuvrability and ability to be road transportable.
Vessel Type: Twin Screw, twin hull workboat
Classification: UK MCA Workboat Code
Area of Operation: Cat 2 – 60nm from safe haven
Construction: Welded Steel
Dimensions
LOA: 18.75m
Beam Overall: 8.7m
Depth Moulded: 1.75m
Draft Loaded: 1.3m
Performance
Bollard Pull: 5 tonnes
Speed: 8 knots
Cargo Capacity: 40 tonnes (Total inc liquids)
Propulsion & Manoeuvring
Main Engines: 2x Doosan L086TIH
Power: 2x 285hp (210kW) @ 2100rpm

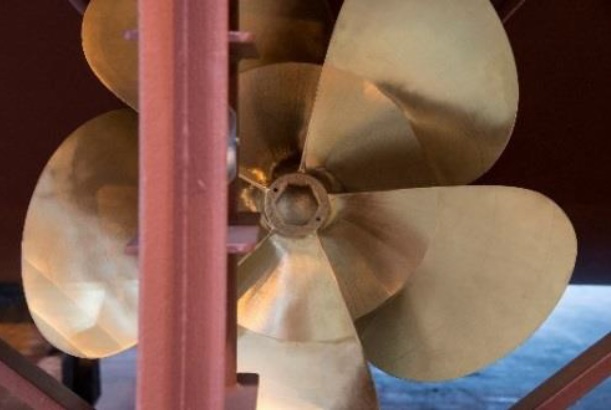

Stern Gear: 700 open props
Steering: Twin Rudder – hand hydraulic
Tanks
Fuel Bunkers: 2x 2.6m3
Fresh Water: 0.2m3
Black Water: 0.2m3
Liquid Cargo: 2x 9m3, 2x 12m3
Aux Machinery & Deck Equipment
Generator: Beta 21kVA 415V 3phs
Deck Crane: Iron Fist IFG450M6 1.6t @ 16.6m
Deck Winch: NSW 10t tugger winch

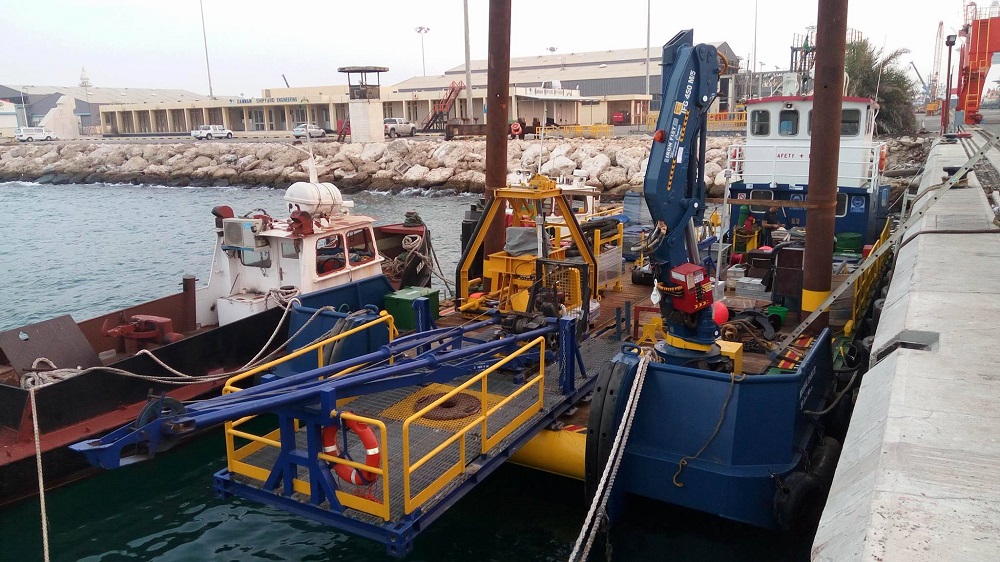

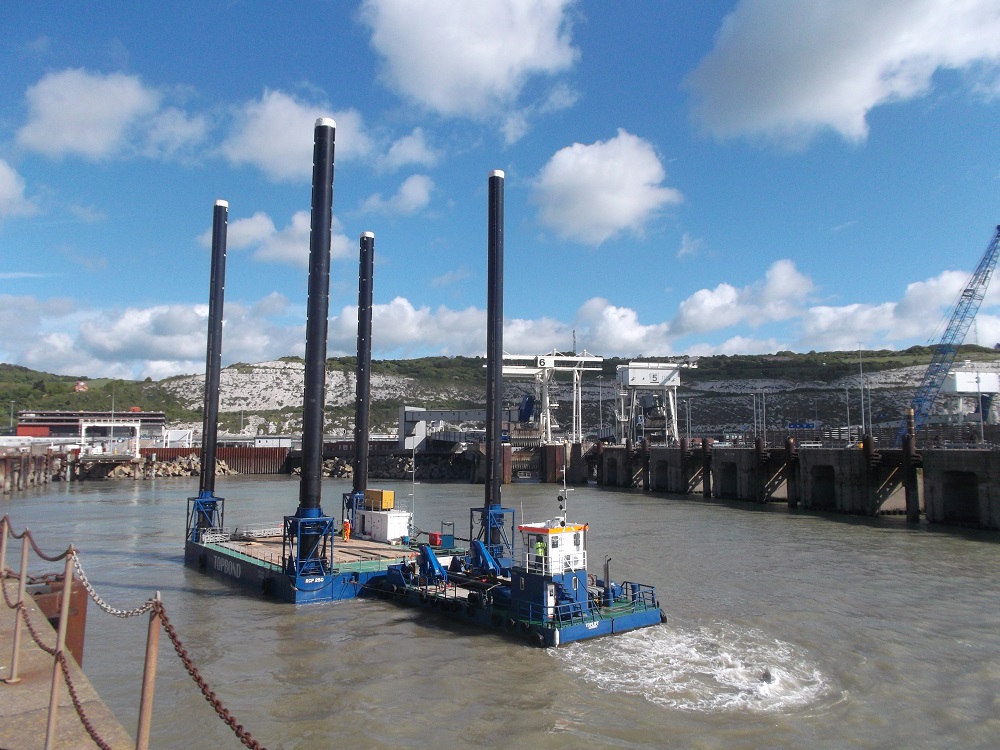

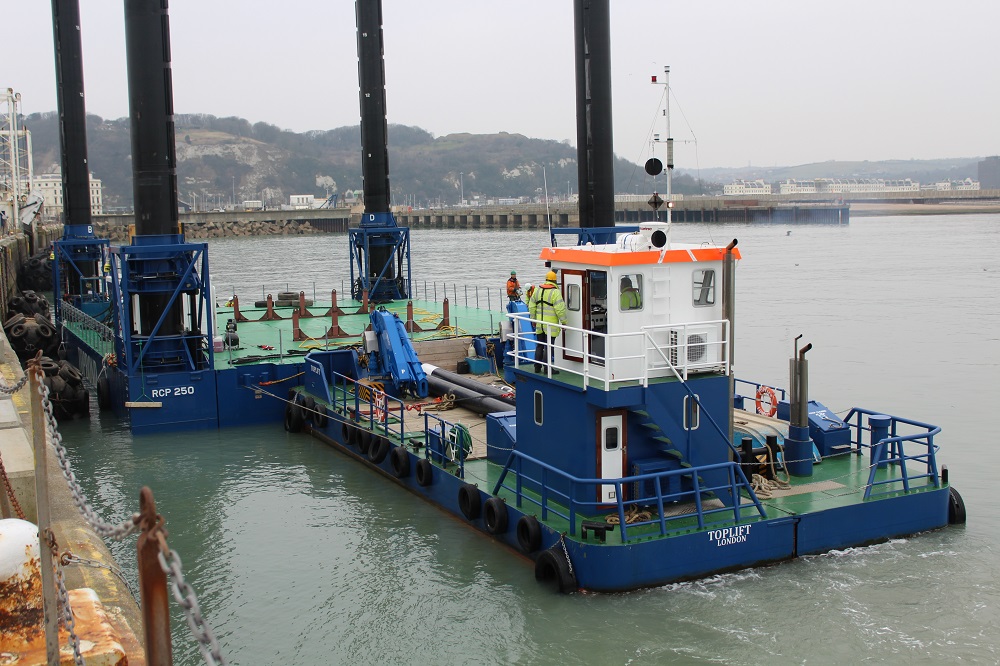

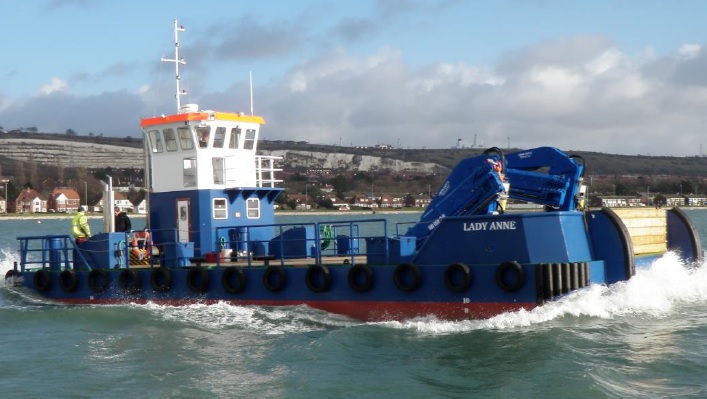

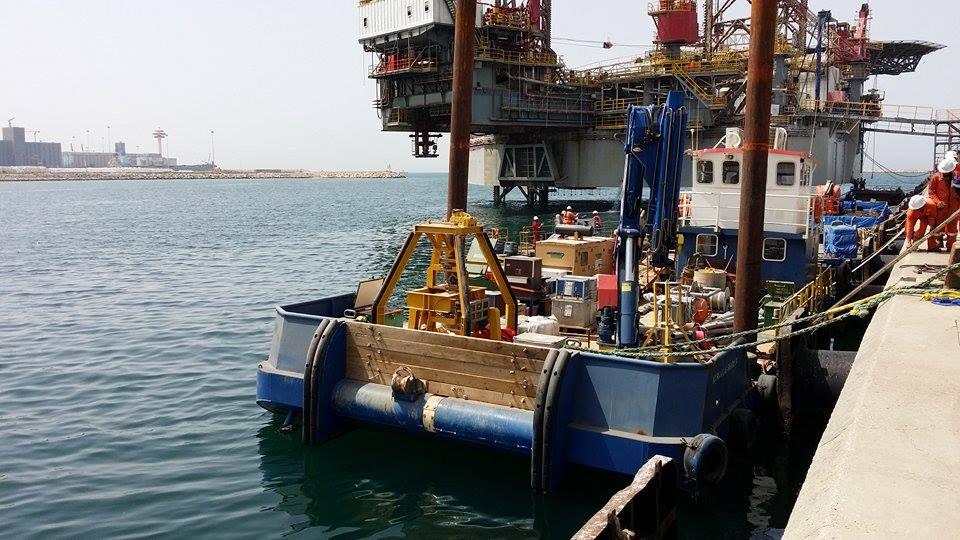

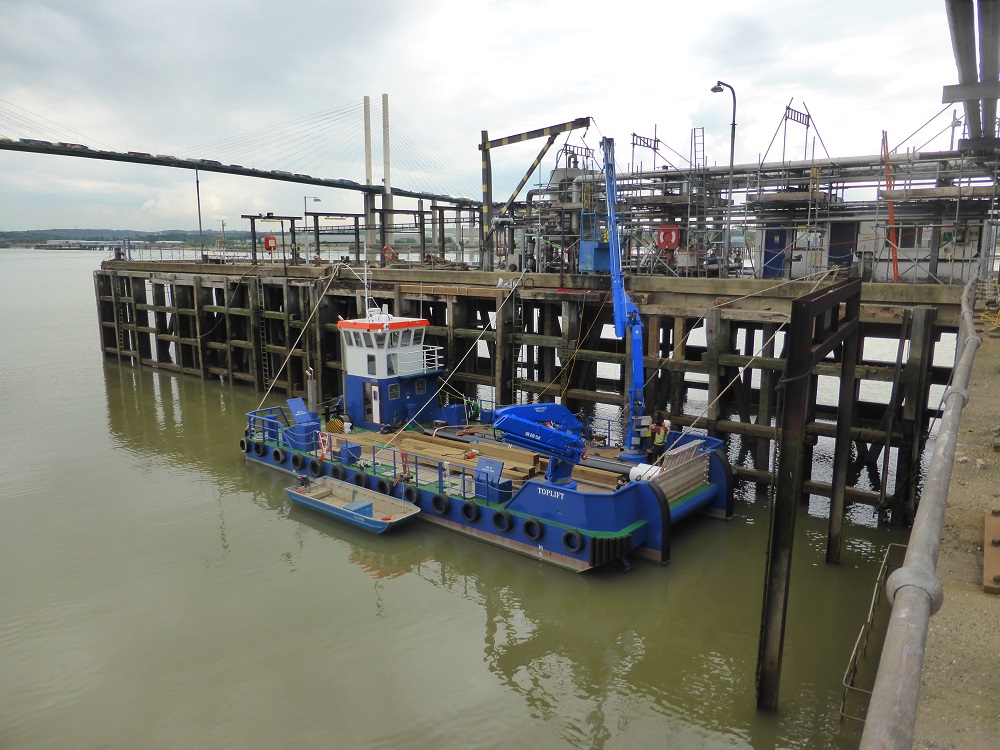

As a well-proven design, Meercat can provide a number of examples of RT18 vessels working around the world in many applications, proving what a truly versatile design it is.
The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
