Built (year and place): new (under construction), Turkey

Delivery time:  within 120 days from signing of contract

Hull material: Steel

Flag: TBA

Class Society and Notation: IACS



PRINCIPLE DIMENSIONS

Length Overall: 14.95m

Length between perp.: 14.20m

Beam O.A: 7m

Depth at sides: 2m

Draught Aft: 1.45m

GT: 40.32 tons

Displacement (full): 65 tons



MACHINERY & PROPULSION

Total power output (HP): 800 HP

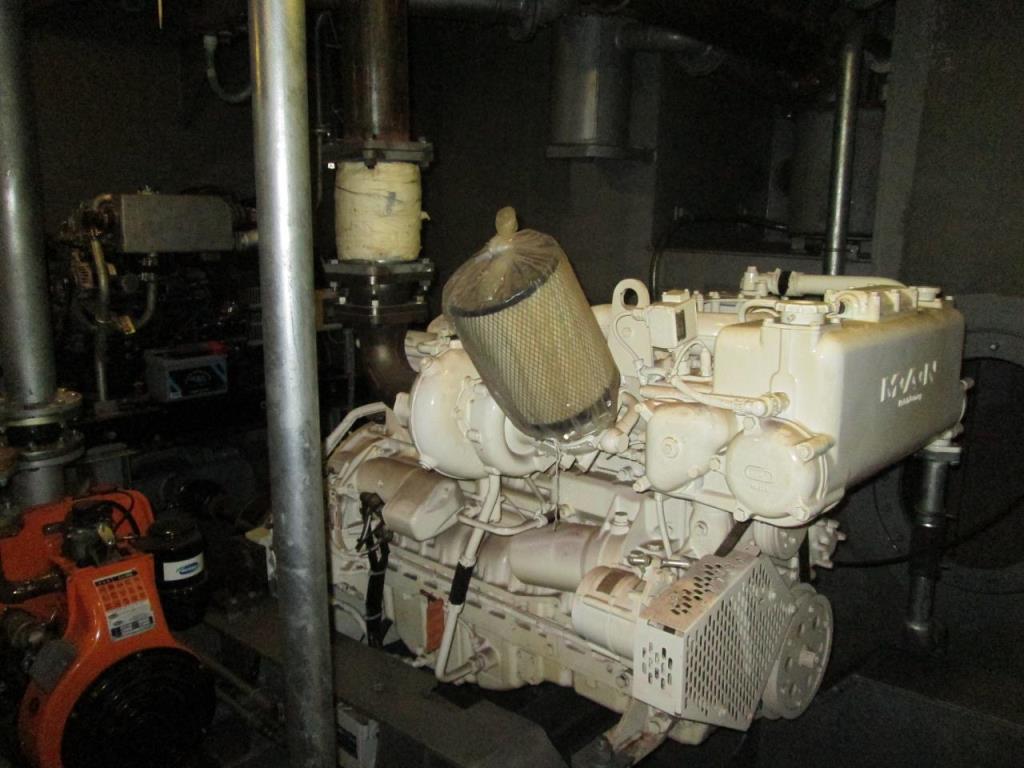

Main Engine(s) (make, type): 2 x MAN D2866LXE40 @ 2100rpm

Gearboxes: 2 x Ratio 1/4

Main Propulsion System: Twin Screw; 1 x Perkins Gen Set 22 Kva 50 hz. 230/400 V

Bilge Pumps: 4 x 3 m3/h

Cargo Pump: 1 x Electric Motor Driven 80 m3/h

Cargo Pump: 1 x Diesel Motor Driven 80 m3/h

Steering Gear: Hydraulic

Propellers: 2 x Fixed Pitch propeller

Speed (cruising - maximum): 7 – 9 knots



CARGO, TANKS CAPACITIES & RANGE AT SEA

Deck Cargo capacity: 3 tons/m2

Deck Area (m2): 70 m2

Fuel tanks capacity: 16.0 m3

Fresh Water tanks capacity: 4.8 m3

Hydraulic: 1.0 m3

Additional cargo tanks: 120.0 m3

These can be used for ballast, fresh water, bunkers, etc.

Range at sea (nm): 550 nm

Fuel consumptions: 85 l/hr @ 100% MCR

Tank discharge pumps 60m3 diesel driven & 55m3 electric driven



ACCOMMODATION

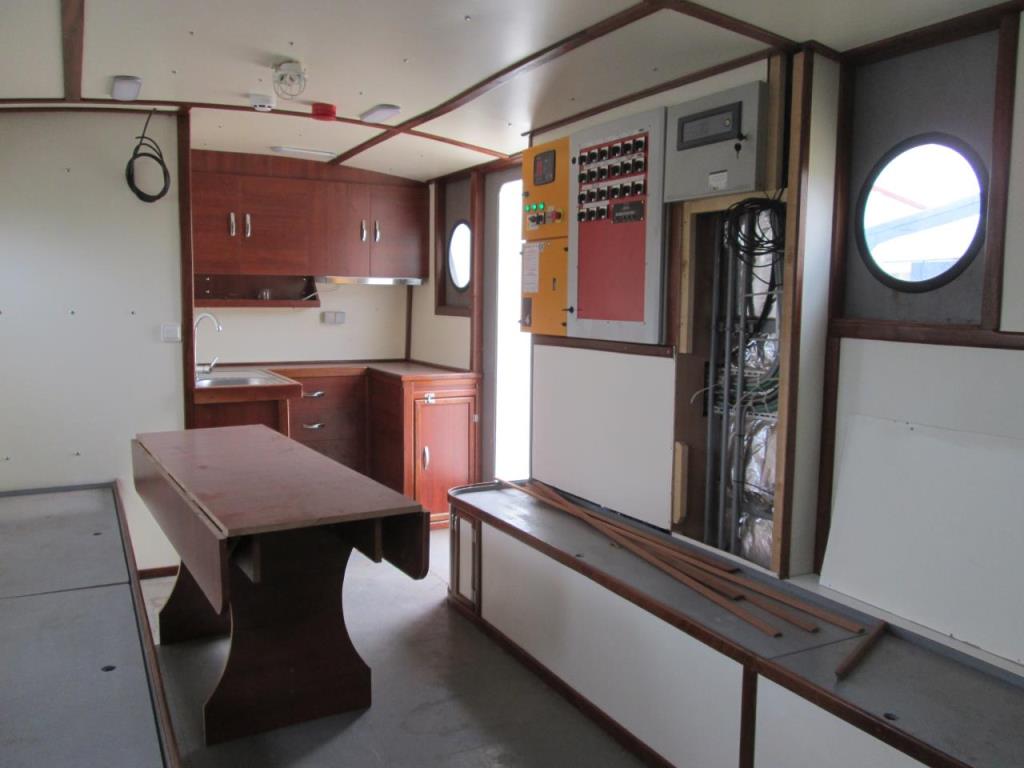

Total cabins and berths: 2 beds inside galley - mess room

Seats for passengers/crew: 1 Captain + 4 Passenger Seats

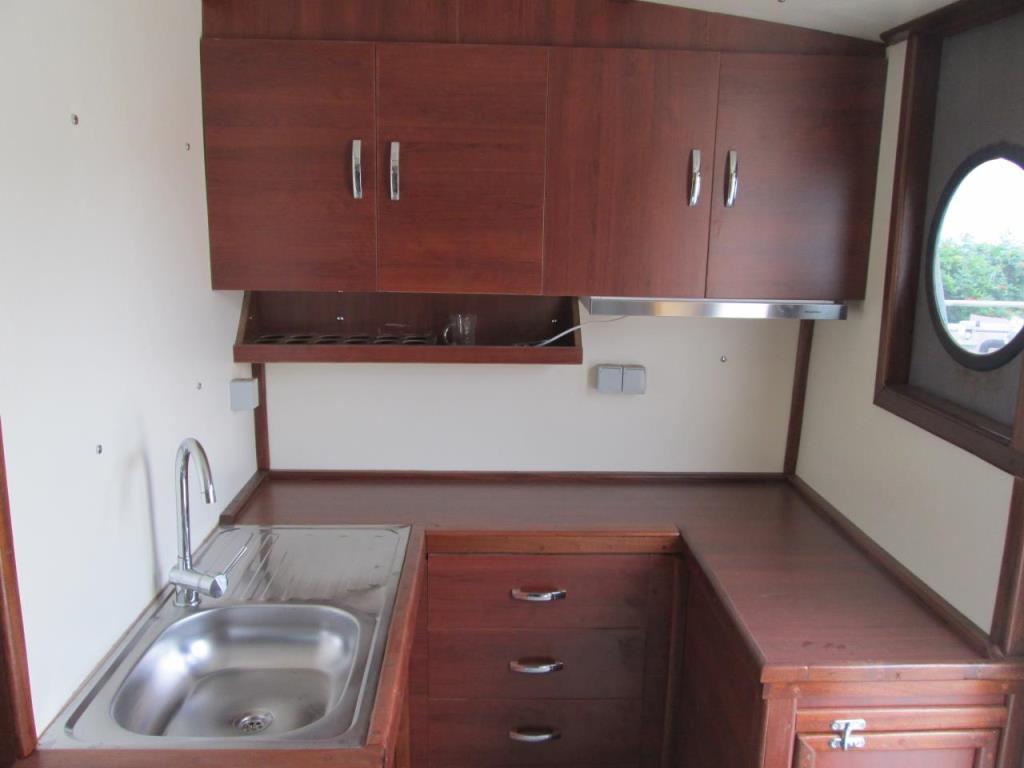

Galley, mess room for 8 people, WC, shower



NAVIGATION AND RADIO EQUIPMENT

1 x Raymarine GPS

1 x Raymarine VHF

1 x Raymarine Radar

1 x Raymarine Deep sounder



DECK AND TOWING, LIFTING, MOORING EQUIPMENT

Anchor windlass with chain

Optional: 30 ton meter Deck Crane, Deck Winch and Towing Hook

Fender 160 mm Steel Half Round

Painting Epoxy / Jotun

Optional: one tank could be converted into a crew cabin



ADDITIONAL INFORMATION

Towing, Pushing, Anchor handling, Dredge Support, Bunker Supply
