Listing ID - 3063 | |
---|---|
Description | NEW BUILD - 15m Fast Assault Boat |
Date Launched | Built to Order |
Length | 15.5m (50ft 10in) |
Beam | 4.3m (14ft) |
Draft | 0.9m (2ft 11in) |
Location | ex factory, China |
Broker | Geoff Fraser geoff.fraser@seaboats.net +64 21 61 222 5 |
Price | POA |
View As PDF |

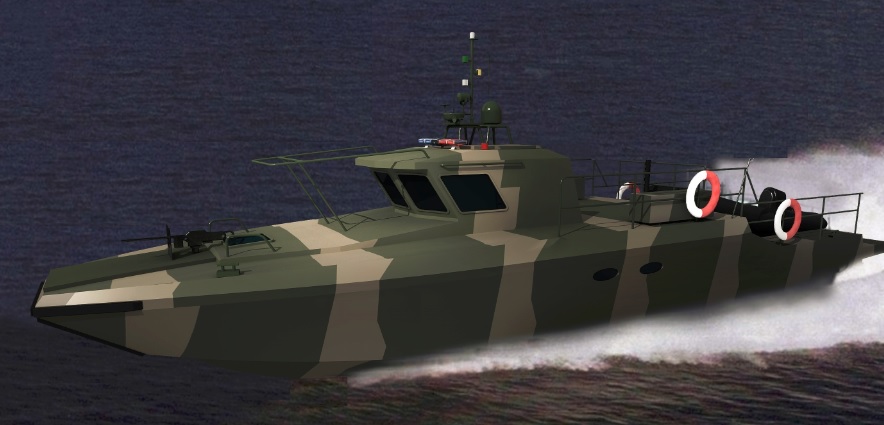

The KINGTOUGH 15M Fast Assault Boat is designed using our proven hull form combined with practical cabins layout and advanced, modern technologies to fully cater tough missions in today’s ever-changing operating challenges.
GENERAL
General Description
This specification describes the design and construction of the proven reliable, tactically seized, rough sea-going 15M advanced composite vessel which will be arranged as a Fast Assault Craft (hereafter referred to as “vessel”) to use in coastal and offshore waters, with equipment capacities to focus on below missions:
a. Combat patrolling;
b. Harbor patrolling;
c. Offshore patrolling;
d. High speed hot pursuit operations;
e. Quick reinforcement;
f. Combat SAR operations;
g. Logistic support mission;
h. Escorting/shouldering vessel;
i. Swift mobilization of troops.
The vessel will be constructed to a high commercial standard with particular attention to minimising noise transference and vibration while enhancing structural rigidity and integrity, and offering best crew comfort and mission-capability.
Principal particulars:
• LOA: 15.5 m
• Hull Length:14.9 m
• BOA: 4.3 m
• Hull Beam: 4.3 m
• Depth: 2.45 m
• Freeboard (bow): Approx. 1.8 m
• Draft (hull):Approx. 0.9 m
• Displacement (lightship load): Approx. 14 tonnes
• Displacement (half load):Approx. 15.5 tonnes
• Displacement (full load):Approx. 17 tonnes
• Deadrise (transom):19.68 deg.
• Deadrise (midship):24.61 deg.
• Engines: 2x SCANIA DI16 077M 662KW 800HP @ 2300RPM, 2000hr/year
• Gearbox: 2 x ZF 325-1
• Engines: 2 x MJP Hybrid 350 Water Jet
• Generator: 2 x CUMMINS ONAN MDKBM 50Hz 9.5KW (One for standard AC supply and one for backup purpose)
• Max. speed: 42 knots at full load/100% MCR/Beaufort Scale sea state two/clear hull
• Cruising speed: Approx. 25 knots
• Fuel capacity: 2 x 750L
• Range: No less than 200 NM at 25 knots cruising speeds with 10% fuel reserved
• Endurance: No less than 4 hours at 42 knots max. speed with 10% fuel reserved
• Compliment: 20 combatants in combatant transport cabin + 2 x crew in bridge house
• Seakeeping ability: Sea state 5 according to Douglas Scale
• Construction: PVC cored sandwich composites to be 3D infused throughout
