Listing ID - 410248 | |
---|---|

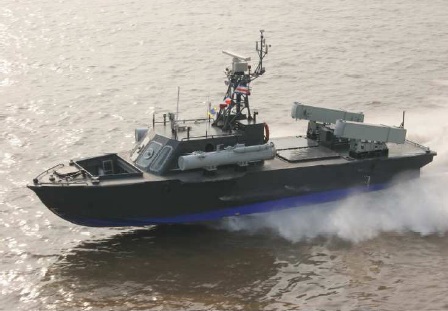

Description | 13.5m High Speed Patrol Boat |
Date Launched | NEW BUILD |
Length | 13.5m |
Beam | 3.7m |
Draft | 0.89m |
Note | 17.8 tonnes |
Location | ex factory, China |
Broker | Geoff Fraser geoff.fraser@seaboats.net +64 21 61 222 5 |
Price | POA |
View As PDF |
Design Purpose
This high speed customized military boat is designed for below multi-mission/purposes:
a. Anti-piracy, anti-smuggling and anti-drug trafficking operation and surveillance.
b. Security operation in inland and coastal areas.(
c. Fishery protection and patrol in and around ports and coastal areas.
d. Disaster Relief operation.( e. Related military operations in inland and inshore areas.
Technical Data
Aluminum mono-hull & stepped planning
300 nautical miles (while the cruising speed is 50 knots)
Max speed is 60 knots
50 knots 2260L
Powered by: ZF 550( 2×ISOTTA 1312T2 MSD, 880Kw/2700rpm with 2×TRIMAX 3200
Standard Engineering System
MAIN Engine( Gearbox( Fuel Tank( Surface drive( Monitoring and control system Fuel system
Lubricating Oil system( Cooling water system( Main and aux. engine exhaust system Hydraulic control system for TRIMAX
Ventilation System
Engine room ventilation system Wheelhouse ventilation system
Bilge Water System
Flooding alarm equipment
Domestic Water System
Fresh Water Tank
Out Fitted System
SHHP anchor of 15kg on fore deck Fender( Water Tight Hatch-covers( Water Tight Door
Inclined Ladder( Vertical Ladders( Manhole Covers( Water Tight Fixed Windows Water Tight Circular Windows AL Hand Rails
Electric and Electrical System
Air-conditioner (driving house) Diesel generating set( Battery( 24V Charging/discharging Device Shore Power Connection Box Main Switchboard
24V emergency charging/discharging device Fire detection and alarm equipments( Wipers( Cables
Lighting System
Navigation & signal lamps Searchlights( Main and emergency lighting system
Wheel House
Anchor (on fore deck)( Intake for main engine Sensor of Weather Instrument Antennas
Survival & Fire Fighting Apparatus
Life Buoys( Life Vests( Life Raft( CO2 Extinguishers( Water fire-fighting system( Engine room fixed CO2 extinguishing system
Communication System
VHF radio telephone DSC1000 Talk-back system( VHF Handheld transceiver NAVTEX receiver
1(CRUISAIR CO,) STAMEGNA SM180, 15Kw
380/220V
Navigation System
Radar( SATLOG( Electronic chart display & information system Magnetic compass( AIS( Weather instrument( Echo sounder( Clock( Hygrometer( Barometer( SART( S-EPIRB( Searchlight
THIS VESSEL CAN ONLY BE SOLD WITHOUT WEAPONS
