MAIN FEATURE

The barge is to be constructed, machinery installed and equipment in accordance with the latest Rules for Building & Classification of Steel Barges of American Bureau of Shipping for class

Maltese Cross + A1 Barge for unrestricted service with descriptive notation of MODU code and registry PANAMA Flag.

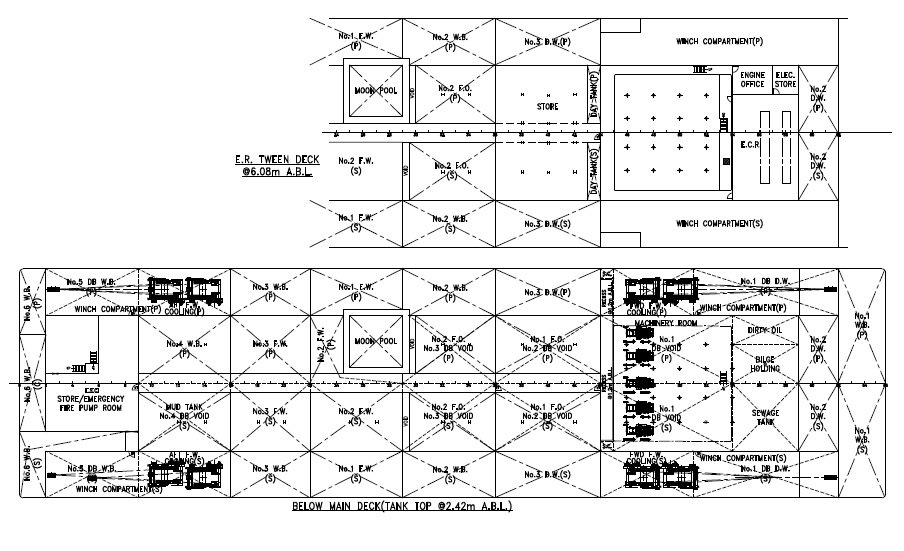

The barge is all welded steel construction. The barge's accommodation is to be located on the forward main deck. The main hull is to be divided by transverse and longitudinal WT bulkheads into the following compartments

1) Forepeak FW/SWB tank

2) FW/SWB

3) Winch compartments

4) Engine room with fuel oil double bottom tanks

5) Fresh water tanks

6) Pipe tunnel

7) Dirty oil tanks

8) Sewage tank

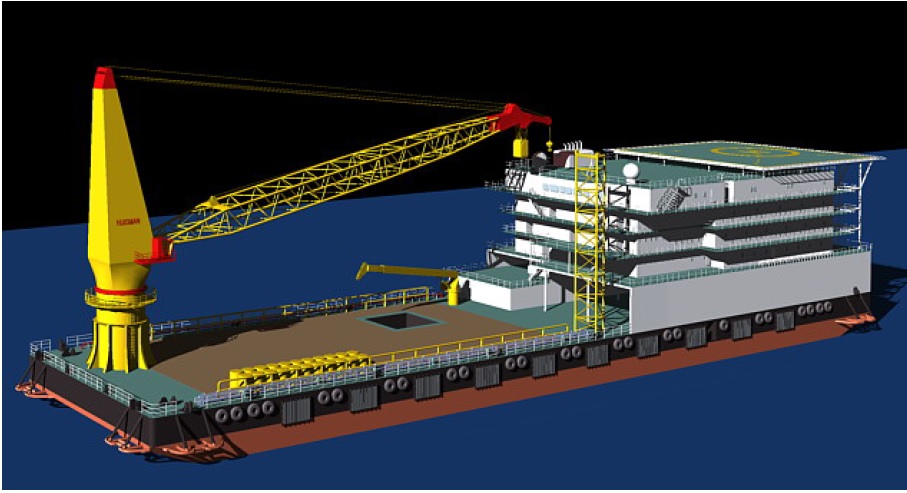

Vessel is equipped with Accommodations for 300-people. The barge is to be installed the 300T main crane (was made of husiman), 26T aux crane, the 8-point mooring system

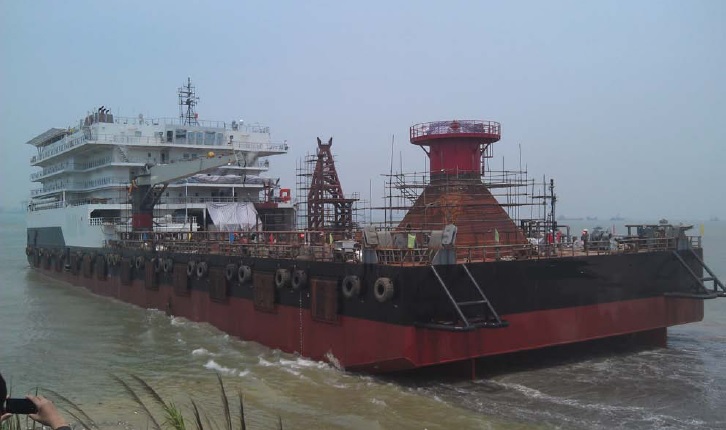

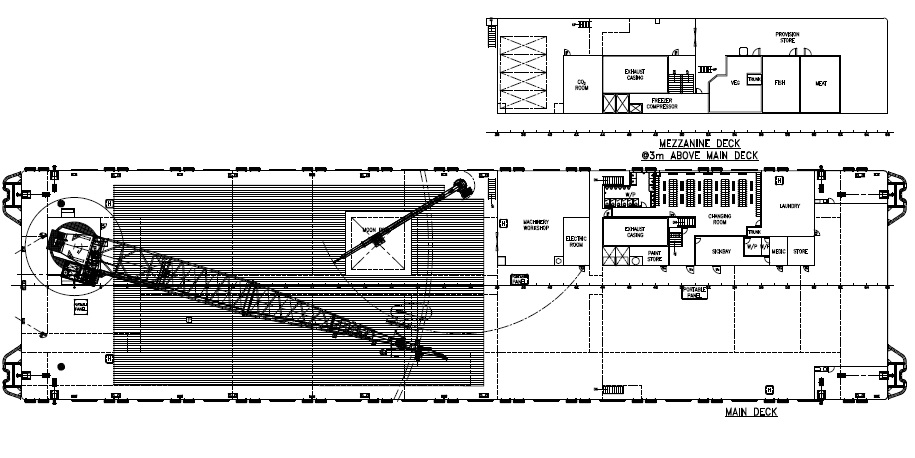

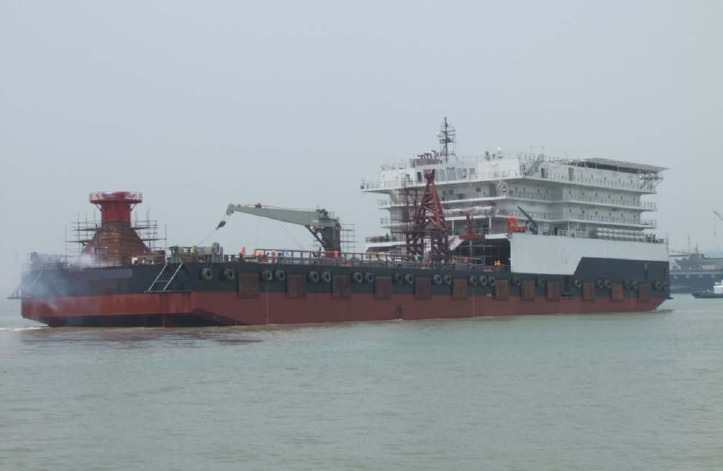

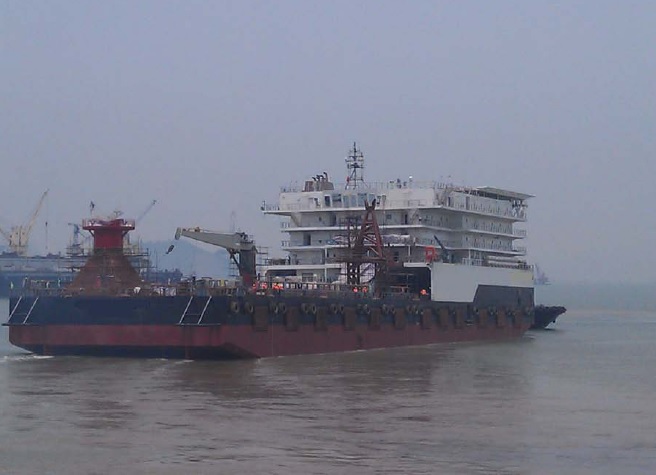

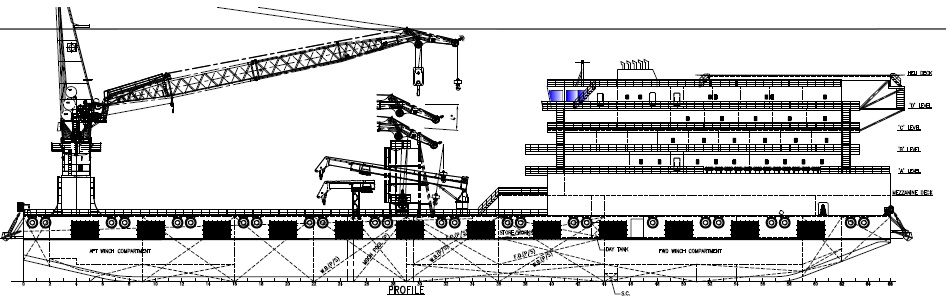

120m accommodation barge Principal Particulars

1. Principal Particulars

Class notationMaltese Cross + A1

Year Built: 2012

Trading Limitation: unrestricted service

Length overall: 120.0m (393.6 ft)

Beam moulded: 31.7m (104 ft)

Depth moulded: 9.0m (29.5 ft)

Draft designed: 6.0 m (approx.)

Superstructure Deck Heights

Deckhouse: 3.00M approx

Accommodation

8 x 1-berth cabins: 8 men

14 x 2-berth cabins: 28 men

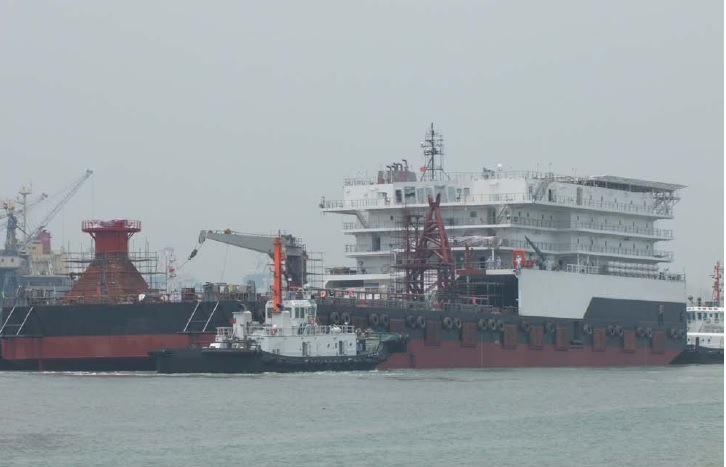

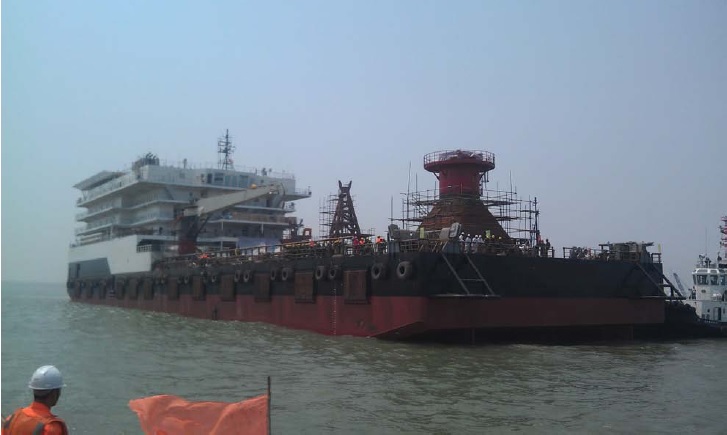

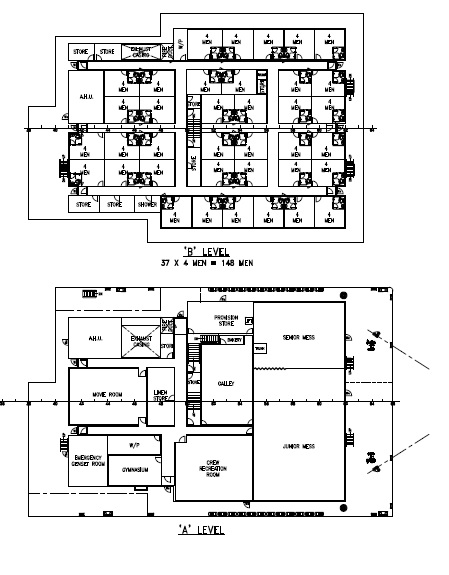

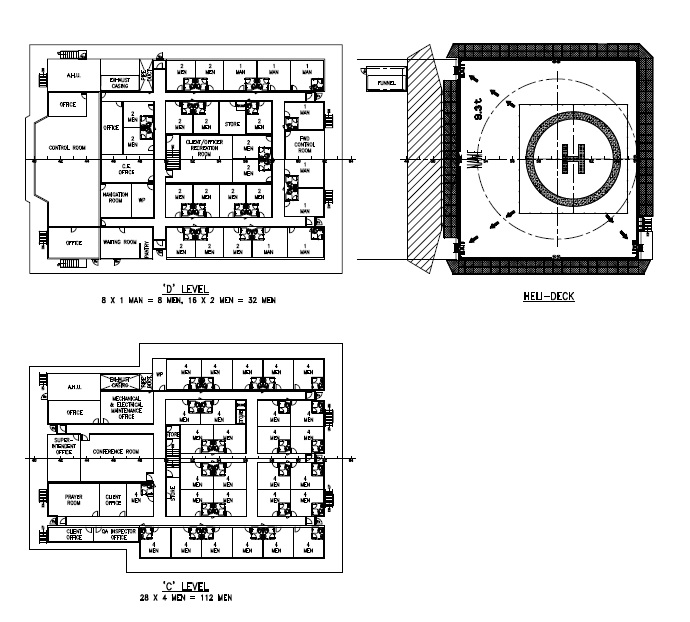

66 x 4-berth cabins: 264 men

Total: 300 men

Tankage- approx (100% full)

SWB/FW tank (Non-Potable): 8000m3 approx.

F.W. Tank (Potable) (60 days endurance): 2000m3 approx.

F.O. Tank: 1200 M3 approx.

Dirty Oil Tank: 15 M3 approx.

Main Deck Strength: 15 tonnes/ M2

Main Machinery & Equipment

Deck Machinery

8-point mooring system: 8 electro-hydraulic mooring winches, each 90mt x 12m/min, brake holding 180t on 1st layer, c/w vertical Sheaves, universal fairleads, load monitoring system, tension sensor, load monitoring system, remote control

Capstan: Type: 4x Vertical mount; Duty pull: 10 tonnes x 0 – 15 m/min

Tugger Winch: Pull: 15 tonnes

Steel Wire Rope: 52mm dia x 1500m each, c/w Crosby socket

10T Delta flipper anchor: 10,000kg each

Pedestal Mounted offshore crane: 300 Tons SWL

Electric-Hydraulic Slewing Crane: 25T 5-26m, 12t 5.6-26.7m

Machinery

Main Generator: CATERPILLAR 3412C; Rated power:620KW; No. of cylinder:V12; BORE/STROKE:137×152Rated revolution 1800r/min; Leroy somer; Rated power:590KW; Rated revolution:1800r/min; Rated Voltage/Current:440V; No. of phase/Frequency :3Ph/60HZ

Emergency Generator: CATERPILLAR C4.4; Rated power:106KW; No. of cylinder:4; BORE/STROKE:105×127; Rated revolution 1800r/min; Caterpillar SR4; Rated power:95KW; Rated revolution:1800r/min; Rated Voltage/Current:440V; No. of phase/Frequency :3Ph/60HZ

Ballast Pump: PUMP: DESMI NSL 200-415-D02; CAPACITY:500 M3/HR; TOTAL HEAD:50 METER; MATERIAL: CASING&IMPELLER BRONZE; SHAFT:STAINLESS STEEL; MOTOR: CLASS F INSULATION; POWER:108kw

Bilge Pump: (2)PUMP: DESMI S125-220N/D07; CAPACITY:130M3/HR; TOTAL HEAD:79 METER; MATERIAL: CASING&IMPELLER BRONZE; SHAFT:STAINLESS STEEL; MOTOR: CLASS F INSULATION; POWER:66kw

Fire & General service pump: PUMP: DESMI S125-80-220N/D07; CAPACITY:130 M3/HR; TOTAL HEAD:79 METER; MATERIAL: CASING&IMPELLER BRONZE; SHAFT:STAINLESS STEEL; MOTOR: CLASS F INSULATION; POWER:66kw

Fuel Oil Transfer Pump: PUMP: DESMI GP101EFM; CAPACITY:42 M3/HR; TOTAL HEAD:45 METER; MATERIAL: CASING CAST IRON; IMPELLER CARBON; MOTOR: CLASS F INSULATION; POWER:9kw

Fuel oil transfer pump: PUMP: DESMI HD201EFM; CAPACITY:118 M3/HR; TOTAL HEAD:60 METER; MATERIAL: CASING CAST IRON; IMPELLER CARBON; MOTOR: CLASS F INSULATION; POWER:34kw

FW pressure set: Each comprising: - 1 pressure tank 2000 ltr, c/w relief; valve, pressure switch, pressure gauge etc.; 2 pumps, 40m3/hr, 50m head

Potable water pressure set: Each comprising:- 1 pressure tank 2000 ltr, c/w relief; valve, pressure switch, pressure gauge etc.; 2 pumps, 40m3/hr, 50m head

S.W pressure set: Each comprising: - 1 pressure tank 2000 ltr, c/w relief valve, pressure switch, pressure gauge etc.; 2 pumps, 40m3/hr, 50m head

Fresh water transfer pump: PUMP: DESMI S100-80-220N/D07; CAPACITY:120M3/HR; TOTAL HEAD:60 METER; MATERIAL: CASING BRONZE; IMPELLER NIALBZ; MOTOR: CLASS F INSULATION; POWER:36kw

Calorifier: CAPACITY:1000L SS316; C/W hot water circ. Pump; 4m3/h @ 40m head

Sewage treatment plant: SBH-150; Maximum 150 persons /day; C/W discharge pump CR-50S; Comply with MEPC 159(55)

Oily water separator: USH-10 C/W 15PPM ALARM; Comply with MEPC 107(49)

Fire pump: PUMP: DESMI NSL200-525/D02; CAPACITY:227M3/HR; TOTAL HEAD:120 METER; MATERIAL: CASING BRONZE IMPELLER NIALBZ; MOTOR: CLASS F INSULATION; POWER:192kw

Emergency fire pump: PUMP: DESMI S80-70-220N/D07; CAPACITY:80M3/HR; TOTAL HEAD:69 METER; MATERIAL: CASING BRONZE; IMPELLER NIALBZ; MOTOR: CLASS F INSULATION; POWER:36kw

Fuel oil purifier: SJ20G 2600L/h 14cst@40!

Main air compressors: CY90-160 22.3m/min@8.5bar

Refrigerated air dryer: D2100INR-A 35m/min

Air compressor SW cooling pump: PUMP: DESMI SA50-180/4 D07; CAPACITY:9M3/HR; TOTAL HEAD:40 METER; MATERIAL: CASING BRONZE; IMPELLER NIALBZ; MOTOR: CLASS F INSULATION; POWER:4.8kw

R.O. water maker: SW 60T R CAP :60m3/day

Air-conditioning system: 2×100% Capacity chiller units; 1×Air handling unit Serve acc. Deck-D; 1×Air handling unit Serve acc. Deck-C; 1×Air handling unit Serve acc. Deck-B; 1×Air handling unit Serve acc. Deck-A

ECR air-con packaged unit

Galley air-con packaged unit

Provision refrigeration system

Electrical Equipment

Main Switchboard: Include: BUS A & BUS C Feeder panel; BUS A AC 440V Feeder panel; !1 GEN Panel; !2 GEN Panel; !3 GEN Panel; SYNCHRO & BUSTIE Panel; !4 GEN Panel; !5 GEN Panel; BUS B AC 440V feeder panel; Shore & Main crane panel

Emergency switchboard

Distribution switchboard

Communication and Navigation Equipment

X-BAND RADAR

GPS

SATELLITE COMPASS

ECHO SOUNDER

NAVTEX RECEIVER

WEATHER FAX RECEIVER

WIND AMEMOMETER

VHF RADIO

AIRBAND VHF RADIO

FBB SATELLITE PHONE

GMDSS AREA A3 RADIO CONSOLE

MF/HF SSB RADIO (250W)

VHF DSC RADIO

INMARSAT-C /SSAS

INMARSAT-C

DUPLICATION MF/HF SSB (150W)

DUPLICATION VHF DSC

DUPLICATE INMARSAT-C

GMDSS EPIRB

GMDSS SART

GMDSS 2 WAY PORTABLE VHF

I.S PORTABLE VHF RADIO

NON-DIRECTIONAL RADIO BEACON

INTEGRATED TELEPHONE SYSTEM

PUBLIC ADDRESS SYSTEM

TALKBACK SYSTEM

BATTERYLESS TELEPHONE SYSTEM

CCTV SYSTEM

ENTERTAINMENT TV ANTENNA
