NEW BUILD - 110ft Grand Harbour Motor Yacht

Listing ID - 4284
Description	NEW BUILD - 110ft Grand Harbour Motor Yacht
Date Launched	Built to Order
Length	33.53m (110ft)
Beam	6.70m (21ft 11in)
Draft	1.57m (5ft 1in)
Location	Taiwan
Broker	George Pappas george.pappas@seaboatsbrokers.com +1 760 593-9138
Price	US$ 6,800,000
View As PDF

Length over all (LOA): 110’ 0” 33.53m

Beam: 22’ 0” 6.70m

Draft: 5’ 2” 1.57m

Displacement: 92 tons

Fuel capacity: 4000 GAL

Fresh water capacity: 800 GAL

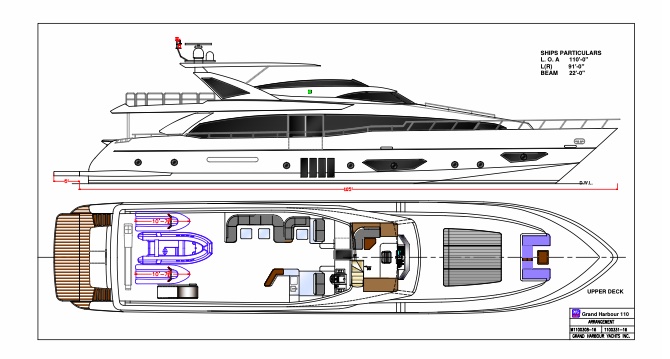

Hull Superstructure and Decks

Hand-laid, gelcoated F.R.P. hull

Airex 25mm PVC foam core on hull sides

Non-skid deck on flybridge

Teak main deck

Teak cap rails

Solid fiberglass hull bottom

Airex 20mm PVC foam core/20mm Balsa core on superstructure

#316 S/S swimming ladder with teak steps

FRP radar arch

Built-in teak swim platform

Bottom paint, anti-fouling with Gel-Shield treatment

#316 S/S windshield with Lexan glass on F/B

Frameless windows

Side window tinted tempered window glass (6mm), pilot house windshield clear safety glass (10mm)

Deck lights, 12V

Ventilation hatch fwd cabin top

FRP ladder with teak steps, aft deck to flybridge, sliding hatch on flybridge

Comfortable steps, aft deck to swim platform

F/B seats w/storage underneath

#316 S/S sliding door, aft salon with lock

Side pantographic door, pilothouse

Exterior Hardware and Fittings

Hardware S/S #316

1-1/2” S/S handrail & 1-1/4” stanchions

Eight S/S cleats 4x12” + 4x16”

Eight S/S hawse holes

S/S 7½” x 16¼” portholes

Fresh water washdown, aft deck2

S/S anchor light bracket

Windlass Maxwell hydraulic VWC-4500 with remote control on F/B, dual direction (2)

300ft 1/2” anchor chain (2)

90kgs CQR anchors (2)

Chain stripper with chain stop

Sea water washdown, fwd deck

S/S rudders

S/S struts w/cutlass bearing

#630 S/S shafts

4 blades NIALBR hi-performance propeller

Bronze through-hull fittings

Zinc ball on rudders and shafts

S/S steering wheel

Windshield wipers & washers

Helm seat on F/B

Transom shower

Control and Navigation

Two control stations, F/B & P/H

Complete engine instrumentation

Aqua Signal international navigation lights

Intercom system

Electronic / hydraulic throttle & gear control

Hynautic power steering system

Engine alarm system, audio oil and temperature

Electric dual horn

Electrical System

Heavy duty lead acid batteries, 12x200AH for engines (4) & service (8),

two 120AH for two generators’ starting

Battery disconnect switch

Battery paralleling system with control switches

100AMP 12V & 80AMP 24V battery chargers

Shore power receptacle 2x100AMP

Battery select switch

Polarity reverse indication light

12V lights in all compartments

AC/DC distribution panel with magnetic circuit breakers

Analog Volt and AMP meters

Bonding system

Wiring for speakers throughout

National AC outlets and DC switch throughout

Engine Room and Bilge

Pressure fresh water system w/2 Groco PSR pumps and 2.75gal accumulator

Water heater, 30gal (2)

Aluminum fuel tanks with sight gauges & Wema gauges on console

S/S water tank w/sight gauge & VDO gauges on console

50gal Sealand holding tanks (2), plumbed dockside or overboard discharge

Common drainage system for sink, deck, shower and bilge

Electric Rule 3700 bilge pumps 12V auto & manual switch for each compartment3

One Anderson manual bilge pump

High water alarm for engine room bilge

Two Rule 2000 12V shower sump pumps

Local made sea cocks and raw water strainers on all intakes

Engine room lead/foam sound insulation

Dual Racor 1000 fuel/water separators for each engine and dual Racor 500

fuel/water separator for generator

Engine room vent blowers with (2) DC Jabsco and (2) AC local made

Engine isolation switches

Aluminum checking floors

AC 110V fluorescent lights, 12V ceiling lights

Fresh water outlet with hose for engines & generators

Under water exhaust with by pass not insulated

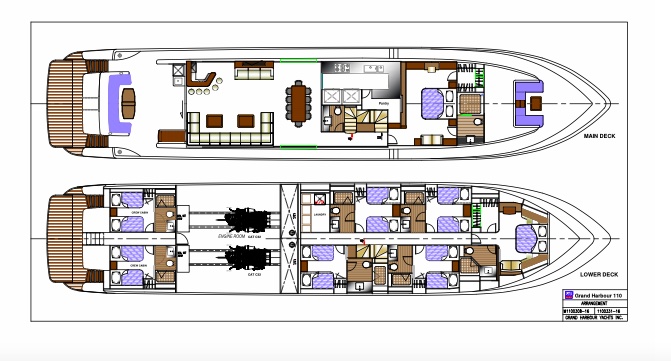

Accommodations and Interior

Selected wood paneling and cabinetry

Soft vinyl headliners

Interior finish, satin/high gloss varnish

Wooden/carpet floor throughout

Brass or S/S hardware

Pilothouse

Carpet / Wooden floor

Steering control station with complete instrumentation

Helm seat

Stairway to fore cabins

12V LED ceiling lights

Chart locker

S/S push door to side deck

Master control panel with AC/DC circuit breakers

B. Salon and Dining Area

Entertainment center with wet bar (plumbing only), TV cabinet

Built-in comfortable settee

Dining table

Carpets

Draperies

Valance board w/tube light

12V LED ceiling lights

C. Master Stateroom

King/queen size berth, fabric covered

Bureau w/chest of drawers

Vanity

Chest of drawers, under bunk

Mirror on headboard

S/S portholes w/screens

Private head with stall shower

Cedar lined full height hanging locker with auto lighting

TV cabinet

Tube light under bunk and behind valance4

12V LED ceiling lights

D. Fwd Guest Staterooms

Queen size berth/twin berths w/fabric covered mattress

Chest of drawers, under bunk

Private head w/stall shower

Mirror

12V LED ceiling lights

Cedar lined hanging lockers with automatic lighting

Tube light under bunk and behind valance

S/S portlights w/screens

Draperies

E. Crew Cabin

Berth w/fabric covered mattress

Cedar lined hanging locker

Draperies

12V ceiling lights

Drawer under bunk

S/S portlight w/screens

F. Heads

Fiberglass walls, Wooden flooring

Starboard grating for shower floor

Corian counter top

China sink

Faucets for sink and shower

Draperies

Mirror

Exhaust blower

G. Galley

Wooden flooring

Corian counter tops

Selected wood panel and cabinetry

Storage cabinets and drawers

Sink w/tap

Exhaust blower

AC outlet

Overhead dish locker

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
