NEW 15000t 3-in-1 Sand Carrier Dredgers

Listing ID - 4177
Description	15000t 3-in-1 Sand Carrier Dredgers
Date Launched	2021
Length	140.11m (459ft 8in)
Beam	23m (75ft 5in)
Draft	6.25m (20ft 6in)
Note	15543.3t
Location	China
Broker	Franklin Taylor franklin.taylor@seaboatsbrokers.com +64 27 276 5383
Price	USD 12million
View As PDF

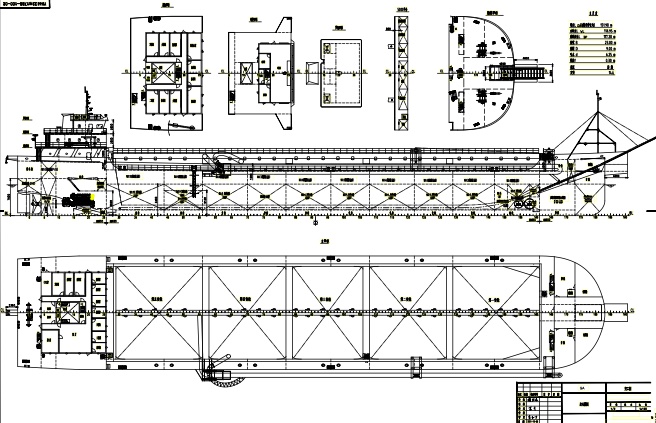

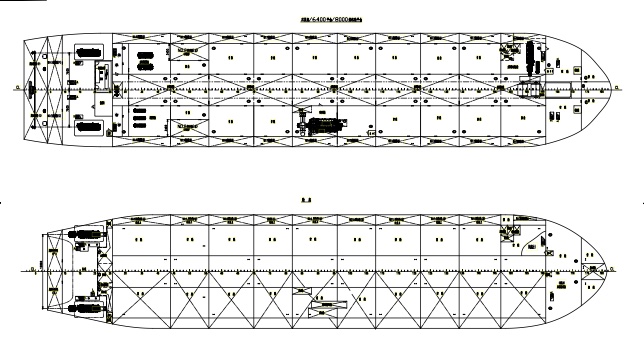

The ship has a total of 14watertight transverse bulkheads, respectively FR4, FR9, FR26, FR44, FR56, FR70, FR82, FR96, FR108, FR122, FR134, FR147, FR161 and FR173.2 watertight longitudinal bulkheads,2Longitudinal mud tank bulkhead. The main hull is divided into empty compartments from head to tail (6400Under the platform is the first ballast tank), sail cable tank, emergency firefighting Pump room (starboard), empty space, cargo hold (1st, 2nd, 3rd, 4th, 5th), Mud pump room, engine room, diesel tank, steering gear room above, and stern ballast tank.

Ship Type

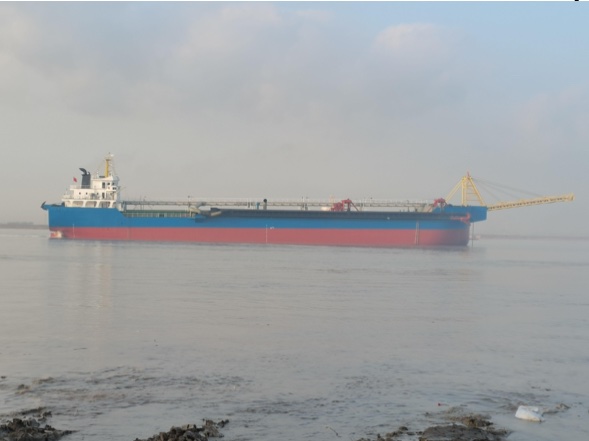

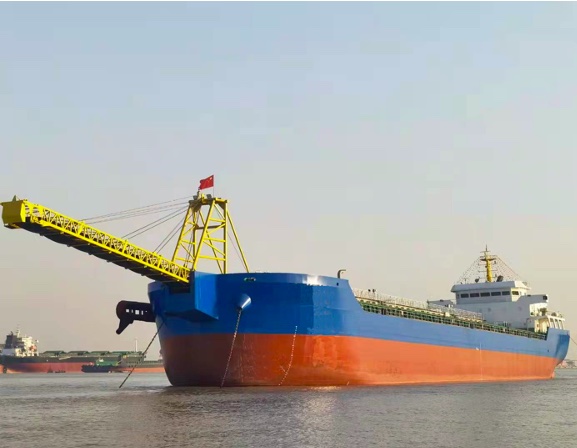

This ship is a steel, single-deck, double-engine double-propeller, diesel-driven stern type self-priming self-unloading sand ship, sailing on the coast. In the navigation area, there are five cargo holds on the whole ship, the first floor is set on the first part, and the three deckhouses are set on the aft deck.

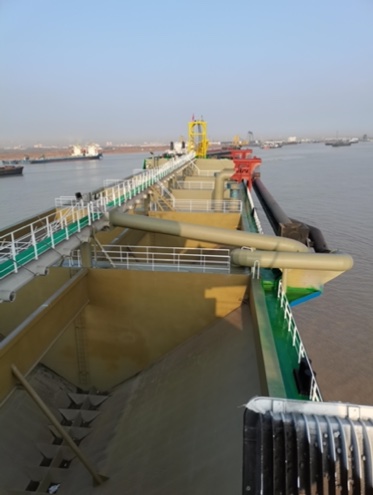

The ship's starboard side is equipped with auxiliary equipment such as sand suction pipelines for collection operations, and is installed in the mid-longitudinal position of the sand cargo area. A sand conveying pipe is arranged on the side, and a walk bridge is arranged above it, and a sand door and a sand and gravel conveying device are arranged at the bottom of the sand tank. This ship is on a belt The conveyor cabin is equipped with a belt conveyor, which passes through a belt transmission device composed of guide rollers and belts. At the gravel collection point Carry out short-distance sand and gravel transfer operations between construction sites.

Navigation area and use

This ship sails on maritime. The cargo to be loaded is dry sand and wet sand. The sand and gravel transported by this ship must be strictly trimmed. until it reaches the bulkhead around the cargo hold. If there is still a serious impact on the stability, then measures such as pressurizing the bag and baffle. The ship is stable meet the requirements of coastal shipping areas. The ship does not sail in ice areas in winter, and does not perform ice reinforcement.

Loading operation and use requirements

1) The specific gravity of sand and gravel loaded on this ship is1.3-1.5t/m3.

2) Automatic drainage and alarm devices are provided in the cargo hold. When the bilge water level exceeds 200mm, at least one drainage pump is to be able to start automatically. When the bilge water level exceeds 300mm, an alarm will be automatically issued in the bridge and engine room, and it can be automatically activated from the bridge and the engine room. Engine room remote start drain pump.

3) Before the sand mining operation, all kinds of sand mining equipment should be inspected, and the cargo hold bilge water system of the ship should be tested, which is in good condition and can be put into use at any time; the liquid level alarm equipment, anchoring equipment, etc., should be in good condition.

4)Before the ship sails, the loaded cargo must be trimmed strictly, and there should be no free liquid surface on the sand surface of the cargo hold. The lifting conveyor belt frame should be firmly tied to the conveyor belt shelf on the forecastle deck under the normal sailing state of the ship.

Class Society: China Classification Society

LOA (including conveyor belt approx.): 140.11m

Waterline Long: 118.95m

Length Between Vertical Lines: 117.20m

Beam: 23m

Depth: 9m

Design Draft: 6.25m

Deck Beam Arch: 300mm

Displacement: 15543.3t

Rib spacing cargo area (650mm), beginning and end (600mm)

Row water quantity about 15543.3t

Load goods quantity about 10734.77t

Certainly member: 14people

Host machine: G6300ZC16B 1471kW

Tooth wheel box: MG49.54 4.5425: 1

Self-sail Main Engine: Ningdong 2 x 1471KW

Conveyor Engine: Man L/V 32/40, 6300KW
Suction Pump: 9800 CBM/per hour

GT: 8124

NT: 4549

Freeboard: 2766mm

Minimum Freeboard: 2728mm

Frame spacing of own ship: 650mm

Hull Material: Steel

Between deck height (at the centerline)

Main deck to living deck: 3m

Living deck to driving deck: 2.80m

Pilot deck to compass deck: 2.80m

Outer Panel

The flat keel of this ship is 14×1800(mm)

The bottom of the ship is12mm

The side shell is12mm

Sheer strake 16mm

Sheer strake in the middle of the ship is 0.5L

Metal doors and windows

Metal Door

External weather tight single steel door to the aft deckhouse from the exposed main deck with a sill height of600mm, living deckhouse. The height of the outer sill is380mm, the height of the sill of the bridge deck is250mm.

Metal Windows

Cab Setup8There are fixed rectangular windows in the cab, and the specific dimensions are shown in the "Metal Door and Window Layout Drawing".

Metal Cover

Main deck setup5steel watertight hatch covers, specification800×800×100, the height of the hoarding 600mm.

Escalator, railing, handrail

Escalator

The outdoor inclined ladders on each deck are700×550, the indoor inclined ladder is700×500, the inclined ladder of the engine room under the main deck is 700×600, Steel inclined ladder, inclined ladder pedals are equipped with anti-skid strips, and are equipped with steel pipe handrails. The width of the steel vertical ladder except for the escape port is400, the width of other steel straight ladders is350.

Railing

The heights around the main deck, living deck, navigation deck and compass deck are1050mmbalustrades, flat steel pillars, round steel handrail.

Armrest

The inside and outside walkways of the ship are equipped with steel pipe wave and storm handrails.

Accommodation

Crew quarters on raised aft deck 4room, third room, three pipe room, kitchen, spare room 3room, living room, bathroom,

Laundry room, CO2 room, storage room, pantry and inner stairway.

The living deck is equipped with chief engineer room and crew room1one, captain's room, chief engineer's room, chief officer's room, second officer's room, toilet, spare room3, battery room, charging and discharging board room and inner stairway.

The driving deck is equipped with cab, toilet and crew room2and inner stairway. compass Deck Set Signal Mast1Root and forecastle deck are equipped with bowmast and windlass equipment. Height of hatch coaming amidships in cargo hold area 1.50Meter.

This ship has3Only240LThickened plastic trash can. Divided into food (green), plastic (red), other ship waste

Garbage (blue)

Outfitting part of the cabin

Living room Single Room for Crew14The room is equipped with a bed, a kitchen, a writing desk, a chair, etc.

High armchair in cab1Handles, key boxes, binoculars boxes and flag boxes, etc.

Machinery Equipment List

Host

No.: 2

Model: G6300ZC16B G6300ZC17B (left and right machine)

Type: Inline, four-stroke, supercharged and intercooled, irreversible marine diesel engine

Number of cylinders: 6

Bore/journey: 300/380mm

Rated power: 1471kW

Rated speed: 600r/min

Fuel consumption: 195+5%

Gearbox

No.: 2

Model: MG49.54

Nominal ratio: 4.5:1

Actual speed ratio: 4.5425:1

Transfer ability: 2.481KW/r/min

Rated thrust: 320KN

Flexible Coupling

No.: 2

Model: HGT4020

Rated torque: 40KNm

Max torque: 100KNm

Host Remote Control

No.: 1

Dual model

Electronic control

Main Diesel

No.: 2

Model: CCFJ250J-W

Diesel Engine

No.: 1

Model: WP12CD317E200

Type: Upright four-stroke, direct injection, water cooling

Continuous power: 276Kw

Rotating speed: 1500RPM

Fuel consumption: 210g/kW.h

Starting method: DC24V

Dynamo

No.: 1

Type: Marine brushless alternator

Model: SB-HW4.D-250

Power: 250Kw

Rotating speed: 1500RPM

Voltage: 400V

Main Diesel Generator Set

No.: 1

Model: CCFJ500J-W

Diesel Engine

No.: 1

Model: SC33W760CF2

Type: Upright four-stroke, direct injection, water cooling

Continuous power: 561Kw

Rotating speed: 1500RPM

Fuel consumption: 210g/kW.h

Starting method: DC24V

Dynamo

No.: 1

Type: Marine brushless alternator

Model: SB-HW4.D-500

Power: 500Kw

Rotating speed: 1500RPM

Voltage: 400V

Frequency: 50Hz

Parking Generator Set

No.: 2

Model: CCFJ100J-W

Unloading Deliver Machine Drive move Diesel Engine

No.: 1

Model: G6300ZC16B

Type: inline, four-stroke, supercharged and intercooled, irreversible marine diesel engine

Number of cylinders: 6

Bore/journey: 300/380mm

rated power: 1471kW

Rated speed: 600r/min

Fuel consumption: 195+5% g/kW.h

Fuel: 0#Light diesel oil

Oil consumption rate :0.8g/kW.h

Start mode: Gas start

Oil pan form: Dry oil pan

Rotation (face to the flywheel end of the main engine): Clockwise

Unloading Firewood Oil Machine and Suck Sand Pump Firewood Oil Machine Remote Control Manipulator

No.: 1 each set

Electronic control

Unloading Deliver Machine Drive move Clutch Reduction Gearbox

No.: 1

Type: clutch reduction gearbox

Model: MG45.49

Nominal ratio: 2.5:1

Actual speed ratio: 2.5510:1

Transfer ability: 3.504KW/r/min

Belt Gear Reducer

No.: 1

Model: A220

Nominal ratio: 3.31:1

Belt Conveyor Deliver Pack Set tie

No.: 1

Active Roller: ∅1600

Main Ancillary

Active Roller: ∅1600

Steering wheel: ∅1600

Tension and steering rollers: ∅420

Conveyor Tape: Width 2000mm

Length: Approx. 250m, it needs to be verified by the actual ship. Groove idler, grooved idler, ∅89

Sand Pump Drive Move Firewood Oil Machine

No.: 1

Model: STX-MAN 14V32/40

Type: Vtype,14Cylinder, 4-stroke, worm Turbocharged, intercooled

Bore x Stroke: 320×400

Fuel consumption rate under calibration conditions: 184g/kW.h(Tolerance+5%)

Continuous power: 6300KW

Rotating speed: 750RPM

Start mode: Air motor start

Sand Pump

No.: 1

Type: Horizontal mud pump

Flow: 9800m3/h

Head: 140m

Suction lift: 8m

Matching coupling

Oil Separation Unit

No.: 1

Model: AY-KYDR203CD-23

Oil separation amount: 900l/h

Slag discharge method: Automatic slag discharge

Heating area: 3.5 m2

Motor Power: 2.2kW

motor model: Y100L1-4-H-B3

Electric system: 380V/50HZ

Oil Drain Pump

No.: 1

Model: KCB-55

Type: electric gear pump

Flow: 3.3 m3/h

Pressure: 0.33MPa

Rotating speed: 1400 r/min

Motor Power: 1.5kW

Fuel Transform Pump

No.: 3

Model: KCB-135

Type: Gear pump

Flow: 8 m3/h

Pressure: 0.33MPa

Rotating speed: 1420 r/min

Motor Power: 2.2kW

Oil Pre-Supply Pump

No.: 3

Model: KCB-55

Type: electric gear pump

Flow: 3.3 m3/h

Pressure: 0.33MPa

Rotating speed: 1400 r/min

Motor Power: 1.5kW

Cabin Ventilator

No.: 2

Type: Marine axial fan

Model: CZ-90B

Air volume: 36000 m3/h

Full pressure: 540Pa

Rotating speed: 1460rpm

Motor Power: 11KW

Emergency Defend Pump Cabin Wind Machine

No.: 1

Type: Marine axial fan

Model: CZ-35B

Air volume: 3000m3/h

Full pressure: 260Pa

Rotating speed: 2920rpm

Motor Power: 0.75kW

Conveyor Belt Assume Prepare Cabin Wind Machine

No.: 1

Type: Marine axial fan

Model: CZ-90B

Air volume: 36000 m3/h

Full pressure: 540Pa

Rotating speed: 1460rpm

Motor Power: 11KW

Sand Suction Pump Room Fan

No.: 1

Type: marine axial fan

Model: CZ-120B

Air volume: 90000 m3/h

Full ressure: 350Pa

Rotating speed: 920rpm

Motor Power:18.5KW

Mud Pump Room Fan

No.: 1

Type: marine axial fan

model:CZ-50B

Air volume:9000m3/h

Full pressure:590Pa

Rotating speed:2920rpm

Motor Power:2.2kW

CO2 Room Fan

No.: 1

Type: Marine Small Axial Fan

Model: CWZ-200D-II

Air volume: 450 m3/h

Full pressure: 35Pa

Rotating speed: 1400rpm

Motor Power: 0.06KW

Hydraulic Steering Gear

No.: 1

Model: Fork type hydraulic steering gear

Nominal moment: 200KN.m

Steering time: 28s

Rotation angle: ±35°

Motor Power:11KWx2 match 2electric oil pump

Air Compressor Unit

No.: 6

Model: WF-0.6/3

Vertical: air-cooled

Pressure: 3.0Mpa

Displacement: 36m3/h×3.0 Mpa

Motor Power: 7.5 KW

Start the air bottle

No.: 4

Capacity × indenter: 500L×3.0MPa

Miscellaneous air bottle

No.: 1

Capacity × indenter: 100L×1.0MPa

Bilge, Fire main pump

No.: 2

Type: Vertical centrifugal pump (with self-priming)

Model: CISG200-400

Flow: 260m3/h

Rotating speed: 1480r/min

Head: 56m

Motor Power: 45KW

Ballast pump

No.: 2

Type: Vertical self-priming centrifugal pump

Model: CISG200-250(I)

Flow: 400m3/h

Rotating speed: 1450r/min

Head: 20m

Motor Power: 30KW

Emergency Fire Pump

No.: 1

Type: Marine emergency fire pump

Model: 80CBZ-55

Flow: 60m3/h

Head: 55m

Diesel engine power: 20KW

Independent Diesel: Engine Drive

Cargo Hold Bilge Pump

No.: 4

Type: Horizontal self-priming mud pump

Model: ZW300-900

Flow: 900m3/h

Head: 15m

Motor Power: 55KW

Domestic Sewage Pump

No.: 1

Type: Marine crushing pump

Model: CF5-10

Flow: 5m3/h

Rotating speed: 2900r/min

Head: 0.1 Mpa

Motor Power: 1.1kW

Manual order rail OK car and gourd

No.: 2

SDX-1Specification

0.99T×4.0Meter

Bench drill press

No.: 1

Model: Z512-2

Type: Desktop

Maximum drilling: φ12mm

Motor Power: 0.75KW

Grinder

No.: 1

SIST-200

2800 change/Minute

Power: 0.5KW

Vise

No.: 1

150mm

Dioxide carbon extinguish fire Pack set

No.: 1

35bottle

68L

CO2 cylinder

Hose

Release valve

Check valve

Nozzle

Interlock switch

Match 3release control box

Firefighting equipment in engine room and belt conveyor equipment room

20LPortable Foam Sprayer

No.: 3

PQ8C

45 L push foam fire extinguisher

No.: 5

Portable Bubble foam extinguish fire device

No.: 7

MPZ9 9L

Portable Dry pink extinguish fire device

No.: 7

6 kg

Emergency escape pregnancy call Suck Pack set

No.: 4

Silencer

Host VTJZ-600: 1

Moored generator VTJZ-100: 2

Engine room generator VTJZ-150: 2

Engine room generator VTJZ-250: 1

Belt Conveyor Diesel Engine VTJZ-300: 1

Emergency bilge pump VTJZ-100: 2

Sand suction pump diesel engine VTJZ-1000: 1

Equipment

Anchor Settings

Head Anchor: Speck anchor 2 only, each anchor weighs 3780kg

First Anchor Chain: CCS3Class φ48Welded anchor chain with gear2root, total length522.5m

First Windlass: φ48Hydraulic anchor mooring combination machine2Table; with cast steel knife chain stopper2Only the guide rollers 2 Only

Towing Mooring Equipment

42mmGalvanized steel wire rope: 200m×1root, breaking force827kN;

52mmPolypropylene rope: 180m×4root, breaking load325KN;

A400with bollard:12Only;

Rudder and Steering Gear

Rudder

The ship adopts double fulcrum streamline balance rudder supported by rudder bracket.

Rudder blade area A 9.30 m2

Number of rudders 2

Aspect ratio e1.644

Balance ratio â0.278

Servo

Selected by this ship 200KN-mOne plunger type electro-hydraulic steering gear;

Tiller

The diameter of this ship's rudder stock is 240mm (below the lower rudder bearing),210mm (at tiller), choose marine # 25Forged steel

Safety Equipment

Lifesaving Equipment

The life-saving equipment is in accordance with the "Statutory Inspection Rules for Ships and Offshore Installations" of the Maritime Safety Administration of the People's Republic of China (Domestic Navigation Sea Ship Law

Life raft living deck port and starboard

2 Only 15Popular inflatable self-righting life raft.

Forecastle deck1Only6Popular inflatable life raft.

Life jackets and buoys

The whole ship is equipped with lifebuoy10, respectively arranged on: forecastle deck2indivual(with self-illuminating light1), living deck4indivual (with lifeline2one, with self-illuminating light2), driving deck4indivual(with lights and smoke signal2), with the whole ship life jacket twenty fourpieces, immersion thermal clothing16pieces.

Rope throwing equipment

The whole ship is equipped with throwing rope4equipment (including rope throwing guns)1Supports, throwing ropes, rocket bodies and triggers 4 Only)

Fire Equipment

The whole ship is equipped with water fire extinguishing system and carbon dioxide system.

Navigation Equipment

Pyrotechnic Signal Equipment

Whole ship configuration 12An approved rocket parachute flame signal.

The whole ship is equipped with emergency escape breathing apparatus10Sets (one with accessories and one for training

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.

NEW 15000t 3-in-1 Sand Carrier Dredgers

Listing ID - 4177
