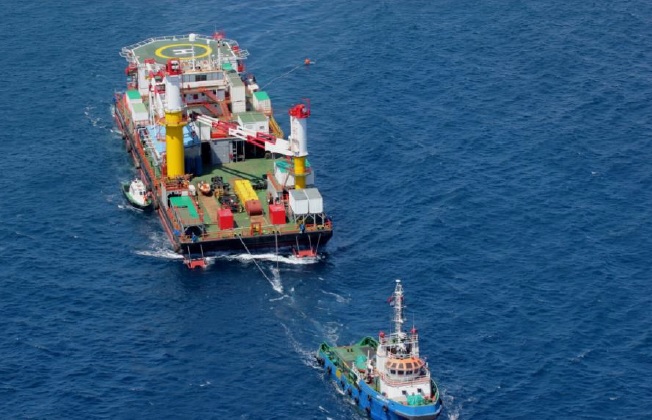

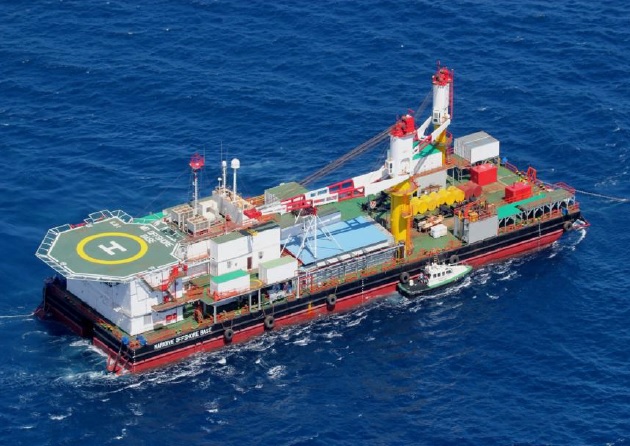

Type Construction /Work /Accommodation Barge.
Flag Belize.
Signal Call Sign:V3XG2
Year of Build Re-built in 2009 and in 2014/2015.
Classes Obtained BUREAU VERITAS

BARGE MAIN DIMENSIONS
Length overall 87.99m
Width overall 27.43m
Depth 6.10m
Draught 2.26m
Gross tonnage 5478
Net tonnage 1643

BARGE CAPACITIES
Free deck area 750 m2
Deck strength 10 ton/m2
Fuel oil 400m3
Fresh water 1600m3
POTABLE WATER MAKER 2 X 60 tons / day Reverse osmosis water makers.

MOORING SYSTEM
8 point mooring system
1500M x 38mm wire, 60T Pulling Forward Winches.
1500M x 38mm wire, 40T Pulling Aft Winches

HANDLING – LIFTING
The barge is equipped with two (2) fixed pedestal mounted crane with lifting capacity of
Main Crane 40 tons@ 28 meters radius
Secondary Crane 10 tons @ 28 meters radius
15 tons @ 22 meters radius

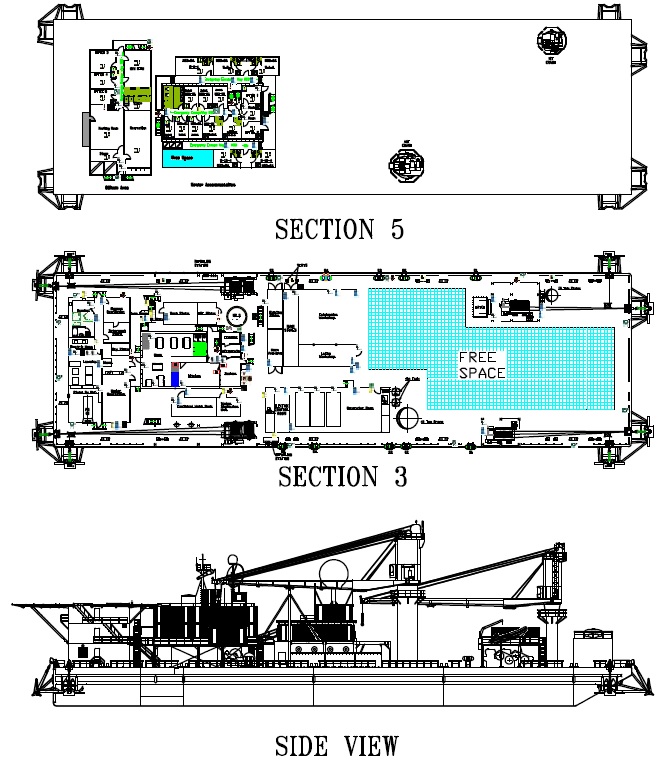

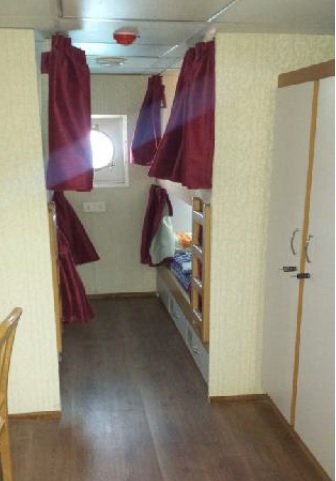

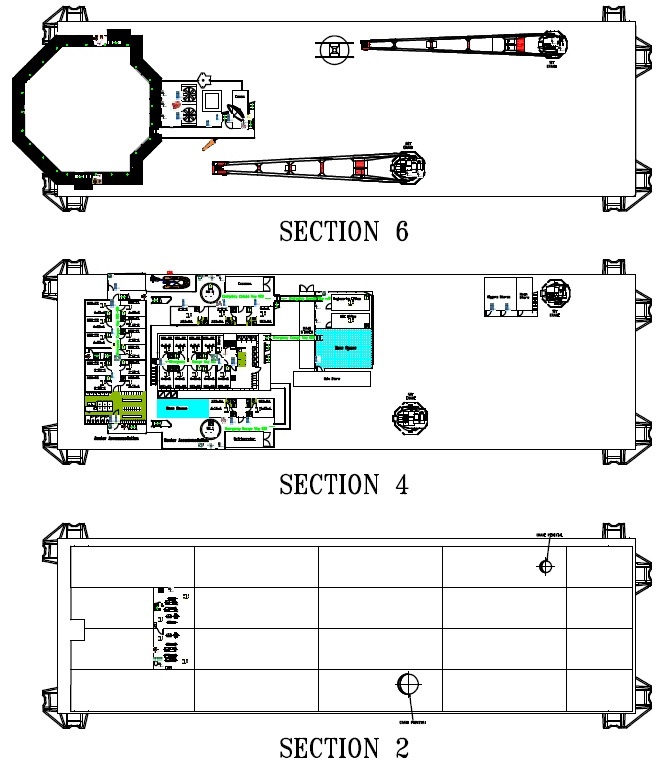

BARGE ACCOMMODATION CAPACITY

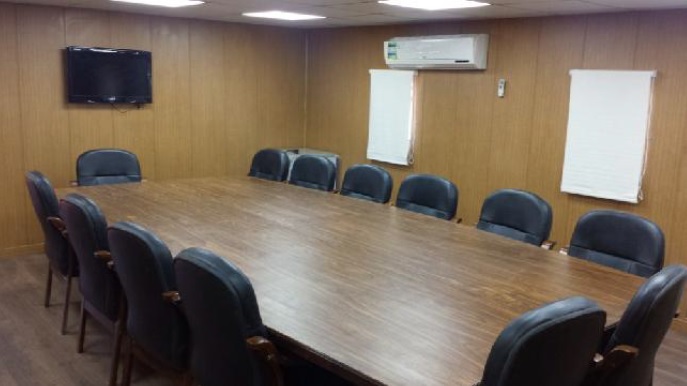

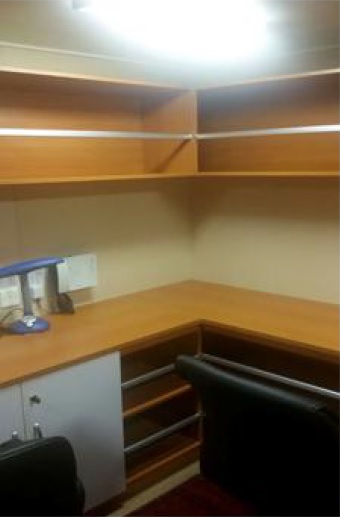

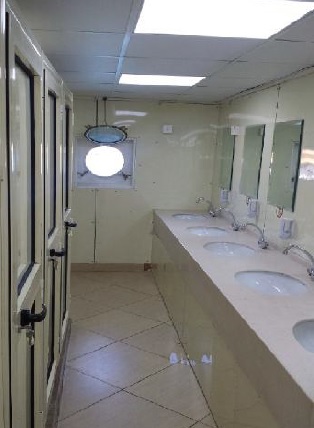

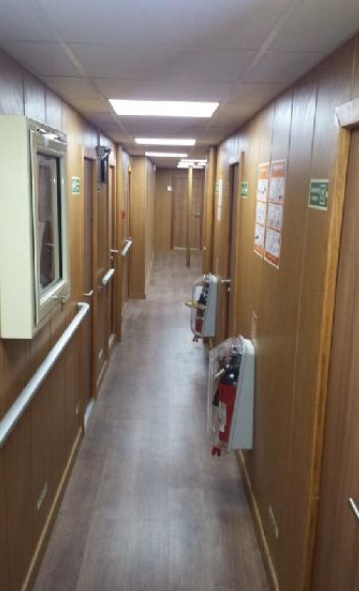

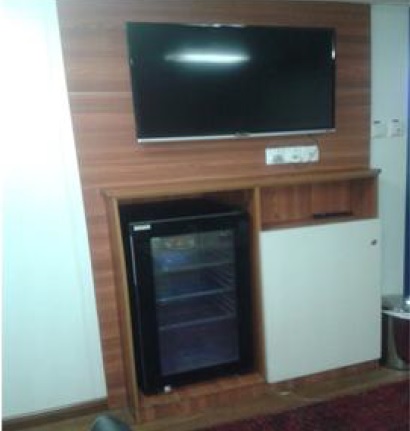

Barge is equipped to provide accommodation for 120 persons (As per attached pictures)
Level 5 has 36 persons
Level 4 has 78 persons
Level 3 has 6 persons

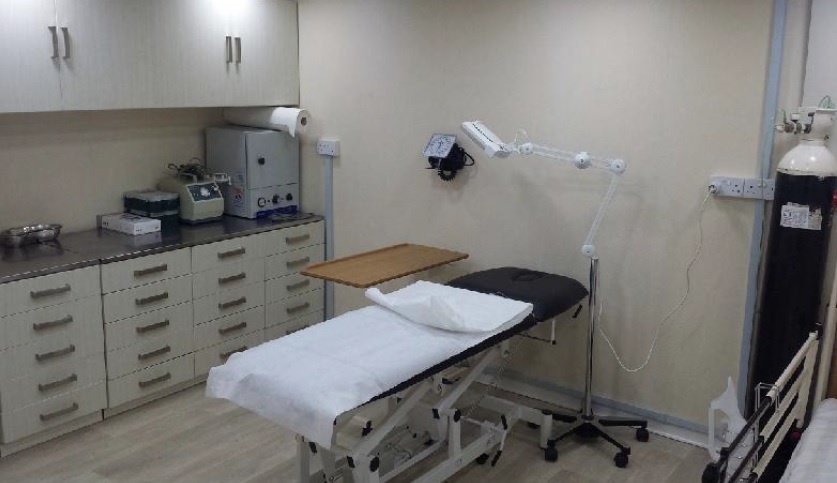

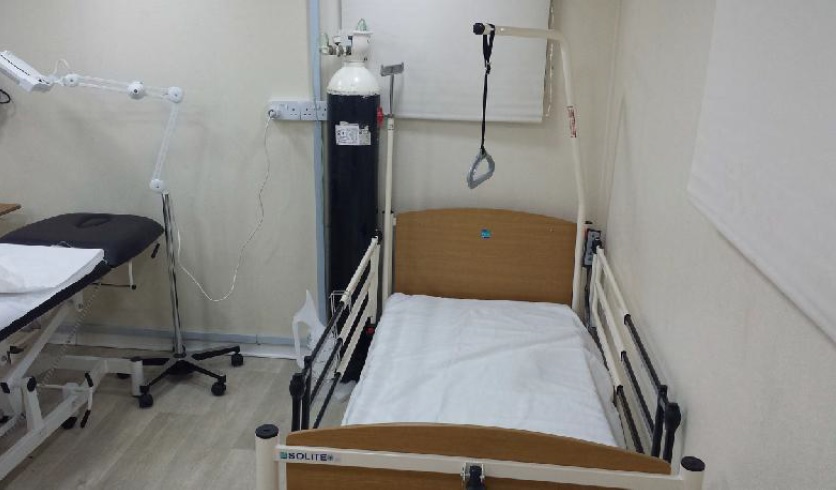

HOSPITAL
A well-furnished as per advanced life support & first Aid standard

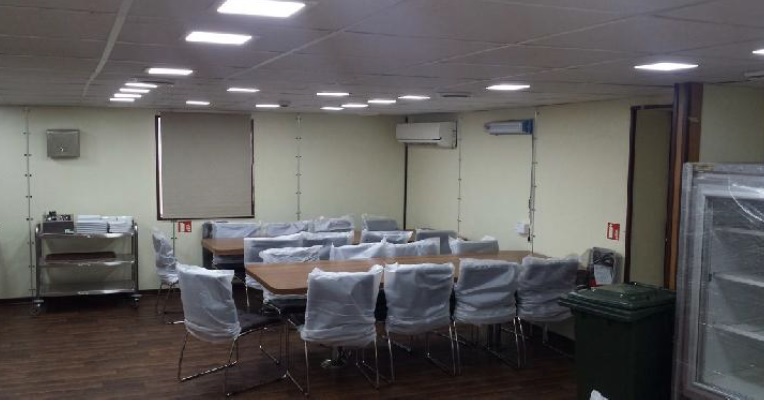

Mess
Rebuild 2014/2015 as per attached photos

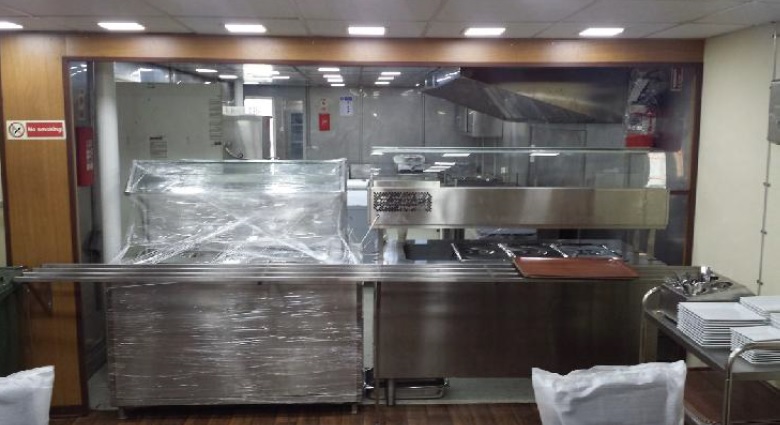

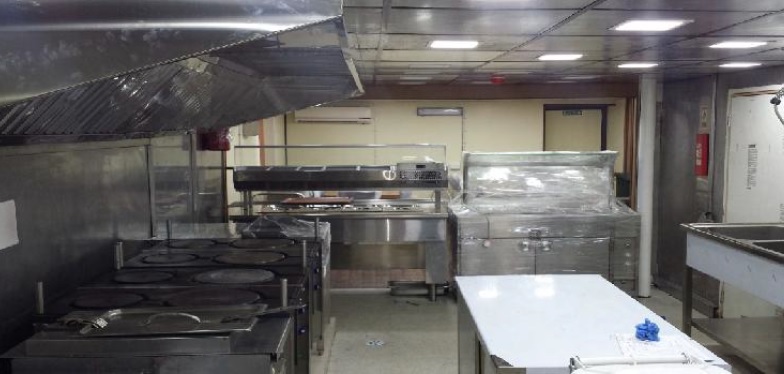

Galley
Rebuild 2014/2015 as per attached photos

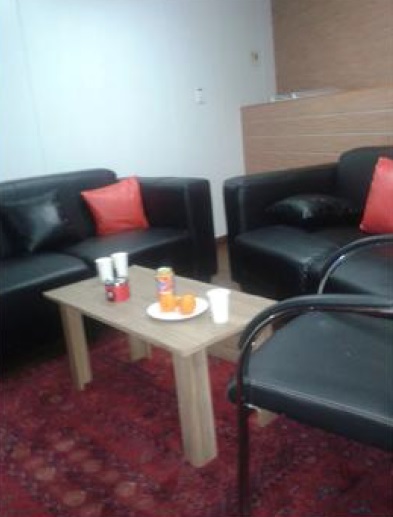

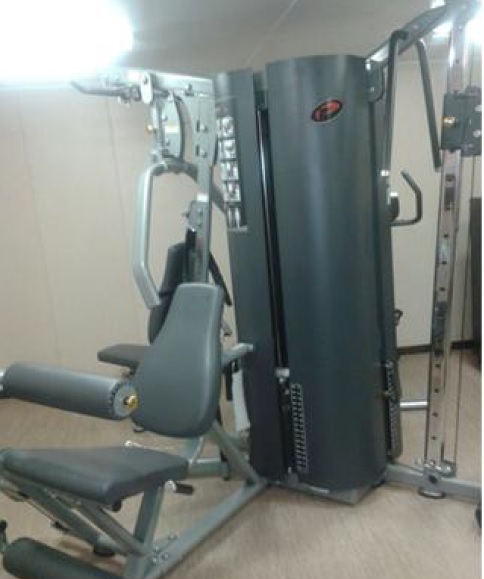

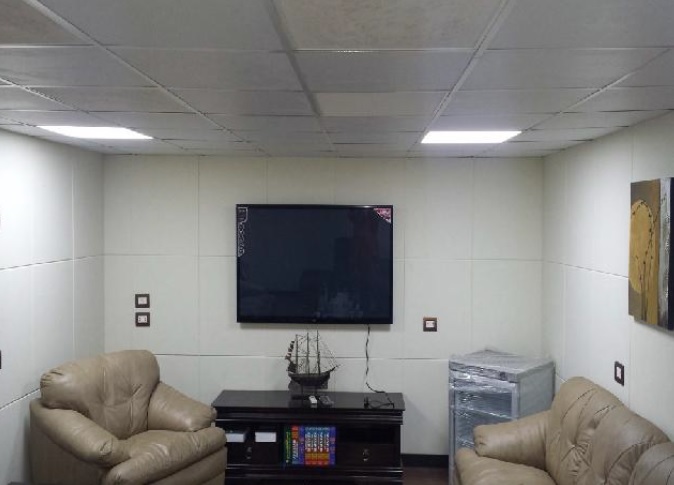

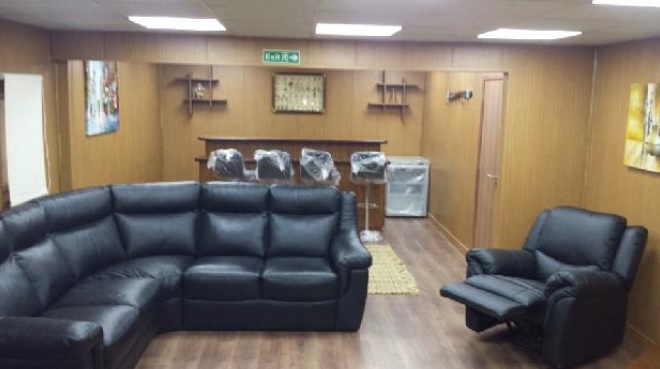

Gym and recreation rooms
Rebuild 2014/2015 as per attached photos

Heli Deck
CERTIFIED FOR MINIMUM 6.8 TONS

Fire fighting system
Barge is equipped by FiFi I system

Generators
3 X 1000 KVA CAT Model 3512 generators (including brand new one).
1 X 500 KVA CAT Model 3412 stand-by generator.

Work Area
Repair shop 23m2
Covered Fabrication Shop 78 m2
Open Deck Area 750 m2
Machine Shop 31 m2
Deck Stores 104 m2
Below Deck Storage Tank 19 – 280 m2
Below Deck Storage Tank 5 – 140 m2

RADIO , NAVIGATION & SPECIAL EQUIPMENT
TX/RX MF/HF SKANTI
(2)VHF SAILOR
VHF JORTON
GMDSS VHF3PCS NAVICO
GPS FURUNO
NAVTEX FURUNO
Rader FURUNO
E.P.I.R.B JORTON
SART (2PCS) JORTON

LIFE SAVING EQUIPMENT
Life rafts –capacity for 220 persons (Class approved)

RESCUE BOAT
1 (Class approved)
