Listing ID - 4061 | |
---|---|

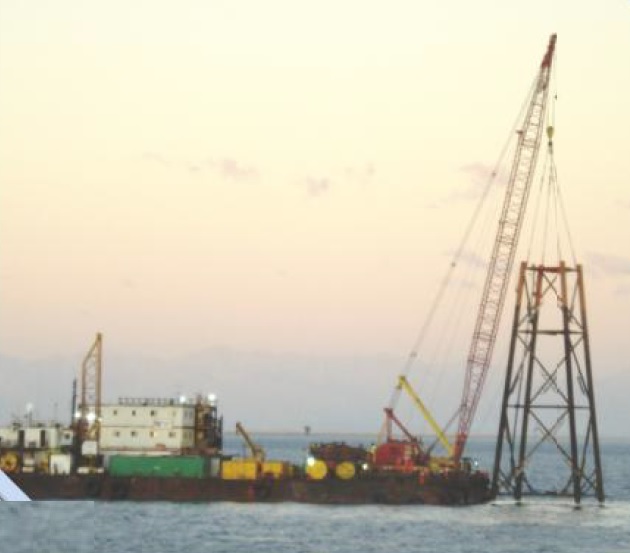

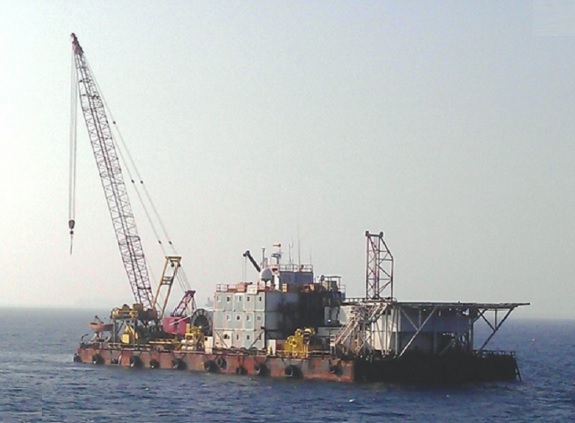

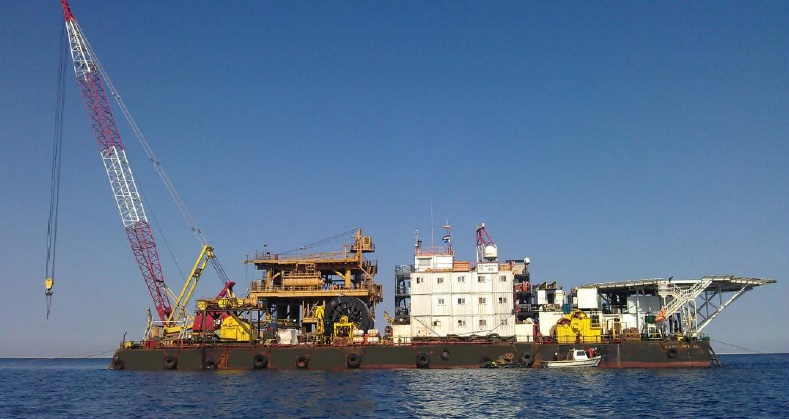

Description | 81m Construction / Crane Barge |
Date Launched | Refurbished: 2009 |
Length | 81m (265ft 8in) |
Beam | 27.8m (91ft 2in) |
Draft | 2.4m (7ft 10in) |
Location | Central America |
Broker | Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323 |
Price Notes | For Charter Only |
View As PDF |
Type: Floating crane barge
Flag: Belize
Call sign: V3MK8
Registration #: 7952011
Refurbished: 2009
Class: DNV-GL 100 A5 (#91580)
Main Particulars
Length overall: 81 m
LBP: 70 m
Breadth: 27.8 m
Depth: 4.32 m
Light draft: 1.15 m
Max. draft: 2.4 m
Tonnage
Gross tonnage: 2291 mT
Net tonnage: 688 mT
Light weight: 2228 mT
Dead weight: 2452 mT
Displacement: 4092 mT
Communication & positioning
VSAT system with broad band internet
including telephone & fax.
VHF
GMDSS
Gyro compass

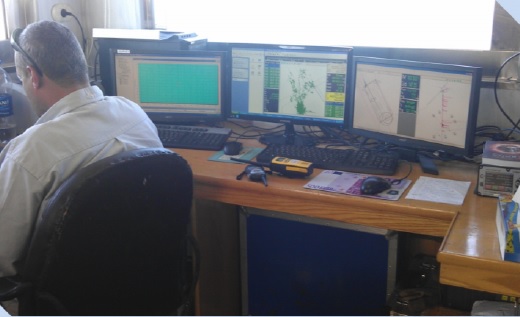

Barge-tug management system (NaviPAC)
Capacities

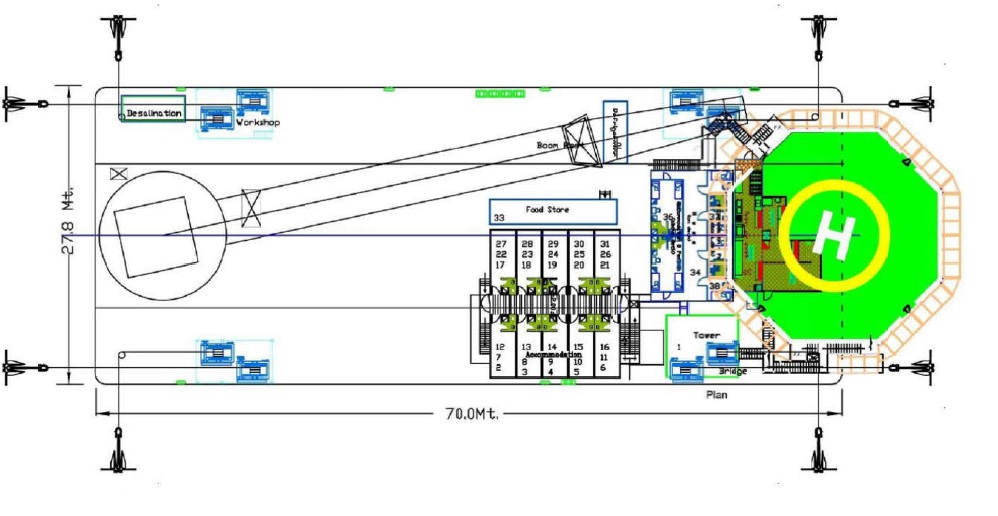

Free deck space 450 m2
Deck cargo 1500 mT
Deck strength 10 ton/m2
Fresh water 470 m3
Fuel oil 90 m3
Water maker 20 m3/day
Ballast water 768 m3
Accommodation & facilitates
Fully air conditioned above deck accommodation for 80 POB
Fully air conditioned below deck accommodation for 54 POB (crew)
Fully equipped office for client use
Fully equipped galley, walk in chillers & freezers
Mess room can serve up to 60 persons at once
Recreation rooms for crew and client personnel
Clinic
Fully equipped clinic to serve the POB with resident nurse
Laundry
Dryers X 3
Washing machines X 4
Mechanical & electrical work shops

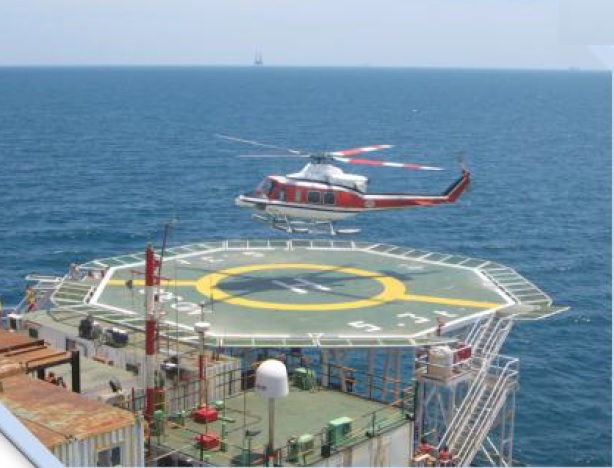

Helideck
Area: 400 m2
D value: 17
Suitable for: Bell 412 or equivalent
Code: ICAO
Certifying authority: ECAA
License #: 219/2011

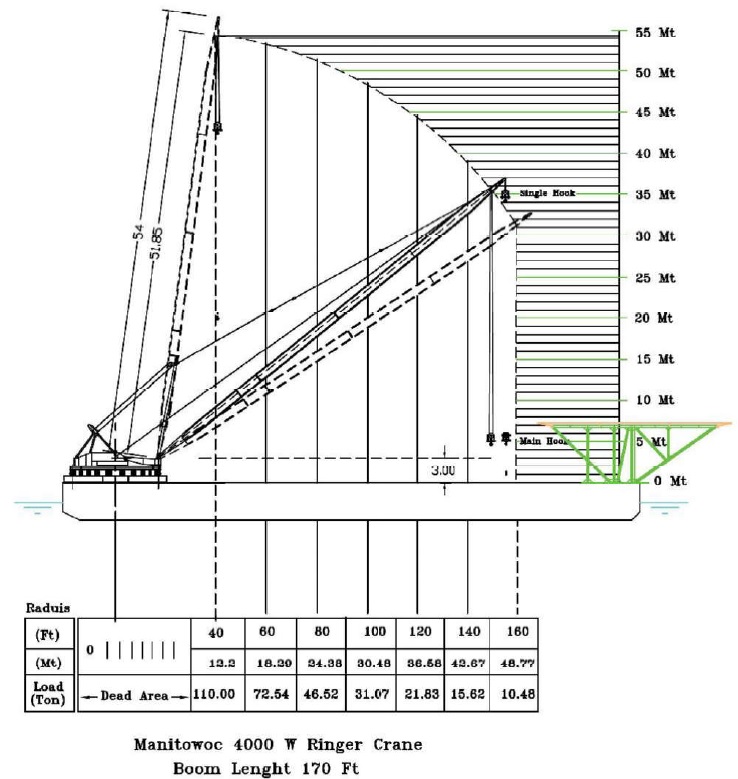

Main Crane
Maker: Manitowoc
Model: 4000 W ringer type
Boom length: 170 feet (51.8 m)
Capacity: 110 mT@ 40 feet (12.19 m); 10.48 mT@ 160 feet (48.7m)
Certification: DNV-GL
Mobile crane: 20 mT SWL
Safety & lifesaving Equipment
Life Jackets: 141
Life Rafts: 8*25 (150%)
FRC: 1*7m Diesel Jet Boat
Man Over Board: 2
Hand Flare: 6
Line Throw: 4
Rocket Parachute: 12
Smoke Signals: 4
Work Vest: 66
Mooring equipment
Mooring system: 8 point
Mooring winches: 4 X 4 double drum
Mooring wires: ? 38 mm (6 X36 strands)
Length: 1000 m each
Anchors: D'hone (HHP) 6 mT each
Parking anchor: 2.25 mT anchor+ spare
Machinery
Generators: 3 X diesel generators
Maker: Caterpillar
Power: 500 KVA
Volts: 380 volts
Frequency: 50 Hz
Air compressors: 2 X 7 bars (350CFM); 1 X 10 bars (500 CFM)
