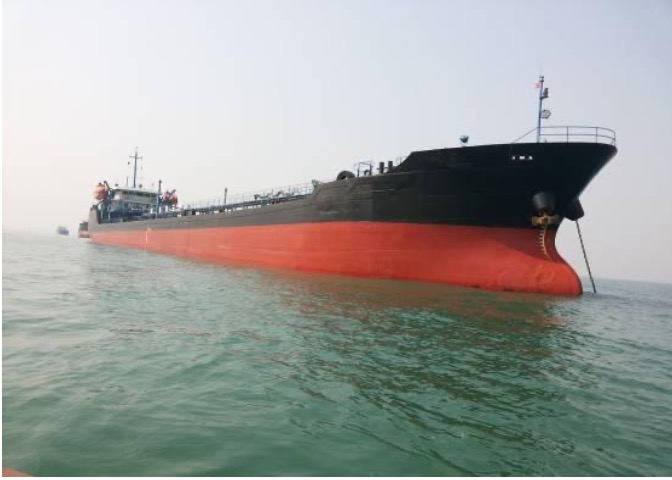

5400 cubic meter (m3) Oil Tanker

Listing ID - 2277
Description	5400 cubic meter (m3) Oil Tanker
Date Launched	2004
Length	105.22m
Beam	15m (49ft 2in)
Location	China
Broker	Franklin Taylor
Price	USD 2.4 million
View As PDF

Type of vessel: Oil Tanker (flash point≤60°C)

Date of emplacing keel: December 22, 2003

Date of construction: November 01, 2004

Date of rebuilt: May 31, 2009

LOA: 105.22m

Length: 100.10m

Length of Waterline: 102.18m

Breadth: 15m

Depth: 6m

Light draught: 1.461m

Full-load draught: 4.800m

Full-load displacement: 6544.961 t

Light displacement: 1644.961 t

Reference weight of loading cargo: 4900 t

Navigation area: Coastal Waters

Business area: A1+A2

Hull material: Steel

Deck material: Steel

Number of deck layers: 1

No. of transverse compartment’s bulkhead: 15

Location of double-deck: 23# - 169# cargo oil tanks, slop tank area

Type of structure: framework in longitudinal and transverse

Tanks quantity: 16

Hatch type: airtight

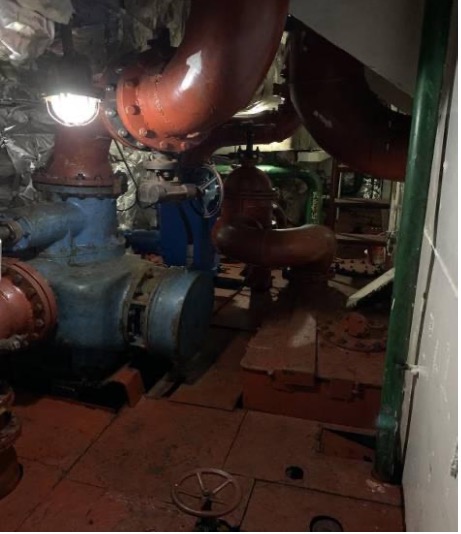

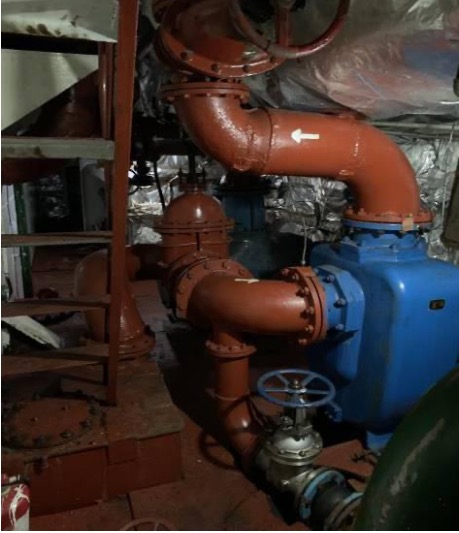

Location of taking in water: Doorsill of the pump tank

Insubmersibility: one compartment

ANCHOR

Right bow anchor: Hall anchor, 1740.00kg

Left bow anchor: Hall anchor, 1740.00kg

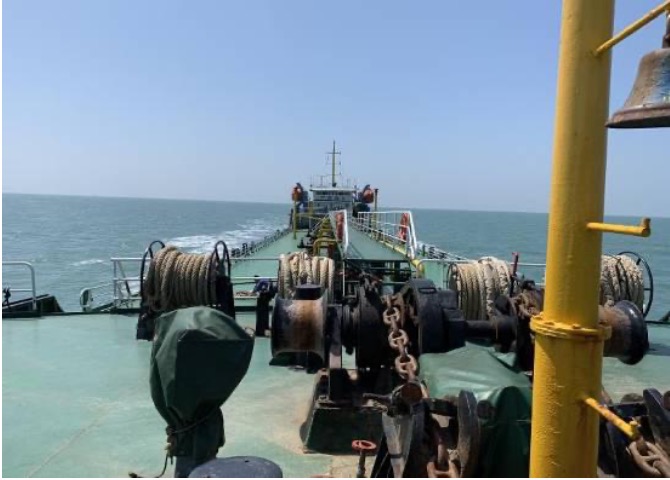

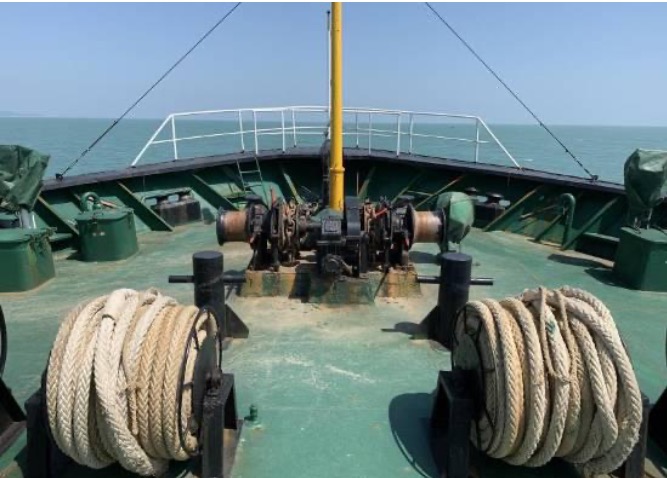

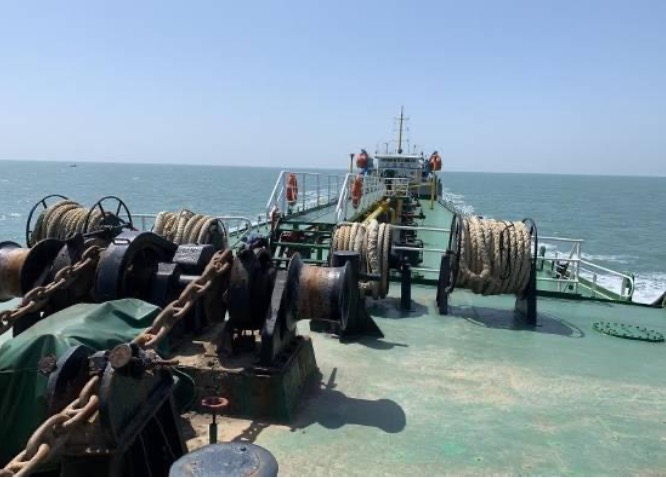

ANCHOR WINDLASS

Bow anchor windlass: DMA-34, 16.00kw, Xinde machinery factory

ANCHOR CHAIN

Right bow: 36mm, 220m, AM2-stud chain, CCS AM2

Left bow: 36mm, 220m, AM2-stud chain, CCS AM2

RUDDER

Left Rudder: Streamline Rudder, 6.92m2, 190mm, 35# steel

Right Rudder: Streamline Rudder, 6.92m2, 190mm, 35# steel

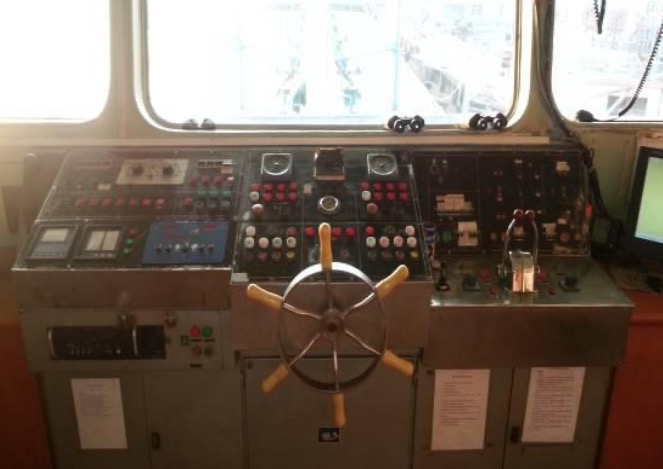

MAIN STEERING MECHANISM

Stern Rudder engine: Vickers, 80KN.m, Aidi Technology co.,

LIFE-SAVING EQUIPMENT

Lifeboat

1 x Life raft

15 x Life vest

5 x Life ring

4 x Slinging ropes

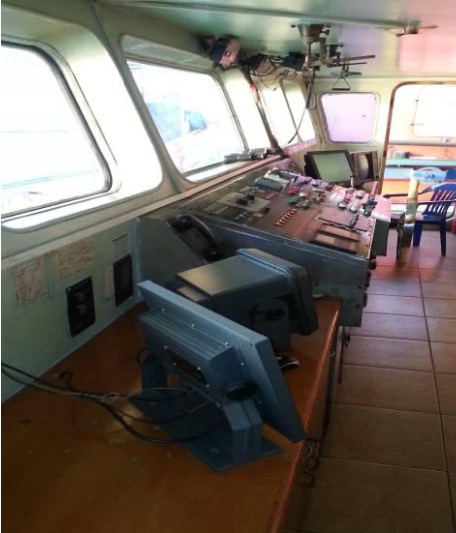

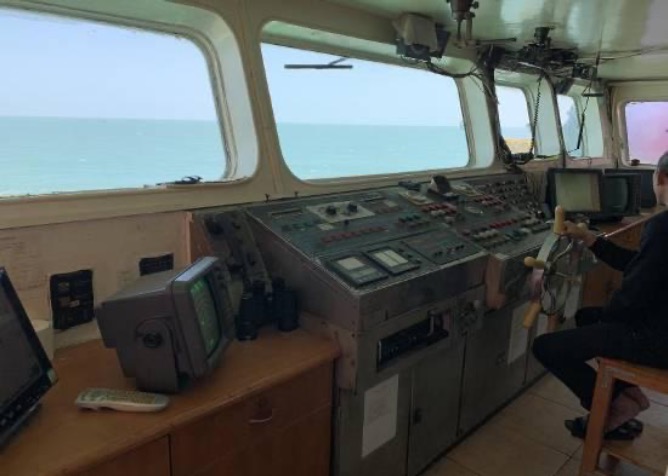

NAVIGATIONAL EQUIPMENT / SIGNAL EQUIPMENT

1 x Steering magnetic compass

1 x GPS

1 x Radar

1 x AIS

1 x Echo Sounder

1 x Standard magnetic compass

1 x Hooter

1 x Red flag

6 x All-around light

1 x Stern mast lamp

1 x Bow mast lamp

1 x Stern flag

1 x Hand flag

2 Sidelight

1 x Signal flag

3 x Signal ball

1 x Signal clock

1 x Int’l flag

4 x national flag

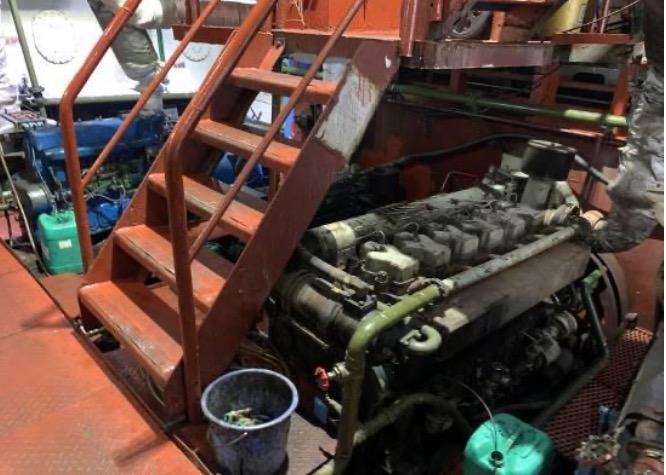

ENGINE

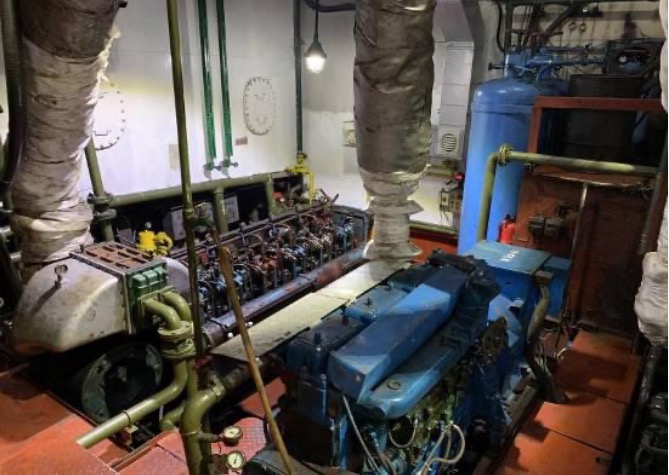

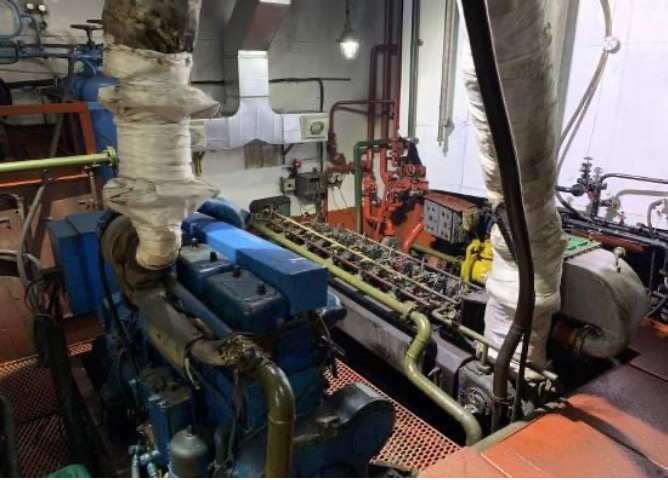

Main Engine: 6300ZLCZA, Diesel engine, 551Kw, 500 r/min, Zibo diesel engine Co., Ltd

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
