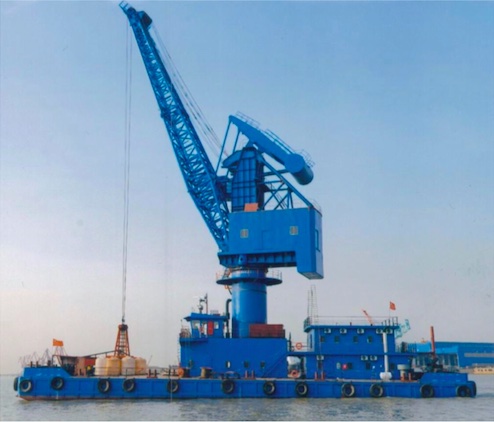

50.80m Floating Crane Vessel


Listing ID - 3936


Description50.80m Floating Crane Vessel
Date Launched
2020
Length50.80m (166ft 8in)
Beam19.80m (64ft 11in)
Draft1.414m (4ft 7in)
Note1536t
LocationChina
BrokerFranklin Taylor
franklin.taylor@seaboatsbrokers.com
+64 27 276 5383
PriceUSD 3.22 million
View As PDF

Type of Vessel: Floating Crane Vessel
Date of Keel: July 28, 2019
Date of Construction: Mar 25, 2020
Builders: Taizhou Zhetai Shipbuilding Factory
Navigation Area: Coastal
Self-sail main engine 1000hp + 1000hp Yuchai

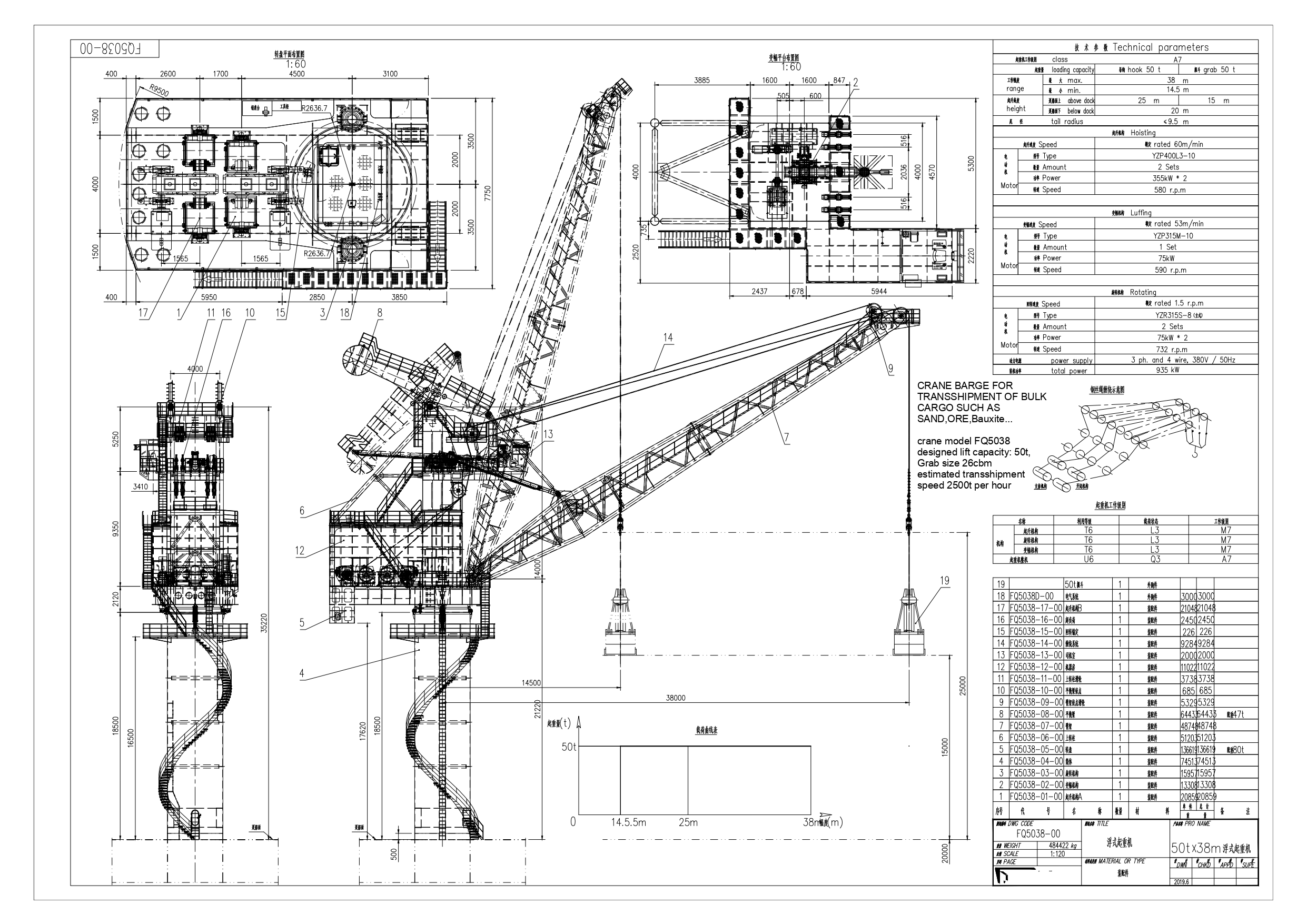

Crane Model: FQ5038
Designed Lift Capacity
Grab size 26 cbm
Estimated Transshipment Speed 2500t per hour

LOA: 50.80m
Length: 48.10m
Length of Full Loading Waterline: 48.90m
Breadth: 19.80m
Depth: 3.60m
Light Draught: 1.414m
Full-load Draught: 1.700m
Full-load Displacement: 1536t
Light Displacement: 1271t
Gross Tonnage: 1438T
Net Tonnage: 431T

Operation Area: A1+A2
Hull Material: Steel
Deck Material: Steel
No. of Deck: 1
No. of Watertight Bulkhead: 5

Anchor Equipment
Anchor
No.1: Bow Anchor
Type: Speke Anchor
Weight (kg): 2460

No.2: Bow Anchor
Type: Speke Anchor
Weight (kg): 2460

Anchor Windlass
Name: Right stern anchoring winch
Type: YJ-50
Power (kw): 22
Builder: XINGHUA BOPING SHIP MACHINERY CO. LTD

Name: Right stern anchor windlass
Type: YM36-2-45
Power (kw): 18.50
Builder: XINGHUA BOPING SHIP MACHINERY CO. LTD

Name: Left Bow anchoring winch
Type: YJ-50
Power (kw): 22
Builder: XINGHUA BOPING SHIP MACHINERY CO. LTD

Name: Left Bow anchor windlass
Type: YM36-2-45
Power (kw): 18.50
Builder: XINGHUA BOPING SHIP MACHINERY CO. LTD

Anchor Chain
Name: Right Bow anchor chain
Diameter (mm): 36
Length (m): 192.50
Material: Steel

Name: Left bow anchor chain
Diameter (mm): 36
Length (m): 220
Material: Steel

Rudder Equipment
Number of Rudder: 2
Type of the Main Steering: Mechanical hydraulic

Right Steer
Area m2: 2.48
Rudder Diameter (m): 140
Rudder Material: 25#

Left Steer
Area m2: 2.48
Rudder Diameter: 140
Rudder Material: 25#

Main Steer Equipment
Name: Main Steering Machine
Model: DYA-63/28S
Torque (KN.M): 63
Manufacturer: XINGHUA BOPING SHIP MACHINERY CO. LTD

Fire-fighting Equipment
Fire Hydrant: 7
Water Gun: 7
Fireproof Control Diagram Placement: Deck
Fire Extinguisher: 28
Portable Foam Gun: 2
Fireman Outfits: 1
Barrel: 4
Ax: 2
Sand Box: 4

Water fire extinguishing system
Fire Pump Type: Main fire pump
Model: 80CWZ-9.9
Displacement (): 60
Head (MPa): 0.42
Quantity: 2
Position of Installation: Engine Room

Fire Pump Type: Emergency
Model: 65CW40
Displacement (): 30
Head (MPa): 0.40
Quantity: 1
Position of Installation: Emergency Fire Pump room

Other fixed fire extinguishing system fire extinguishing agent container
Fire extinguishing container volume (m³): 0.068
Hydrostatic test pressure (MPa): 24.50
Quantity: 10

Fire Detection Alarm
Name: Quantity
Temperature Detector: 9
Smoke Detector: 8
Universal Alarm: 11

Life-saving Equipment
Total number of Crew: 15
Life Jacket: 15
Life Raft: 15
Lifebuoy: 15

Navigation Equipment
All equipped
GPS
Search Light
Radar
Compass
Clock
AIS
Probe hammer
Magnetic compass
Rudder Angle indicator
Echo sounder
Tilt indicator
Telescope
Searchlight
Propeller indicator

Part of Engine
Self-sail Main Engine: 1000HP + 1000HP Yuchai
Nos.: 2
Type: Diesel engine
Date of Manufacturing: 2019
Builder: Yuchai
Oil-water separator equipped
Domestic sewage treatment unit equipped

Gear Box
Rated Transmission Capacity: 0.44000
Reduction Ratio: 5.5:1

Shafting
Propeller Shaft
Diameter (mm): 185
Material: 35#
Quantity: 2

Intermediate Shaft
Diameter (mm): 170
Material: 35#
Quantity: 2

Propeller
Left Propeller
Diameter (mm): Fixed
Material: Cast Steel
Diameter (mm): 2000

Right Propeller
Diameter (mm): Fixed
Material: Cast Steel
Diameter (mm): 2000

Air Bottle
Left Propeller
Capacity (m3): 0.25
Quantity: 1
Usage: Auxiliary startup
Design Pressure (MPa): 3.30
Work Pressure (MPa): 3
Hydrostatic Test Pressure (MPa): 4.95
Maker: Shandong Haomai Machinery Manufacturing Co. ltd
Make Year: May 2019

Capacity (m3): 0.10
Quantity: 1
Usage: Miscellaneous
Design Pressure (MPa): 3.30
Work Pressure (MPa): 3
Hydrostatic Test Pressure (MPa): 4.95


Generator Equipment
No.1 Generating Set
Quantity: 1
Rated Power (kw): 1250
Rated Speed (r/min): 1000
Current: AC 2255.00A
Rated Voltage (V): 400
Type of Motive Machine: CW6250ZLD
Quantity: 1
Rated Power (kw): 1470
Rated Speed (r/min): 1000
Type of main power distribution board: Vertical
No. of distribution board screen: 1

No.2 Generating Set
Quantity: 1
Rated Power (kw): 50
Rated Speed (r/min): 1500
Current: AC 90.20A
Rated Voltage (V): 400
Type of Motive Machine: VR4105ZCD2
Quantity: 1
Rated Power (kw): 58
Rated Speed (r/min): 1500
No. of distribution board screen: 2
No.3 Generating Set
Quantity: 1
Rated Power (kw): 75
Rated Speed (r/min): 1500
Current: AC 135.30A
Rated Voltage (V): 400
Type of Motive Machine: WR6105ZLCD1
Quantity: 1
Rated Power (kw): 88
Rated Speed (r/min): 1500
Type of main power distribution board: Vertical
No. of distribution board screen: 2

Radio Equipment
VHF Radiotelephone
Model: FT-805
Type of Working: G2B
No. of Equipment: 190603232
Output Power: 25
Frequency Range (Channel): T:156.025-157.425,R 156.025-163. 275MHz
DSC Model: Built-in

MF/HF
Model: FT-7500
Type of Working: J3E, H3E, F1B
No. of Equipment: 182100418
Output Power: 150
Frequency Range (Channel): T: 1.605-27.5, R 0.5-29.9999MHz
DSC Model: Built-in

Other Equipment
Navtex receiver
Emergency position indicating radio beacon
Search and rescue radar transponder



The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
