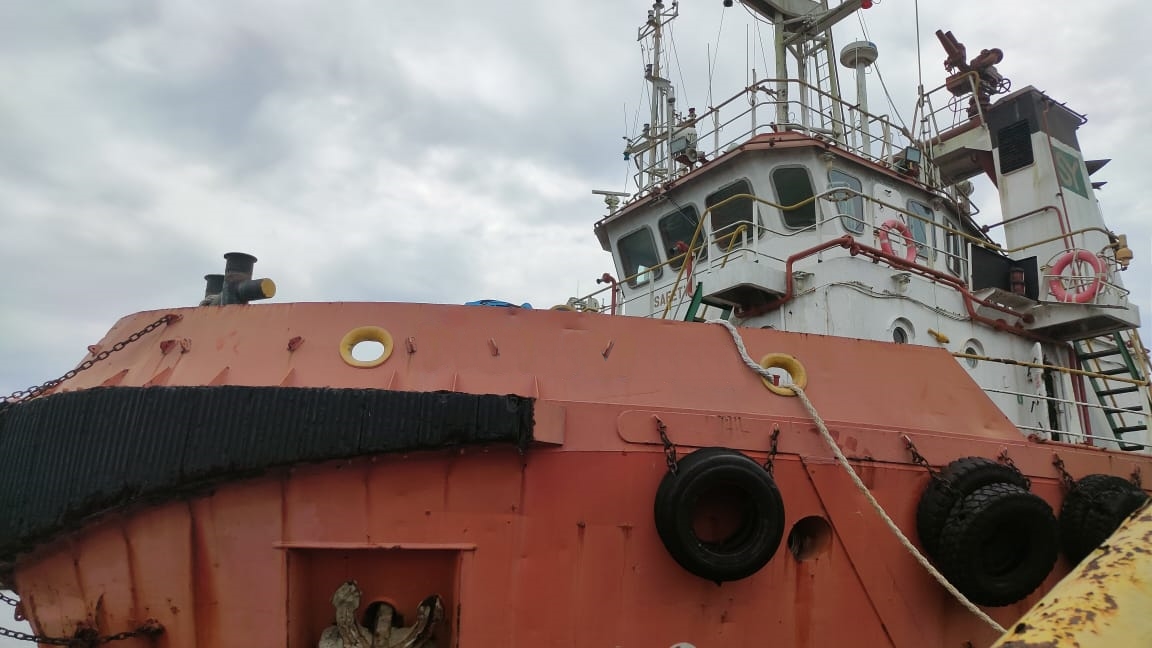

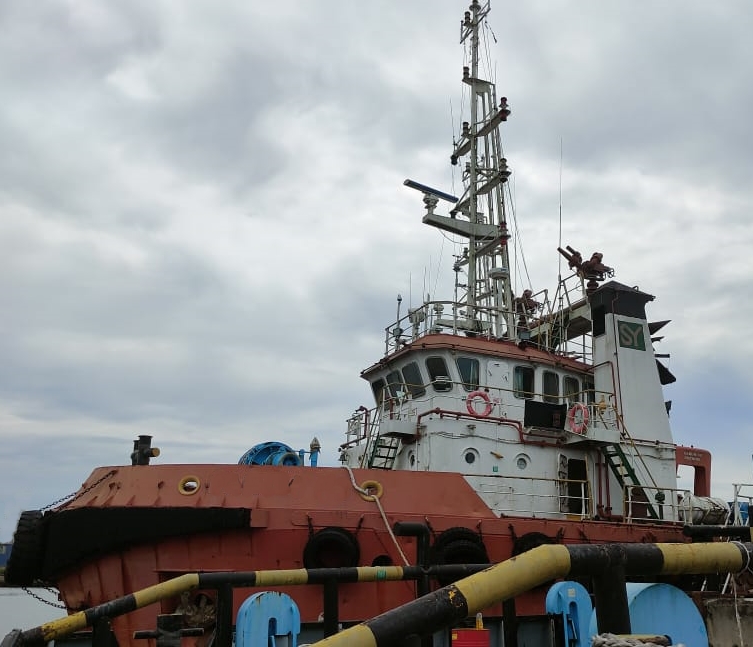

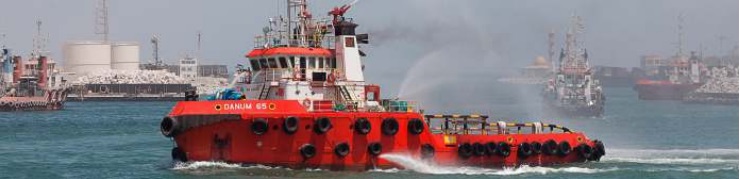

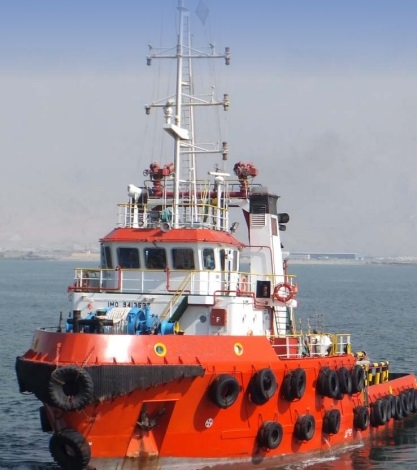

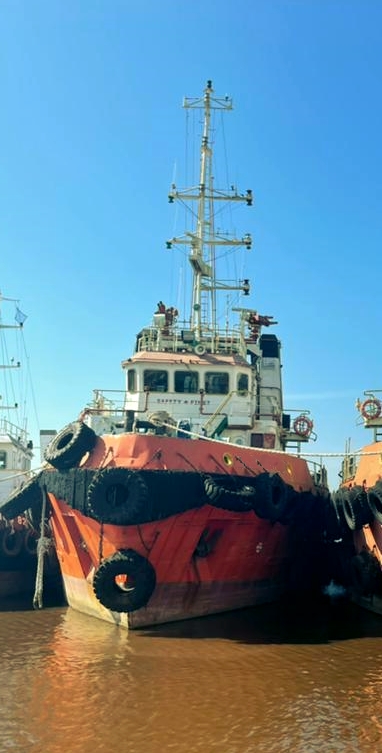

37m Tug Boat Danum 65

37m Tug Boat

Listing ID - 3710
Description	37m Tug Boat
Date Launched	2006
Length	37m (121ft 4in)
Beam	11.40m (37ft 4in)
Draft	4.04m (13ft 3in)
Note	42.4T Bollard Pull
Location	Malaysia
Broker	Hanni Ajik
Price	POA
Price Notes	As is where is. Vessel is available for inspection by appointment. The vessel has been laid up since Feb 2019 .
View As PDF

Length Overall: 37m

Breadth Moulded: 11.40m

Depth Moulded: 4.95m

Draft: 4.04m

Deadweight: 314.7T

Registered Tonnage: GRT 467 T, NRT 141 T

Registration

Year Built / Builder: 2006 / Piasau Slipways SDN BHD

Flag / Port of Registry: Malaysia / Kuching

Class: NKK

Capacities 100%

Fuel Oil: 310 m3

Fresh Water: 76 m3

Disperant / Foam: 14.5 m3 / 3 m3

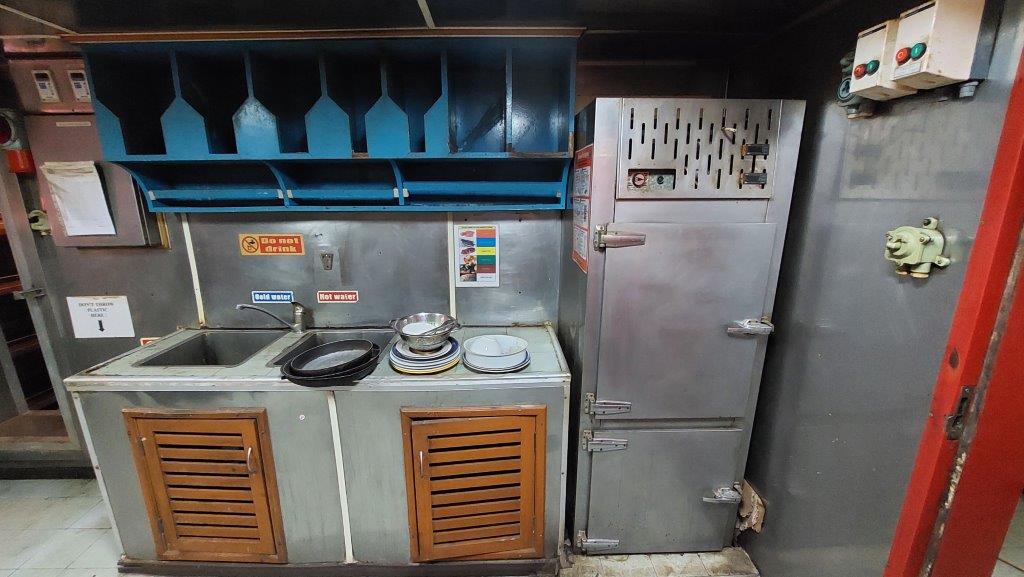

Freezer and Cooler: 3.8 m3 / 3.8m3

Clear Deck Area: 64m3

Deck Strength: 5T

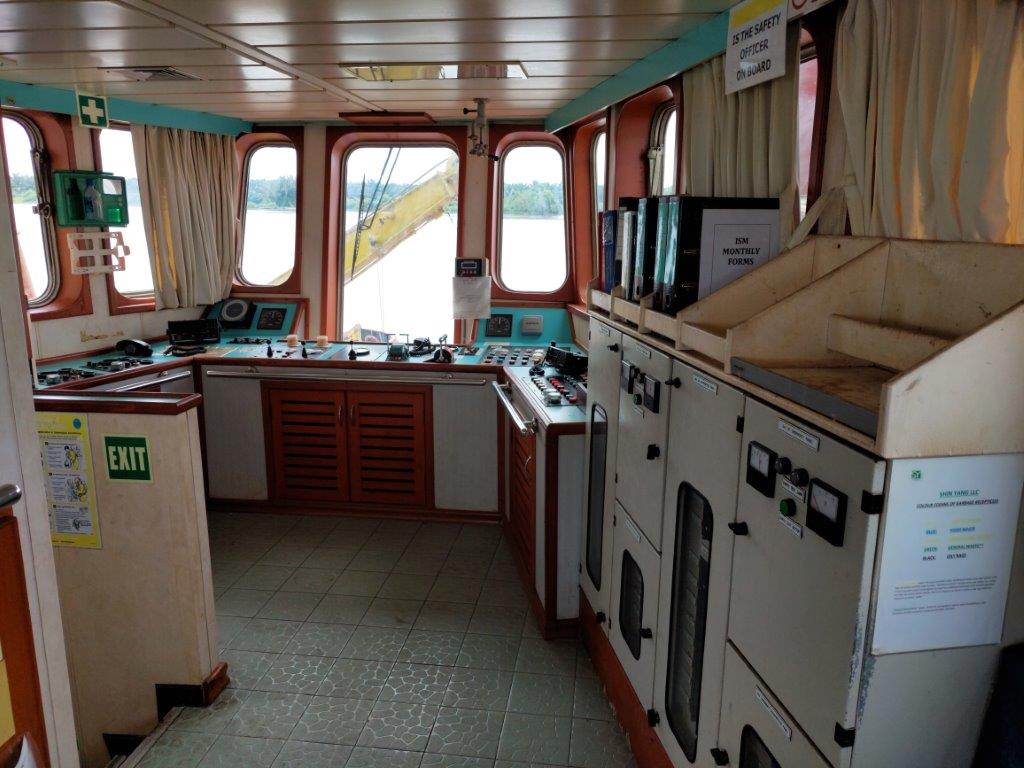

Navigation and Communication

Inmarsat C: 2 x Furuno / Felcom 15

GMDSS: Comply GMDSS A1+A2+A3

Radars: 1 x Furuno FE-700, 1 x Furuno 1510 MK II

GPS Navigator: Furuno / GP-150

Autopilot: Comnav

Navtex Receiver: Furuno / NX-700

Gyro Compass: Tokyo Keiki

Magnetic Compass: Daiko SR-150

Communications: Data / Fax / Phone FBB Sailor 150

MF / HF SSB DSC: Furuno 2570

Echo Sounder: Furuno FE 700

VHF Radio Telephone: 2 x Furuno FM-8500

GMDSS Hand Held Radio: 3 x ICOM ICGM 1600

SART: 1 x ACR / Pathfinder, 1 x Samyung/SAR-9

EPIRB: Samyung / SEP406

Wind Indicator: Clipper

Barometer: Hanseatic

AIS: Furuno FA-150

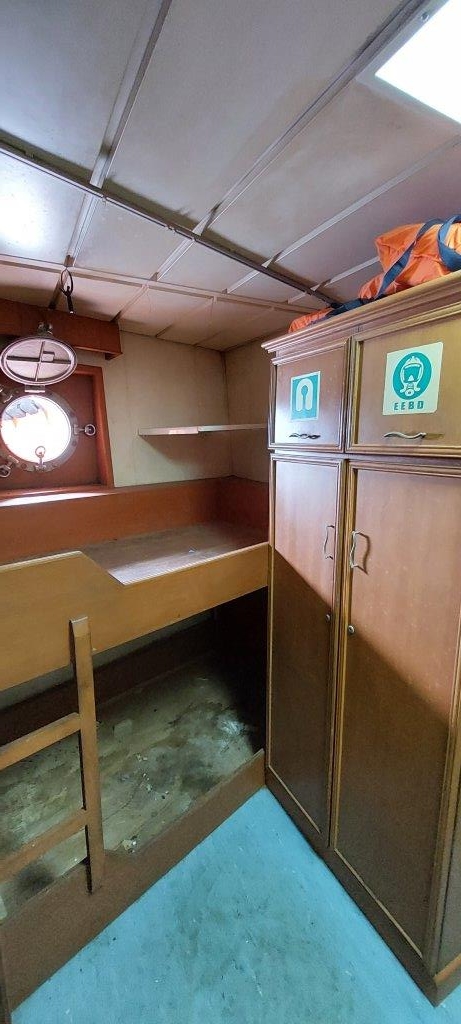

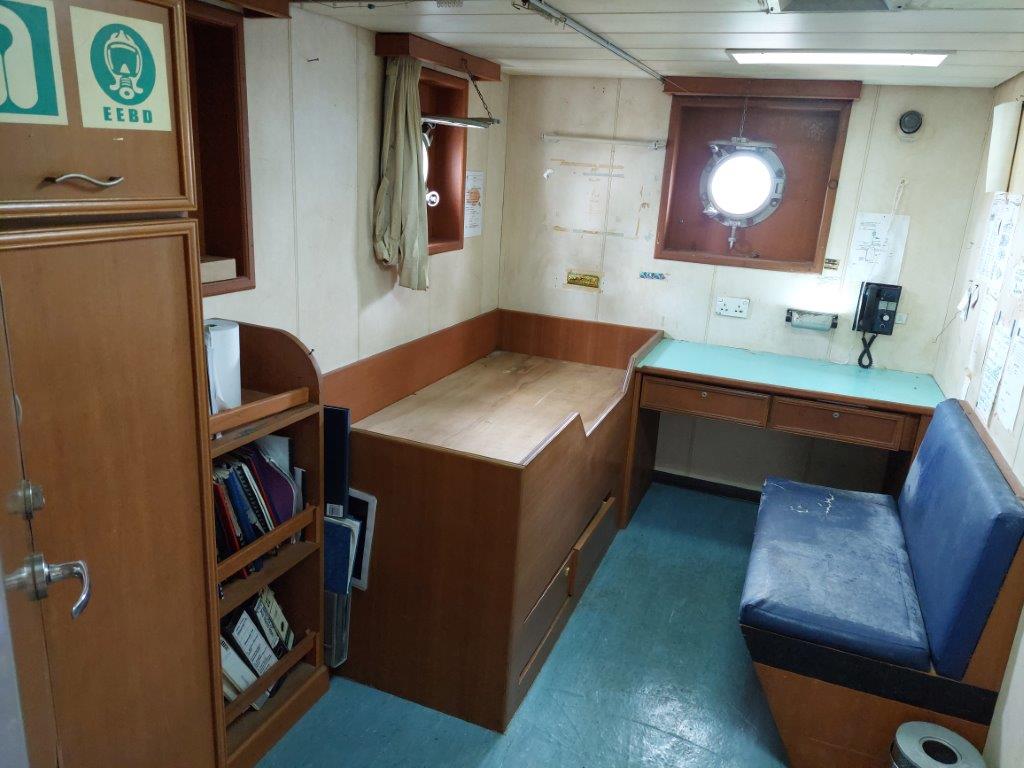

Accommodation

14 Men

1 Man x 2

2 Men x 2

4 Men x 2

Machinery

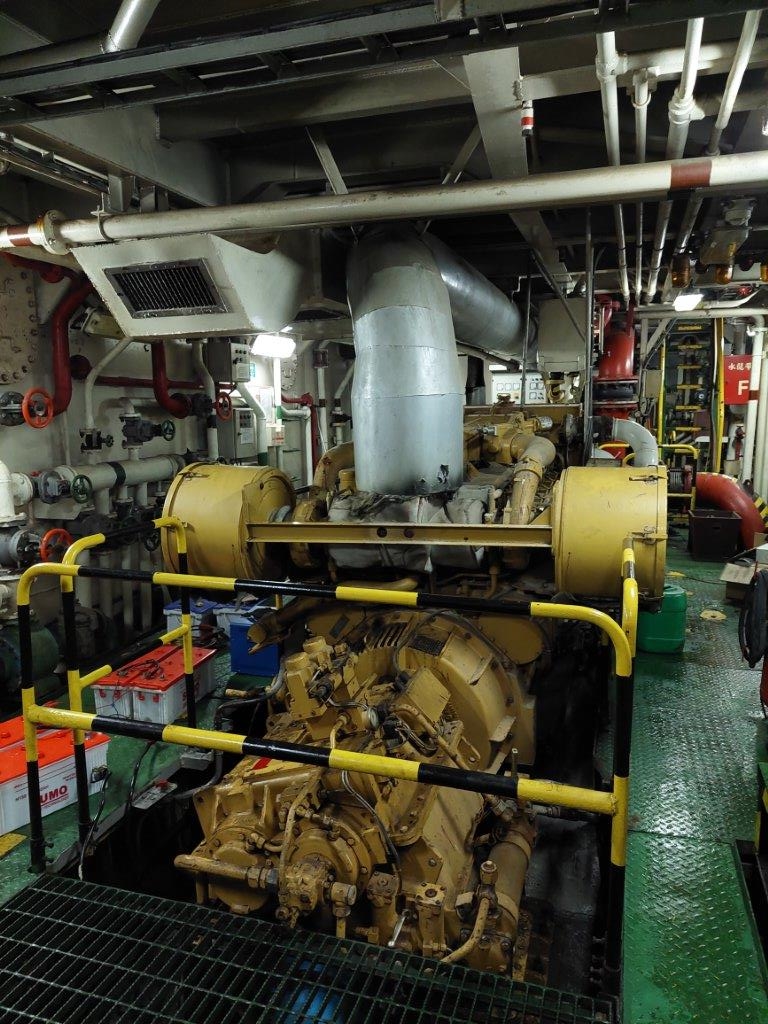

Main Engine: 2 x CAT 3512 B (2 x 1575 BHP)

Propulsion: Manganese Bronze / 4 Blade solid with key, Dia 2.4m Fixed Pitch in Kort Nozzle

Bow Thrusters: 3.5T / 350 HP

Main Generator: 2 x Cummins 6CTA 8.3 D(M), 2 x 165kW

Oily Water Separator: Georim Engineering, GRS-10EB, 1 m3/ hr

Sewage Treatment Plant: ISS-15 (0.9 m3/ day)

Towing / Anchor Handling / Mooring

Towing Drum Wire: 52mm, 500m / 150m

Stern Roller: 100 T

Karm Fork / Tow Pin: 100T / 100T Mac Gregor Plimsoll

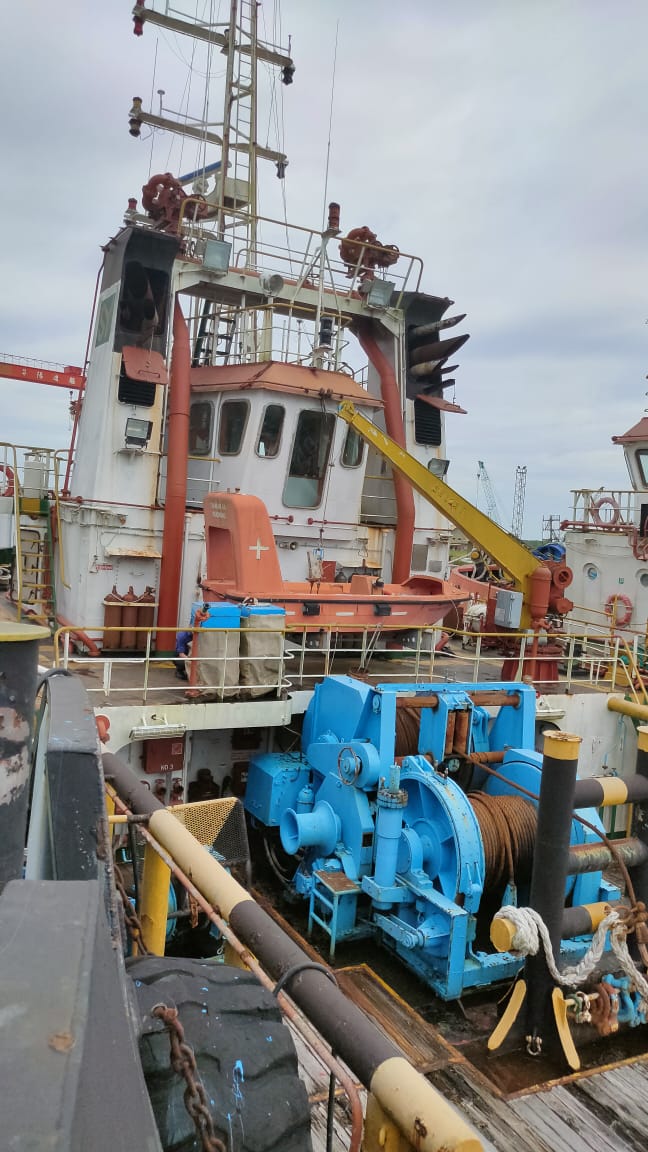

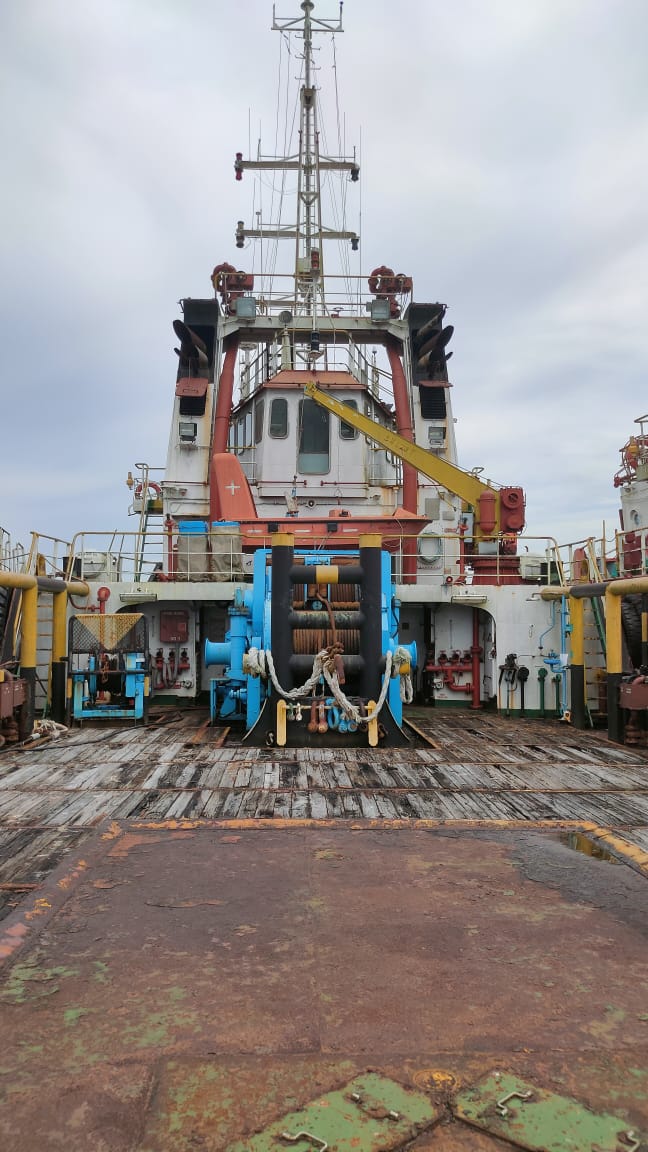

Towing Winch: 60T @ 4 m/min (Double Drum), Mac Gregor Plimsoll

Anchor Windlass: 10T @ 12 m/min Mac Gregor Plimsoll

Anchors: 2 x Stockless Anchor 910kg

Anchor Chain: 30 mm Dia x 27.5m x 9 length each side

Capstan: 5 T Mac Gregor Plimsoll

Tuggerwinch: 5 T Mac Gregor Plimsoll

Performance

Max Speed: 12 knots

Service Speed: 10 knots

Bollard Pull: 42.4 T

Transfer Rates

Fuel Oil: 30m3 /hr @ 50m head

Fresh Water: 30m3 /hr @ 30m head

Fire Fighting and Anti-Pollution Equipment

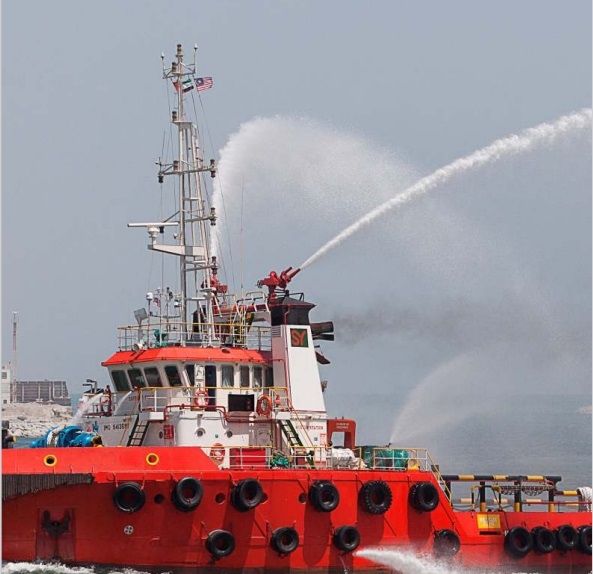

FIFI System: FIFI-1

FIFI Monitors: 2 x 1200 m3 /hr (water) – 300 m3 /hr (foam) – Joystick Controlled

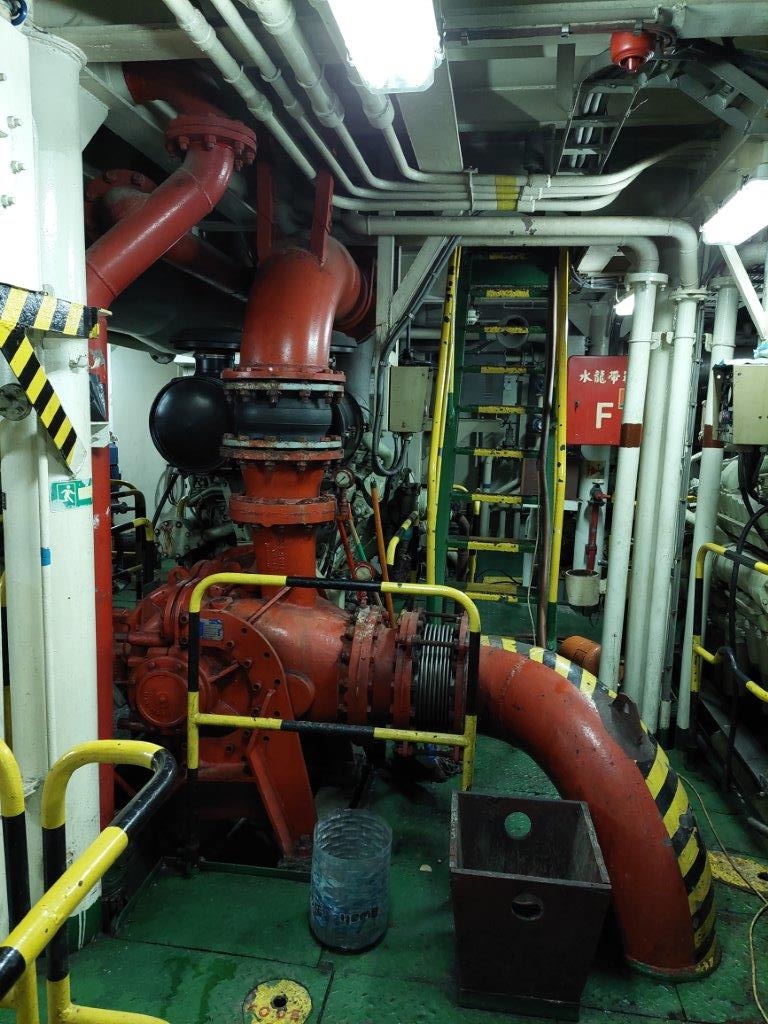

FIFI Pumps: 2 x 1370 m3 /hr @ 140m head

CO2 System: 7 x 45kg CO2

Fire Hydrants: 6 nos.

Fire Extinguishers: 1 x 45 L Foam, 2 x 9 L Foam, 8 x 9 kg DP, 5 x 45 kg DP, 1 x 6 kg C

Rescue Craft: Rigid Rescue Boat, 6 Persons, SC45KR, 25HP Petrol Engine

Safety Equipment: 18 BA set, 14EEBD, 2 x 15 per life raft

H2S: Mavigard MG 400 and 5 sensors

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
