The AP1-88 is a well proven design, which is operational in over 15 locations around the world. Set in a passenger configuration, the craft had a major overhaul in 2009.

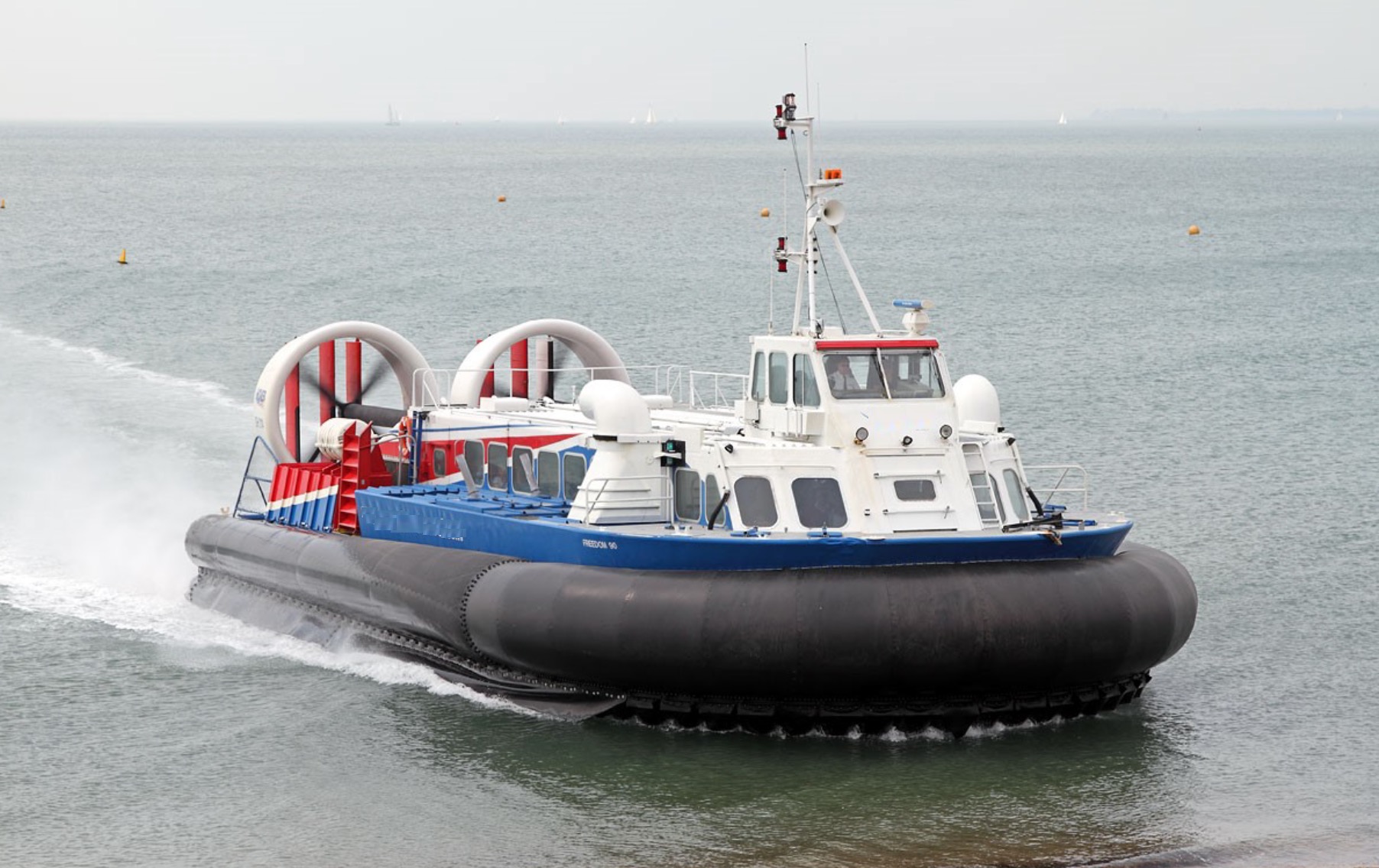

The Freedom 90 PAPI - 88/100S hovercraft is manufactured mainly from welded marine aluminium and is powered by four diesel engines. The primary structure comprises buoyancy tanks, fore and aft shear walls and engine and fan mounting structures. The flexible skirt is attached to the secondary structure which is out-board of the primary structure and contains the lift engines and lift fans.

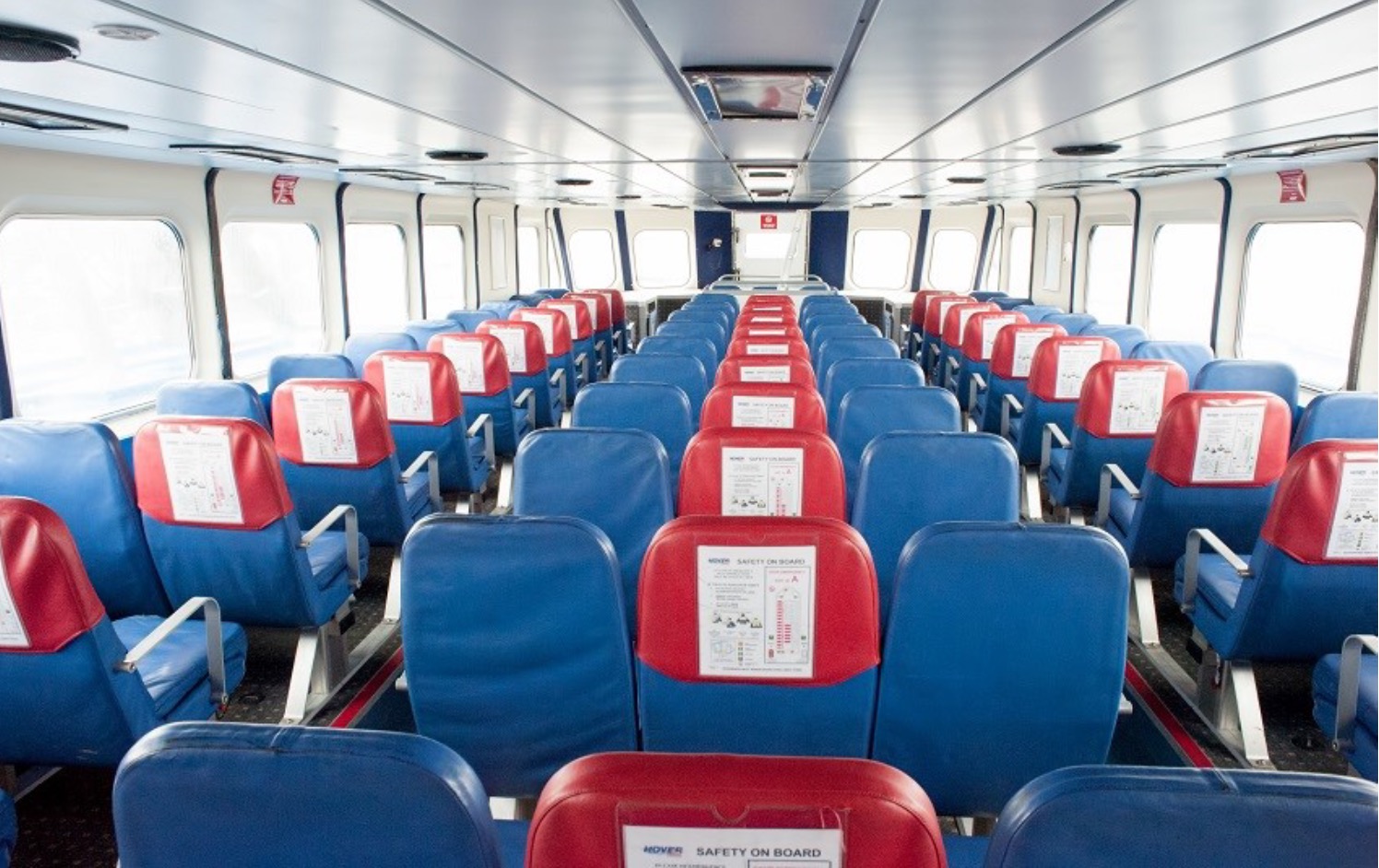

The passenger cabin contains seating for 95 passengers and is entered at port and starboard doors at the rear of the cabin. A door at the front of the cabin is for crew only but may be used in an emergency. Hand baggage racks are provided at the rear of the cabin. Panniers on the aft side decks carry the heavier luggage.

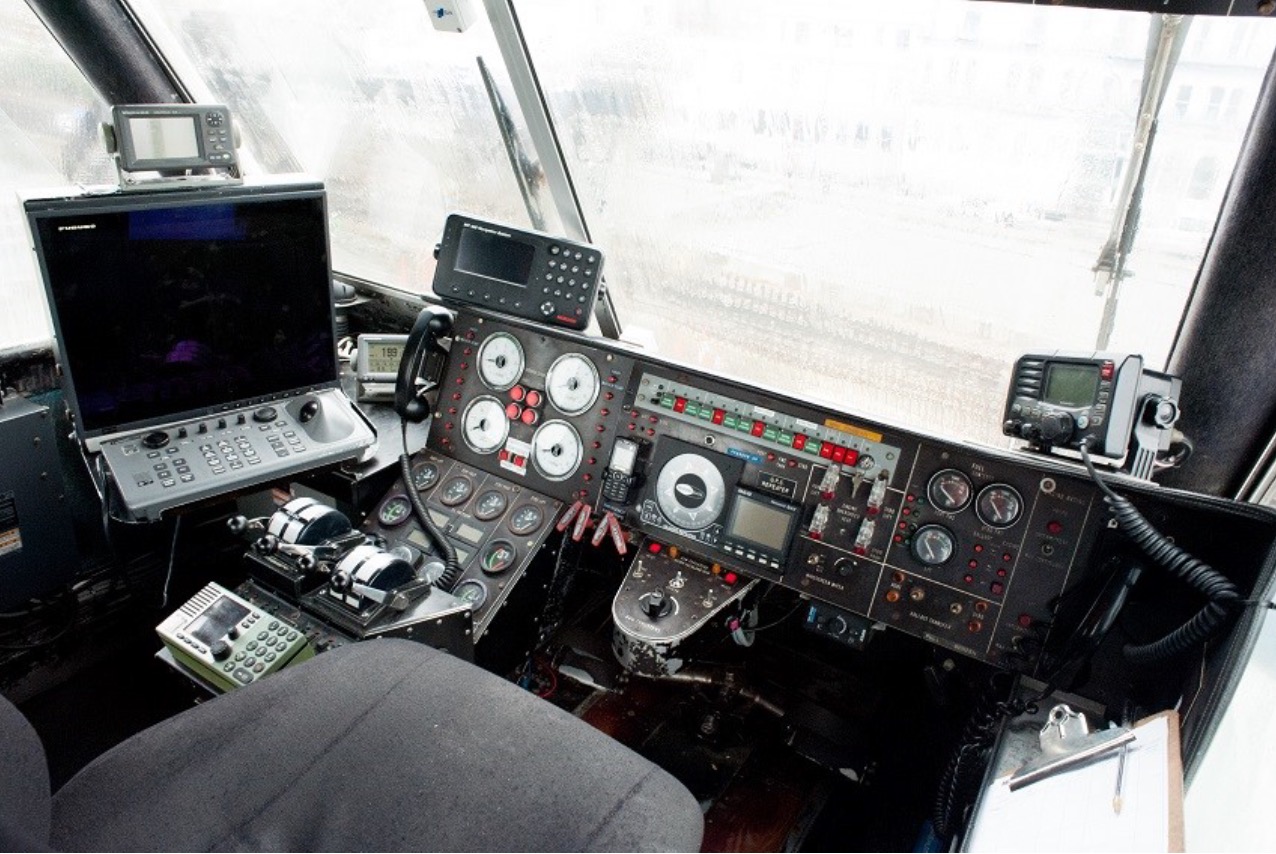

The control cabin is raised above the passenger cabin at the forward end. Access is by a door in the port side of the control cabin which may be gained by a ladder from the fore deck or by a ladder from the port aft side deck. Alternative access is by an internal ladder from the passenger cabin through a hatch in the control cabin floor.
Type: PAP1-88/100 S Hovercraft
Name: Freedom 90
Year built: 1989/1990
Dimensions when hovering-
Maximum passengers: 95
Maximum crew: 4 (Captain, Navigator & two crew)
Maximum Operational Speed (at full payload): 45 knots
Standard Endurance*: 10 hours
Maximum All-up weight: 44250 kg
Maximum sea state: 1.5m to 2.4m
Obstacle clearance: 0.9m to 1.1m
* Based on 300 litres per hour at cruise speed with all tanks full, inc a 10% reserve
Forward propulsion is provided by two 12 cylinder MTU water cooled diesel engines driving carbon fibre shafts by toothed driving belts.
Thrust is provided by two Hoffmann, fixed pitch, four bladed propellers in ducted enclosures. The slipstream from each propeller passes over three rudders for directional control.
Port and starboard bow thrusters provide additional directional side force control and a rolling moment to the resulting turn. They can also be operated in an astern mode. The thrust from the bow thrusters is proportional to lift engine rpm.
The craft 28v dc electrical system is powered by four engine driven generators. Distribution is by a main busbar with emergency services drawing power from an emergency battery and an essential services busbar.
An intercom and public address system is incorporated and external communications can be made by a VHF radio set and by an SSB radio. The latter is fitted with a GMDSS facility. A DECCA BRIDGEMASTER radar installation is provided for collision avoidance in conjunction with the compass and as a navigational aid. A Magnivox DGPS navigation system is also fitted.
The engine bays are equipped with fire detection and double discharge fire suppression systems. Portable, hand operated extinguishers are also carried in the passenger and control cabin.
POWER UNITS AND TRANSMISSION
Two Deutz - BF 12L 513 C air cooled, turbo charged diesels, 525 hp, (386 kw) at 2300 rpm fitted with Bosch mechanically governed, in line injection pumps to Hovertravel spec. ARG 90 / DPO / 000 - 5% derated.
Two MTU - 12v 183 TB 32 water cooled, turbo charged diesels, 820 hp, (613 kw) at 2100 rpm fitted with Bosch mechanically governed, in line injection pumps with RQV speed governors.
Two Hoffmann 2.755 mtr. (9 ft.) diameter, fixed pitch propeller type HO - E - 214U. Pitch angle is pre-set at 22 deg. Positive.
Bow thrusters - Two pairs, one port and one starboard, of centrifugal fans 840m/m (33 in.) diameter.
Lift - Four pairs, two port and two starboard, of centrifugal fans 885m/m (34.84in.) diameter).
Engine and propeller shaft coupled by a toothed driving belt. Ratio - 1 : 1.406
Two 12 cylinder DEUTZ air cooled diesel engines are mounted within the port and starboard side structures, each driving three pairs of centrifugal fans. The forward pair in each case are used to supply air to the bow thrusters and the other two pairs supply lift to the cushion.
Lift Engine (port) 1323* TSO
Lift Engine (stbd) 2585* TSO
Prop Engine (port) 2761* TSO
Prop Engine (stbd) 6023* TSO
* These were the hours on the 18th October 2015
Engine fuel is carried in 3 welded aluminium tanks, two forward and one aft and is also used for ballast trim purposes. The fuel system is fitted with electrically operated shut off cocks, fuel booster pumps and filters with water separators.
Fuel Capacity (usable):
Maximum 3400 litres
Normal 2500 litres
Fuel consumption (at cruise speed):
300 litres per hour
The safety equipment comprises:- first aid chest, signalling light, parachute and hand held flares, axes, torches, crew and seat stowed lifejackets for each passenger. Two lifebuoys are provided by the passenger doors equipped with a 30 metre lifeline. The fitted liferafts are capable of carrying all passengers and crew members.
ENGINE LUBRICATION OIL SYSTEM
Function: Lubrication of engines
Oil: Lift and Propulsion engines - Castrol RX
Super Plus, SAE 15-40
Lift Engine: 29 litre (6.379 gal.)
Propulsion Engine: 41 to 50 litres
PROPULSION ENGINE COOLING SYSTEM
Coolant: Castrol Anti-Freeze NF. 50 / 50 with water Transmission Mubrication
Function: Lubrication of transmission bearings and gear couplings.
Fuel Spec: Marine Gas Oil LS - (to BS 2869 1970 Class A1)
Max. Contents: 3 x 1136.5 litre (3 x 250 gal) fuel tanks.
Normal Operational Contents: 3182.2 litre (700 gal)
System: 28 volt dc
Supply: Prestolite 155 Amp
Batteries: Start / Service S1 -2 x 12v 200 Amp Essential Service -2 x 12v 70 Amp
VHF-1 Sailor RT 5022 VHF DSC
VHF-2 Icom IC M505
Thrane & Thrane Cap Satellite Maritime
Furuno MU 190
Magnavox – MX 420 (DGPS)
Marine Date MD59-MD77HR
The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
