Built year / Place: 1983 / United Kingdom

Hull Material: Steel

Flag: United Kingdom

Class Society and Notation: MCA CAT 2.60nm offshore



LOA: 20m

Breadth: 9m

Draft: 1.75m

NT: 23 tons

GT: 79 tons



Total power output (BHP): 800

Main Engines: 2 x Caterpillar

Generator: 240 and 380 volts

Main Propulsion System: Twin screw in Kort nozzles

Cruising Speed: 8 knots

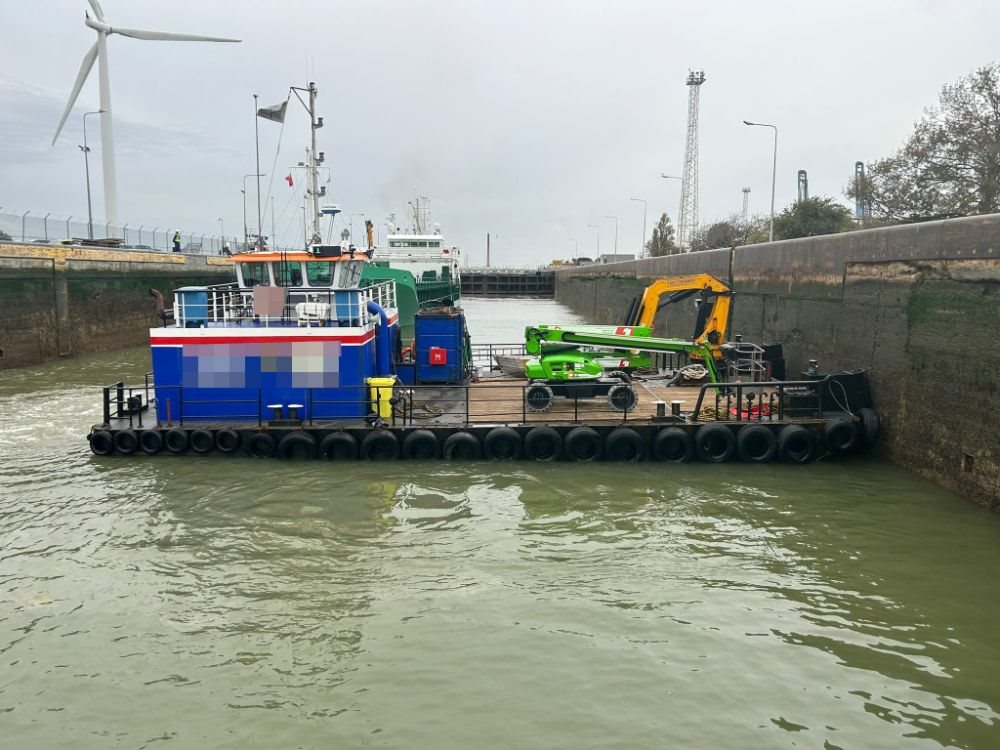

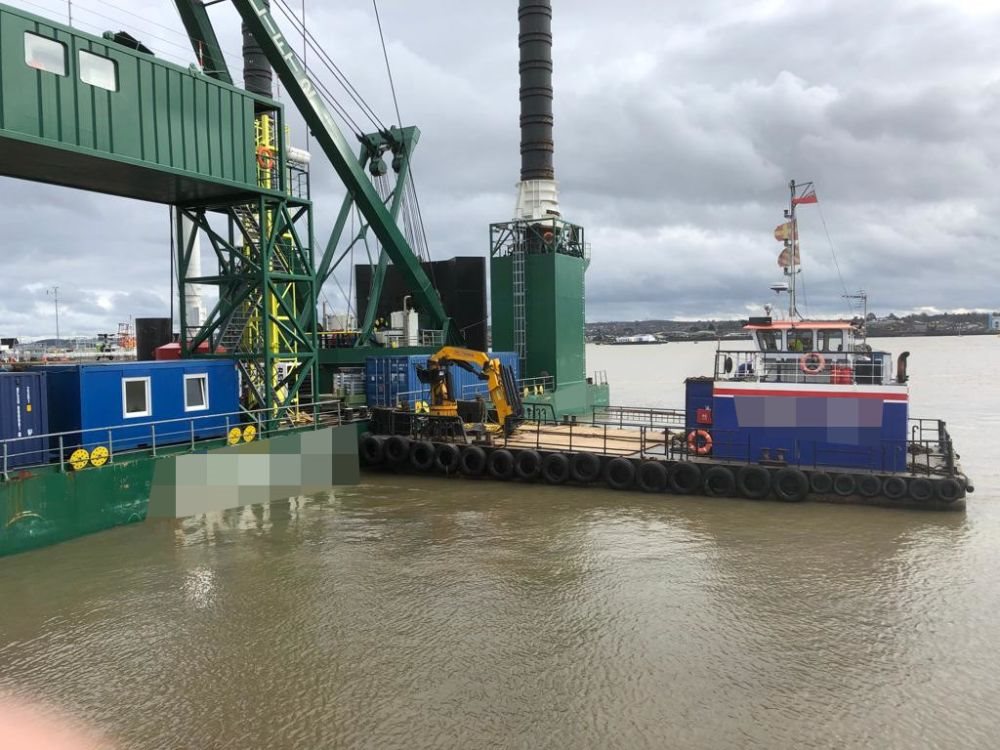

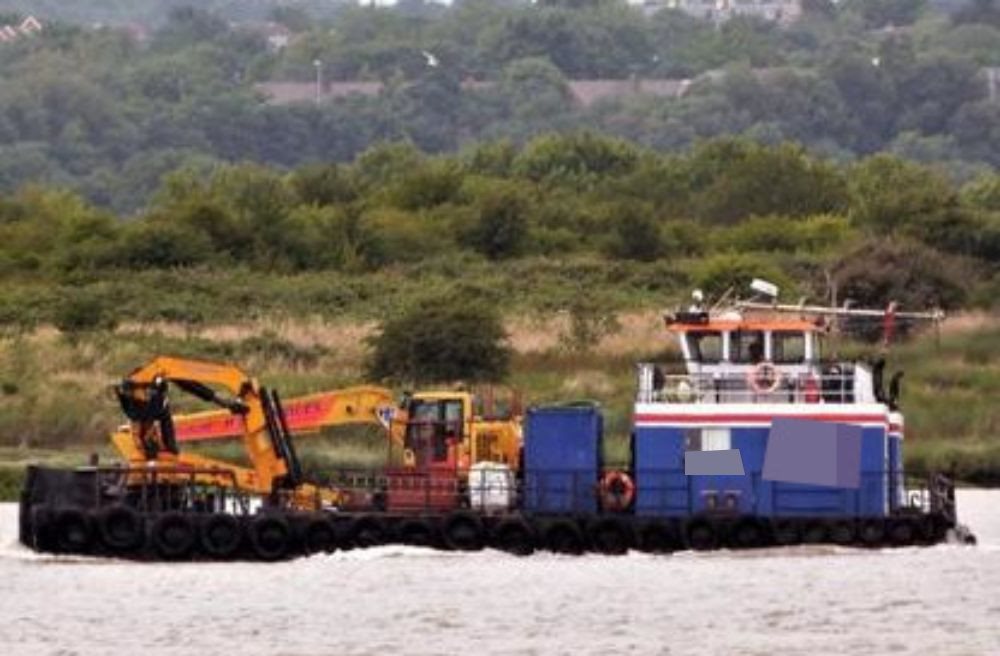

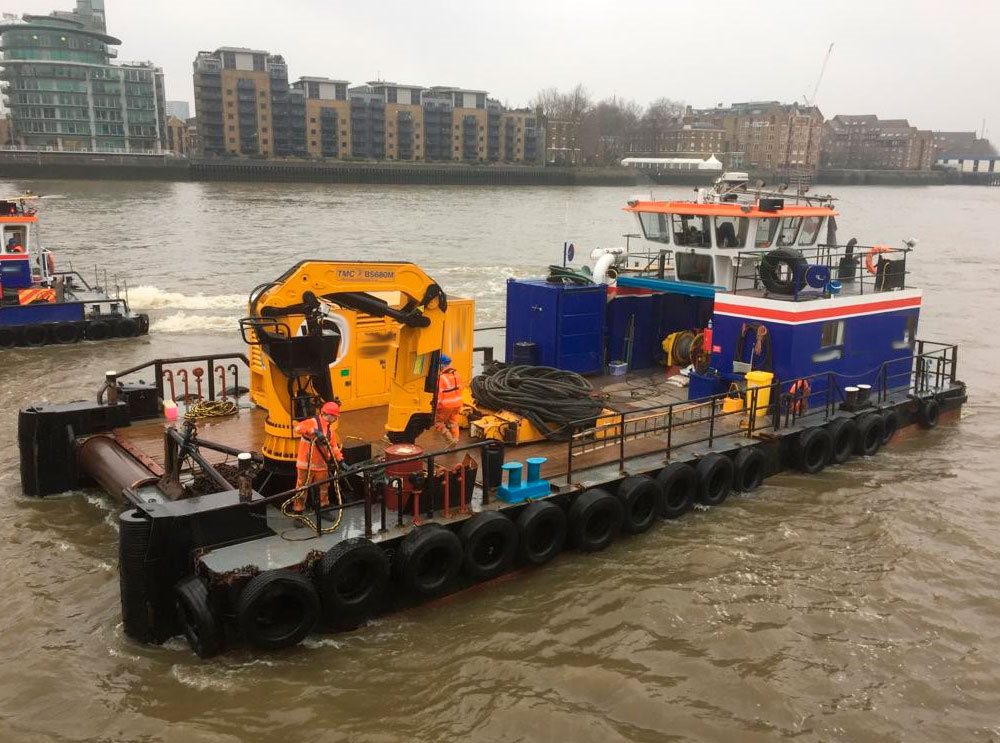

It is a highly maneuverable and powerful multi cat type vessel.

It combines shallow water operation with low air draft and has the ability to tow and push barges, carry heavy deck load and handle up to 6-ton anchors.



In 2013 a new telescopic wheelhouse was fitted to allow greater flexibility. In its lowest position the new wheelhouse significantly reduces the vessel’s air draft to allow passage under bridge arches without compromising performance, whilst raising it to its full height provides enhanced visibility. Inside the large chart table area provides ample space for survey equipment.



Hydraulic Winch: 18 tons (pull), 30 tons (holding)

Bollard Pull: 9.5 tons

Deck crane: 55-ton Mts. (13 tons @ 4.1m – 7 tons @ 7.5m – 3 tons @ 11.75m)

Fuel: Running tanks 15.000 L

Main tanks 2 x 30.000 L

Fresh water: (Domestic) 2 x 11 tons / (Main) 2 x 30 tons

Transfer pumps for fuel and fresh water

Deck load: 100 tons (on smooth water), 70 tons (as sea)

Moon pool: 500mm

Hydraulic power: Ma 30 gal/min @ 250 bar



On board accommodation: Full crew accommodation, day accommodation for up to six passengers.



Suitable for use as Bridge survey boat, diver boat, film and camera boat, windfarm support vessel, towing, pushing, lifting, fetching, carrying, site work, marine construction support vessel, repair and all round maintenance boat.
