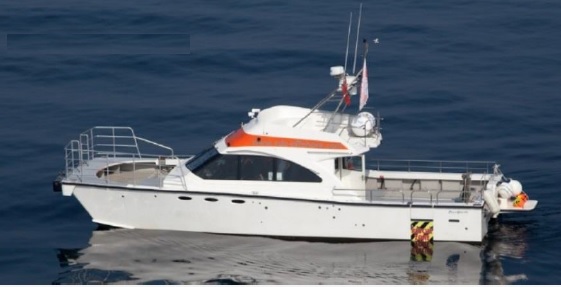

Crew Transfer Vessel / Survey Vessel / Light Cargo / Transport Vessel / Diving Support

Main Particulars
Class: MCA Cat 2 – 60 Nm
LOA: 14.5m
Beam: 5.10m
Draught: 0.95m
Displacement: 19 T
Hull Material: GRP

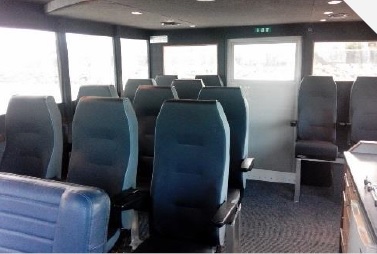

Capacity: 12 pax + 2 crew
Cargo: 2T

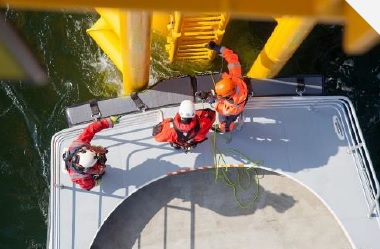

Boat Landing
Offshore Standard
Bow Fender OCEAN3

Outside Arrangement:
Front Deck: 6m2 (2x euro pallets
After Deck: 19m2 ( x euro pallets)
Seawater pump
2 Rescue zone
Generator 220V 4kW Panduro

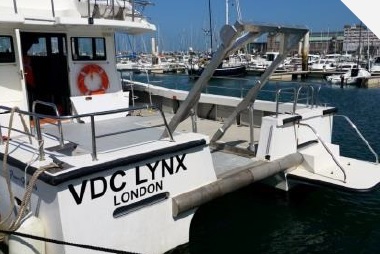

Frame A SWL 500kg

Hydraulic
Hydraulic windlass 2 tonnes

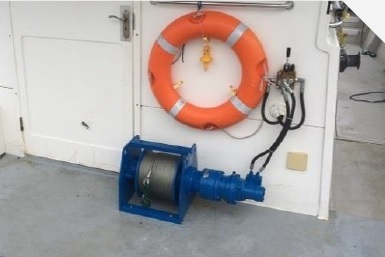

Winch 500 kg - 126 m – diam 8mm
Hydraulic crane Palfinger 2tm (optional)

Machinery
Propulsion: 2x IVECO N67 ENTM 45 restrain to 370 HP
Fuel tank capacity: 2x 650L
Range:160 Nm at 20 knots
Speed: 20/25 knots

Electronic and safety equipment
Radar / Chartplotter: Furuno VX2
Chartplotter: Seiwa
Depth Sounder: Seiwa
GPS: Furuno GP 32
AIS Class A: Furuno
Radar: Lowrance Broadband radar
Sonar: Sidescan Lowrance
Autopilot: Simrad AP35
VHF: Icom VHF with avec foghorn and outside loudspeakers
Serach lights: Jabsco Remote searchlight
220V 3.5kW studder inverter
Anemometer Clipper
Man overboard rescue net: Sea Marshall MOB receiver
EPIRB
Full Safety equipment MCA Cat-2

Inside Equipment
TV & DVD
WC & shower
Heating 4kW Ebersbacher airtronic
Refrigerator
Microwave oven
Hot and cold water under pressure
