NEW BUILD - 37m 55T BP Twin Screw Tug

Listing ID:

DATE LAUNCHED:Built to Order, delivery 12 - 15 months from signed contract.
LENGTH:37.2m (122ft)
BEAM:11.4m (37ft 4in)
DRAFT:4.2m (13ft 9in)
LOCATION:ex shipyard, Malaysia
BROKER:Geoff Fraser

Send Enquiry

General Description:

Please scroll down to view more photos

LOA: 37.2m
Breadth (MLD): 11.4m
Depth (MLD): 5m
Designed Draft: 4.2m
Complement: 14 men
Main Engine: 2x Yanmar 6EY26W 2203PS @ 750rpm (Tier II)
Gear Box:Yanmar YXH-2500, Ratio 3.03:1
Generator: 2x Caterpillar C7.1 @ 118kW
Flag: Malaysia
Classification: NKK
FO Capacity: 350m3 (Approx)
FW Capacity: 192m3 (Approx)
Keel: 12mm
Bottom: 9mm
Side: 9mm / 10mm above waterline
Main Deck: 9mm
Bulwark: Aft 8mm / Fore 9mm
Deck House: 6mm
Wheel House Stiff.: 6mm
Main Deck Stiff:125x75x7AB
Side Stiff: 125x75x7AB
Deck House Stiff: 75x75x6AB
Wheel House Stiff: 75x75x6AB
1) Propeller Shaft: 2x 8.5” Stainless Steel Propeller Shaft (SUS316)
2) Propellers: 2x 2450mm 4 Blades Fixed Pitch Propeelrs (Port Nozzle Type)
3) 8.5” “WARTSILA” PSE inflatable stern tube seals
4) 2x Analog Shaft tachometer (Singapore)
1) Main Engine: 2x Yanmar 6EY26W 2200PS @ 750 rpm (Tier II)
2) Gear Box: Yanmar YXH-2500, Ratio 3.03:1
3) Air Compressor: 2x Hatlapa L20 Air Compressor (For Air Receiver tank)
4) Generator: 2x CATERPILLAT C7.1 @ 118kW with load sharing synchronisation
5) Ventilation: 2x 24” 415V 12000 CFM Engine Room Ventilation Fan (Malaysia)
6) Oily Water Separator: 1x1m3/h Oily Water Separator (Korea, GEORIN, GRS-10EB (IMO approved type (MEPC 107 (49))
7) Sewage treatment plant: 1 x 15 Men Sewage Treatment Plant (Korea, IL Seung, ISB-01 (IMO approved type (MEPC 227 (64))
1) Fuel Oil Pump: 1 x 1 1/2 hand pump; 1 x 2HP, 415v 1500L / hour Fuel oil Transfer Pump (Malaysia)
2) Fresh Water Pump: 1 x 1” 0.5HP,220v Pressure Pump (Pedrollo, Italy)
3) Sea Water Pump: 1 x 1” 0.5HP, 220v Pressure Pump (Pedrollo, Italy)
4) GS / Fire pump: 1 x DESMI 30m3 / h x 30m Total head, 5.5kW 415v Bilge / Ballst Vertical Pump
2400m3 FIFI 1 Pump
Builder will provide 1 complete unit of 2400m3 FIFI 1 pump, include automatic fire monitoring, sprinkler, control system and etc. (FFS Norway)
CO2 System
1 complete set CO2 system for engine room only
1 complete unit of AHU system to supply cooled air to all accommodation spaces and wheelhouse. Supply cooled air only, no heating function. (Carrier or equal brands)
Steering Gear: 1x 3 Ton Independent - synchronise Electro-hydraulic Steering Gear c/w Emergency Hydraulic Hand Pump.  (Singapore)
Wheel House
1x Chart Table (Material for chart table at least 18mm plywood and cover up with laminate, dimensions to be comply with Buyer’s requirement.)
Steel Console for panels and navigation equipment
1x Adjustable captain chair with rail (Manual type)
Captain Cabin & Chief Engineer Cabin
1x Built-in berth with bed light
1x Wardrobe
1x Table with drawer
(Material for all. Furniture at least 18mm plywood and cover up with laminate, dimensions to be comply with Buyer’s requirement)
Crew Cabin (6 Cabins with 2 crews for each cabin)
1x Bunk beds with bed light
2x Wardrobe
1x Table with drawer
(Material for all furniture at least 18mm plywood and cover up with laminate, dimensions to be comply with Buyer’s requirement.)
Mess Room
1x Dining Table
1x 6 seat polyurethane leather sofa
1x TV cabinet
(Material for all furniture at least 18mm plywood and cover up with laminate, dimensions to be comply with Buyer’s requirement.)
1x Stainless steel Washbasin c/w water tap
1x 8” axial fan
1x Electric hot plate with min 2200w hot plate
1x Oven
1x Freezer Room
1x Chiller Room
Toilet for all crew cabins share with 3 toilet
1x Wash Basin with hot & cold water
1x Shower point with hot & cold water
1x Close stool
1x Exhaust fan
Toilet for Captain cabin & Chief Engineering Cabin (2 cabins share with 1 toilet)
1x Wash basin with hot & cold water
1x Shower point with hot & cold water
1x Close stool
1x Exhaust fan
Anchor Windlass: 1x 22mm 5 Ton Hydraulic Anchor Windlass (Malaysia)
Anchor Chain: 11 x 22mm x 27.5m Grade 2 stud link chain (China)
Anchor: 2x 660kg Anchor (China)
Chain Stopper: 2x 22mm Chain Stopper (China)
Towing Hook: 1x 60 Ton Disc Type Towing Hook, pneumatic quick release (Mampaey)
Towing Winch: 1 x  60 Ton pull, 150 Ton brake holding Single drum Towing Winch (Malaysia)
Tugger Winch: 1x 5 ton Tugger Winch (Malaysia)
AC Supply: 1x AC Main Switch Board (include all marine electrical cables, UK standard socket,  lamp, switch boxes and etc.)
DC Supply: Supply as per approved drawing
Main Switch components: Scheider, ABB or equal European brands
Ceiling & walls
Accommodation spaces and wheelhouse ending up with Fire-proof panels (Soft Core) on wall and ceiling
Galley ending up with Stainless Steel fire proof panels on wall and ceiling
25mm thickness thermal insulation (Rockwool) to be put on ceiling, bulkhead area everywhere of superstructure, and accommodation spaces below engine room.
Cement base for Accommodation spaces, PVC floor panel on top of all accommodation spaces
1 x VHF Radio (FURUNO 8900s)
1x GPS Navigation (FURUNO GP32)
1 x Radar 24N Miles (FURUNO 1715)
1 x Echo Sounder (FURUNO FCV-628)
1 x EPIRB (SAMYUNG or Equal)
1 x SART(SAMYUNG or Equal)
1 x AIS (FURUNO FA-150)
1 x Marine SSB Radiotelephone (FURONO FS-1503 or Equal)
1 x Bridge Navigation Watch Alarm System (SAMYUNG)
1 x Table Compass N-150 (DAIKO)
1 x Marine Horn (MARCO)
1 set Navigation lights c/w navigation panel
1 x 12” 1000W Search Light
1 x 4” 7800 Marine Type Spare Compass
1 set Engine Telegraph
3 x Intercom
1 x 2 Way Walkie Talkie (ICOM IC-GM1600)
1 set International code flag
1x Public Address System
All safety equipments to be provided as per approved drawings
1x Barometer
1x Marine Clock
1x Clinometers
1x 15M Sounding Tape
1 set of Wheel House Marine Windows (With test certificate).
B-15 Fireproof Door (Class approved type) for cabin.
A-60 Fireproof Door (Class approved type) for engine room and galley.
Fire detection system at all common spaces and engine room, steering gear room.
Computerized Alarm System for engine room bilge level, tanks level (high & low), main engine alarm and generators. (1 unit of display at Engine control room, one repeater to mess room and one repeater to bridge).
Fore windows two pendulum type wipers and aft windows two pendulum type wipers.
Internal telephone centers for all spaces. (Home / Office type).
Watertight doors with single handle opening.

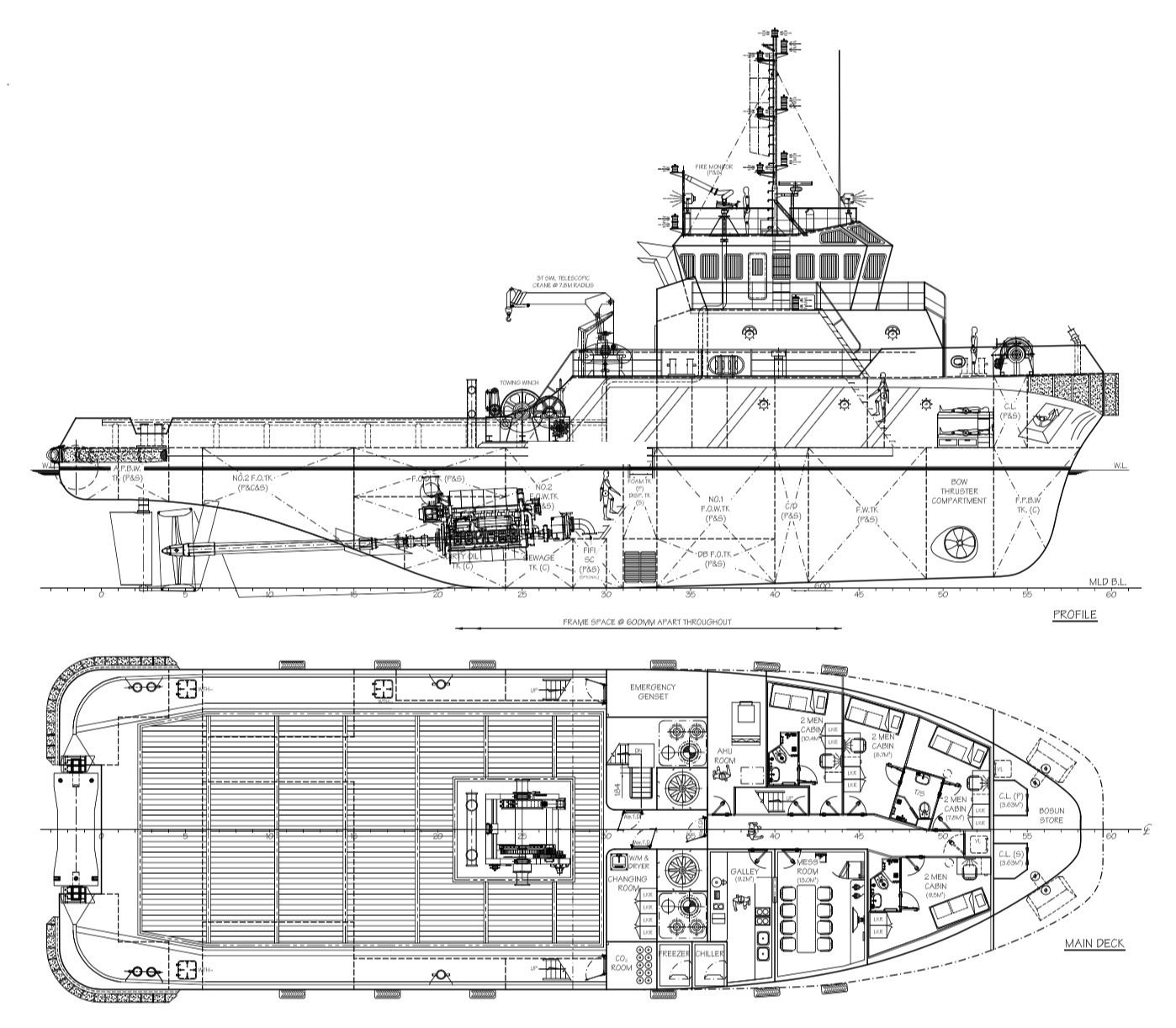

4139: NEW BUILD - 37m 55T BP Twin Screw Tug - 001.jpg

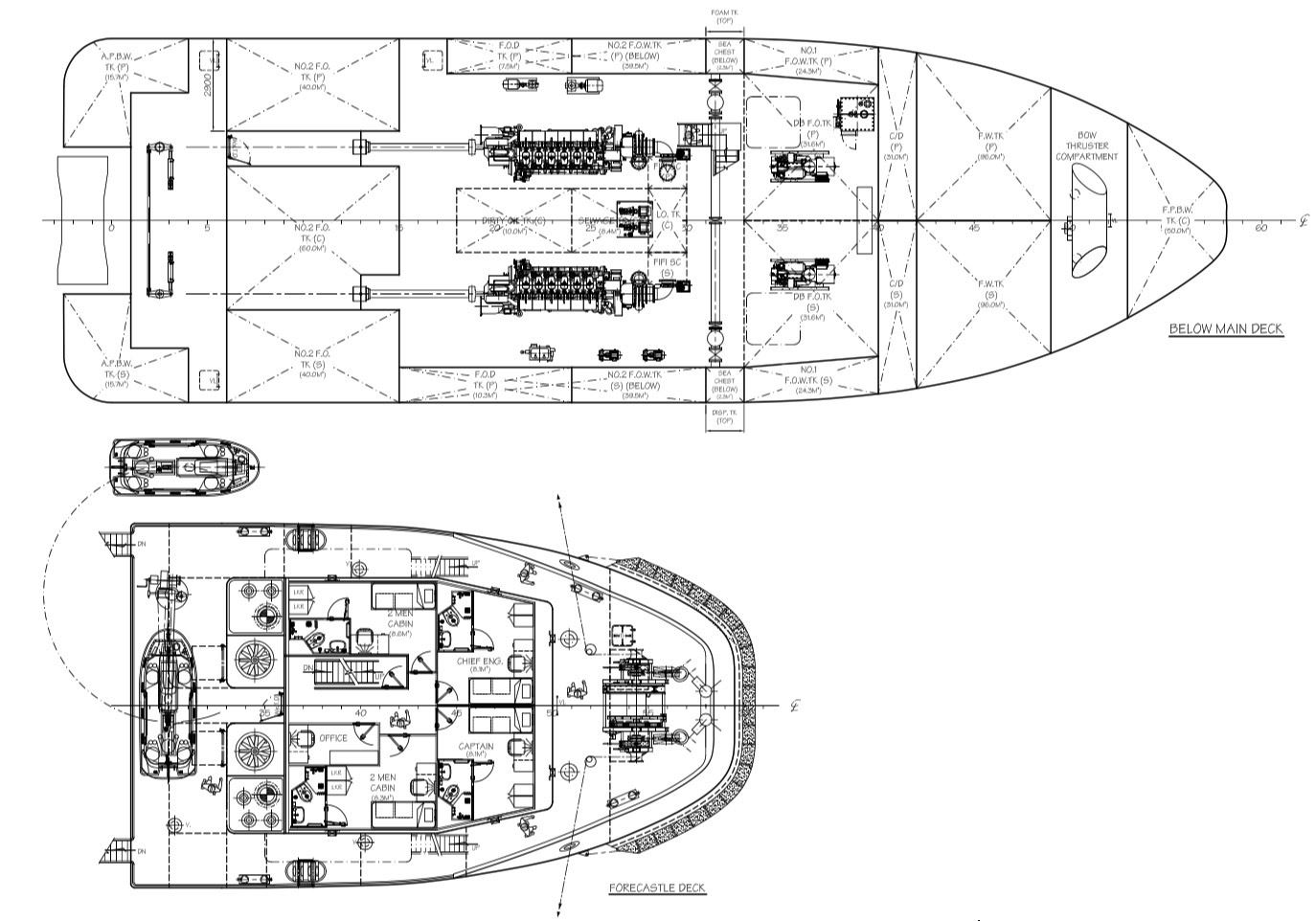

4139: NEW BUILD - 37m 55T BP Twin Screw Tug - 002.jpg
