NEW BUILD - 15m Coastal Research Vessel



Listing ID:
1650

Description:NEW BUILD - 15m Coastal Research Vessel
Date Launched:Built to Order
Length:15.6m (51ft 2in)
Beam:5.64m (18ft 6in)
Draft:0.75m (2ft 5in)
Location:Ex Factory, South Africa
Broker:Geoff Fraser

Send Enquiry


General Description:

Please scroll down to view more photos


PRINCIPAL DIMENSIONS & HULL
Designers: Icarus Marine
Survey: SAMSA – Category B ≤ 12 pax, >9m, <25GT
Hull Design: Planing Catamaran
Vessel Type: Monohull / High Speed / Coastal Research Vessel
Length Overall: 15.6m
Length Waterline: 13.9m
Breadth Overall: 5.64m
Draught: 0.75m
Light Displacement: 16.8 Tons
Gross Tonnage: 24.95 Gross Tons
Loaded Displacement: 21 Tons (deck loading @ 1.5T per m2 )
Construction Material: Hull - 5083 Marine Grade Aluminum H111
Fendering; 130mm D-Rubber
Hydraulic A-Frame: 3.5m x 2m with 1500kg SWL
Hydraulic Winch: 2000kg SWL roof top winch with 500m 8mm Dyneema
Hydraulic Anchor Winch: Bow winch with 220m chain / rope
Davits: 2 x 300k SWL with foot switches
Aluminium Plate Thickness: Hull Bottom 6mm, Shell Plate 4/5mm, Superstructure 4/5mm
Deck Area: >24m2

CAPACITIES
Fuel Oil (Diesel DIN EN 590): 2 x 1600 litre diesel tanks
Fresh Water: 2 x 215 litre tanks
Black Water; 1 x 400 litre tank
Crew: 2
Passengers: 10
Air Conditioning: 2 x Webasto 16000 btu units
Deck Cargo (loading): 2.0 tons (1.5 ton per m2)
Sleeping Arrangements: 4 fixed bunks + 2 fold down bunks in stbd sponson
Cargo: 2000kg max / deck loading 1 ton per m2

PROPULSION & PERFORMANCE
Propulsion: 2 x FPT (Iveco) C90 580 - 580 hp inboard diesel engines
Speed (Max- Full Fuel / Passengers): 30 knots @ 100% MCR
Speed (Cruising): 22 knots
Range (at Cruising Speed): 440 nm
Main Engines: 2 x FPT (Iveco) C90 580hp Marine Diesels
Power: 1160 hp @ 2450 rpm
Fuel Consumption: 160 l/hr @ 22knots
Gearboxes: 2 x Twin Disc
Waterjets: 2 x Hamilton HJ322
Controls: 2 x Hamilton Mouseboat / Jet anchor – (incl 2n d helm on aft deck)
Engine Rating: Light Commercial (1000 – 2000 hours per year)

NAVIGATIONAL & COMMUNICATION SYSTEMS
RADAR; 1 x Furuno TZTL15F Plus HDRS 4NXT Dome 36nm
DGPS: 2 x Furuno TZ Touch 2 (second unit at aft helm station)
Magnetic Compass: 1 x Richie Voyager Binnacle Mount with Light
Digital Echo Sounder: 1 x Furuno TZTL15F Plus Transducer
AIS: 1 x Furuno FA50
Autopilot: 1 x Furuno Navpilot 711
Navtex Receiver: 1 x Furuno NX700A
Anemometer: 1 x Furuno F170
Duplex VHF: Furuno LH500 8 Channel
Loudspeaker/ PA/ General Alarm: 1 x Furuno LH 3000 with Talk Back
Portable 2-way Transceivers: 2 x Icom M35
CCTV: Hikvision 6 camera system

ACCOMMODATION
Wheelhouse; Raised – front of main cabin
Cabin Areas: Saloon table and seating / ROV workstation
Restrooms: 1 x with Macerator Toilet/ Handbasin/ Hot and Cold Shower
Pilot Seats: Helm and ROV pilot seating HO Bostrom Seapost
Crew Seats: 2 x Vetus helm seat either side of pilot seat
Passenger Seating: 8 in cabin / 6 on top observation deck
Sound Attenuation: Thermal/Acoustic Cladding – Engine Rooms, Cabins
Galley Area: 1 x Fridge / Sink / Microwave / Griller
Wet Lab on Aft deck: 1 x 210L Chest Freezer
Bunks: 4 below main deck and 2 above (includes 2 x drop down bunks)
Monitors: As per Client request
Flooring: Class approved vinyl flooring – color to client spec

FIRE & SAFETY
Portable Fire System: Extinguishers / Fire pump with hose
Machinery Space: FM 200 fixed suppression system
Materials Fire Rating: All Cladding and flooring to Class requirements
Alarms: Fire Alarms and Sensors as per Tech Spec
Life Rafts: 1 x 12 Man Viking with Hydrostatic Releases
Lifejackets: 12 x SOLAS approved 150N
Other Safety: EPIRB / SART etc as per SOLAS / Flag or Class
Search Lights:1 x Roof Mounted 1000W remotely operated
MOB Recovery System: 2 x Work davits and gunwale openings
Medical: Basic First Aid Kit only
Bilge System: 8 x Manual & 8 x Electric Bilge pumps with alarms
Machinery Ventilation: All ventilation ducts fitted with fire flaps and fuel shut offs
Lighting: Remote operated Search light, Deck flood lights, interior lights

ELECTRICAL SYSTEMS
Diesel Generator: 2 x 8kVa Fisher Panda, 230V 50Hz (1 duty 1 standby)
Hydraulic Generator: 2 x PTO mounted Hydraulic pumps
Shore Power: 3 Phase, Isolation transformers (Victron)
House Bank: 24v Battery system with 5kVA invertors (Victron)
Distribution: 230V and 24V systems to ABYC standards
Cabling: Class Approved Marine Cabling
Antifoul System: Ultrasonic Antifoul System
Lighting: Suitable placed for full deck cabin and machinery space lighting

REGULATORY
Flag State: Flag State costs not included. Client to arrange
Class Society: Bureau Veritas – Hull design approval only
Class Notation: HSC Coastal Craft

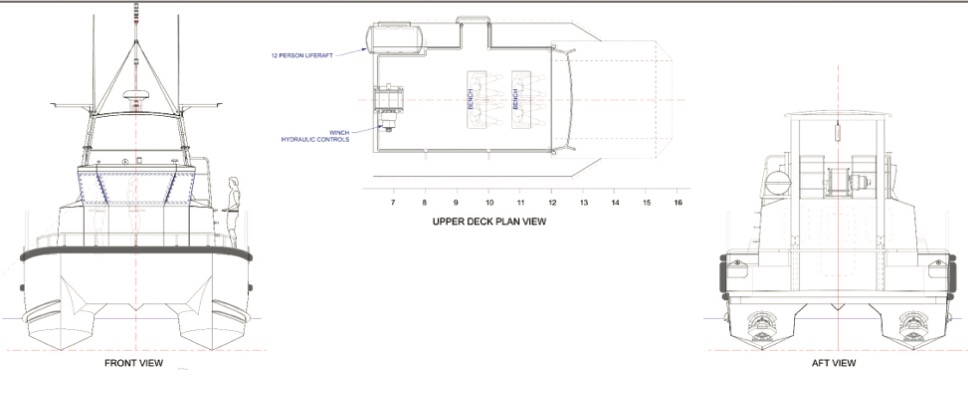

1650: NEW BUILD - 15m Coastal Research Vessel - 090.jpg





1650: NEW BUILD - 15m Coastal Research Vessel - 091.jpg




1650: NEW BUILD - 15m Coastal Research Vessel - 092.jpg






Download as PDF
