5,150 BHP Anchor Handling / Supply Vessel



Listing ID:
2146

DESCRIPTION:5,150 BHP Anchor Handling / Supply Vessel
DATE LAUNCHED:2005
LENGTH:59.25m (194ft 4in)
BEAM:14.95m (49ft)
DRAFT:4.95m (16ft 2in)
BROKER:John Kearns

Send Enquiry


General Description:

Please scroll down to view more photos


PRINCIPAL PARTICULARS
Length Overall: 59.25 m
Length Waterline: 56.00 m
Breadth Moulded: 14.95 m
Depth Moulded: 6.10 m
Draft (max): 4.95 m
Built: 2005, China
GRT / NRT: 1500 / TBA
Class: ABS
Notation: ABS + A1E Offshore Support Vsl 200 mt static @ 1st layer & Fire figthing Vsl Class 1 + AMS
Flag: Singapore
Call Sign: TBA

PERFORMANCE
Maximum Speed: 13 knots
Economical Speed: 10 knots
Type of Fuel: Marine Gas Oil
Fuel Consumption: 19 m3/24 hours @ max speed
12 m3/24 hours @ econ speed
Bollard Pull: 65 mt

CARGO CAPACITIES
Deadweight: 1400 mt
Deck Cargo: 500 mt
Deck Strength: 7.5 mt/m2 uniform loading
Clear Deck Area: 350 m²
Fuel Oil: 540 m³
Fresh Water: 360 m³
Ballast/Drill Water: 400 m³
Liquid Mud: 370 m³
Cement Tank :187 m³ (4 x 1650 ft³)
Freezer / Chiller: 10 m³ / 10 m³
Foam / Detergent: 10 m³/ 10 m³
Rig Chain Locker: Nil

PUMPS
Fuel Oil: 1 x 150 m3/hr @ 75m head; Azcue
Fresh Water : 1 x 125 m3/hr @ 75m head; Azcue
SWB/Drill Water:  1 x 100 m3/hr @ 75m head; Azcue
Liquid Mud: 2 x 70 m3/hr @ 85m head; (SG 2.5) Mission
Bulk Cement 2 x 13 m3/min @ 80 psi air compressors;
Airman SWS 75S-57UP system fitted with 2 refrigerated air dryers

PROPULSION SYSTEM
Main Engines:  2 x 1920 kw (2575 bhp) @ 1600 rpm
Caterpillar 3516B
Main Generators: 3 x 340 kw @ 1500 rpm Caterpillar 3408  c/w Leroy Somer LSAM.1L9 alternators SJS01 Konsberg rated at 320 Kw/415 V/3 Ph/50 Hz
Emergency Generator: 1 x 52 kw @ 1500 rpm Olympian GEP 65-3 c/w Leroy Somer LL2014H alternators rated at 52 kw/415 V/3 Ph/50 Hz
Shaft Alternator: Nil
Bow Thruster: 1 x 325 kw electric-driven Kawasaki KT-55B3 tunnel type (CPP); 5.6T thrust
Stern Thruster: Nil
Steering Gear: 2 x Kobelt; 4 TM; 2 x 35 deg rudder angle
Propulsion: 2 x CPP Type with Kort Nozzle; Berg
Rudders: 2 x high performance streamline type

DECK EQUIPMENT
Anchor Windlass: 1 x electro-hydraulic Mentrade MM1022-HAW
Drum: Nil
Gypsies: suit' for 36 mm (Ø) chains CO2 system in engine room rated pull 10 mt @ 9 m/min
Warping drum: 400 mm (dia) x 450 mm (L) rated pull 2 mt @ 10 m/min
Bow Anchors: 2 x 1305 kg HHP anchors
Chains: 440 m (L) x 36 mm (dia) Grade U2 (each side)
Capstan 2 x 5 mt @ 15m/min electro-hydraulic; Mentrade MM1022-HVC
Tugger Winch: 2 x 10 mt @ 15m/min electro-hydraulic; Mentrade MM1022-HUW
Drum Capacity : 220 m (L) x 22 mm (dia) SWR
Towing/AH Winch: 1 x electro-hydraulic double drum; Mentrade MM1022-AHTW
Upper Drum Cap (Tow): 1 x 1000 m (L) x 56 mm (Ø) SWR
Lower Drum Cap (AH): 1 x 1000 m (L) x 56 mm (Ø) SWR
Line Pull: 150 mt @ 6.0 m/min at 1st layer
71 mt @ 12 m/min at 1st layer
23.5 mt @ 36 m/min @ 1st layer
50 mt @ 18 m/min at 1st layer
Stall Pull: 165 mt @ 1st layer
Brake Capacity: 200 mt static @ 1st layer
Remote control from aft control stand in Flag Singapore wheelhouse
Gypsies: NIL
Warping Drums: NIL
Stern Roller: 4.50 m (L) x 1.60 m (dia); SWL 180 mt
Shark Jaws: 1 set electro-hydraulic Karmfork - SWL 300 mt
Tow Pins: 2 x electro-hydraulic with turntable top flaps
Rope Reel: 1 x electro-hydraulic Mentrade MM1022-HSR Fuel Consumption 19 m3/24 hours @ max speed suit' for 1000 m (L) x 56 mm (dia) SWR
Deck Crane: NIL

ACCOMMODATION
Berths: 4 x 1 berth cabins = 4
3 x 2 berth cabins = 6
8 x 4 berth cabins = 32
Total= 42
Hospital 1 x 1 berth cabin = 1
All cabins fully air-conditioned & c/w attached washroom

RADIO & NAVIGATION EQUIPMENT
GMDSS: Furuno RC-1800T (Area 3) comprising :
SSB: 1x Furuno FS-2570 with built in DSC
Inmarsat C: 2 units; Furuno Felcom 15
VHF Radio: 2 x Furuno FM 8500 with built-in DSC
Navtex Receiver: 1 x Furuno NX 500 (518 KHz)
SART: 2 x McMurdo S4 (9 GHz
EPIRB: 1 x McMurdo E3A
Portable VHF Radios: 3 x McMurdo R2 (25KHz)
Radar: 1 x Furuno FR 2115 (X Band)
1 x Furuno FR 1510 MK3
Echo Sounder: 1 x Furuno FE 700
DGPS: 1 x Furuno GP 90
Gyrocompass: 1 x Anschuetz Standard 22
Autopilot: 1 x Anschuetz Nautopilot NP60
Magnetic Compass: 1 x Cassens & Plath Reflecta 3
Weather Fax: 1 x Furuno FAX 207
Speed Log : 1 x Furuno DS-80
AIS: 1 x Furuno FA-100
DP: MNI
Joystick:  C-Joy SJS01 Konsberg
Vessel also fitted with Vingtor PA Talkbalk System & Self-Powered Telephones

FIRE-FIGHTING EQUIPMENT & ANTI-POLLUTION EQUIPMENT
EXTERNAL
FiFi System: Class 1 with water curtain all round
Fire Pump: 2 x 1550 m3/hr @ 13 bar Unitor SFP 250x350 driven by front PTO of M/E
Monitors - (water/foam): 1 x 300-1200 m3/hr; Unitor FFS1200LB
- (water):  1 x 1200 m3/hr; Unitor FFS1200LB
Throw length / height 120 m / 45 m
Oil Dispersant System: 1 set Unitor c/w 2 spray booms

INTERNAL
Emergency Fire Pump: 1 x 25m3/hr at 45m head; Azcue
BA Recharging Comp: 1 x 260 ltrs/min @ 300bar Coltri MCH16/E-TS1
CO2 system in engine room
Fire Detection & Alarm System in living spaces & engine room

MISCELLANEOUS
Search Lights: 3 x 2000 W TG28-A
Floodlights: 5 x 1500 W TG30
Liferafts 6 x 25 men SOLAS Approved type
Rescue boat: 1 x 6 men semi-rigid inflatable c/w outboard motor Jiangyin Wolong FRP
Oily Water separator: 1 x 1 m3/hr c/w 15 ppm alarm, Jiangsa Nanji
Water Maker: 1 x 5 m3/day Reverse Osmosis, Seanly Tech
Sewage Treatment Plant: 1 x 56 men/day, Jiangsa Nanji

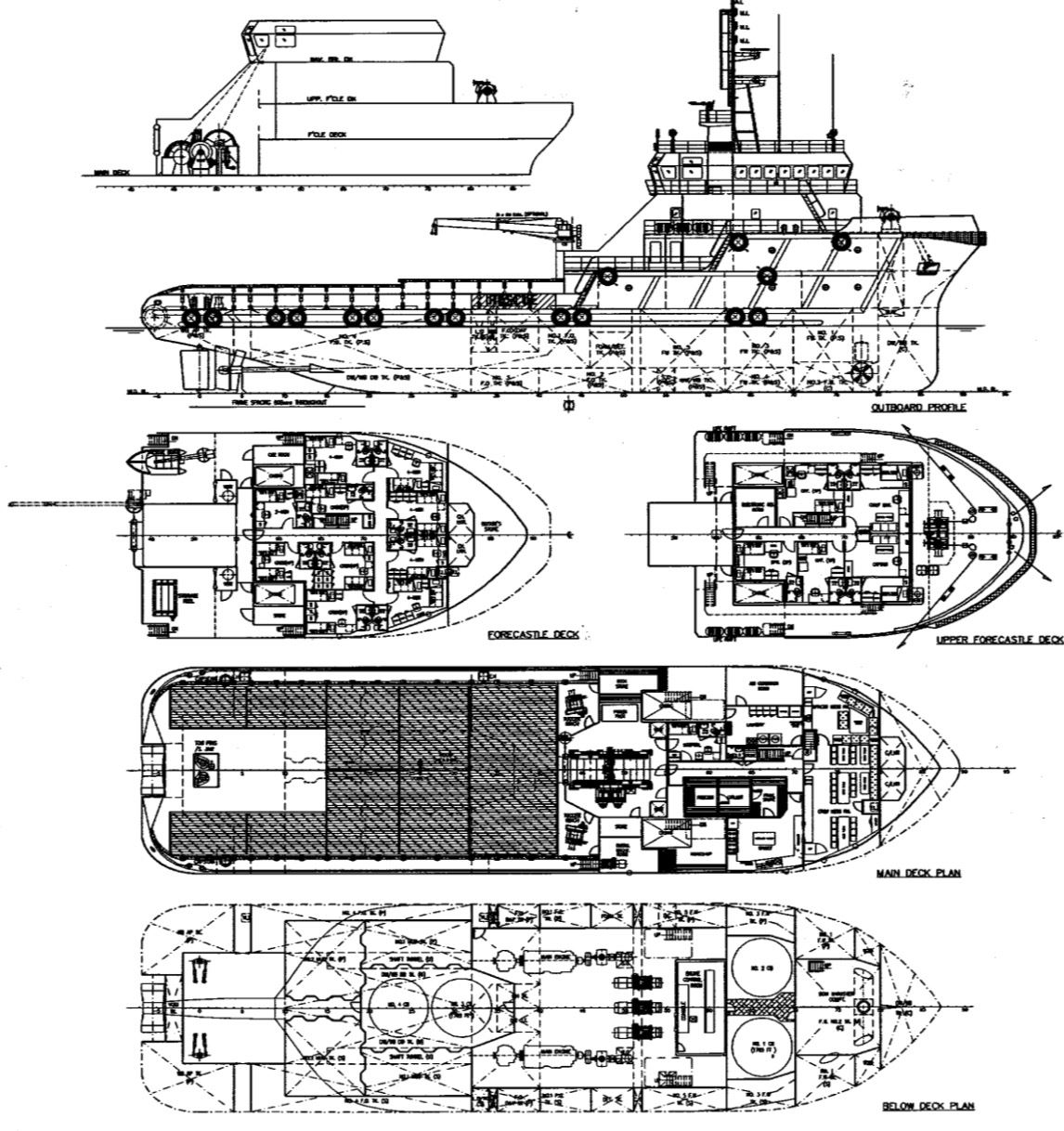

2146: 5,150 BHP Anchor Handling / Supply Vessel - 095.jpg



Download as PDF



IMPORTANT: The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
