23m Damen Tug



Listing ID:
2156

DESCRIPTION:23m Damen Tug
DATE LAUNCHED:2007
BEAM:9.49m (31ft 1in)
DRAFT:3.40m (11ft)
LOCATION:Vietnam
BROKER:Richard Pierrepont
PRICE:USD 2.5 million
LENGTH:22.57m (74ft)

Send Enquiry


General Description:

Please scroll down to view more photos


Flag: Liberia
Built: 2007
Yard: Damen Shipyards Grinches, Netherlands
Class: BV + Hull. Mach Tug Unrestricted Navigation
LOA: 22.57 metres
Beam: 7.84 metres
Depth: 3.78 meters
Draft: 3.40 metres on SSW
GT / NT: 140 / 42

Accommodation
Accommodation: 8 persons
Crew Complement: 4 persons

Propulsion / Auxiliary Engines
Main Engines: 2 x Caterpillar 3512B TA/B, 1014 KW at 1600 RPM
2 x REINTJESS / WAF 665L Gear Box.
2 x fixed pitch propeller with kort nozzle.
Auxiliaries: 2 x Caterpillar C 4.4 t with Leroy Somer Generator, 56.4 KW at 1500 RPM
Bunkers / fuel in use: MGO, ISO 8217:1996 - DMA

Speed and Consumption:
Idle (free running)


Daily MGO Consumption



Engine (RPM)

Speed (knots)

Main Engine (MT)

Generators (MT)

Total (MT)

Max Power

1600

12.0

10.0

0.4

10.5

Cont. rate

1400

11.2

7.0

0.4

7.4

Eco speed

1100

10.5

3.5

0.4

3.9

Slow

900

8.0

1.9

0.4

2.3


Note: Speed and consumption pending the towing object.

Tank Capacity
Bunker Tank Capacity: 36.8 CBM
Fresh Water Capacity: 8.60 CBM
Bollard Pull: 38.8 Tonnes (average), 39.3 Tonnes (maximum)

Navigational Equipment
Radar: 2 Furuno FR-8252 and FR-8082
GPS Navigator: 1 Furuno GP - 150
Gyros Interface:  1 SIMRAD G-151
Auto Pilot: 1 SIMRAD AP-50

Communication Equipment
VHF 1 Sailor RT 2048 + DSC
VHF 2 Sailor RT 2048 + DSC
Radio Furuno SSB FS-1570
NAVTEX Furuno NX-700

Towing Equipment
Towing Hook - SWL 450 kN
Towing winch on aft deck with a spooling device. Brake holding force 100 ton in 1st layer
Towing wire - 500 metre with diameter 44mm fitted on towing winch drum equipped with wire socket MBL 170 MT

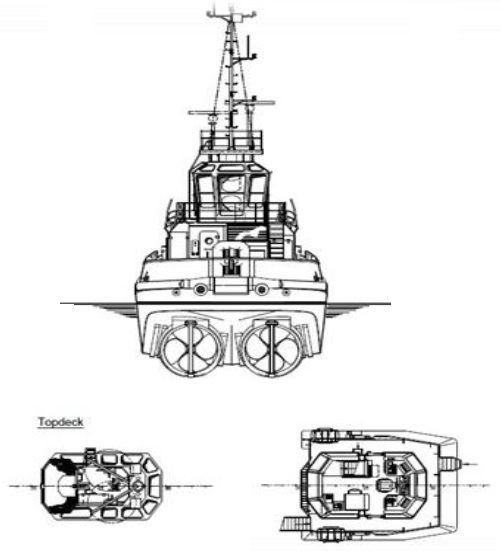

NOTE: PHOTOS ARE OF AN IDENTICAL SISTERSHIP

2156: 23m Damen Tug - 095.jpg

2156: 23m Damen Tug - 096.jpg

Download as PDF



IMPORTANT: The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
